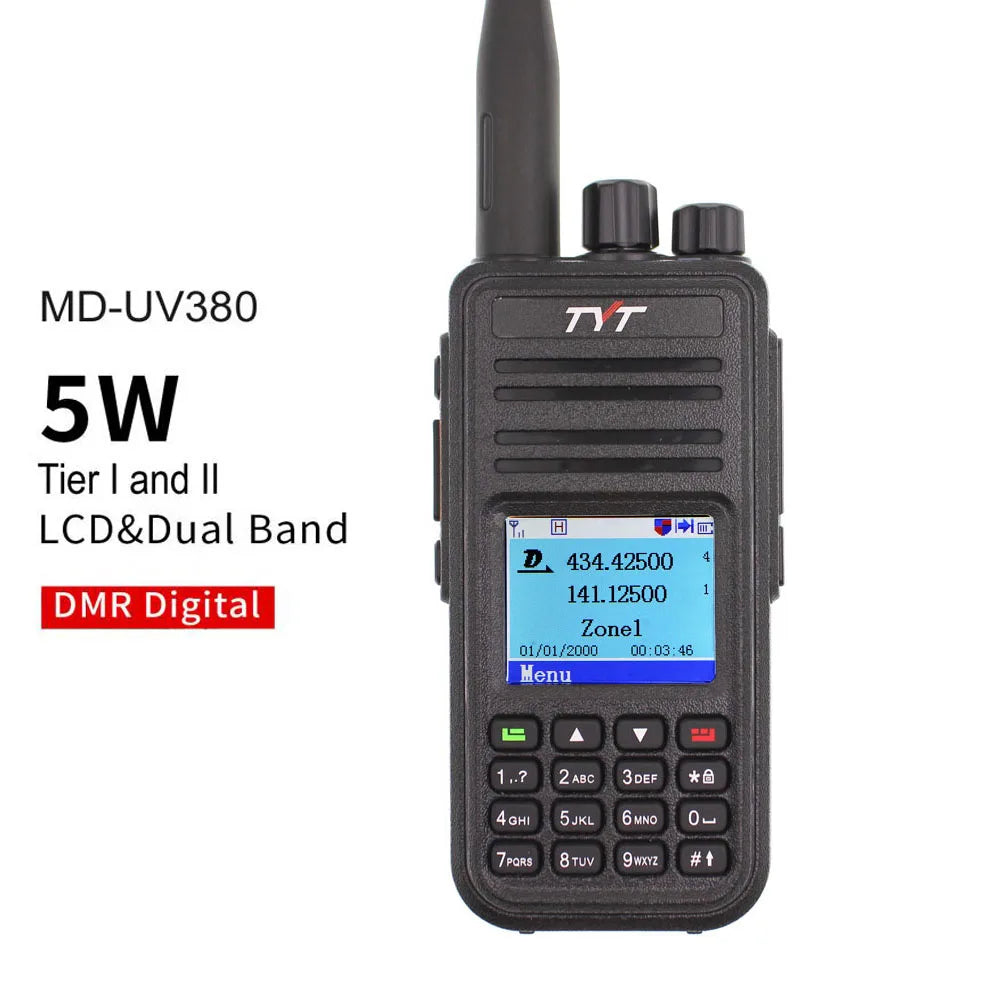

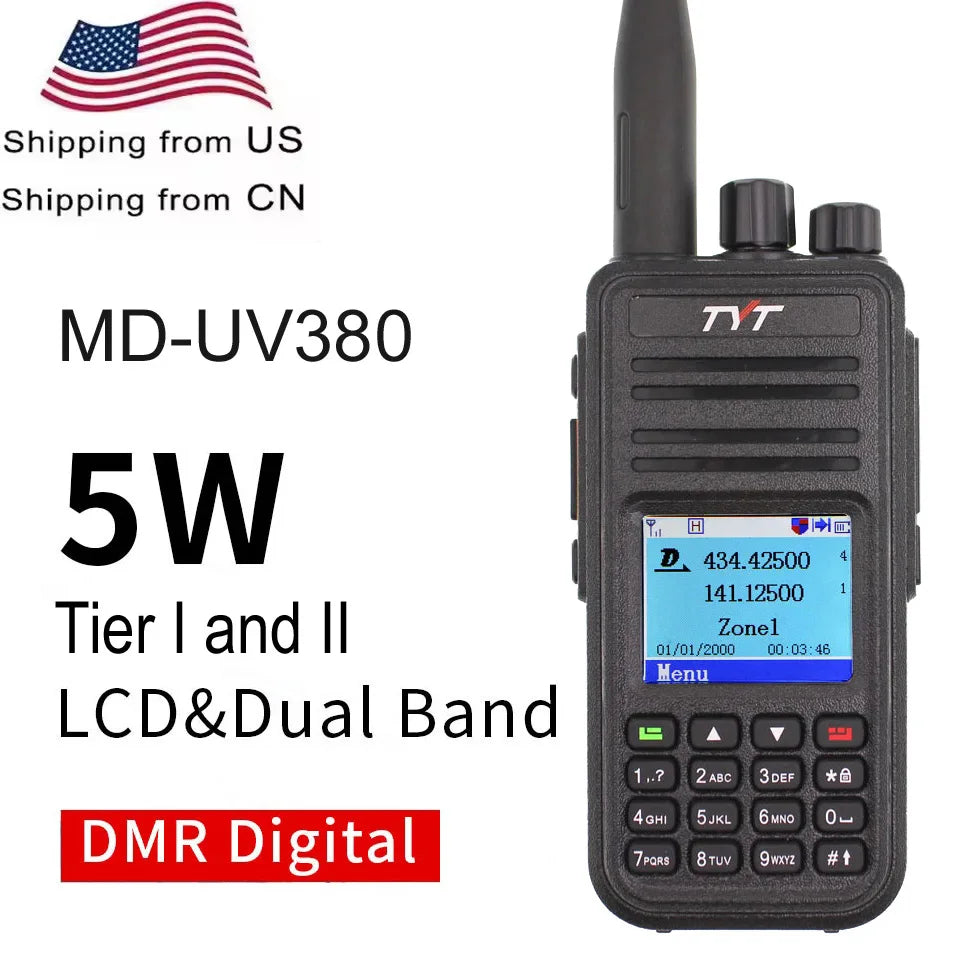

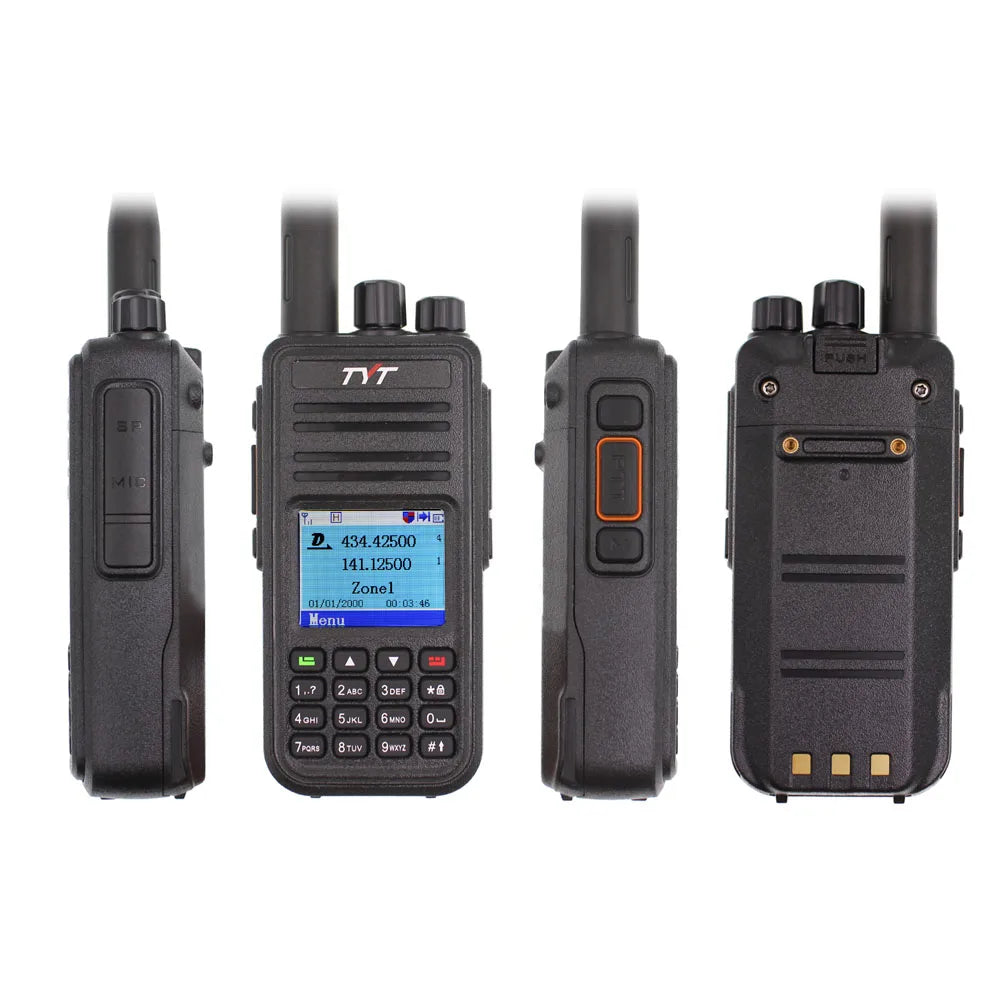

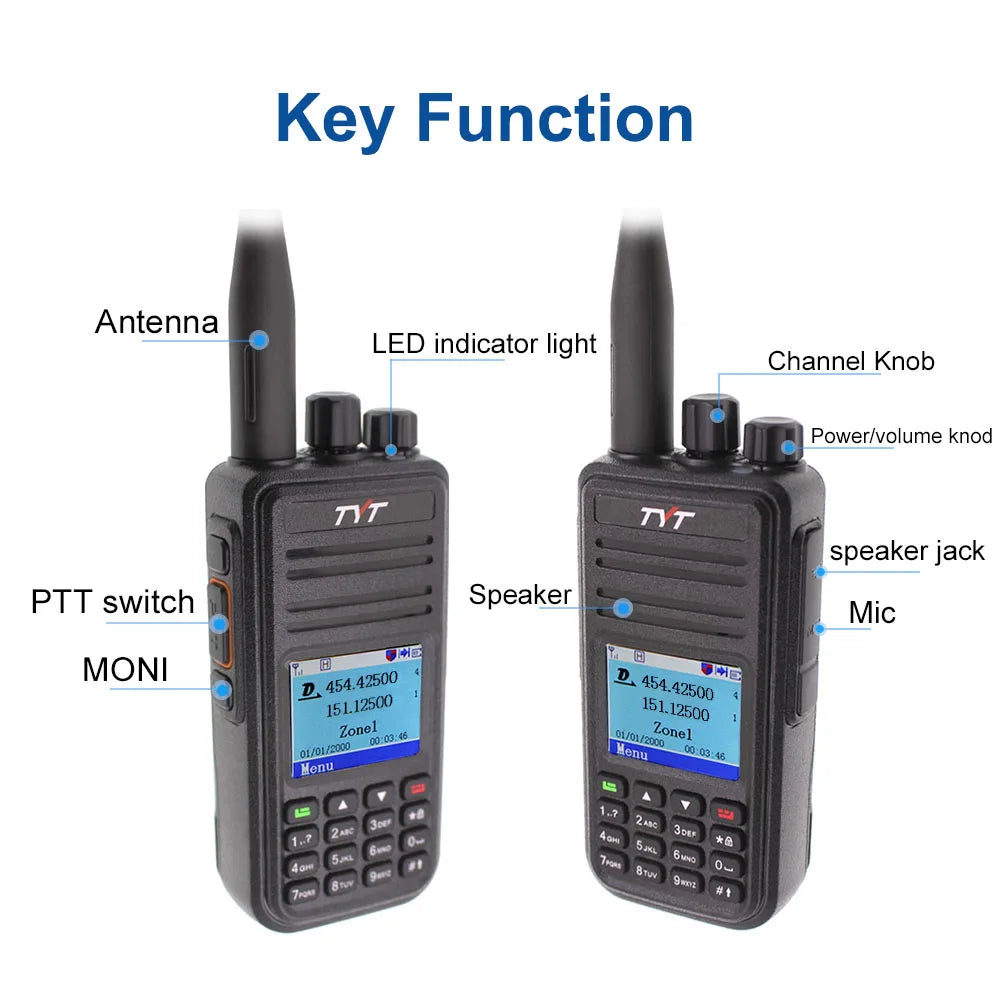

TYT MD-UV380 DMR Digital Two Way Radio Dual Band 136-174Mhz & 400-480MHz MD-380 Dual Time Slot Transceiver Walkie Talkie + USB

$102.47 USD

~~$0.00 USD~~ $102.47 USD

Sale Sold out

SPECIFICATIONS

Battery Capacity(mAh): 2000

Battery Included: Yes

Brand Name: TYT

Certification: CE

Dimensions: 131x61x36mm

Frequency Range: 136-174Mhz &400-480MHz

High-concerned chemical: none

Is_Display: Yes

Material: plastic+metal

Maximum Range: 3km-5km

Model Number: MD-UV380

Origin: Mainland China

Output Power(w): 3w-5w

Rechargeablebatteryincluded: Yes

Storage Channel: 3000

Use: others

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: IP55

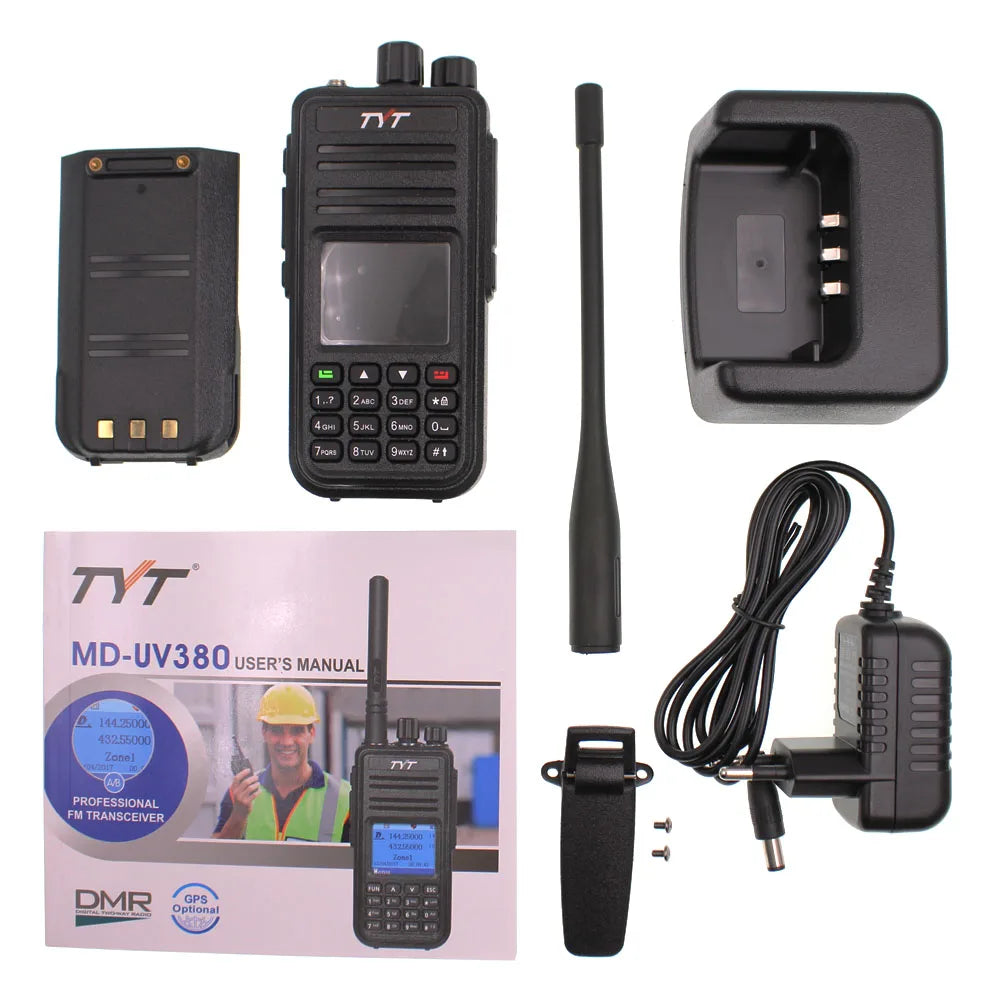

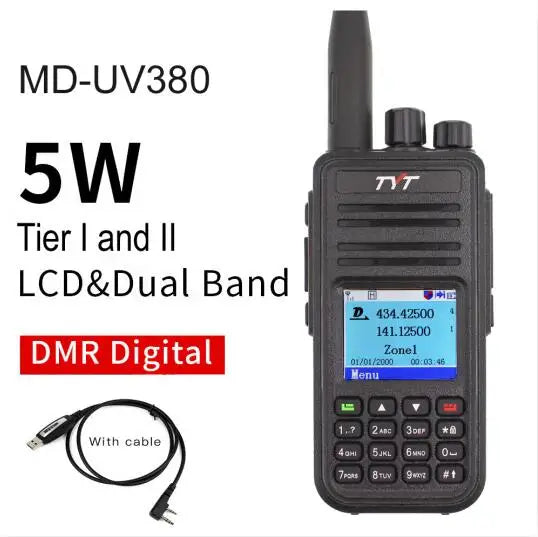

TYT MD-UV380 Dual Band DMR Digital Two Way Radio 136-174Mhz & 400-480MHz woki toki MD-380 dual time slot transceiver + USB cable

Note: if you need software, please contact us.

Factory 100% original product, please don't to FLASH the machine privately, because the version of each machine is different.

Main Functions

Time-Division Multiple-Access(TDMA) digital function

Compatible with other brandTier I and II

Comply with digital protocol ETSI TS 102 361-1,-2,-3

Analog and digital combined

Dual band,dual display,dual standby

Up to 3000 channels

10000 contacts

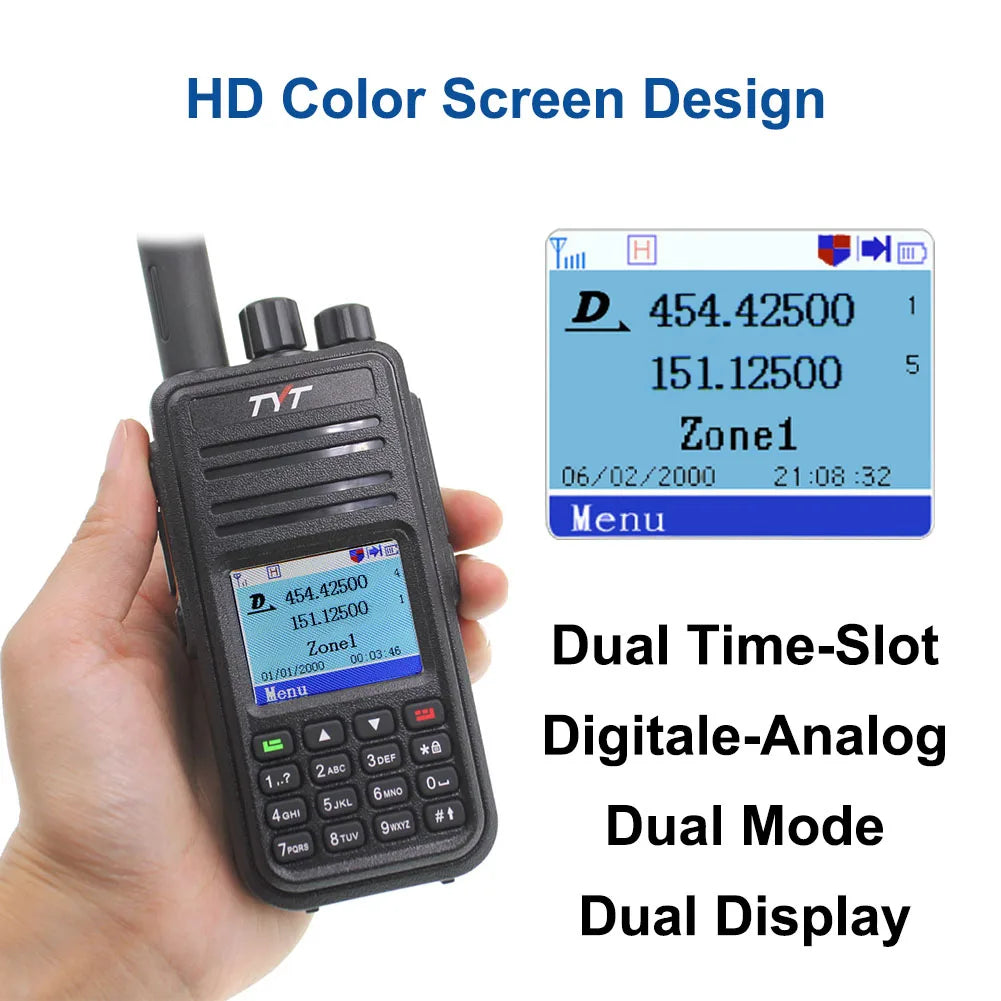

Color LCD display

Transmit interruption

Group call match(Promiscuous)

Private call match(Promiscuous)

Dual time slot for repeater

Dual time slot for point to point

Lone worker

Encryption function

Single call,group call,all call

Remote kill/stun and activate

8 hours of recording

Message function

CTCSS/DCS

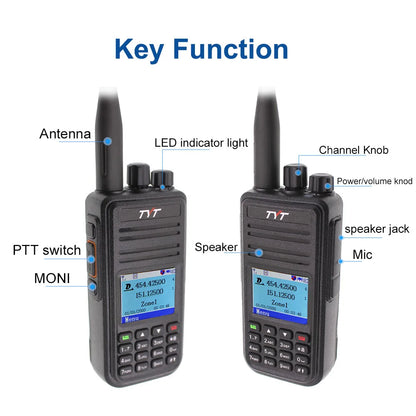

Programmable functional keys

Item number	MD-UV380
General
FrequencyRange	136-174Mhz &400-480MHz (program)
Channel No.	3000
Antenna impedance	50Ω
Operating Voltage	7.4 V DC
Operating Temperature	-30°C~+60°C
Dimension(W x H x D)	131x61x36mm
Battery	2000mAh Li-ion
Weight	258g
Transmitter
Output power	≤5W(H) ≤1W(L)
Vocoder type	TDMA
Frequency Stability	± 1.0 PPM
Adjacent channel power	≤-60dB
Spurious Radiation	Antenna:9KHz-1GHz ,≤ -36dBm 1GHz-12.75GHz ,≤-30dBm
Hum and noise	-40dB *12.5KHz
4 FSK Digital Mode	12.5KHz(data only):7k60FXD 12.5KHz(data+voice)7k60FXE
Receiver
Digital sensitivity	0.25uV (BER 5%)
Audio power	1W
Autio response	+1dB-3dB
Adjacent Channel Selectivity	≤-60dB *12.5KHz
