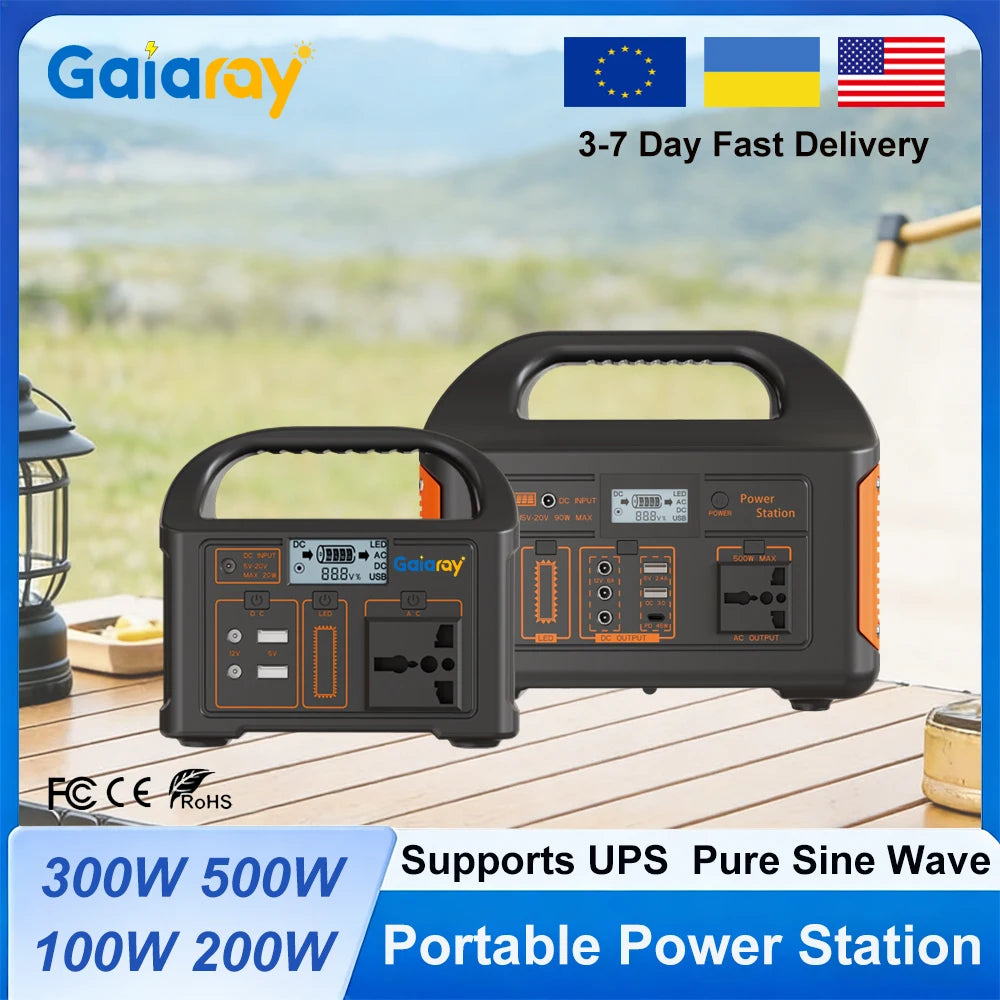

Gaiaray Portable Power Station 100W 200W 300W 500W Pure Sine Wave Solar Generator 110V/220V UPS LiFePO4 Power Plant For Camping
Gaiaray Portable Power Station 100W 200W 300W 500W Pure Sine Wave Solar Generator 110V/220V UPS LiFePO4 Power Plant For Camping
SPECIFICATIONS
AC Output Frequency: 50Hz/60Hz ±2Hz
AC Output Socket: Universal Socket
AC Output Voltage: 220V/110V±15%
Application: Home Energy
Battery Capacity: 76.8Wh/153.6Wh/256Wh/460.8Wh
Battery specifications: LiFePO4
Brand Name: GaiaRay
Certification: CE,RoHS,UL
Display screen: Yes
High-concerned chemical: None
Model Number: EG010 Portable power station
Nominal Capacity: 76.8WH 153.6WH 256WH 460.8WH
Number of cycles: 3000
Origin: Mainland China
Plug type: UK/EU/US according to your choice
Rated Power: 100W/200W/300W/500W
Replacement Battery: Yes
Set Type: Charger Sets
Shell material: ABS
Size: 160*100*143mm
Type: LiFePO4
feature 1: portable power station
feature 2: solar generator
feature 3: Camping Charging Station
Gaiaray 100W 200W 300W 500W Portable Power Station 110V/220V Solar Generator Pure Sine Wave UPS LiFePO4 Charging Station Power Bank for Camping RV
Specification:
* Rated power: 100W/200W/300W/500W
* Output waveform: Pure Sine Wave
* AC output voltage: 220V/110V ±15%
* AC output frequency: 50Hz/60Hz ±2Hz
* Conversion efficiency: maximum value>90%
* Charging interface: external charger interface and solar panel charging interface DC5521*1 (built-in solar intelligent controller)
* AC output socket: universal socket
* DC output voltage: DC5V 2.4A, 2*USB; DC12V 3A, 2*DC5521
* LED light: The LED light is high on, the LED light is half on, the LED light flashes, and the LED light is turned off in 4 states

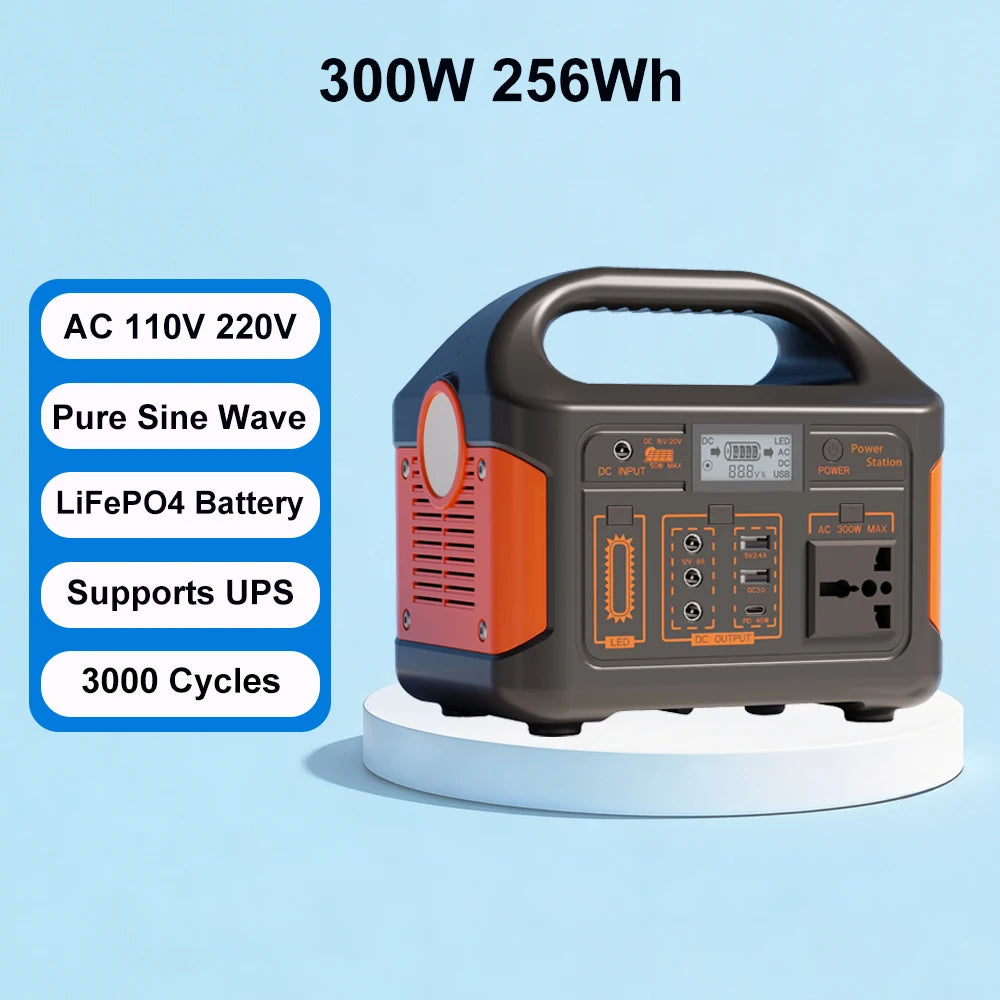

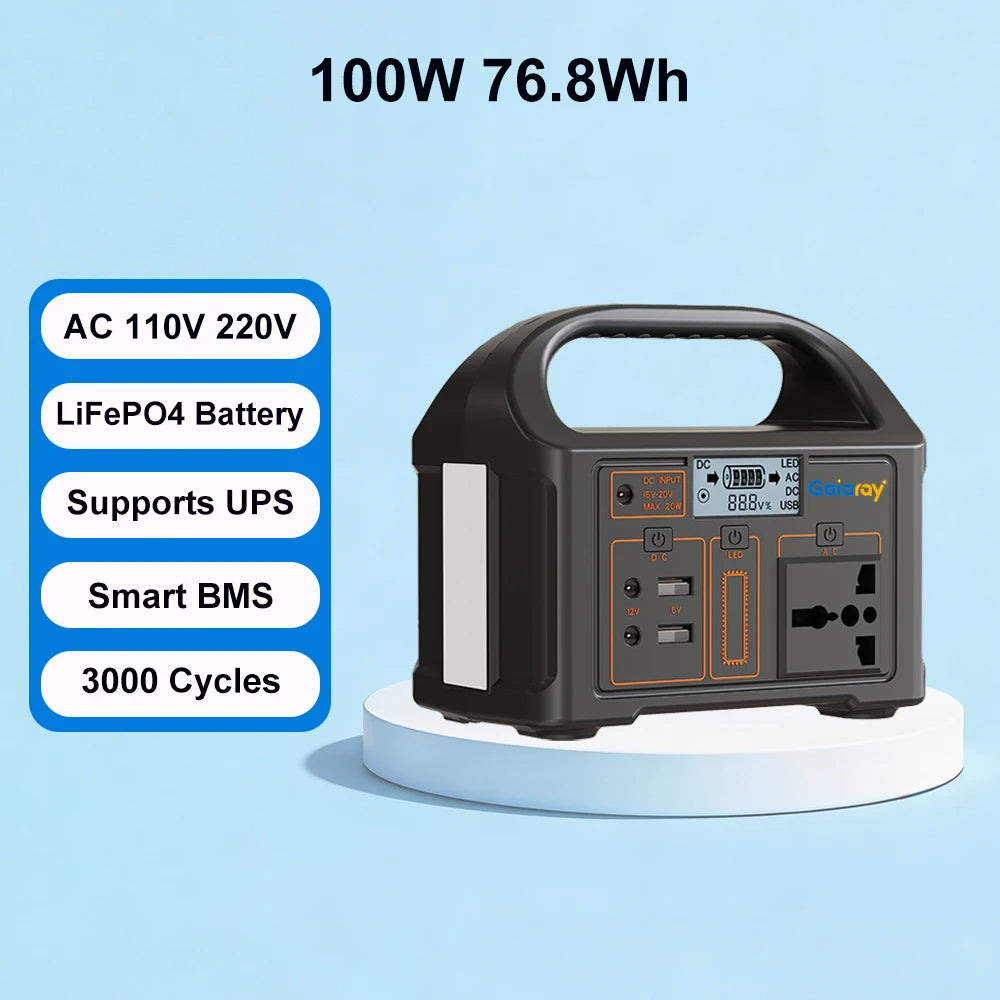

Rated Power |
100W |
200W |
300W |
500W |
Output Waveform |
Modified Sine Wave |
Modified Sine Wave |
Pure Sine Wave |
Pure Sine Wave |
AC Output Voltage |
220V±15% |
|||
AC Output Frequency |
50Hz ±2Hz |
|||
Conversion Efficiency |
Maximum Value>90% |
|||
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521*1(Built in solar intelligent controller) |
|||
AC Output Socket |
Universal Socket |
|||
DC Output Voltage |
1 USB output QC18W; 1 PD output maximum 20W; |
DC5V2.4A,USBx1; DC12V3A,DC5521 Portx2;PD 20Wx1: |
USB 5V 2.4A;QC3.0;PD45W;DC12V8A,3*DC5521 Port |
USB 5V 2.4A;QC3.0;PD45W;DC12V8A,3*DC5521 Port |
LED Light States |
LED high beam, low beam, high brightness, half light, flashing, LED light off 6 states |
|||
Battery Type |
LiFePO4 |
|||
Battery Capacity |
12.8V 76.8Wh |

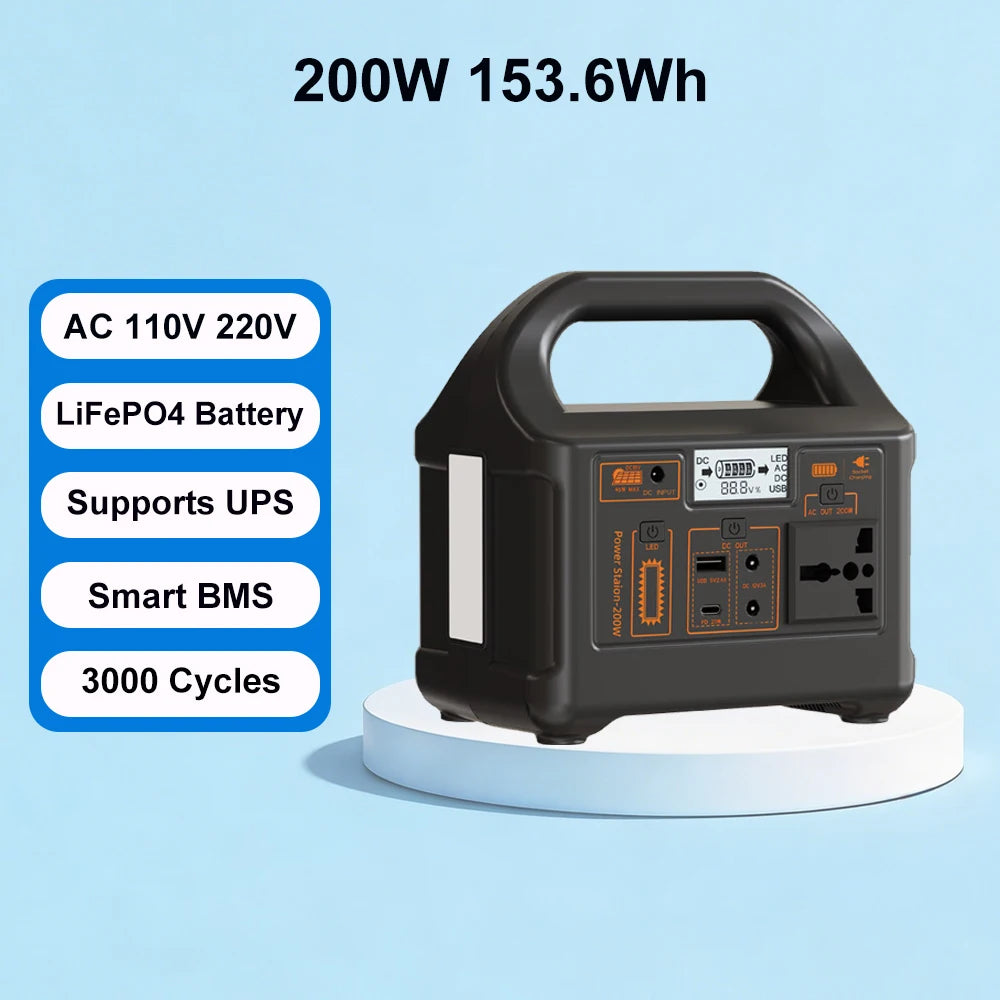

12.8V 153.6Wh |
12.8V 256Wh |
12.8V 460.8Wh |
Solar Panel Specifications |
18V20W(Optional) |
18V45W(Optional) |
15V-20V Maximum 50W (Optional) |
15V-20V Maximum 90W (Optional) |
Charging Current |
Maximum Value2A |
Maximum Value2A |
Maximum Value2.5A |
Maximum Value6A |
AC Charger Specifications |
15V1A |
15V 2A |
14.6V 2A |
16V 5A |
AC Charger Charging Time |
After full discharge, battery capacity reaches 80% after 5 hours of charging |
|||
LCD Display |
Battery capacity, battery voltage, charging status, discharge status |
|||
Heat Dissipation |
Automatic cooling |
|||
Protective Function |
Low voltage, over voltage, overload, over temperature, over current short circuit |
|||
Operating Environment Temperature |
-10~40℃ |
|||
Operating Environment Humidity |
10~85% |
|||
Storage Environment Humidity |
5~90% |
|||
Net Weight(kg) |
≈1kg |
≈1.75kg |
≈2.9kg |
≈5.36 |
Product Size D*W*H(mm) |
253*84*214 |
180*130*185.5 |
211*160*196 |
271*172*228 |

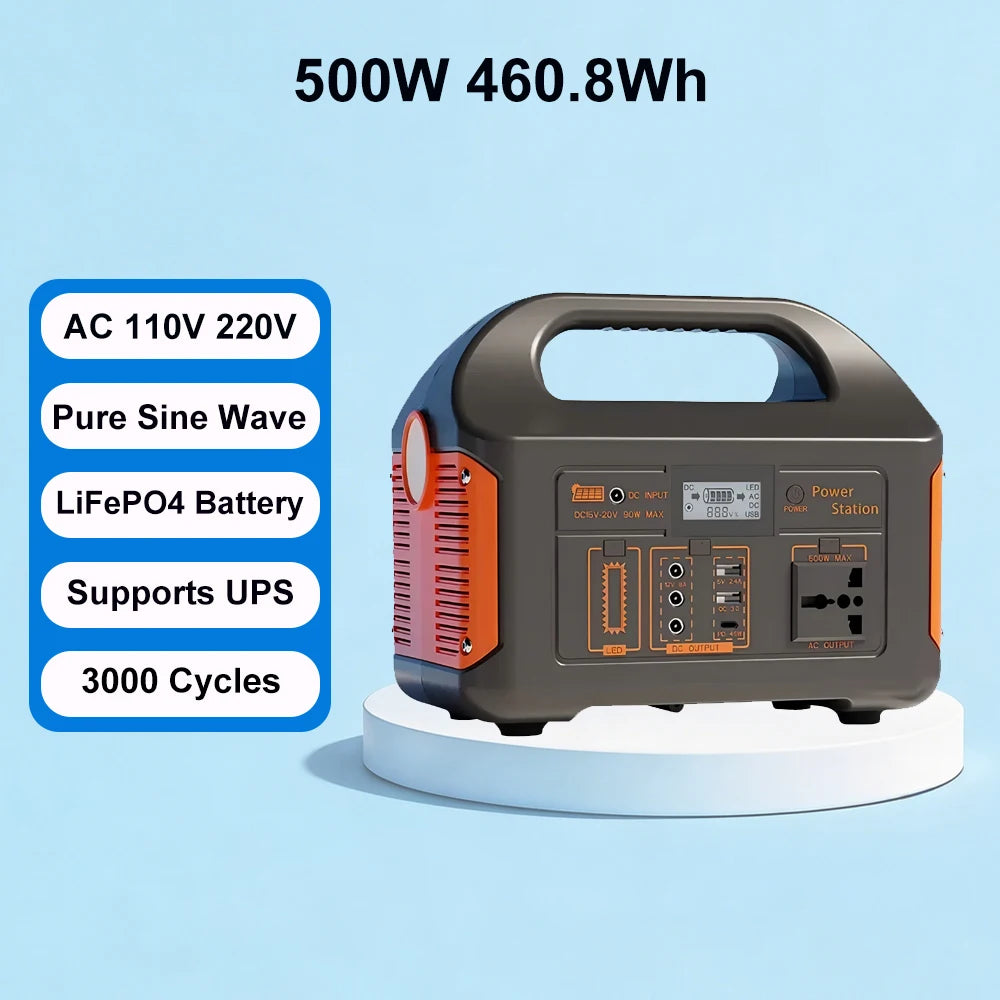

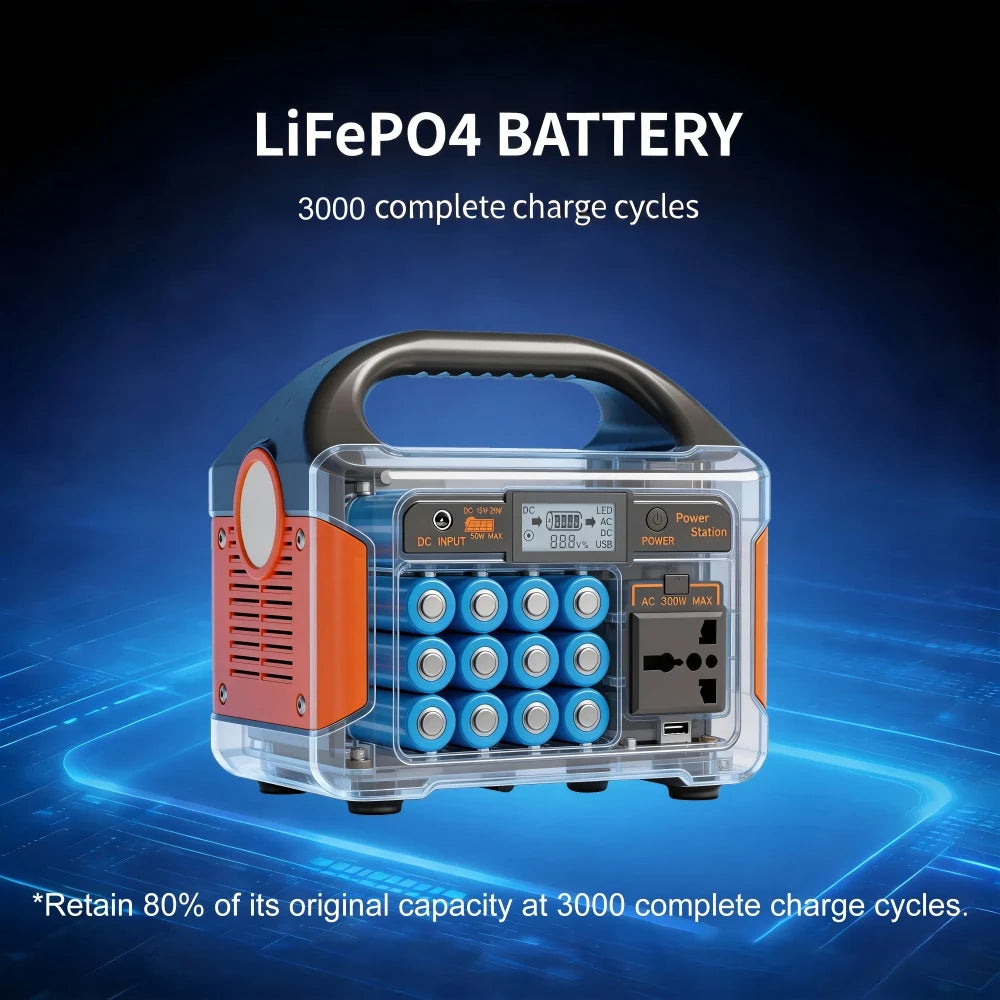

【High Quality LiFePO4 Battery】
The power generator is equipped with a Lithium Iron Phosphate battery that guarantees over 3000+ charge cycles. This high-quality power battery pack ensures a longer lifespan and safer use.

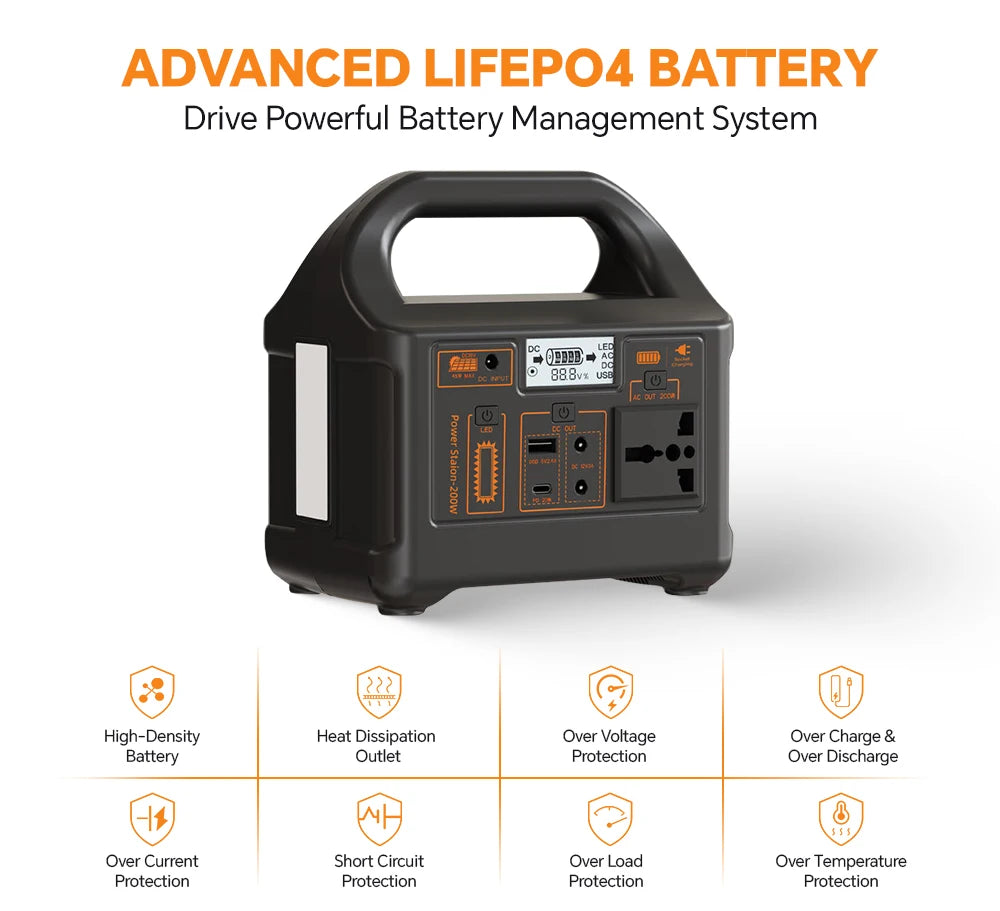

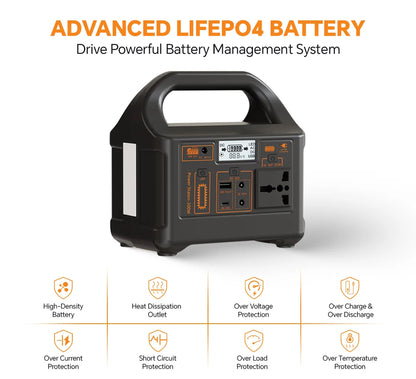

【Safety & Long Life 】
Advanced BMS technology provides multi-layered protection, featuring built-in overcharge, overload, overheat, and low-voltage protection functions. This ensures reliable operation and extends battery life, guaranteeing safe device charging and establishing a dependable backup power source.

【Pure Sine Wave Output】
The power station delivers a pure sine wave output with stable, interference-free waveforms. It matches household mains power perfectly and is compatible with all devices.

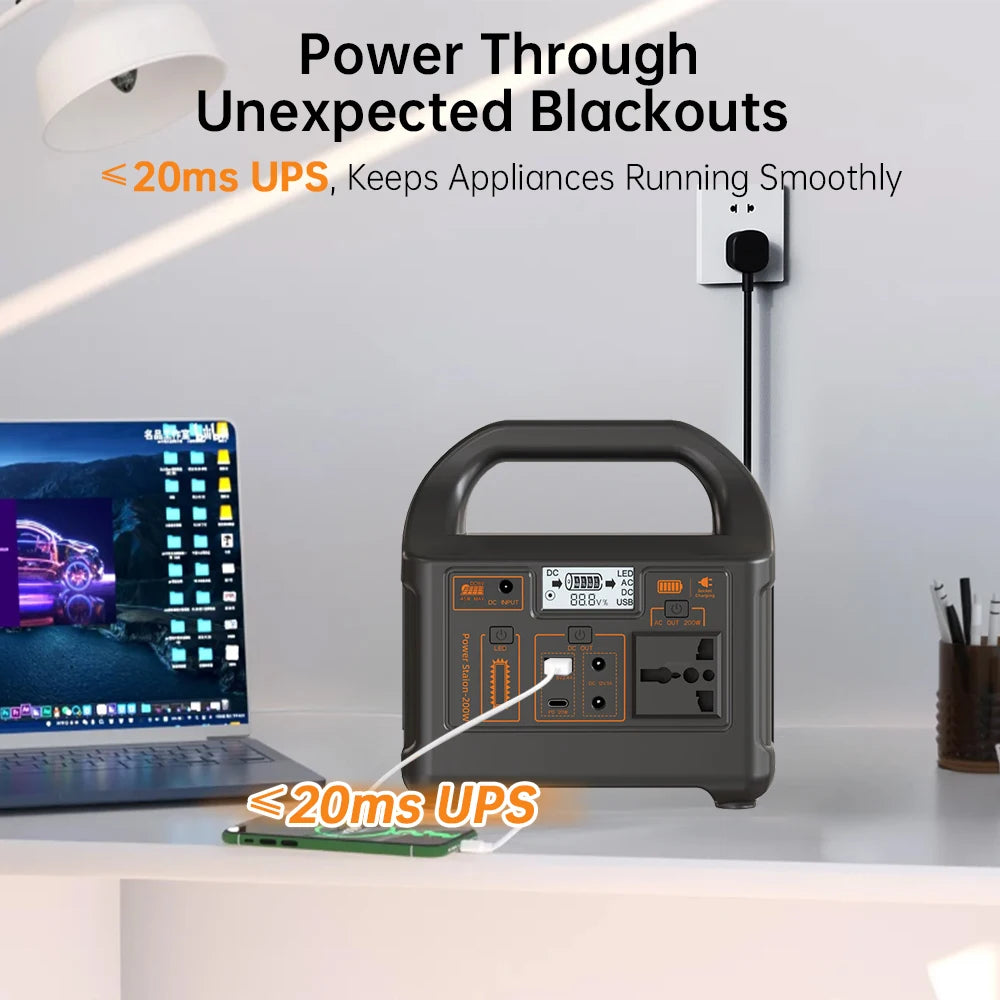

【Provide Uninterruptible Power Supply】
The 100W 200W 300W 500W power station can serve as your emergency backup power source. When utility power fails, it automatically switches to battery power with a transition time of <10ms.

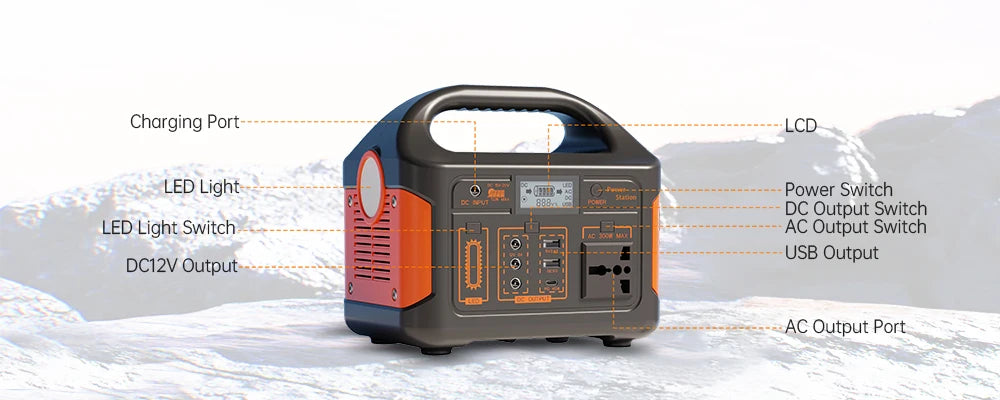

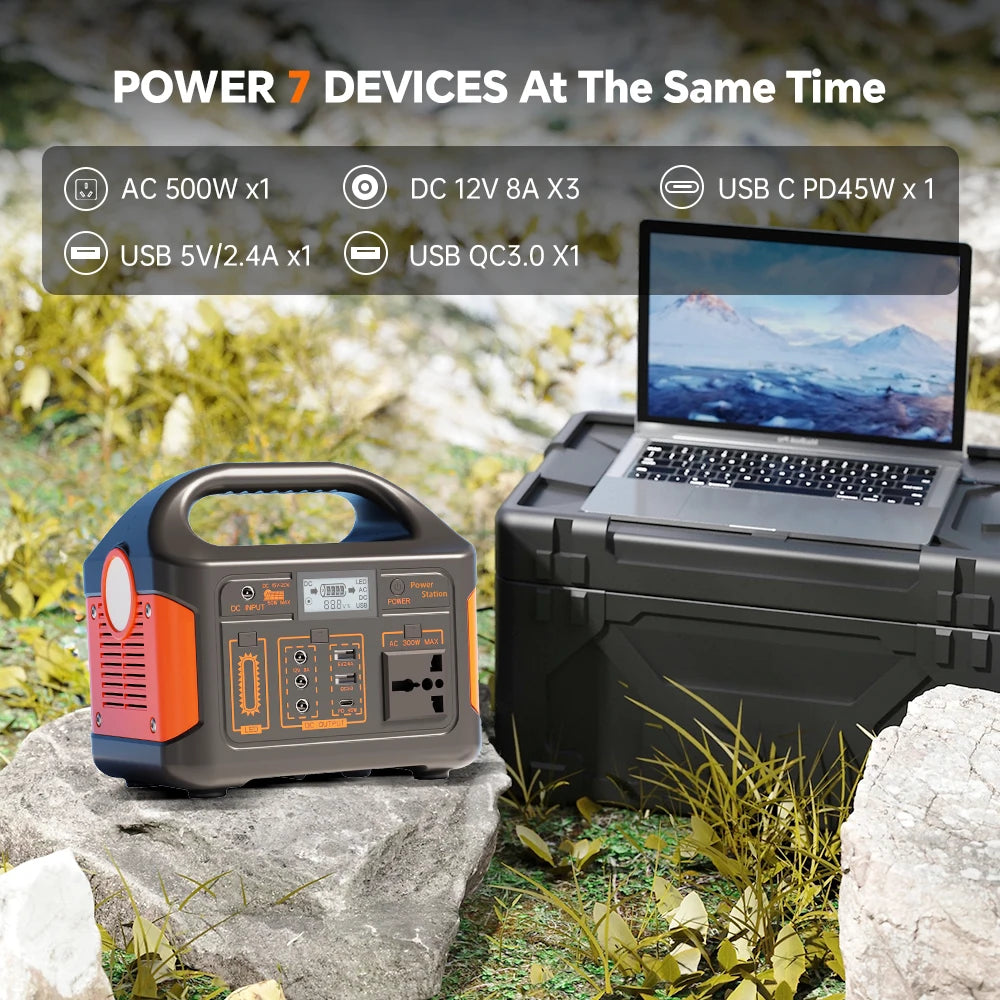

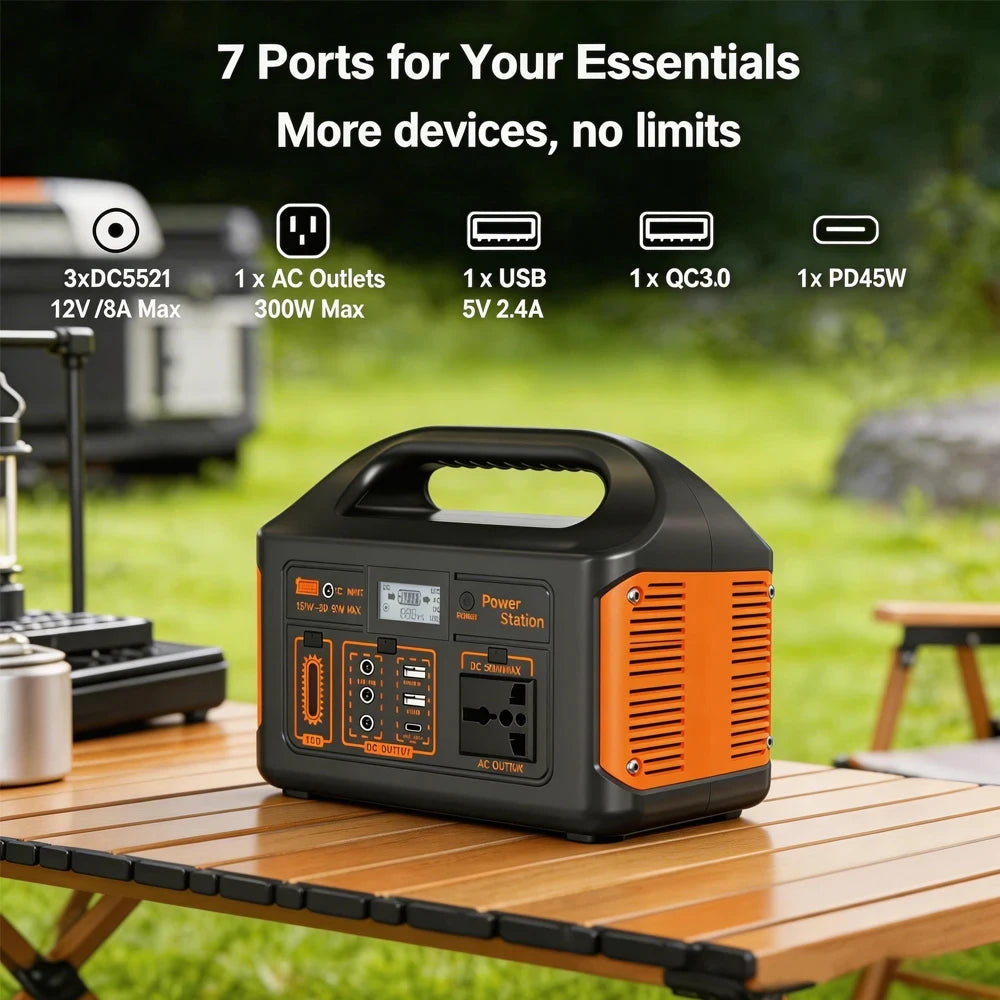

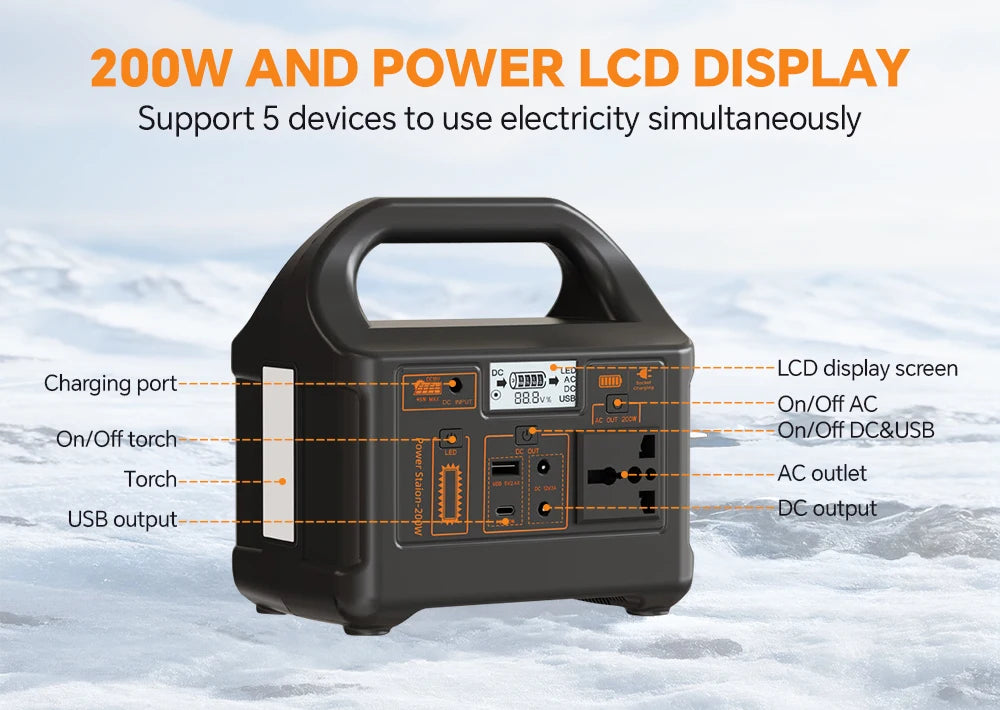

【Multi-Port Design】
Equipped with 7 output ports to simultaneously power multiple devices, including:
- 1 USB 5V 2.4A port
- 1 QC3.0 port
- 1 PD 45W port
- 1 220V AC outlet
- 3 12V 8A DC5521 ports
Ideal for office use, travel, camping, power outage emergencies, and daily applications.

【Large Capacity & Wide Range of Use】
This portable solar power station has a large capacity of 460.8Wh, which can meet various application needs, from outdoor camping, self-driving tours, and household emergency needs during the power period. Anytime, anywhere, sufficient power.

【Fast Charging & Safe And Efficient】
This portable outdoor generator is known for its safety and efficiency. It supports PD 45W fast charging and includes multiple safety protections to ensure reliability and durability for outdoor use.

【Multiple Charging Methods】
Support solar charging, mains charging and car charging, you can do whatever you want at any time.

【LED Lighting & Multiple Output Modes】
This outdoor power station features an LED lighting system with six operational modes: LED high beam, low beam, high brightness, half brightness, flashing, and LED off.

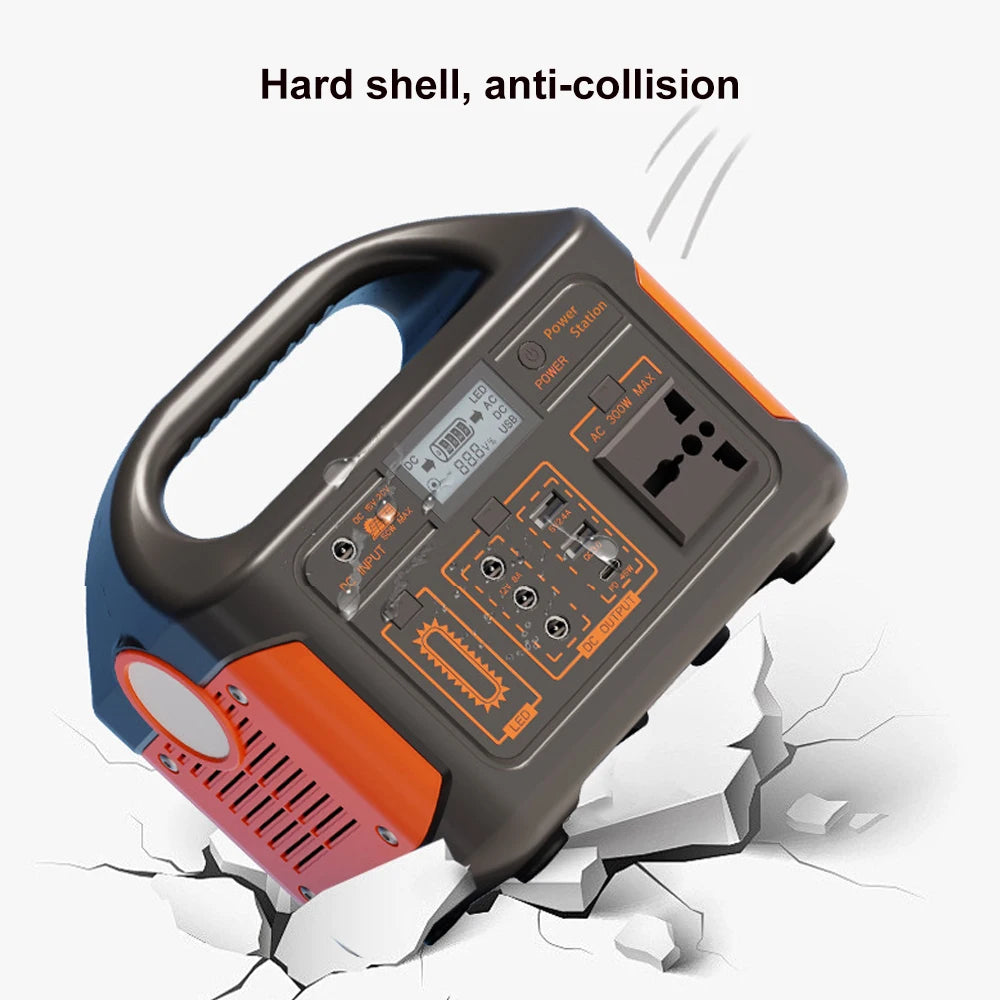

【Excellent Workmanship】
The shell is made of high-quality ABS material, which is anti-collision and not easy to damage internal parts. Equipped with a high-definition display, you can check the battery status at any time, and it is equipped with an ultra-portable handle for easy carrying.

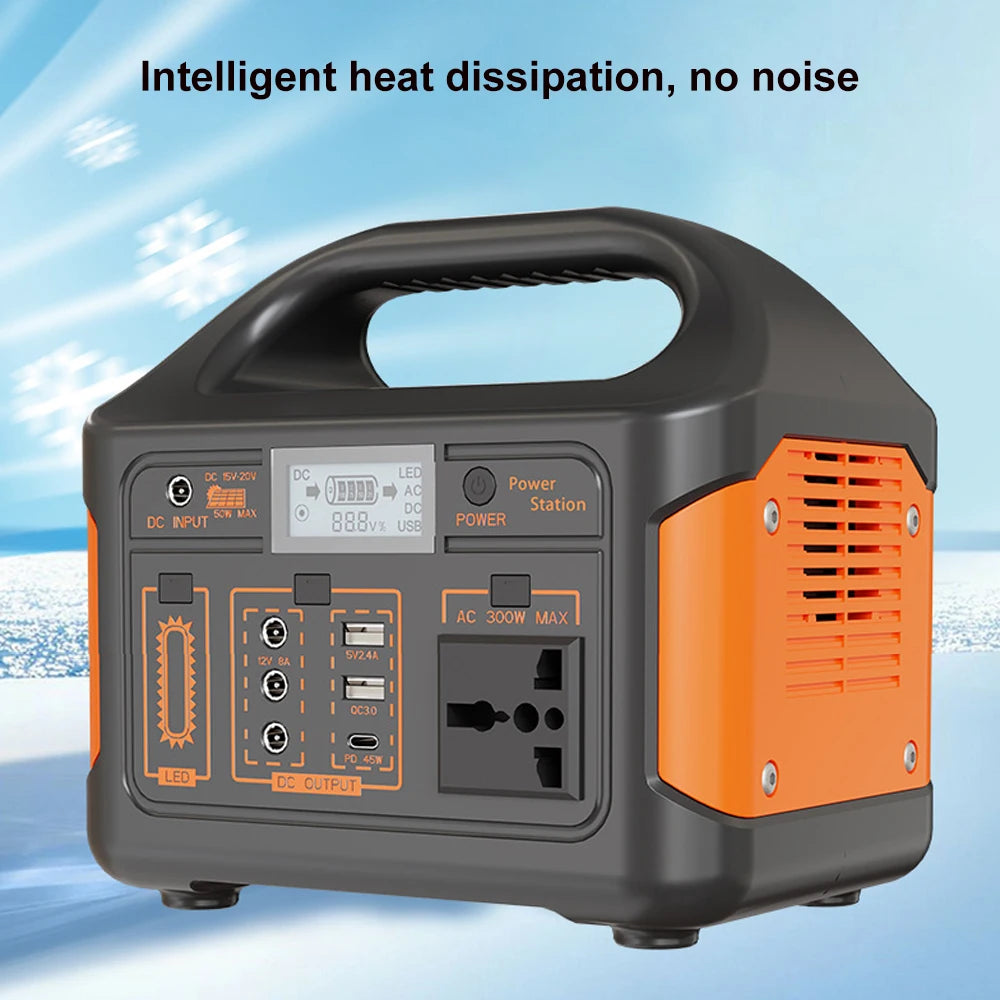

【Intelligent Heat Dissipation & Noise Reduction】
Intelligent temperature-controlled cooling fan, <45 decibels at a distance of 1 meter, providing you with a more comfortable use experience.

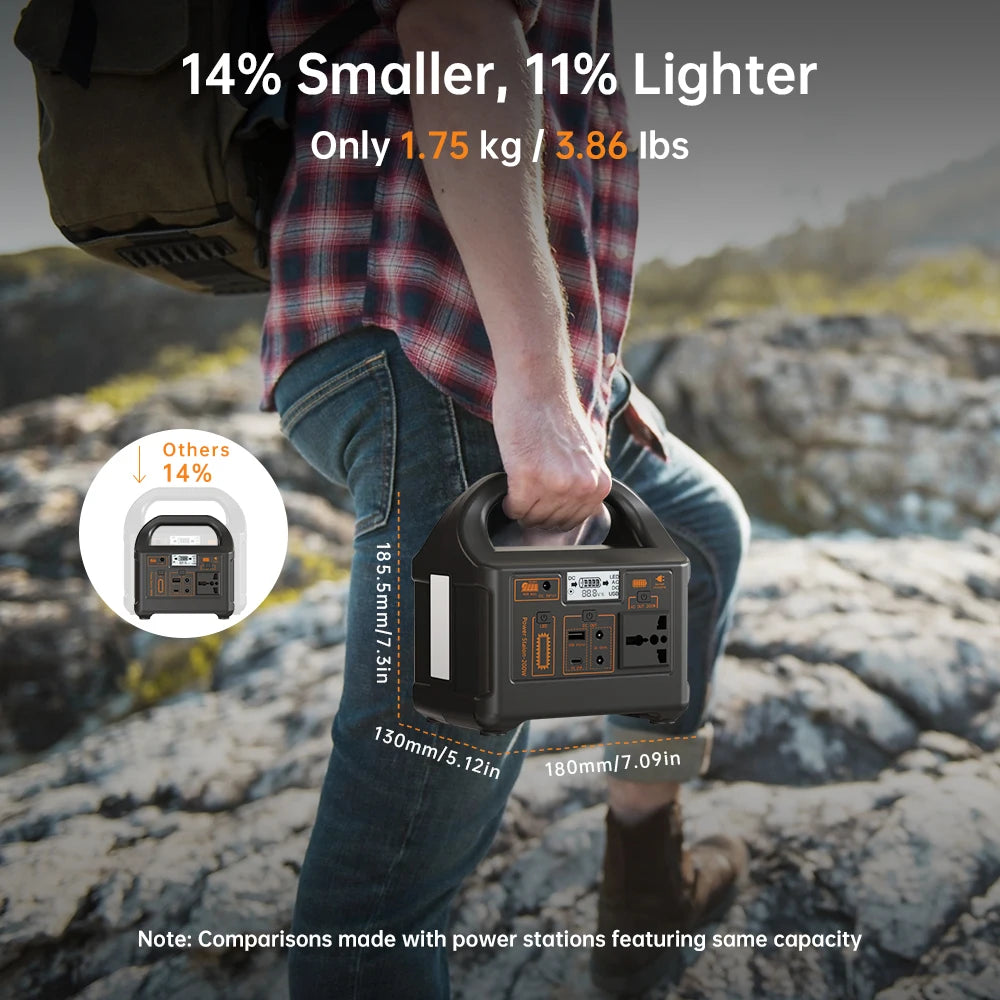

【Compact & Portable Design】
This outdoor power station features a more compact size and lighter weight while maintaining powerful functionality. Equipped with an ergonomic handle, it perfectly suits outdoor camping, travel, backyard camping, home, and office settings.

【Multiple Application Scenarios】
100W 200W 300W 500W power stations are suitable for home emergency power and outdoor camping backup power. They are suitable for use in a variety of scenarios and can meet your power needs anytime and anywhere.

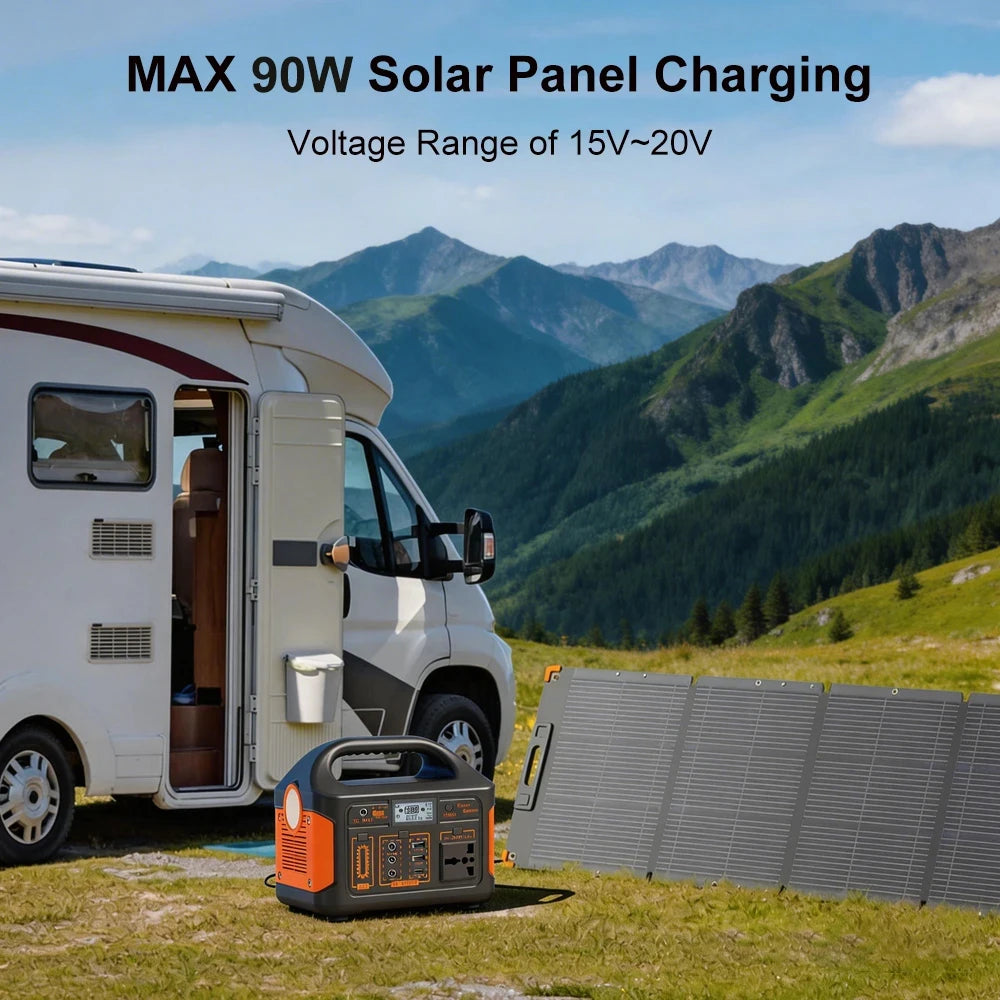

【 Green Power Solution】
This power station supports solar panels up to 90W. Its built-in MPPT controller ensures the solar array consistently operates at maximum power point, accelerating battery charging. It serves as the ideal portable power solution for camping, off-road adventures, and similar scenarios.

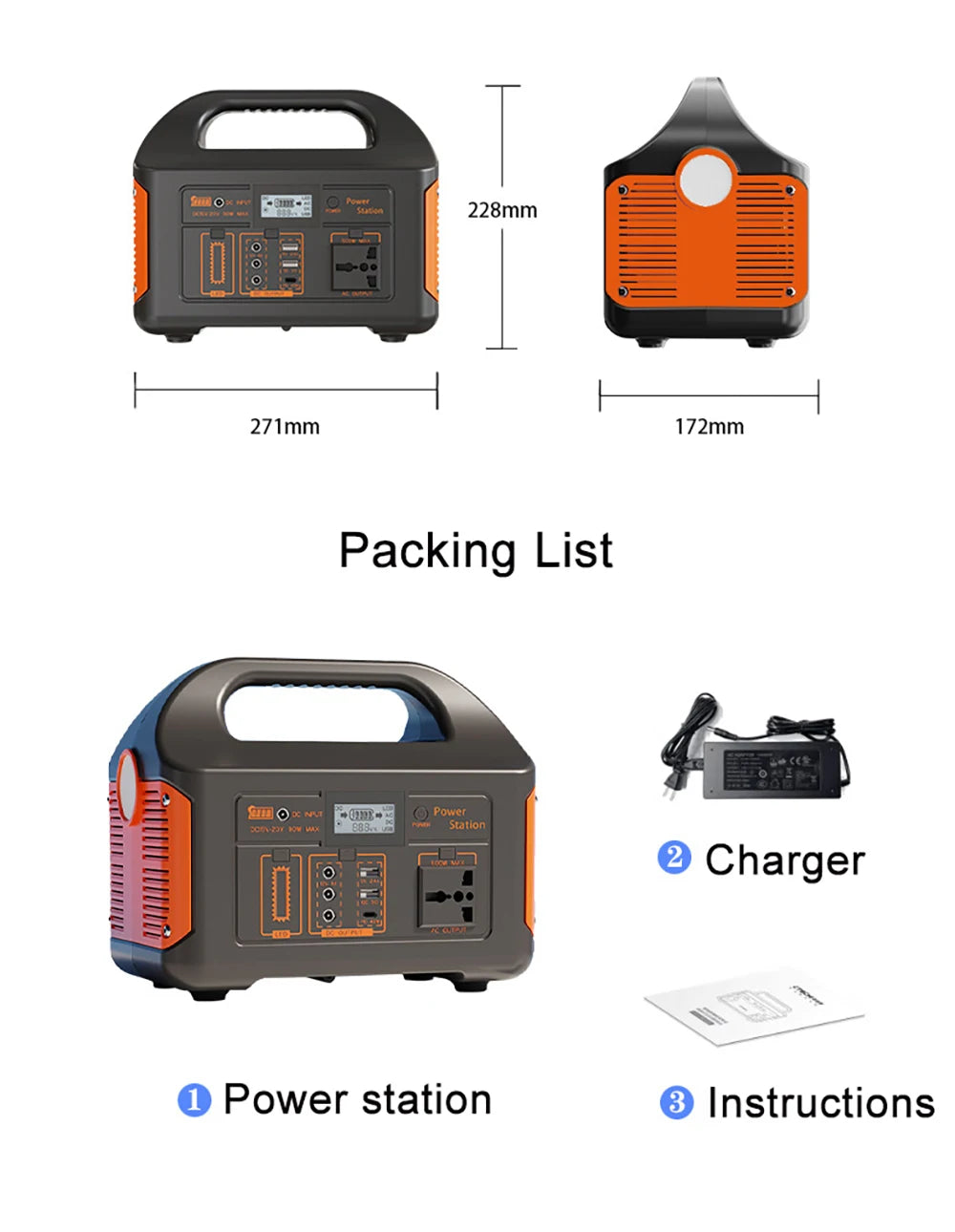

【Package List】
100W/200W/300W/500W Power Station*1
Charger (EU/US/UK plug optional)*1
Product Manual*1

【Frequently Asked Questions】
Q1: What devices can the 500W power station charge?
A: The 500W power station can charge/power devices with a power rating below 500 watts. The total power consumption of all connected devices must also remain below 500W. If power demand exceeds this limit, the power station will enter protection mode and automatically shut off. Always verify device specifications before purchase.
Q2: How do I calculate device runtime?
A: Use this formula: Runtime = 460Wh ÷ Actual Device Power Consumption. For example, a device consuming 100W will run approximately 4.6 hours. Note that actual power consumption may vary depending on usage scenarios.
Q3: How long does it take to fully charge the power station?
A: Charging via an AC power outlet takes approximately 5 hours. Using a 90W solar panel (sold separately) takes about 6 hours.
Q4: Can the power station charge while in use?
A: Yes, the power station supports UPS functionality. It can supply power to other devices while simultaneously charging itself.
Q5:Does it support sine wave output?
A:The 300W and 500W power stations support stable sine wave output, which does not damage any electrical appliances.
Q6:About shipping
A:Orders are shipped immediately from our Polish warehouse after placement, with fast delivery within 5-10 days.
