【Scope of Application】

1. Years: 2013-2025
【Ford All Models】
✔ Focus ✔ Mondeo ✔ Taurus
✔ Explorer ✔ Escape ✔ Edge
✔ Tribute ✔ Mustang ✔ Everest
✔ Ranger ✔ Mustang Mach-E
✔ SVT RAPTOR F150 ✔ F550

【 Lincoln All Models】
✔ Nautilus ✔ Continental ✔ Navigator ✔ Aviator ✔ MKX ✔ MKC
✔ MKZ ✔ Bronco
(Sync3 system version 2.0/2.2/3.0/3.2/3.4)

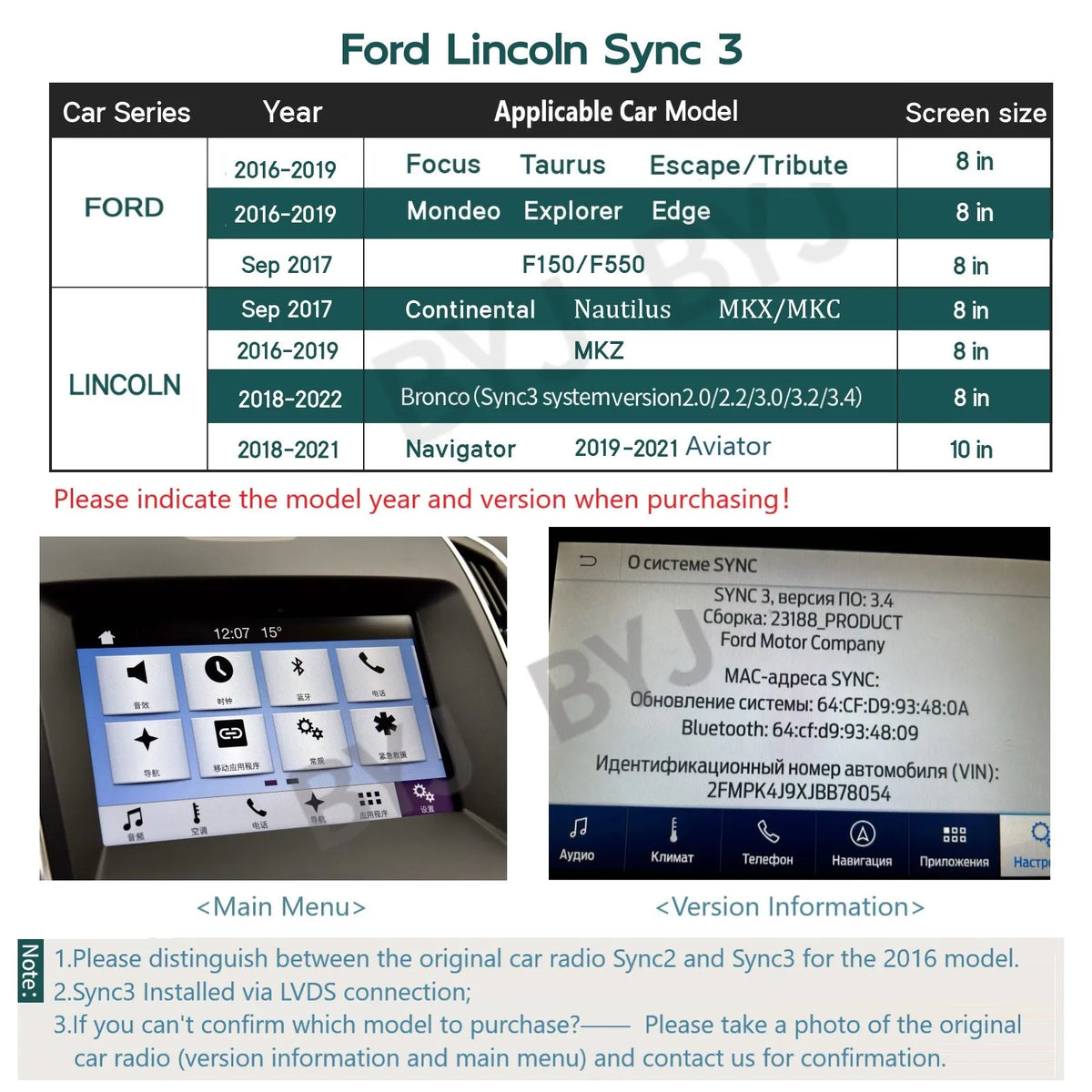

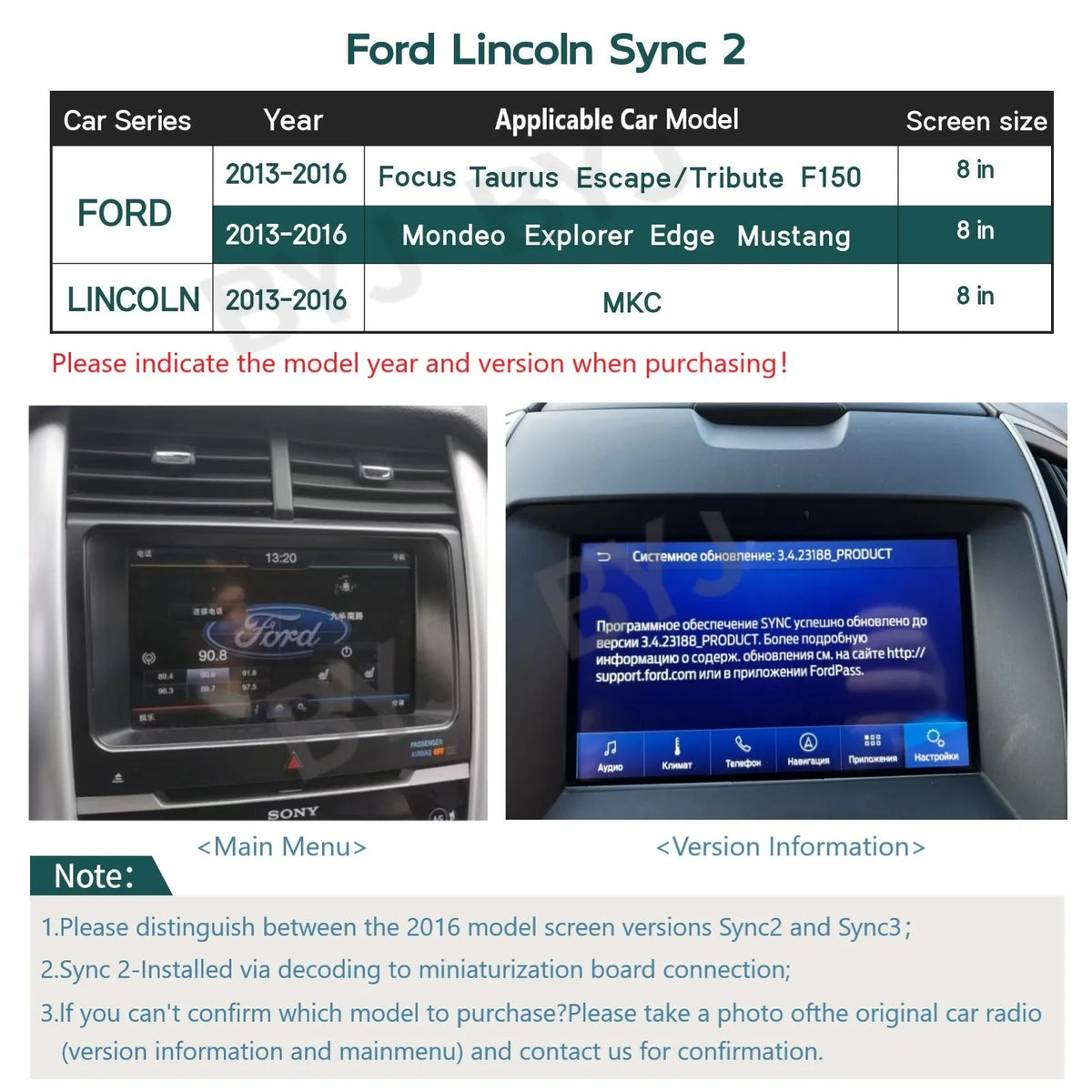

2.Differentiate between original car center console screen (radio) models and configurations: Sync2/Sync3 - landscape screen, Sync4 - portrait screen

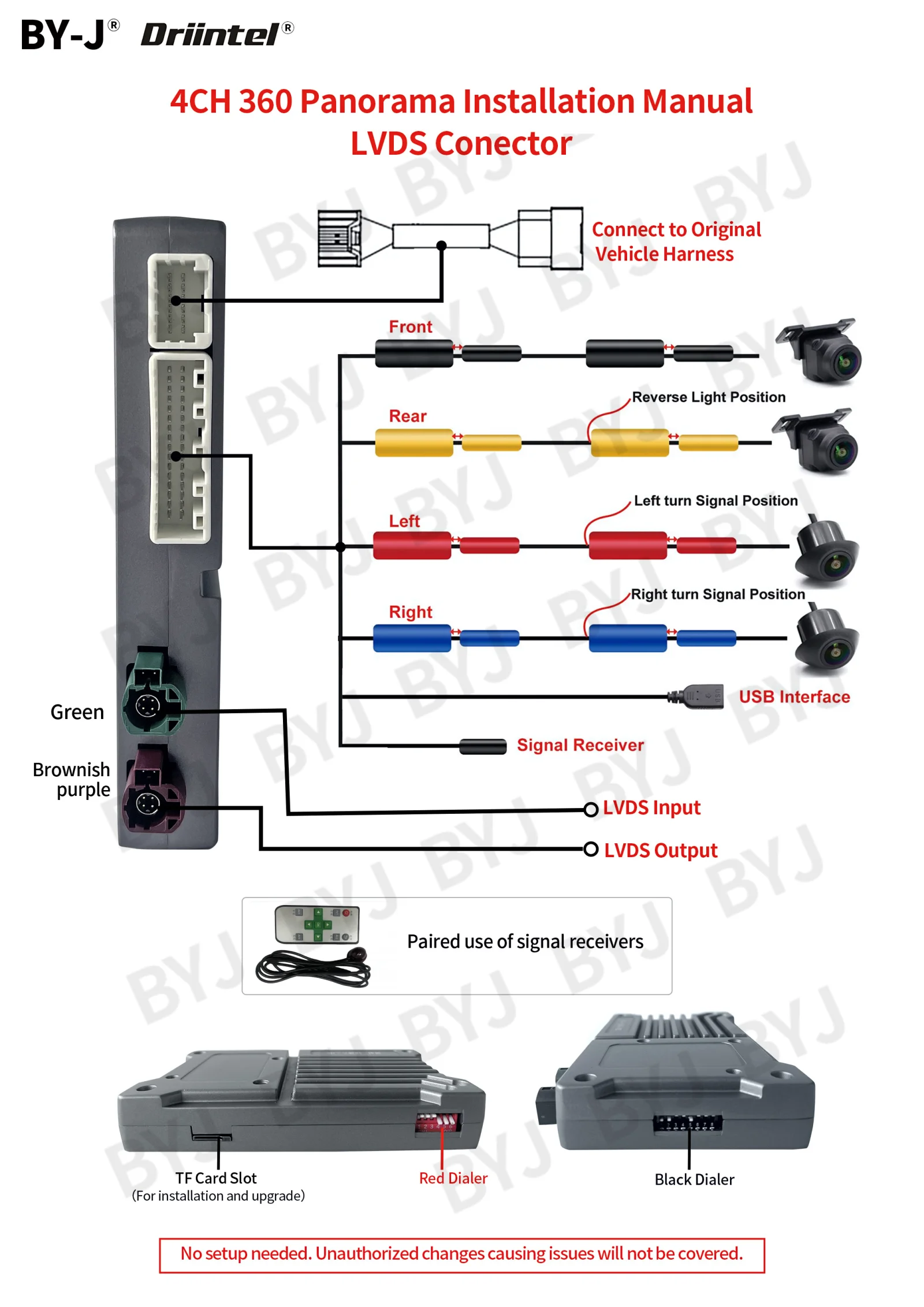

3.Sync2 uses a decoder to small board connection, Sync3 and Sync4 use LVDS connection. The product includes a decoder to small board or LVDS connection cable.

Q.Regarding rearview camera cable length？

A.The standard cable length is 6.5 meters.
Standard installation method: Run the cable under the seat.
Please contact us to purchase a camera extension cable in the following two situations:

★ Vehicles with a body length exceeding 4.7 meters.
★ Vehicles with added wooden flooring, where running the cable under the seat is not possible; it must be run through the roof.

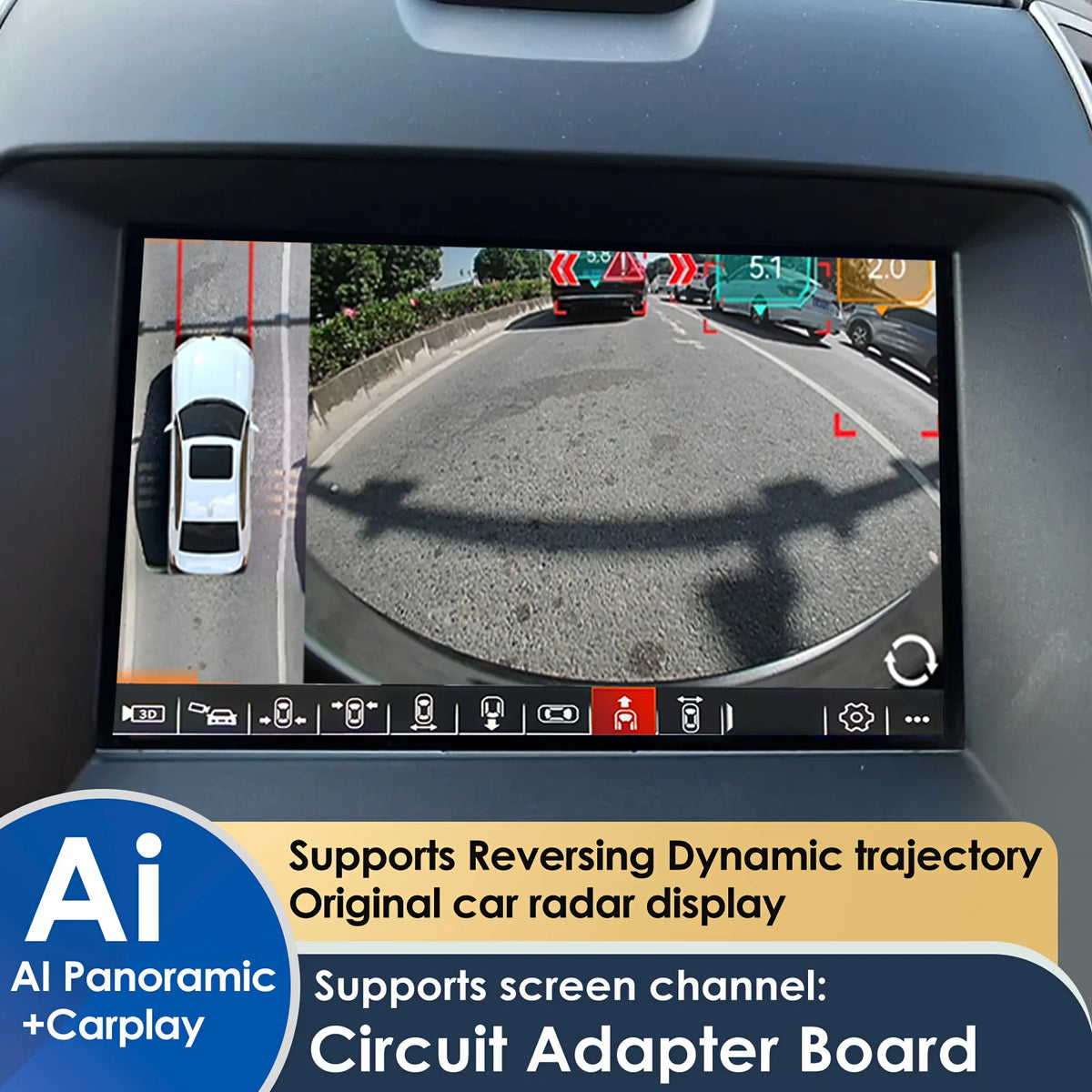

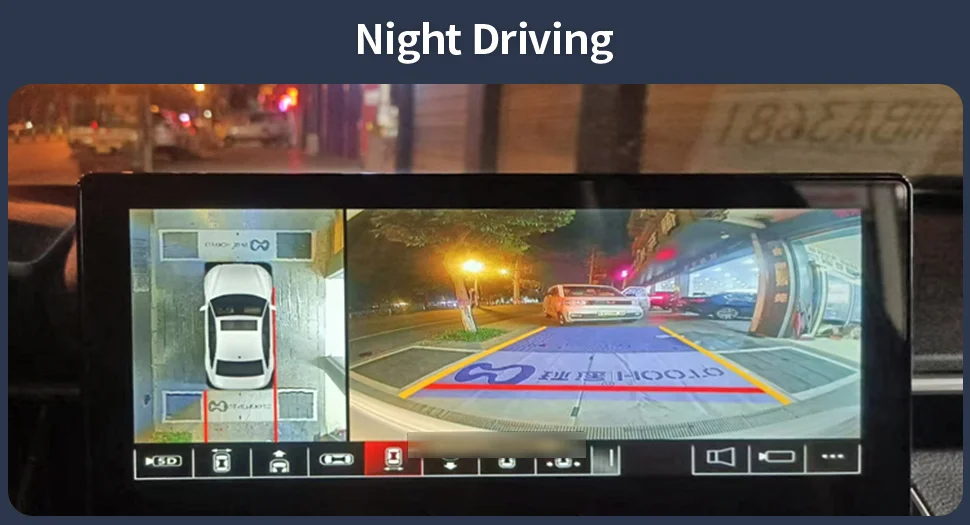

【Function demonstration】

You can view the entire vehicle in real time via the camera, eliminating blind spots and ensuring optimal safety by keeping a complete view of the vehicle at all times!

This effectively prevents accidents and avoids vehicle damage and delays.

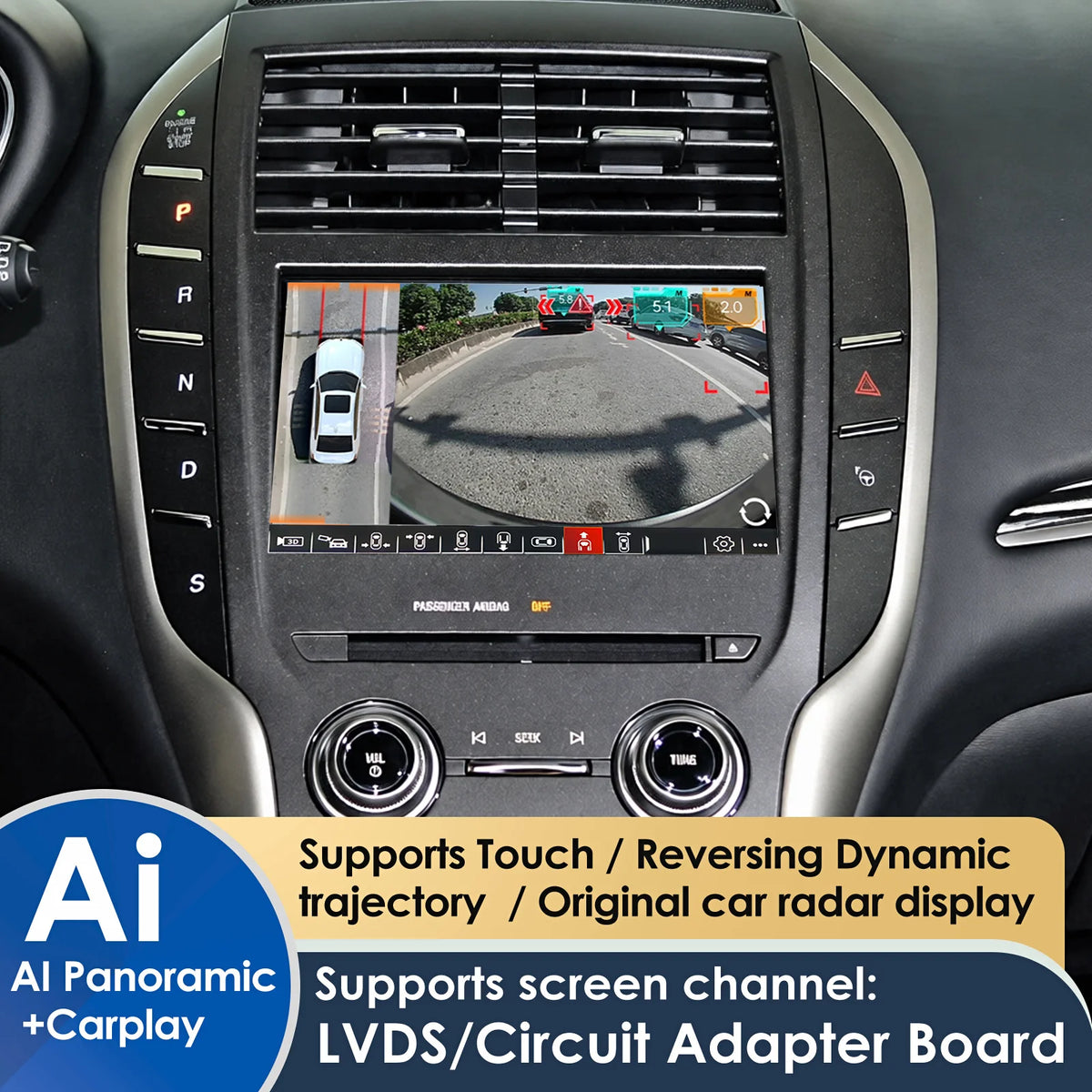

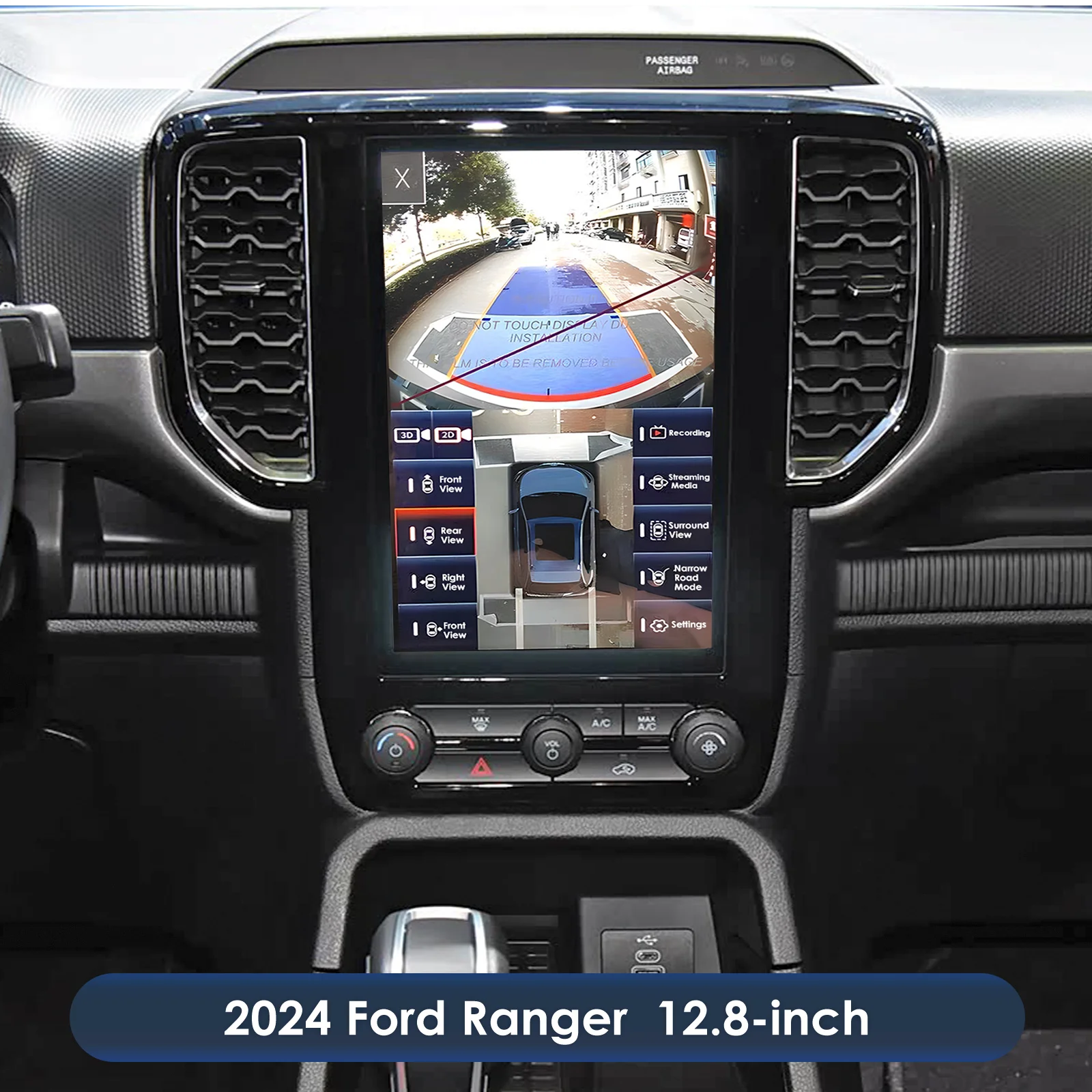

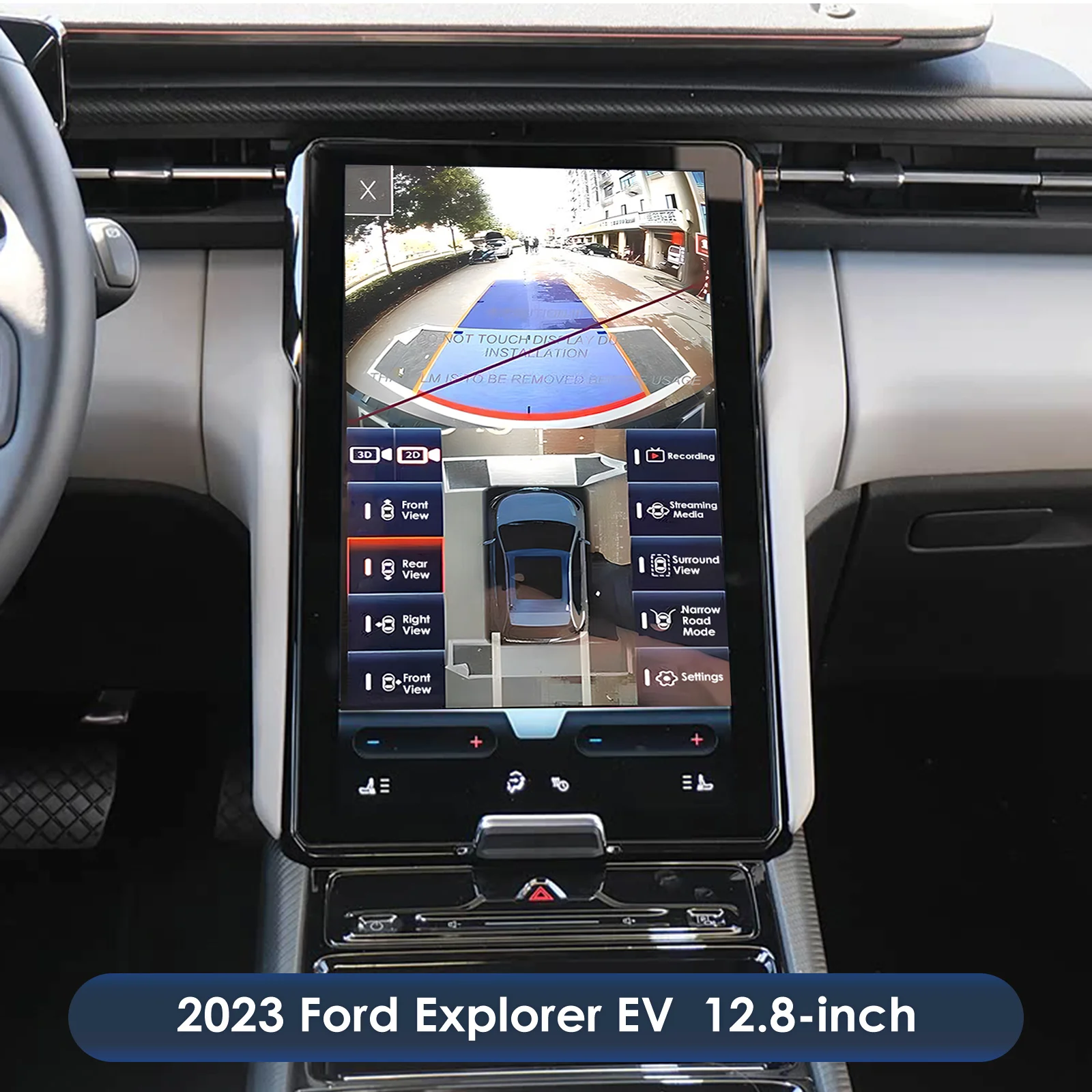

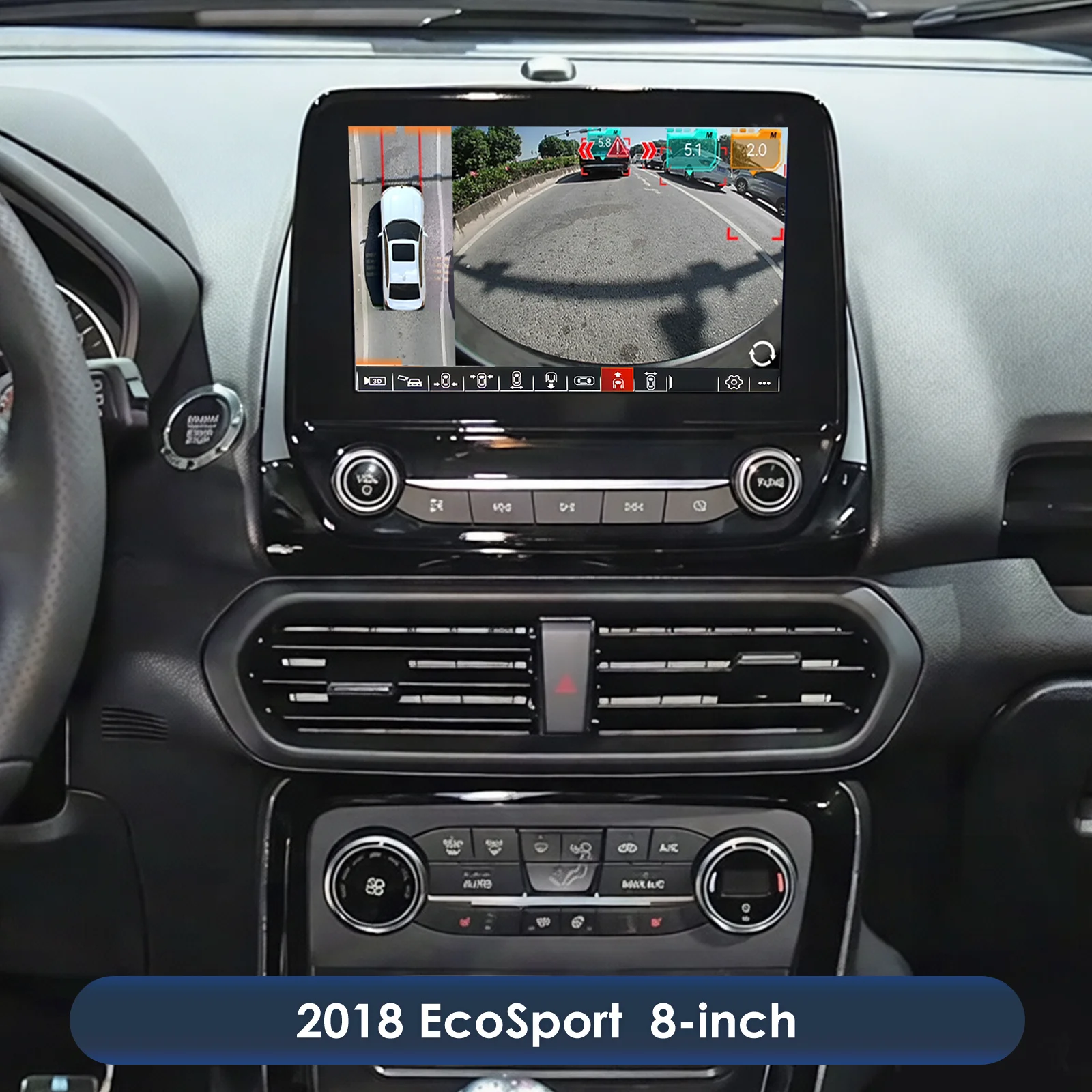

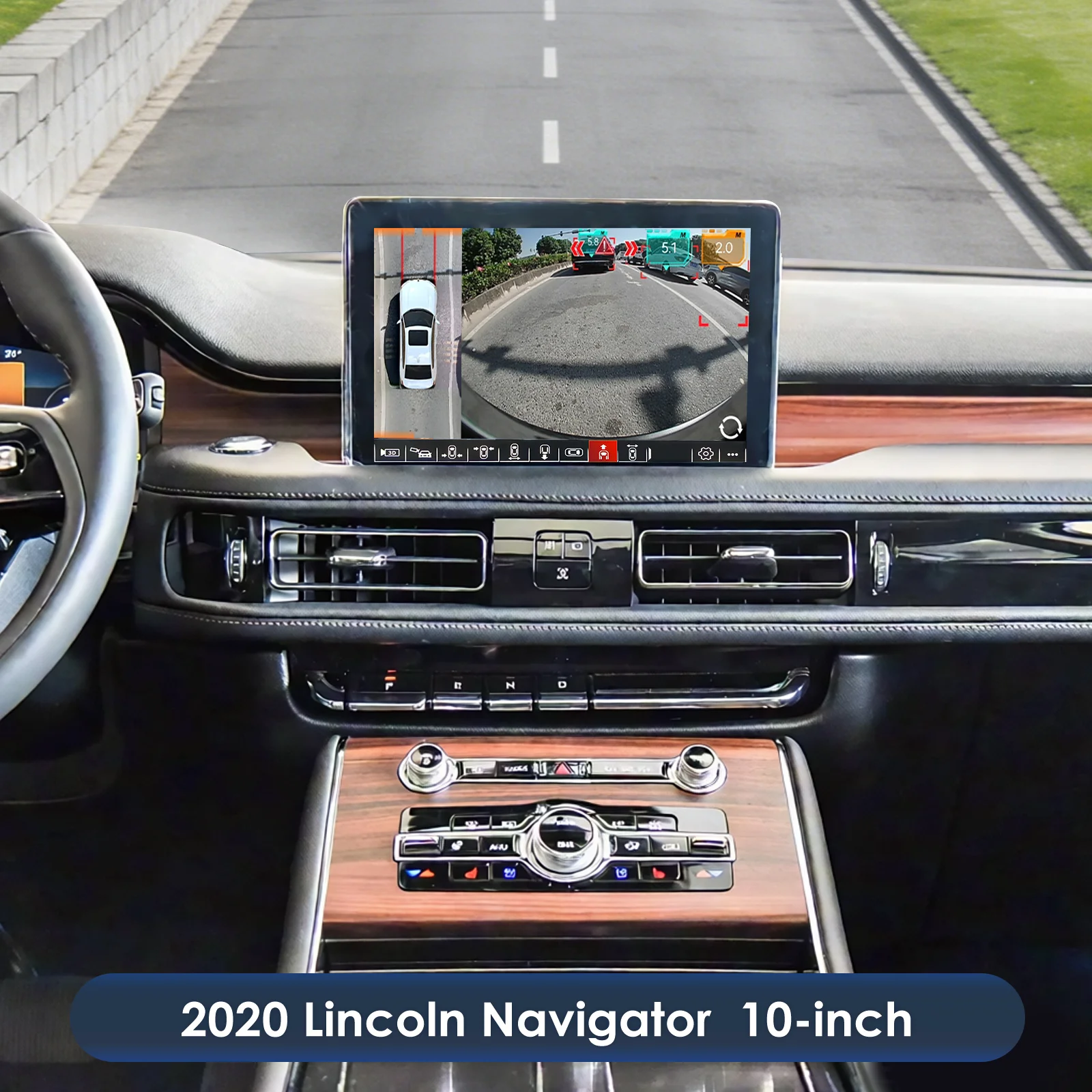

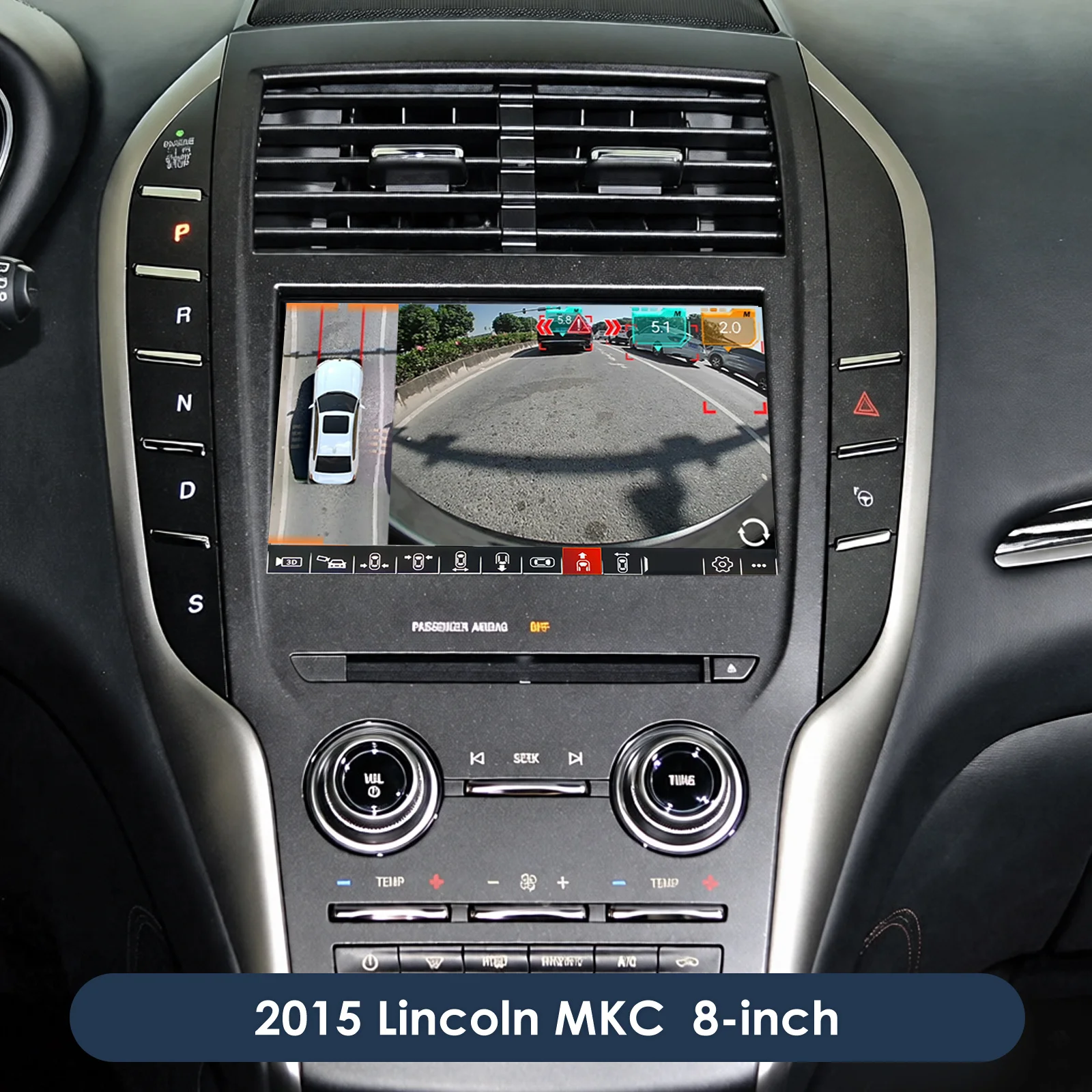

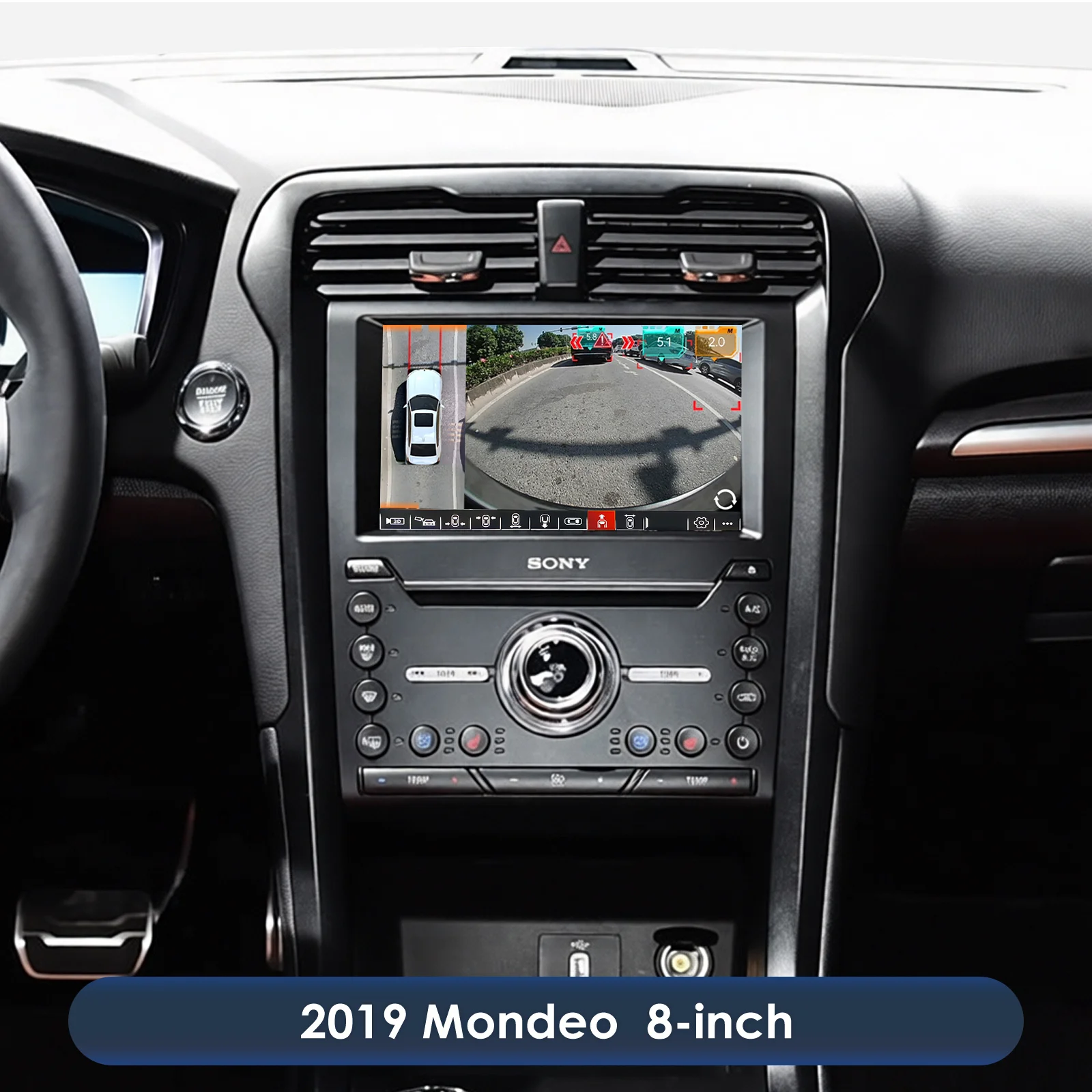

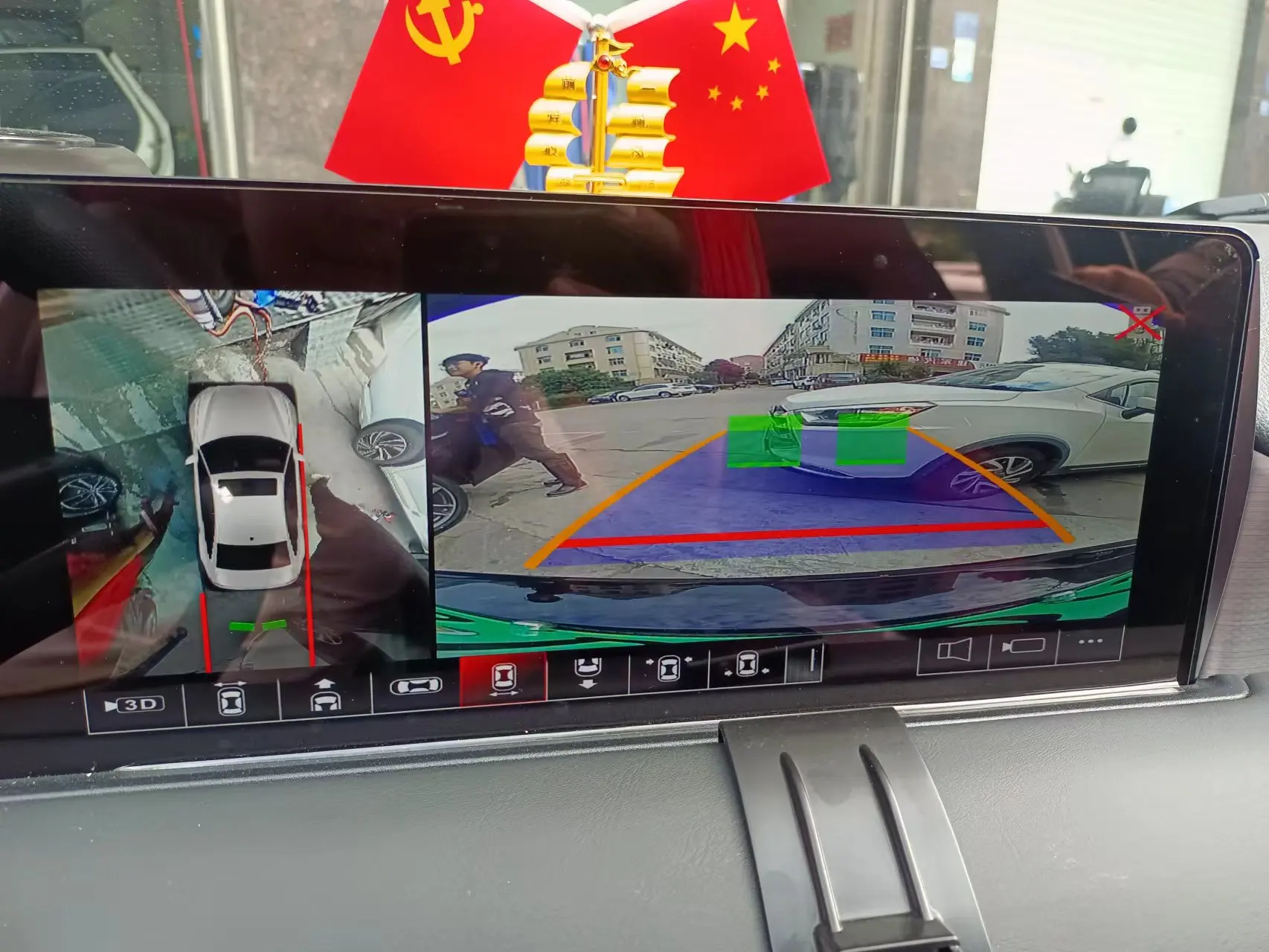

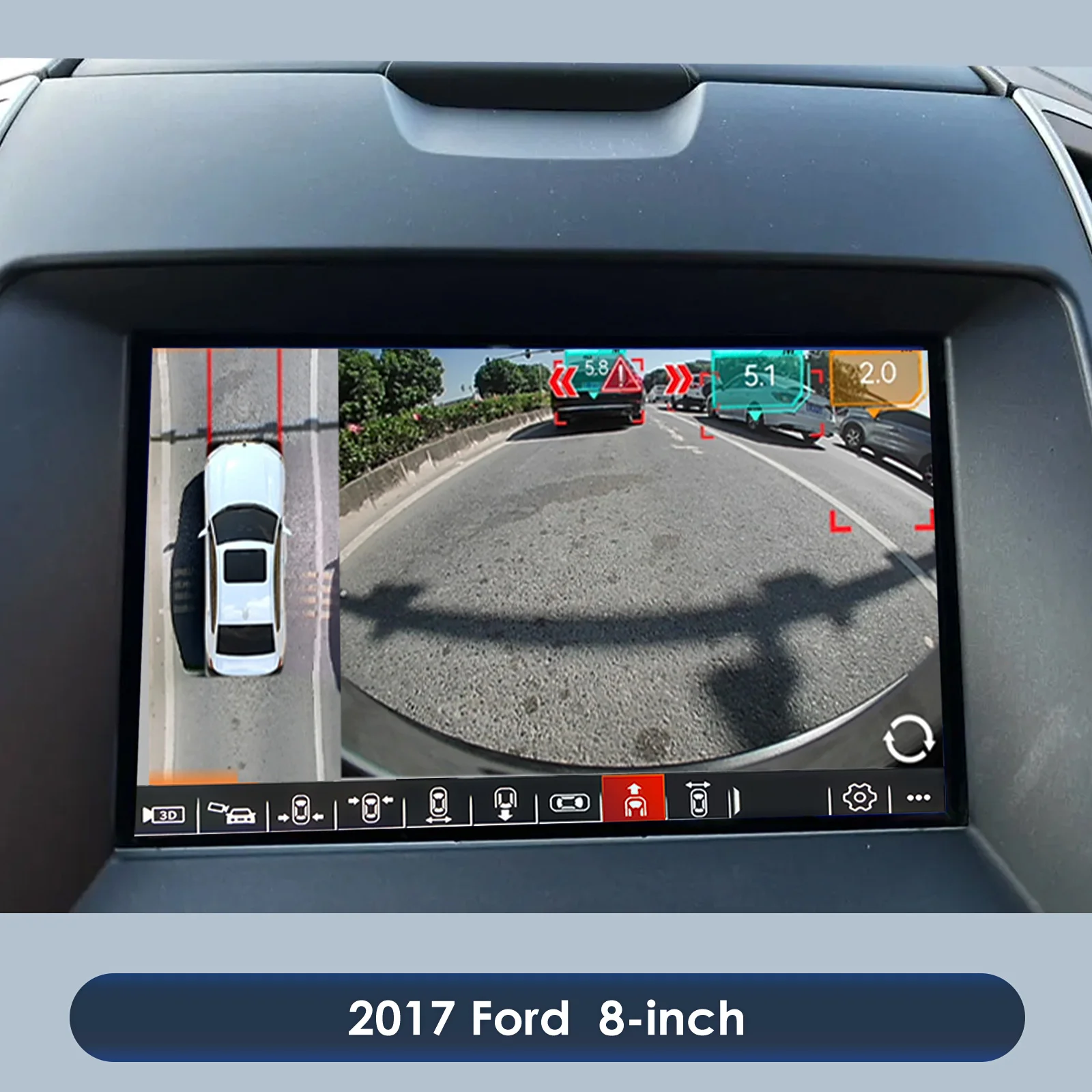

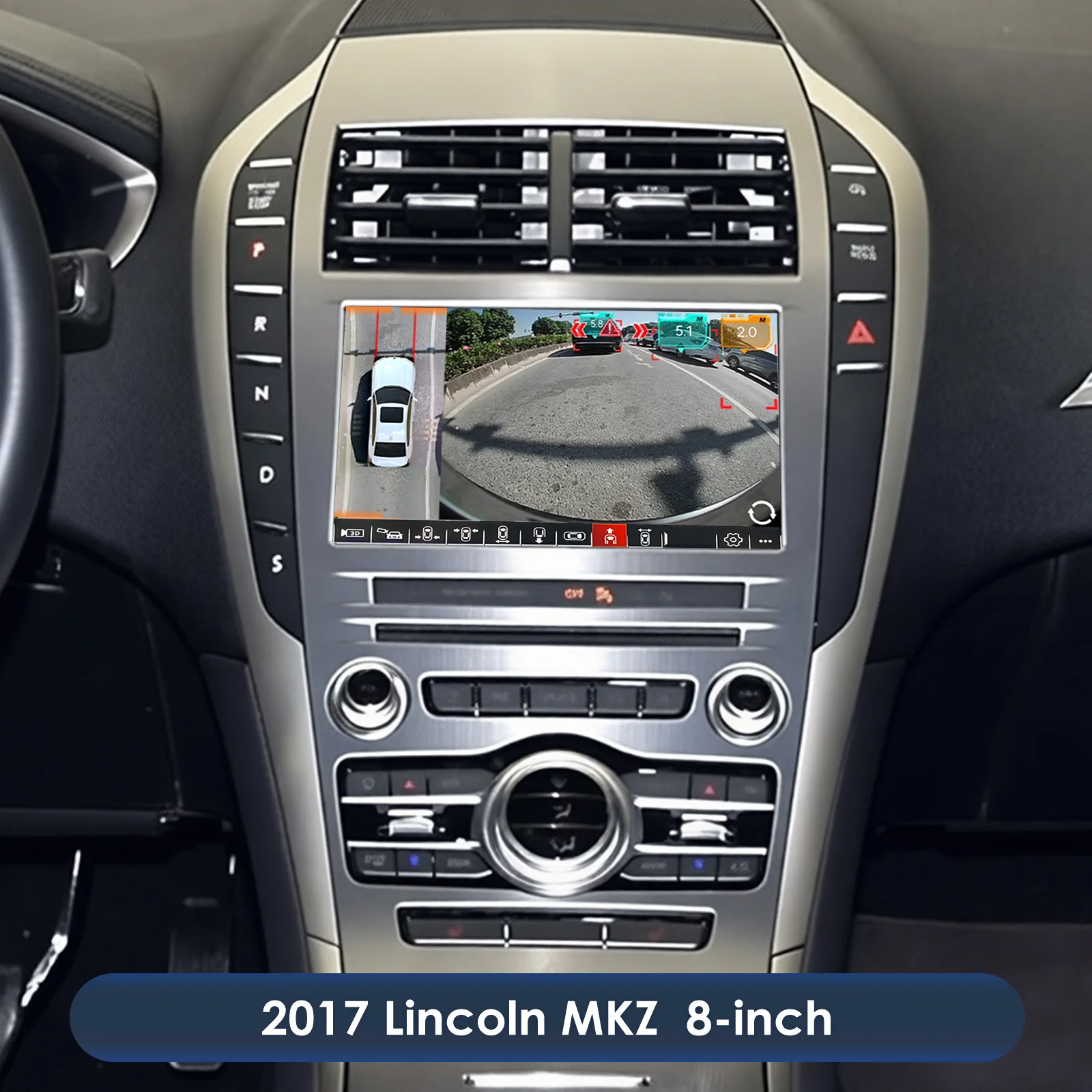

【Installation effect diagram】

Due to page limitations, not all car models can be displayed. Please refer to your screen size to view the installation effect.

【Caution】

【This system is suitable for】

1. Suitable for Ford original center console screen/radio,The original car central control screen that supports LVDS and Circuit adapter board channels;

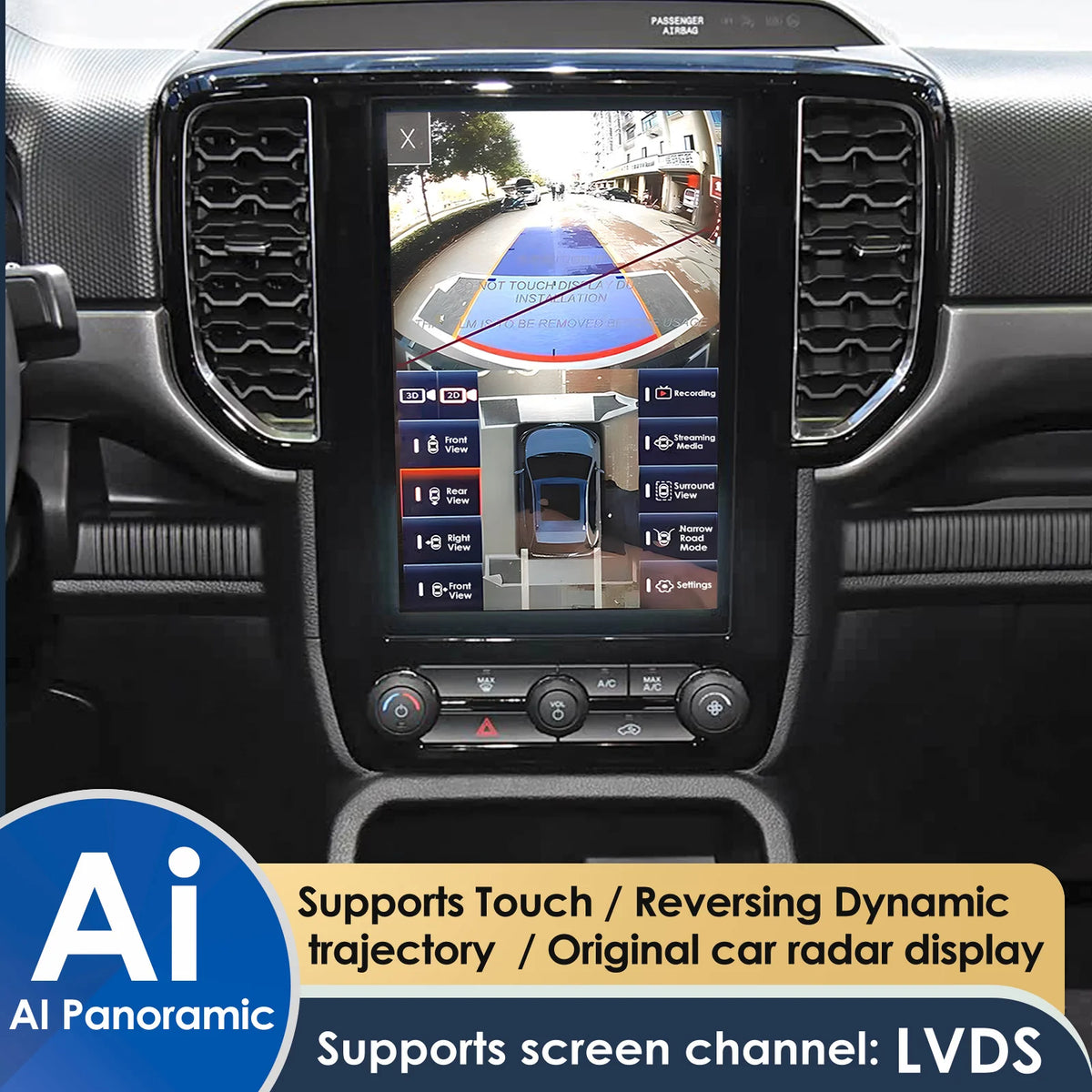

2.Support touch operation/ reverse trajectory/same display of original vehicle radar, retention of original vehicle reverse image and other functions.

【Installation details】

1. Calibration is required after installation. Please purchase the calibration cloth yourself.

2. The memory card needs to be purchased separately. It is recommended to use a high-speed card in Fat 32 format.

【5 point description】

1. 【Intelligent Identification | Real-time Risk Warning】
✔ Equipped with HI-SILICON 3520 V600 chip + dual-core 1.3G A7 CPU

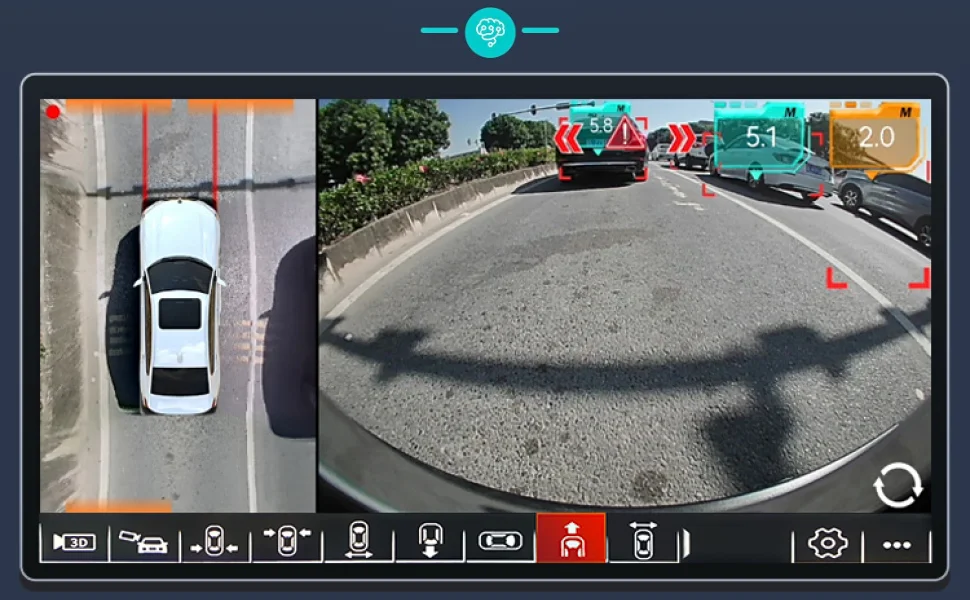

✔ AI Collision：Alert Advanced AI detects pedestrians, vehicles & obstacles with real-time warnings.
✔ Automatically open the 360-degree panoramic view through AI to view the environment around the car, and accurately display the distance between the front vehicles, thereby improving driving safety.

2. 【Four-way synchronous recording | 360° no-dead-angle monitoring】

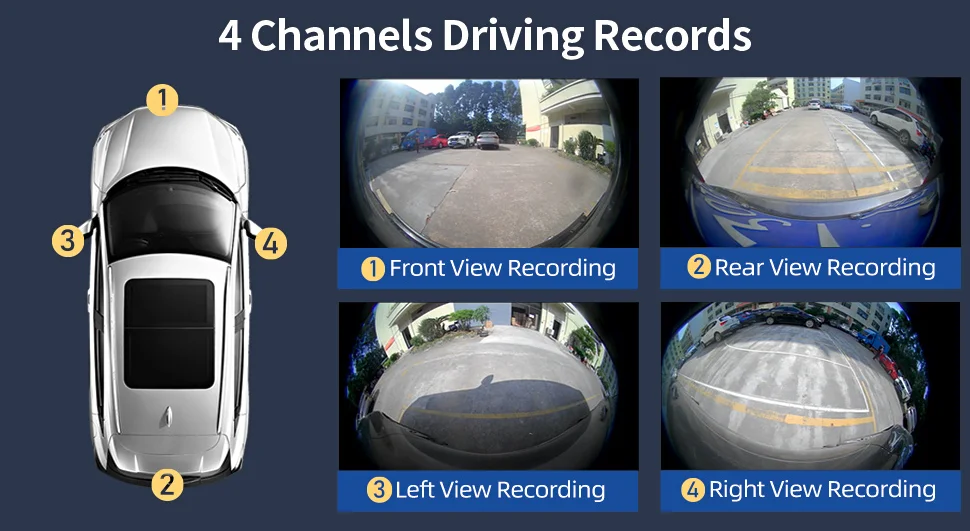

✔ 4-Channel Recording: Capture front/rear/left/right simultaneously with 360° seamless stitching for zero blind spots.

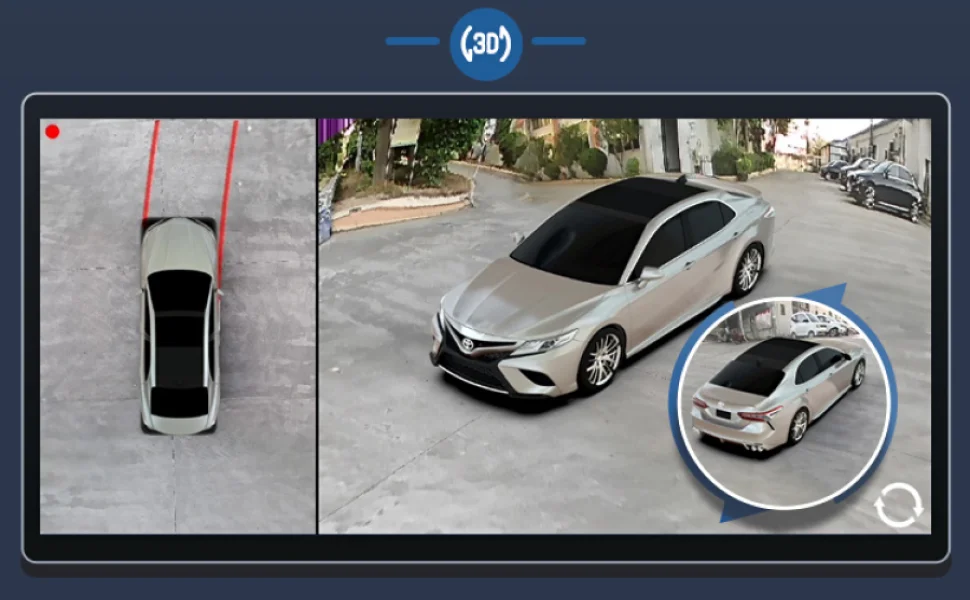

✔ 360°panoramic stitching technology, support main screen/bird's eye view mode, reversing and narrow road driving are safer.
✔ Resolution: 1920x1080P

3. 【TVI Digital Ultra HD Camera | License Plate Clearly Visible】
✔ The TVI camera offers more stable wide dynamic range image processing and color reproduction, with particularly noticeable advantages in low-light environments and exposure handling.
✔ True 1080P ensures clear license plate recognition even in the dark.
✔ Support HDR anti-backlight, strong light/tunnel environment is still clear.

4. 【24-hour parking monitoring | Collision automatic lock】
✔ 24/7 Parking Guard: Time-lapse recording & impact detection protect your car 24 hours.
✔ G-Sensor collision lock, emergency video is encrypted separately to prevent overwriting.
✔ Maximum supported storage: 64G USB flash drive.

5. 【Professional protection | Wide compatibility】
✔ Support LVDS and Circuit adapter board screen signal source input.
✔ IP67 waterproof lens

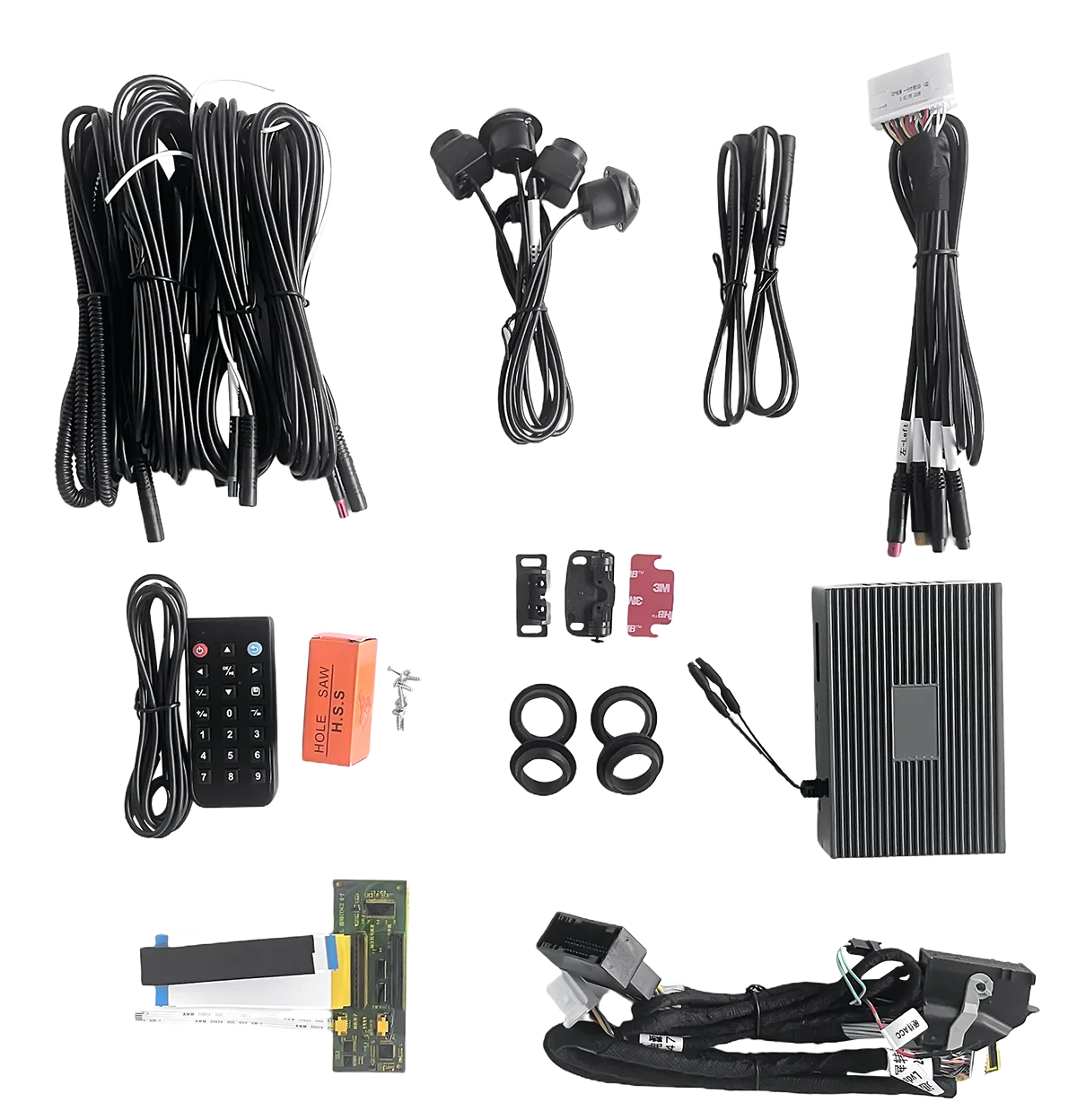

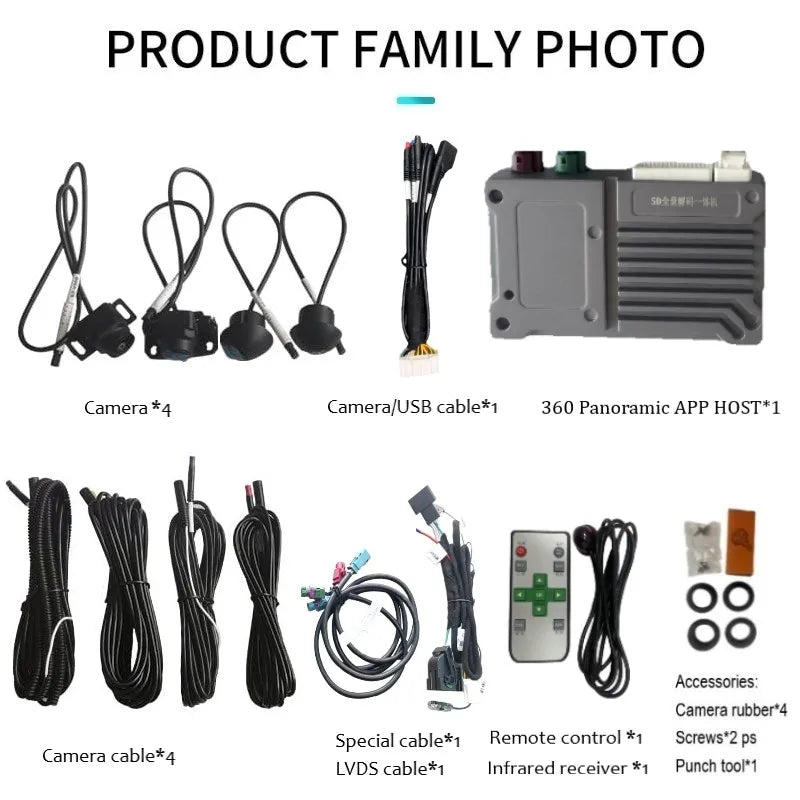

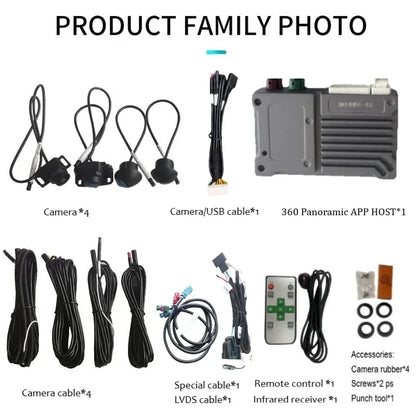

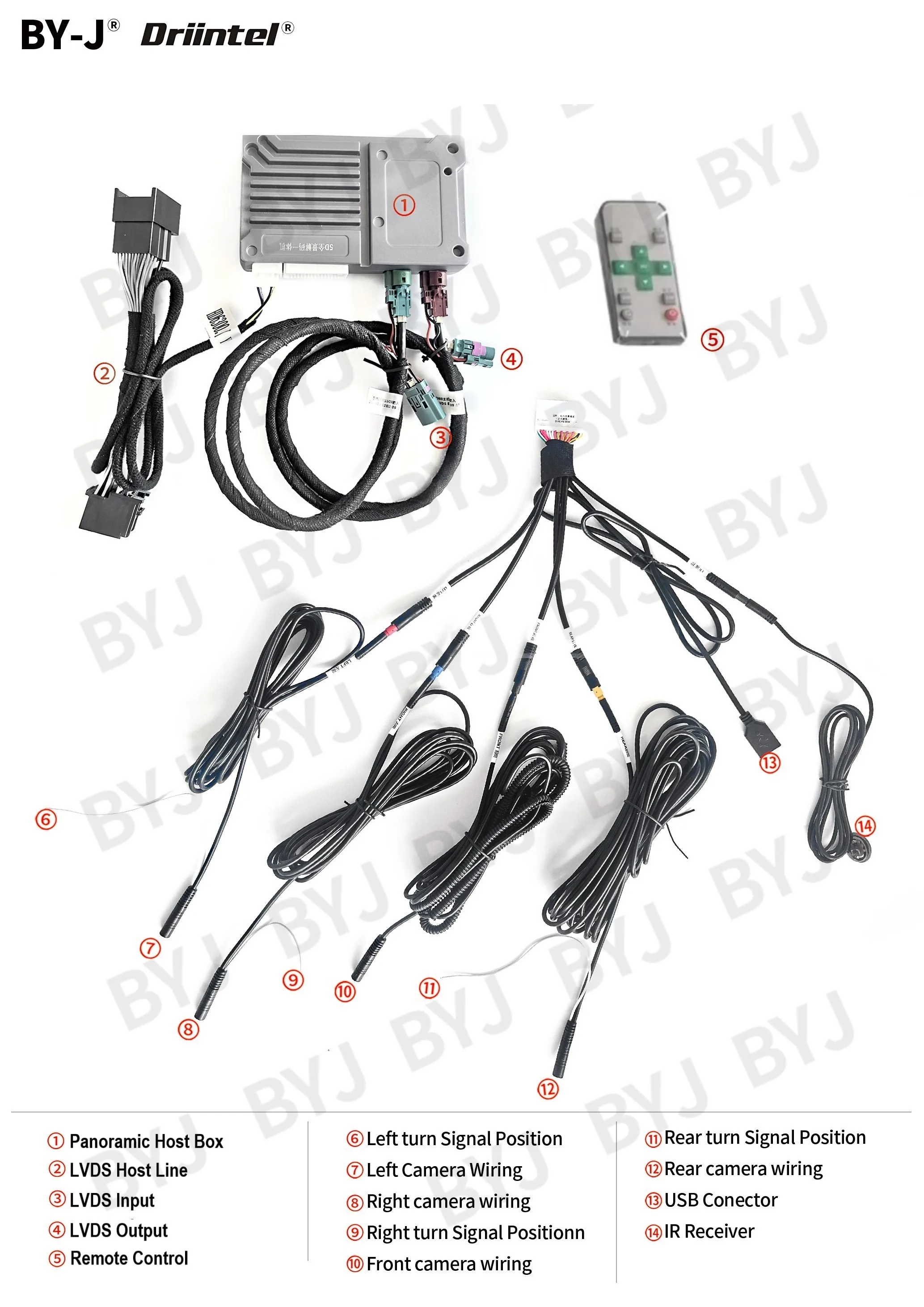

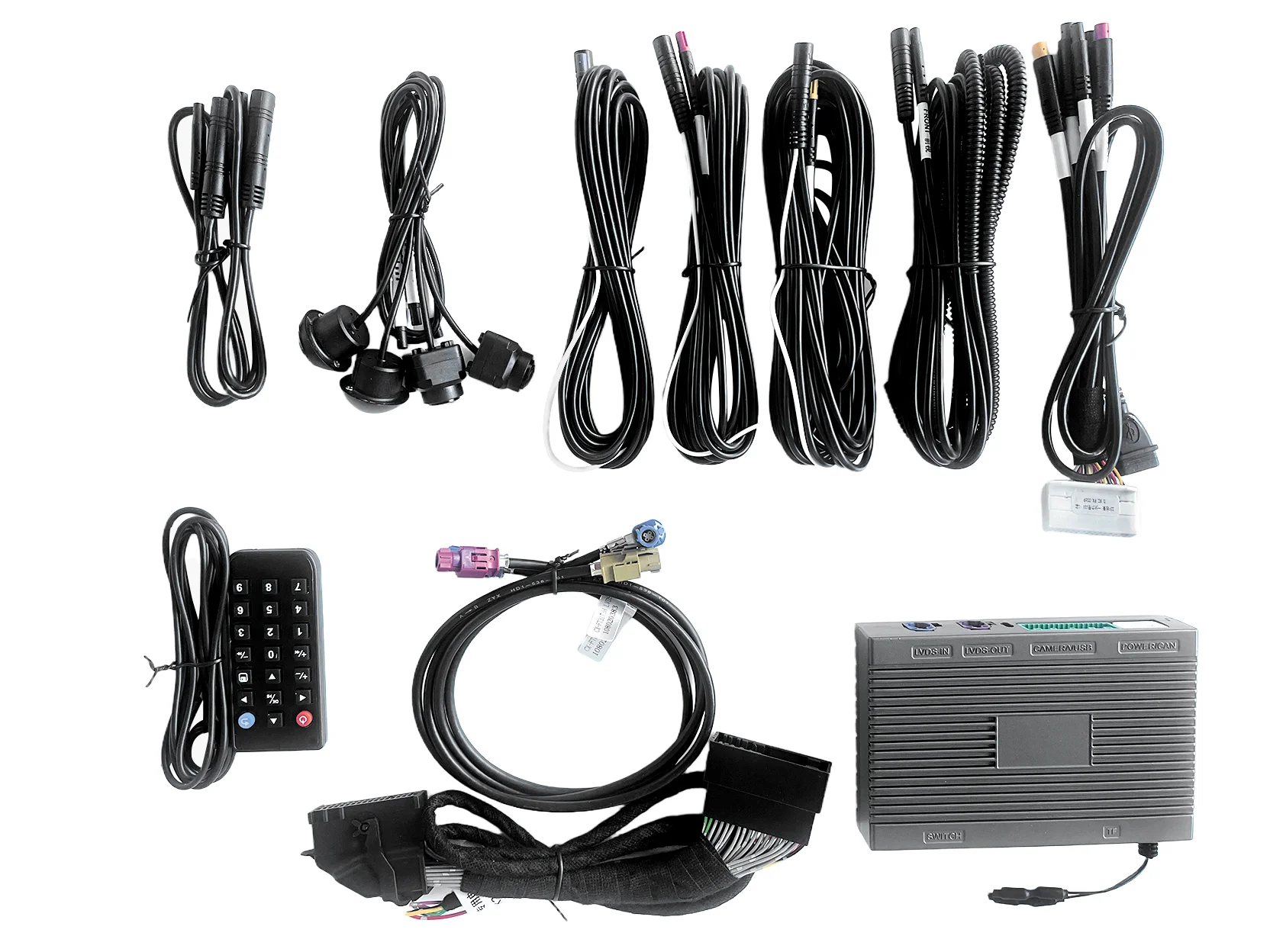

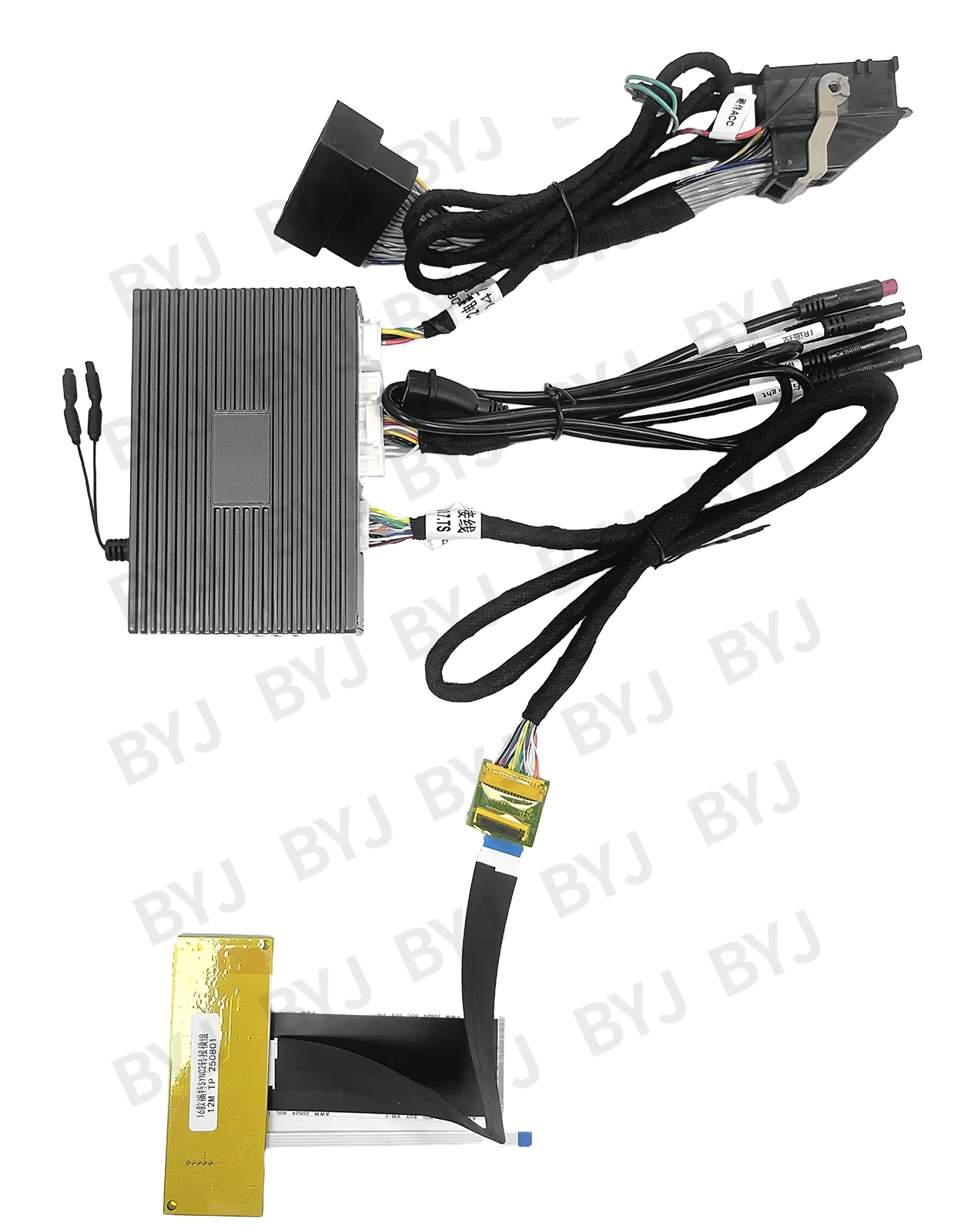

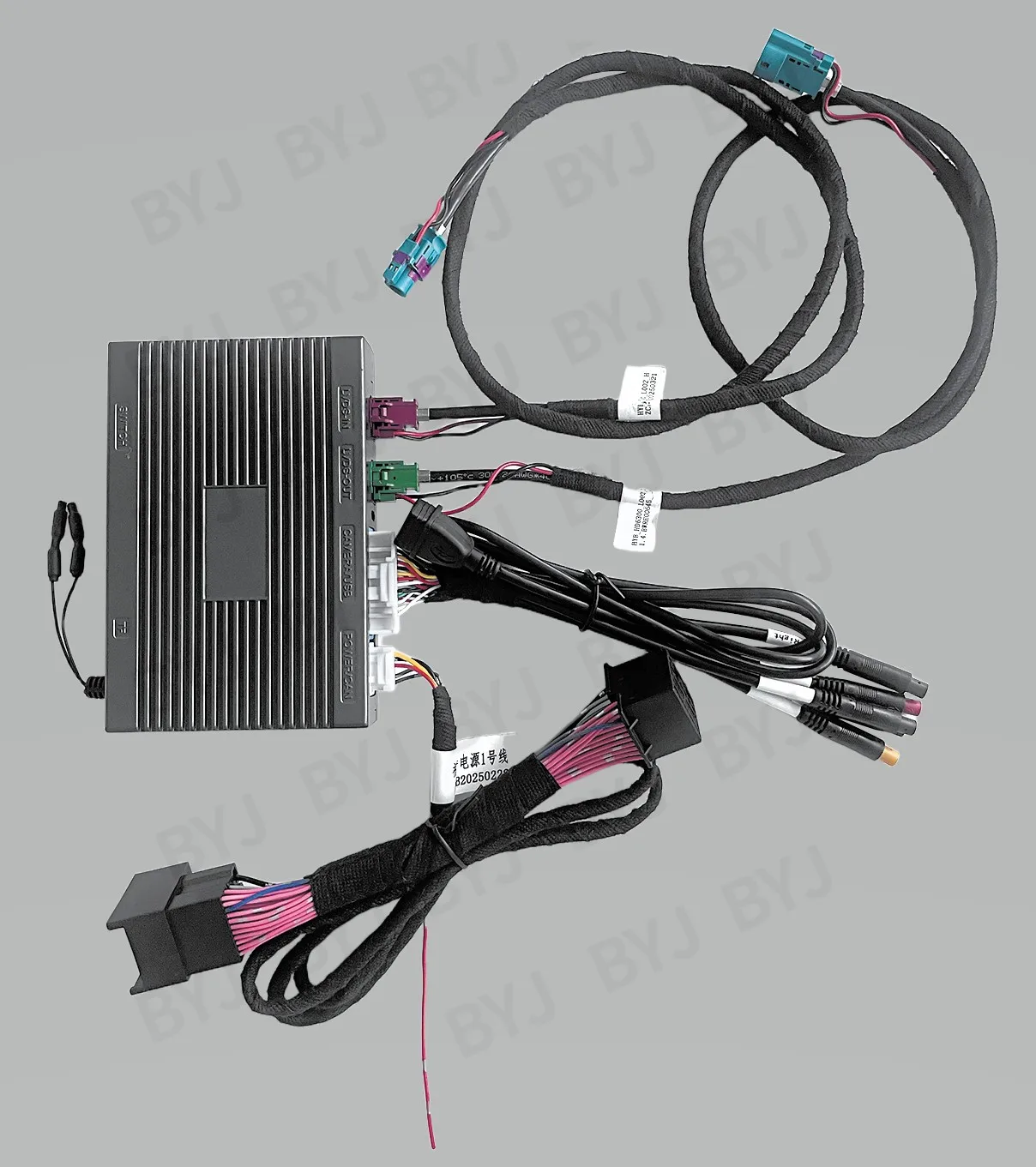

【Packing List】

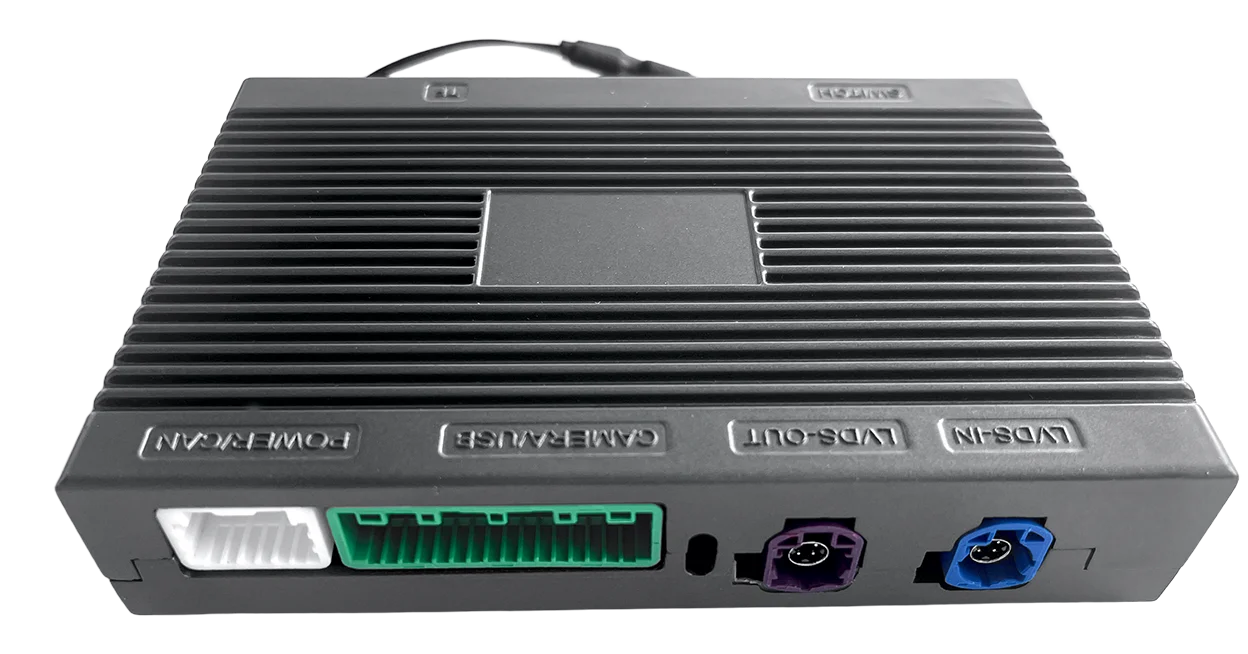

- 4-way driving recorder host ×1
- Front, rear, left, and right side cameras ×4
- Camera extension cables ×4
- Vehicle-specific connection cable*1
- LVDS or Circuit adapter board cable*1
- Remote control and infrared receiver ×1
- Installation accessories package ×1
- User manual ×1

【Frequently Asked Questions】

Q. Is the product equipped with a 360 degree panoramic program host box? Is there no 360 degree panoramic APP program available for screen installation?
A. Yes, it is

Q. Can different head units (Ford Lincoln Sync2, Sync3, Sync4) be mixed and matched?
A. No, it is not supported. A panoramic head unit box and wiring must be matched according to the head unit.
If you are unable to confirm the configuration, please send us photos of the central gearbox and center console screen for confirmation.

Q. How to distinguish the configuration?

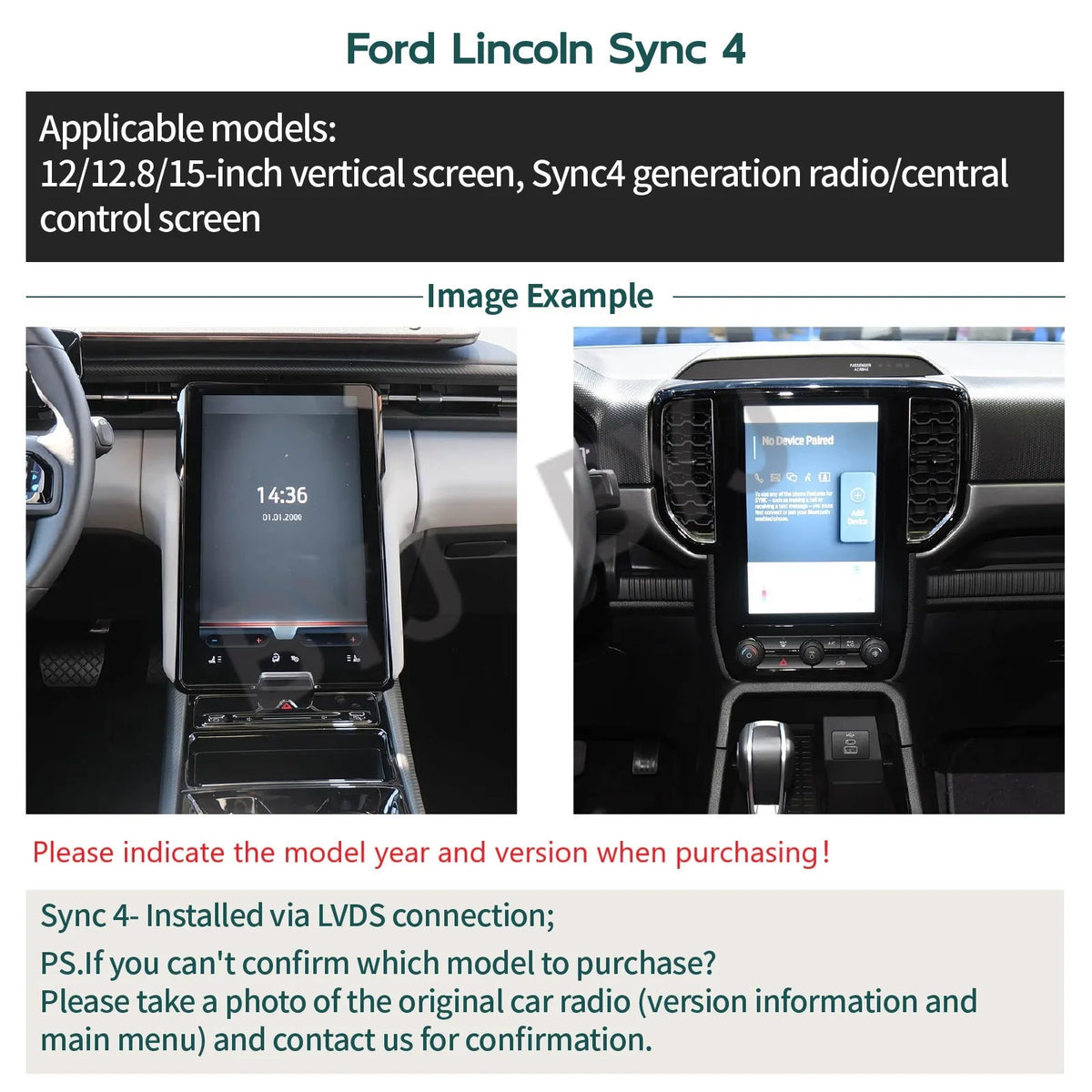

A. Check the version information of the original car's central control screen: Sync2/Sync3/Sync4 (Note: Sync4 is a 12/12.8/15” portrait screen).

Q. Does it support displaying reverse trajectories?
A. Yes, the vehicle-specific product supports it and has already obtained the original vehicle information through the protocol.

Q.Does it support touch operation?
A.① Sync3/Sync4 main units support touch operation; the product inputs a signal via LVDS.
②Sync2 main units support touch operationl (depending on whether the original car's central control screen has a reserved touch interface for this product; if so, it supports it/otherwise, it does not support it); it receives input signals through a decoder and adapter board.

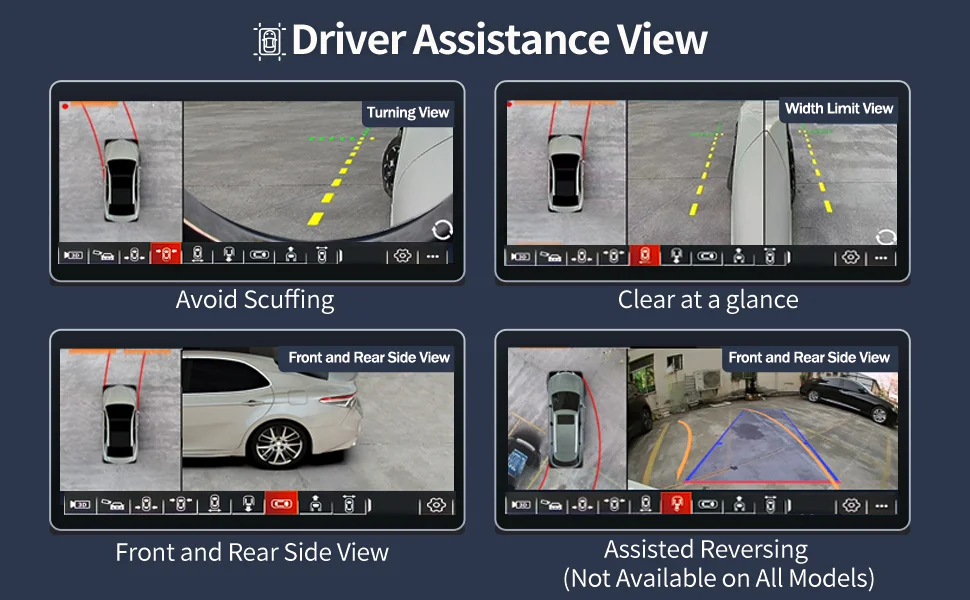

Q. How to switch the panoramic screen?
A. Front and rear/left and right view display, switch by shifting gears and turning lights.

Q. How to activate the panoramic image?
① The panoramic image is displayed when the car starts [the default is to automatically turn off after 10-15 seconds, and the duration can be set]
② The rear image is automatically triggered when the R gear is engaged
③ After the R gear is engaged, the front image is automatically jumped when the D gear/N gear is switched
④ The left/right turn signal triggers the left and right images

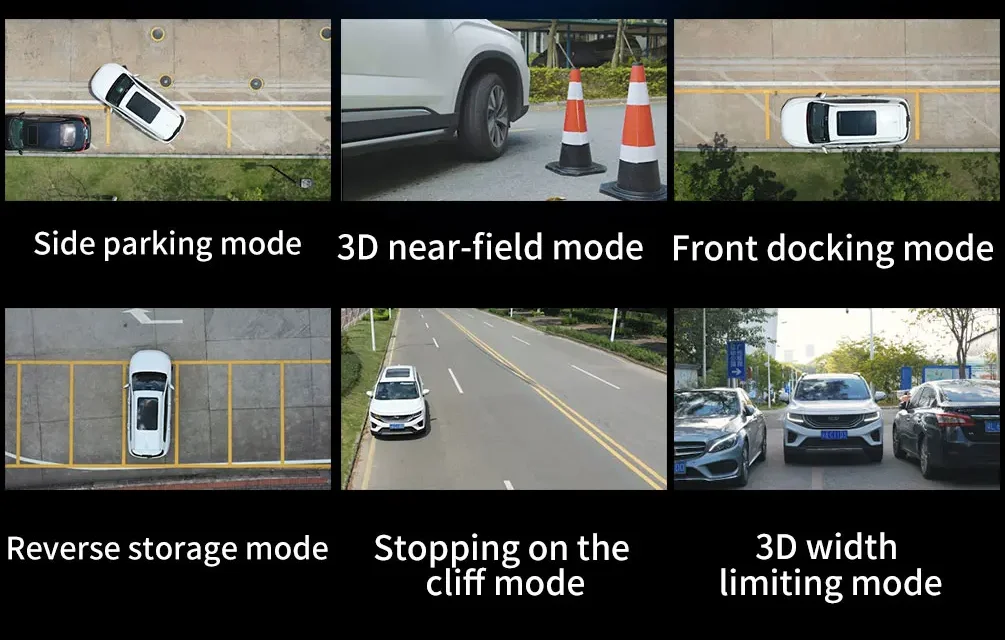

⑤ The double flash triggers the width limit mode or the panoramic image [any display mode can be set]

Q. Does the video support sound?
A. Only images are supported, not sound.

Q. If no USB storage device is inserted, is recording supported?
A. NO

Q. How much recording time does the USB flash drive memory support?
A. 8G/hour, which will vary depending on the environment and light.

Q. Can I use a USB flash drive larger than 64G?
A. No, the screen may freeze or freeze.

Q. Regarding the setting of the parking monitoring duration?
① You can set it by yourself from 1, 2, 4, 6, 24...48 hours; the specific working time depends on the original vehicle battery;
② This function has a certain risk of vehicle battery loss, please use it with caution;
③ Low power consumption design, equipped with low voltage protection function.

Q. Installation Instructions and Tutorials
A. We provide electronic user manuals in English/Russian/Japanese/Korean.
As well as common product settings and installation steps, which can be accessed via QR code with illustrated tutorials.
Please contact us if needed
