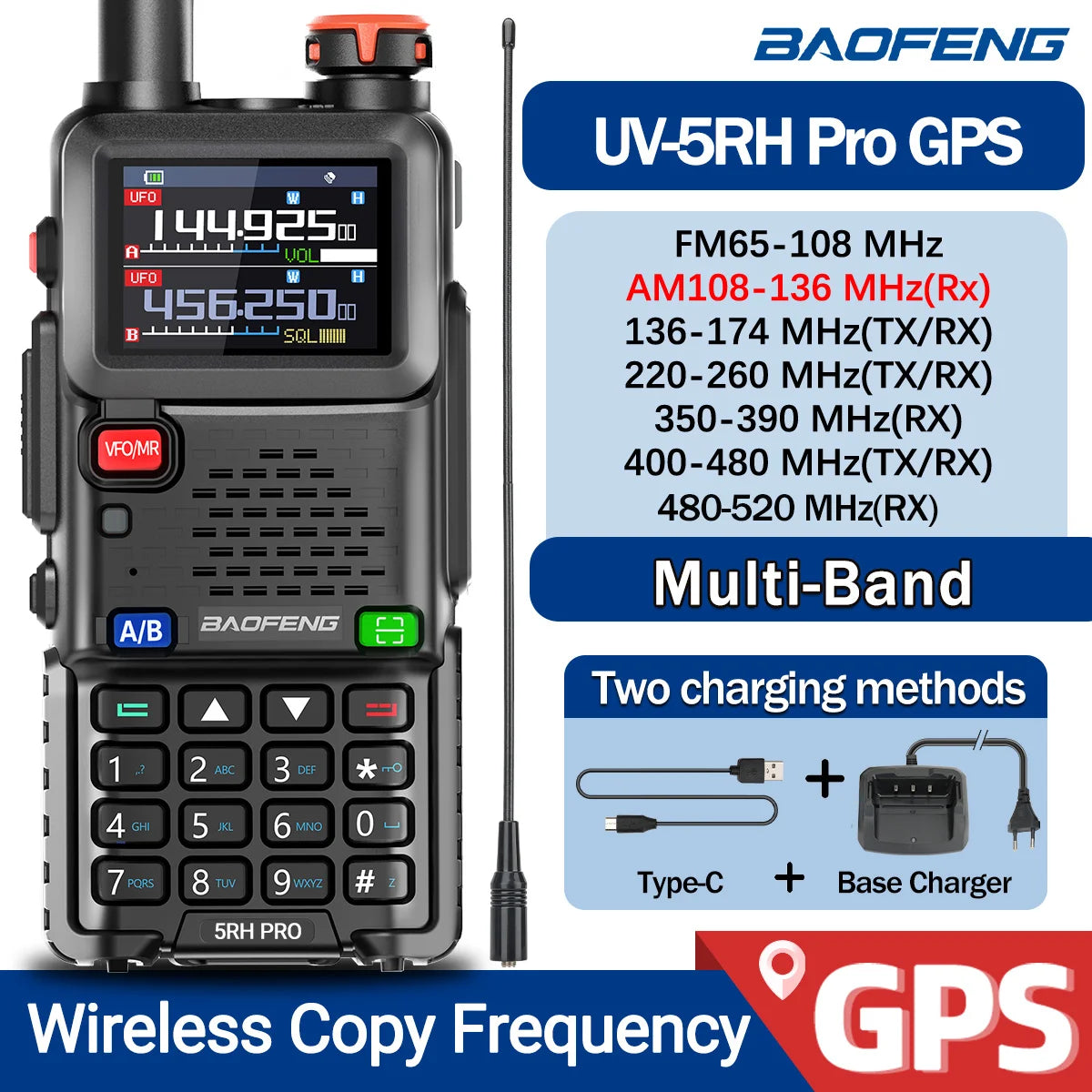

FM65-108 MHz（RX）
AM108-136 MHz(Rx)
136-174 MHZ(TX/RX)
220-260 MHz(TX/RX)
400-480 MHz(TX/RX)
480-520MHz(RX)

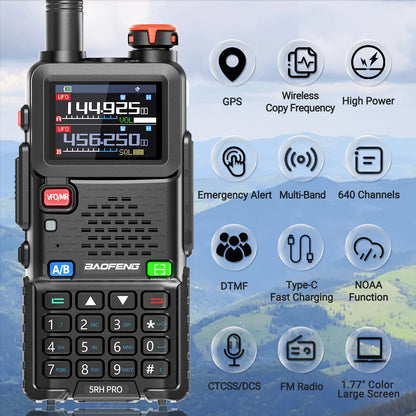

★【Upgraded UV-5R】

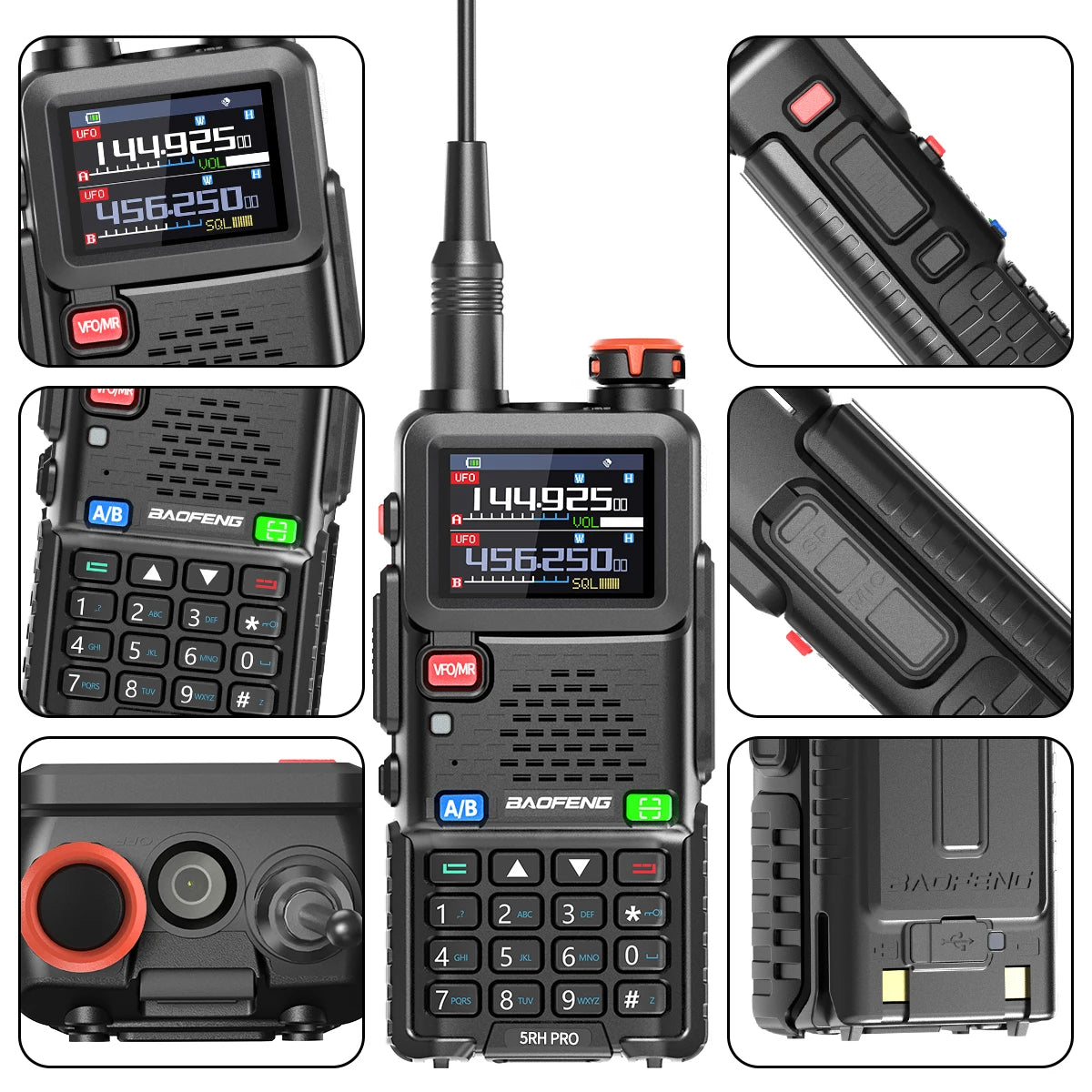

UV-5RH is a professional ham radio, True 10W high power. Up to 999channels.1.77 inch color screen.

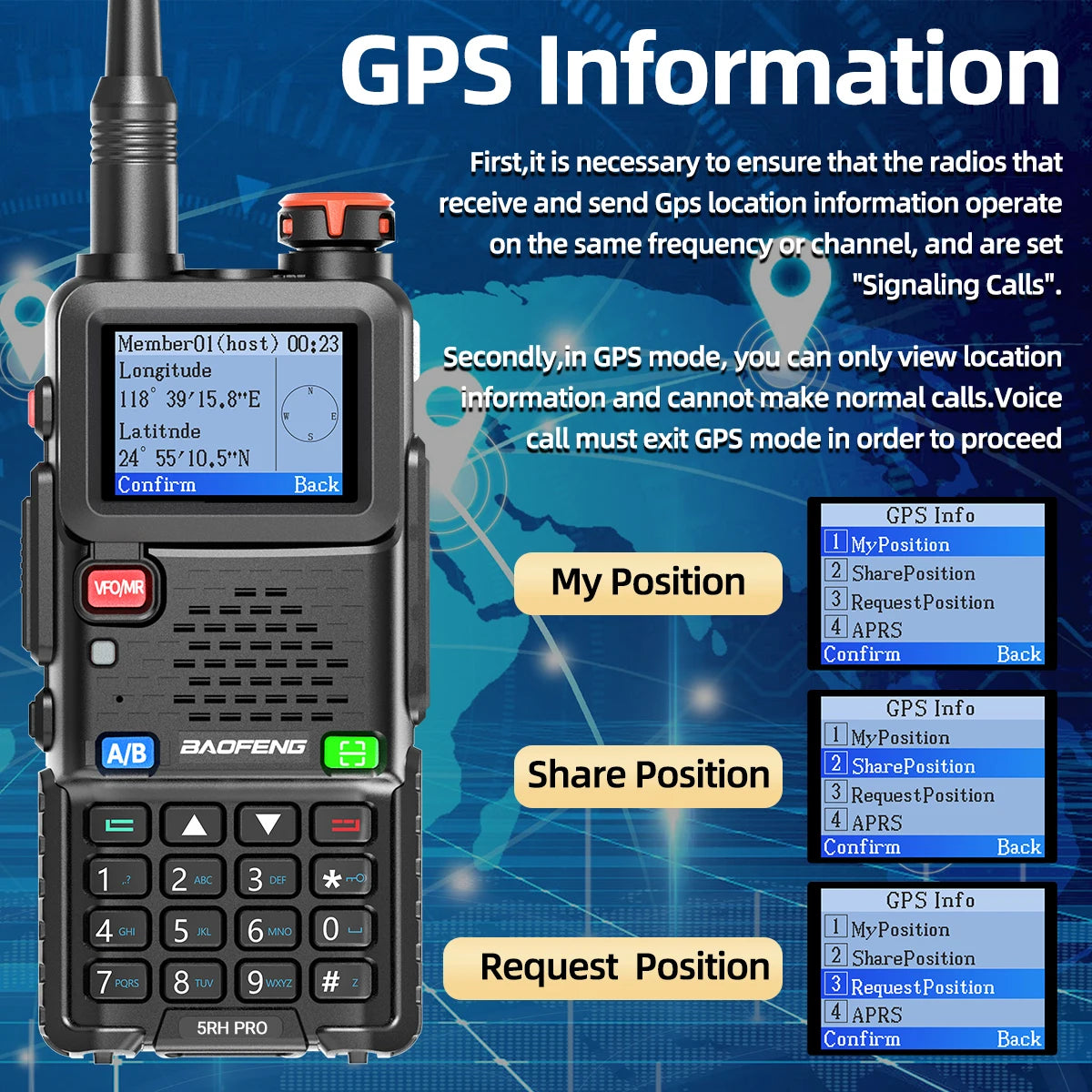

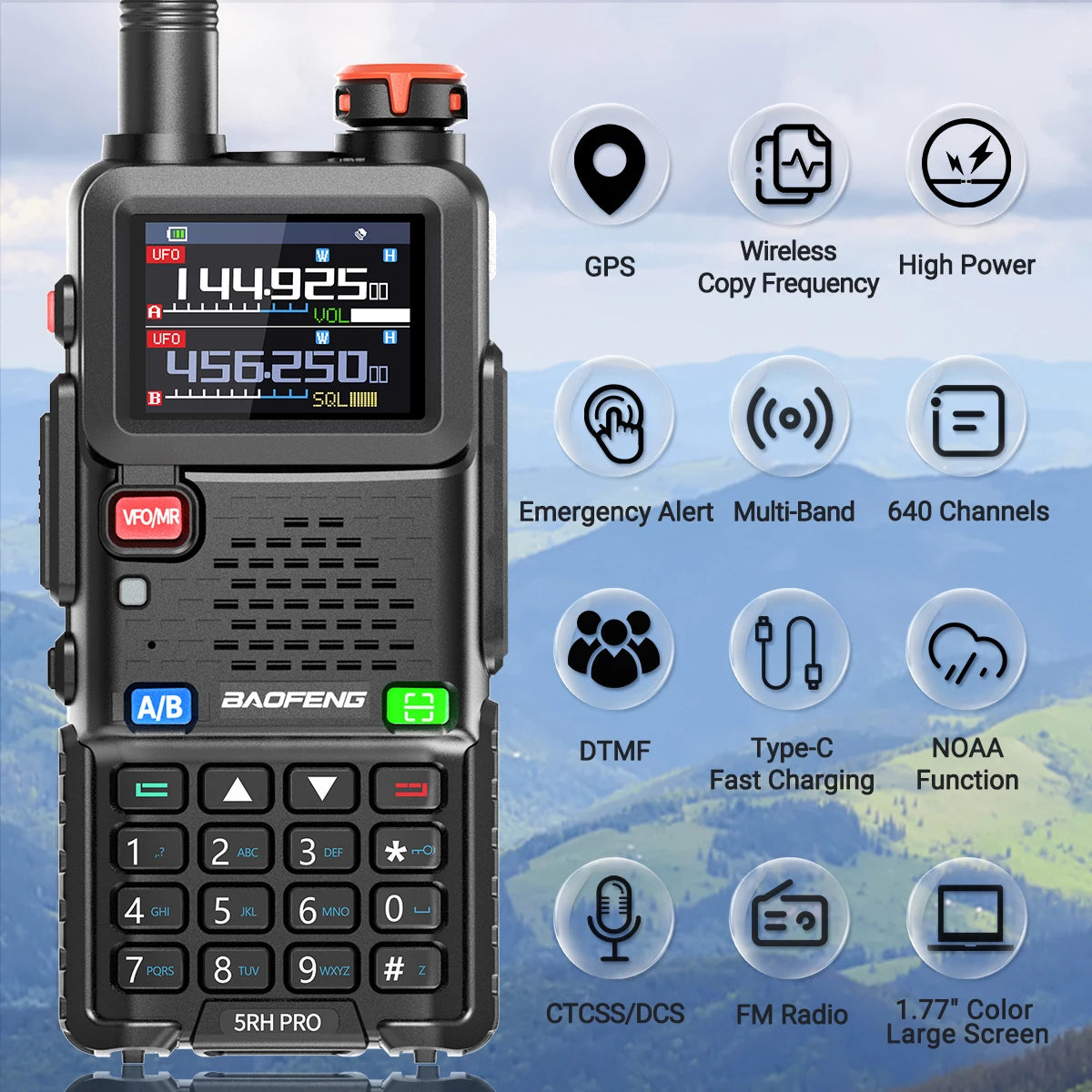

★【GPS Function 】
In this functional mode, you can view, share, and request location information. Easily share your location with peers and enhance teamwork,and enable your companions to find you in a timely manner when you are in danger.

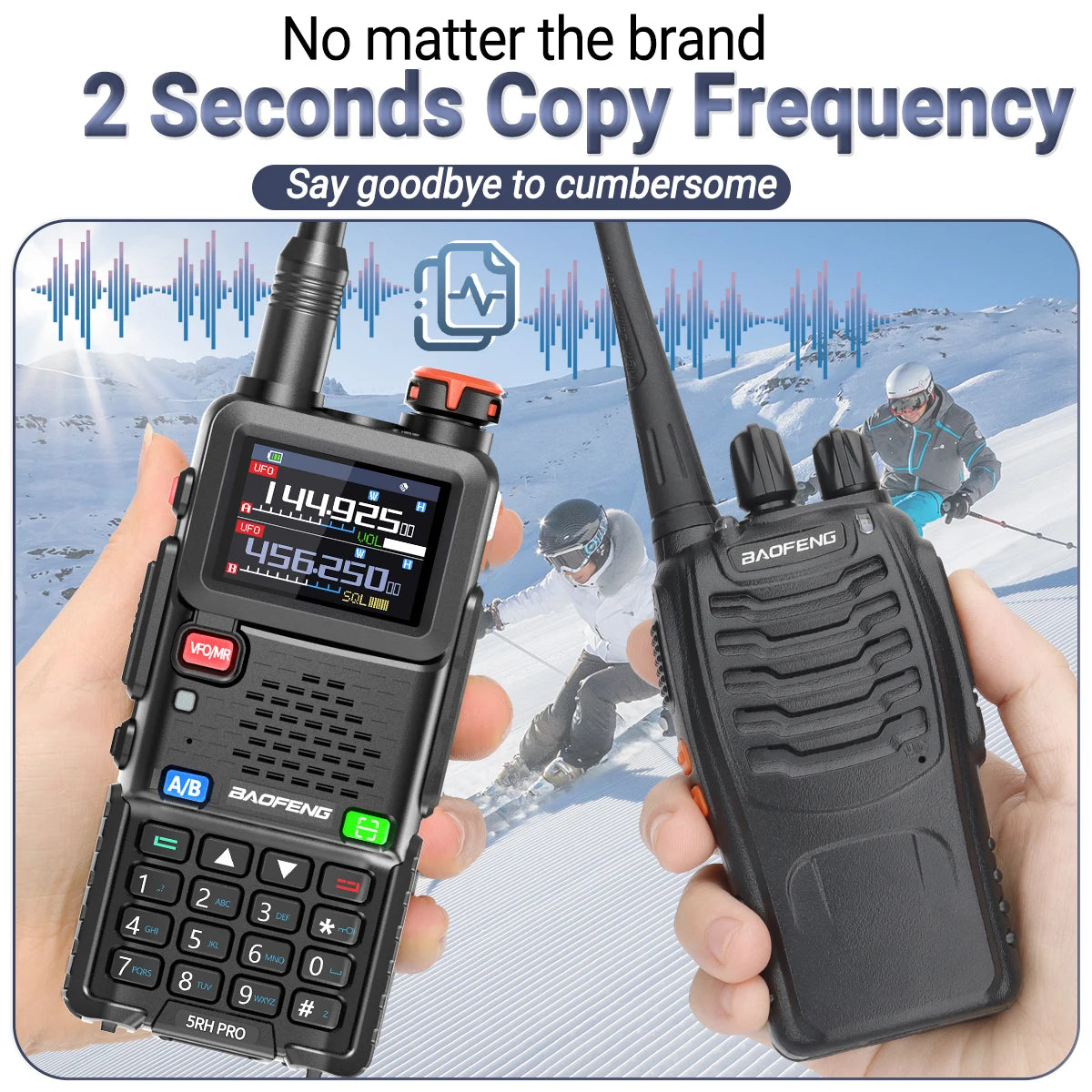

★【Wireless Copy Frequency 】
Press the EXIT button to enter the“FQSCAN”interface. Press EXIT again and the UV-5RH will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.
★【Type-C USB Charging】
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.
★【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.
All of our items are Brand New |
Model |
Baofeng UV-5RH PRO GPS |
Dual Band or Multi-Band |
Multi-Band |
640 channelsstorage |
Short cut menu operation mode |
VFO&Memory channels scan |
Emergency Alarm |
Time-out Timer(TOT) |
0~9gradesVOXselectable |
PTT&ANIID |
FM radio and 25 stations storage |
Voice companding |
50CTCSS/104DCS |
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
DTMF function |
OFF SET function |
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
VOX function |
Yes |
|
Busy lockout function |
Yes |
|
Scanning function |
Yes |
|
Monitor function |
Yes |
|
Time-out Timer(TOT) function |
Yes |
|
LCD display |
Yes |
|
Dual display |
Yes |
|
Battery voltage display function |
Yes |
|
Channel name display and editing functions |
Yes |
|
Signal strength indicator |
Yes |
|
Keypad lock function |
Yes |
|
Built-in Ledtorch |
Yes |
|
FM radio |
Yes |
|
Wireclone function |
Yes |
|
Emergency alarm function |
Yes |
|
Low battery alarm |
Yes |
|
Powersavingfunction |
Yes |
|
High/MID/Low TX power selectable |
Yes |
|
ROGERSET |
YesYes |
|
Chinese and English voice prompt |
Yes |
|
PC software programmable |
Yes |
|
Rated Voltage |
7.4VDC±10% |
Output power |
<=5W |
Battery type |
Li-ion battery |
Battery capacity |
2500mAh |
Working temperature |
-20~+50°C |
Antenna Impedance |
50ohm |
Weight(Including Antenna) |
300g |
Dimension(LXWXH) |
58X40X130mm(NotAntenna) |
Frequency stability |
±2.5ppm |
Carierwave tolerance |
5ppm |
Modulation |
16K Ø F3E/11K Ø F3E |
Max frequency deviation |
<5kHz(Wide)
<2.5kHz(Narrow) |
Modulation character |
6dBperfoldfrequencypatch |
Emission current |
<1.6A(5W) |
CTCSS/DCS |
0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow) |
Sensitivity |
<0.16µV(12dBSINAD) |
Silent sensitivity |
<0.2µV |
Intermediation Distortion |
<10% |
Intermodulation |
8-12mv |
Adjacent channelselectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |

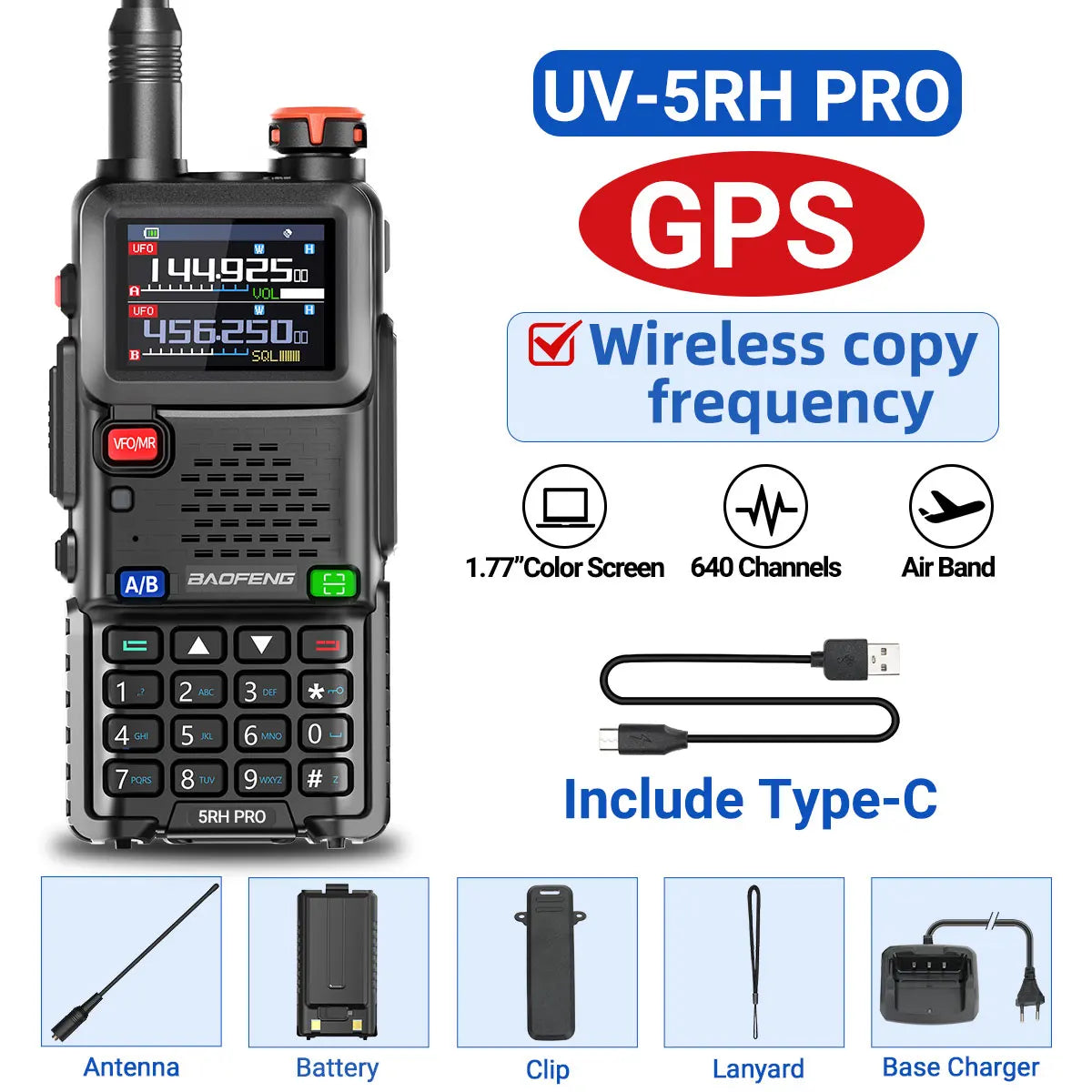

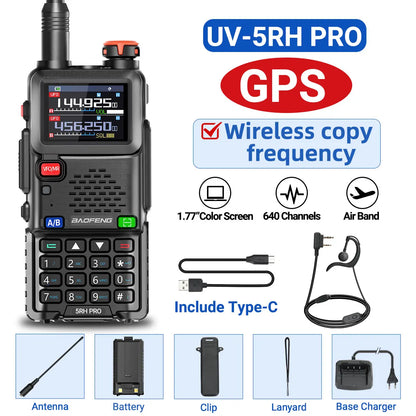

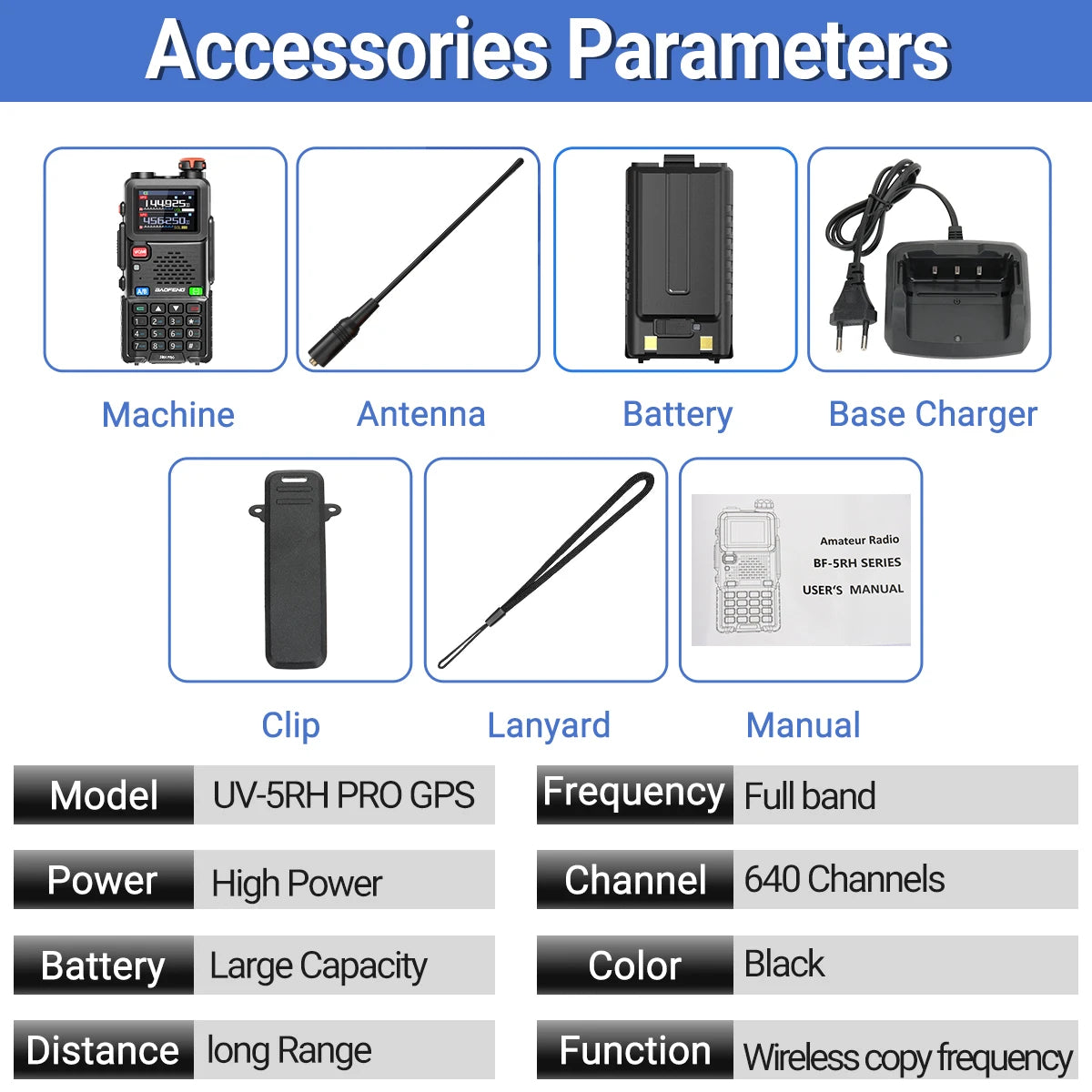

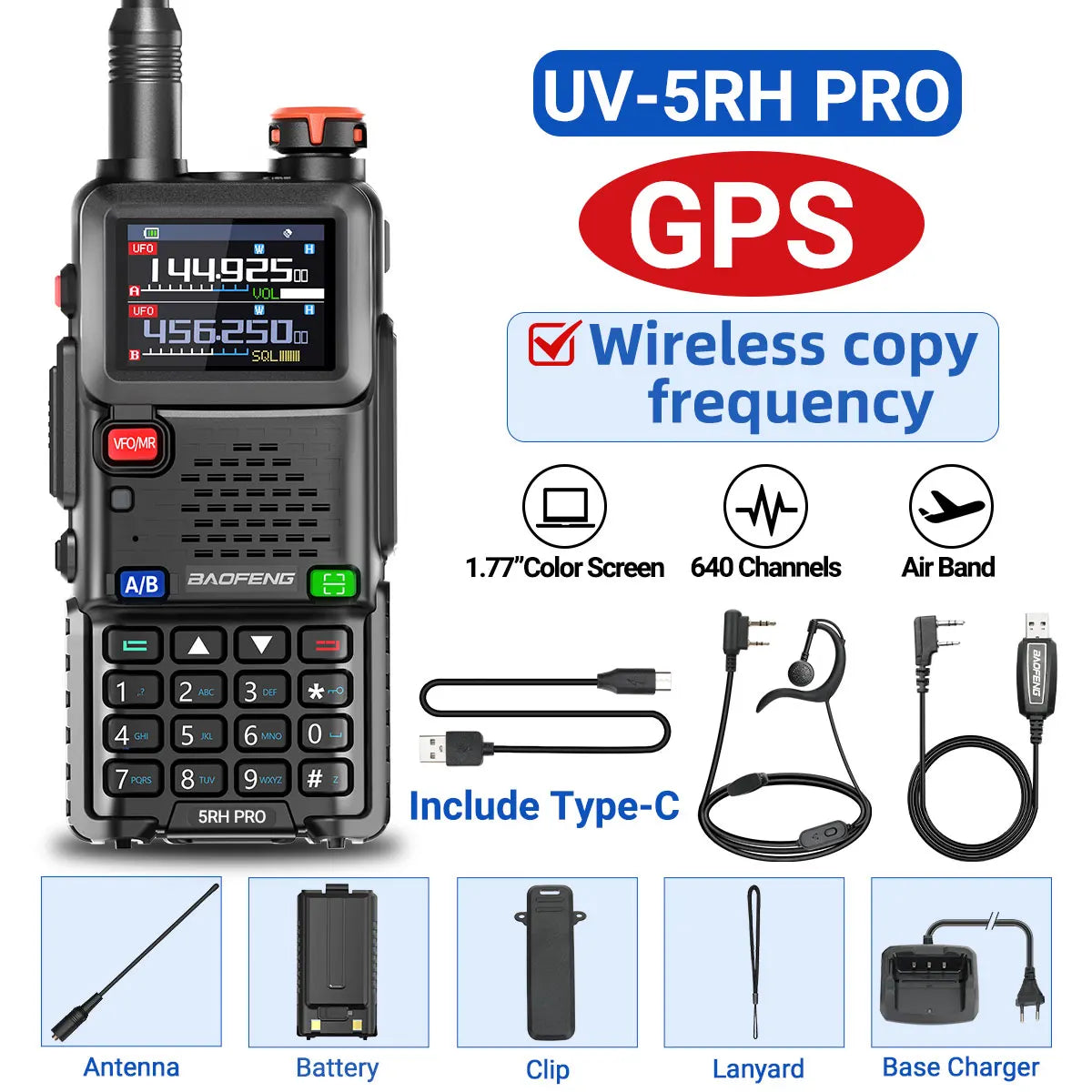

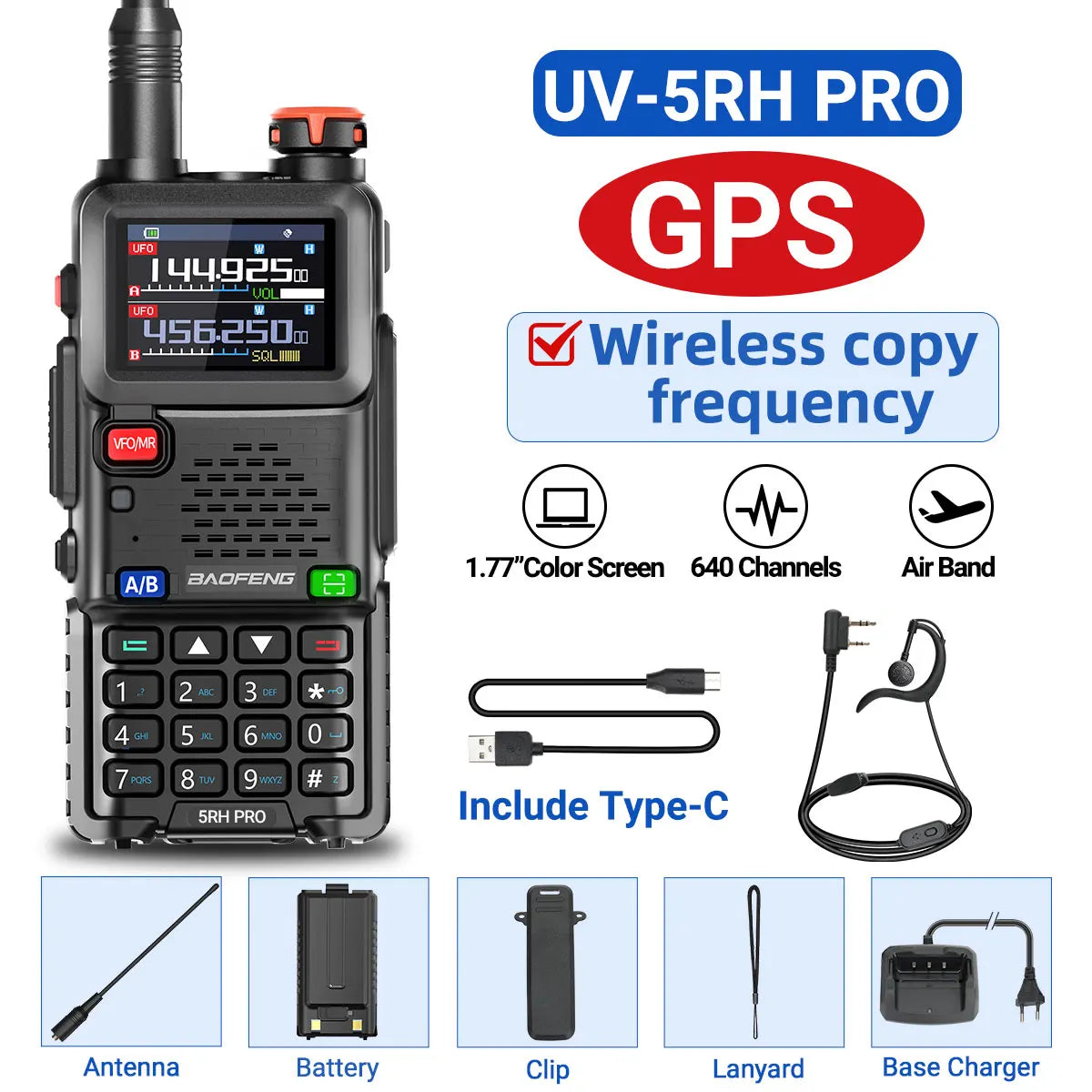

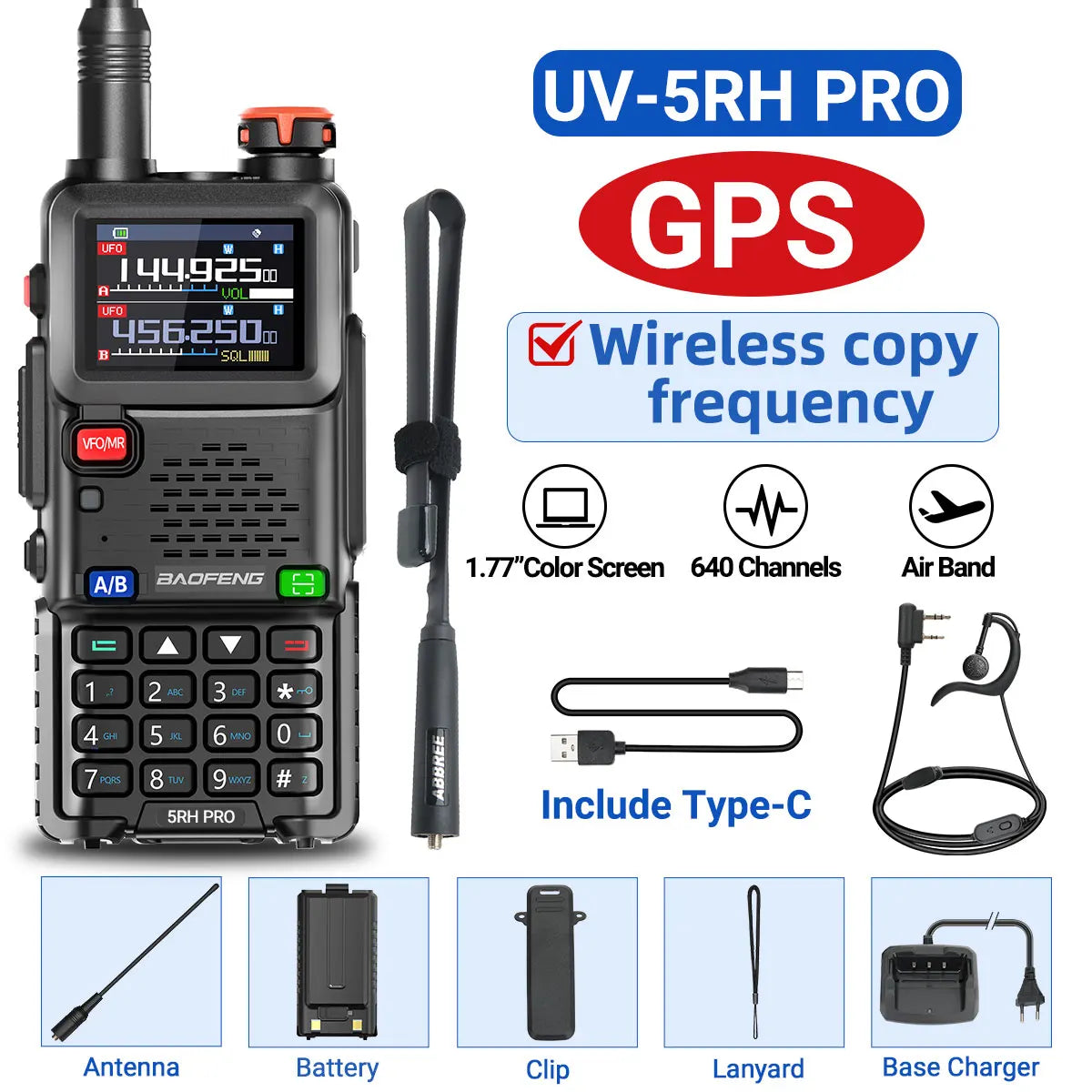

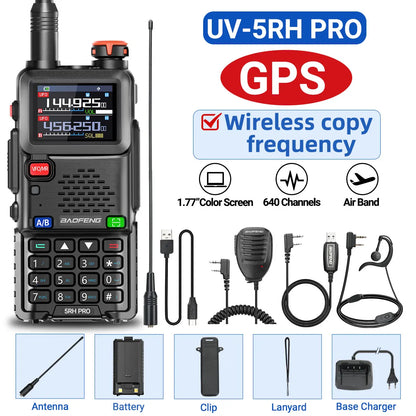

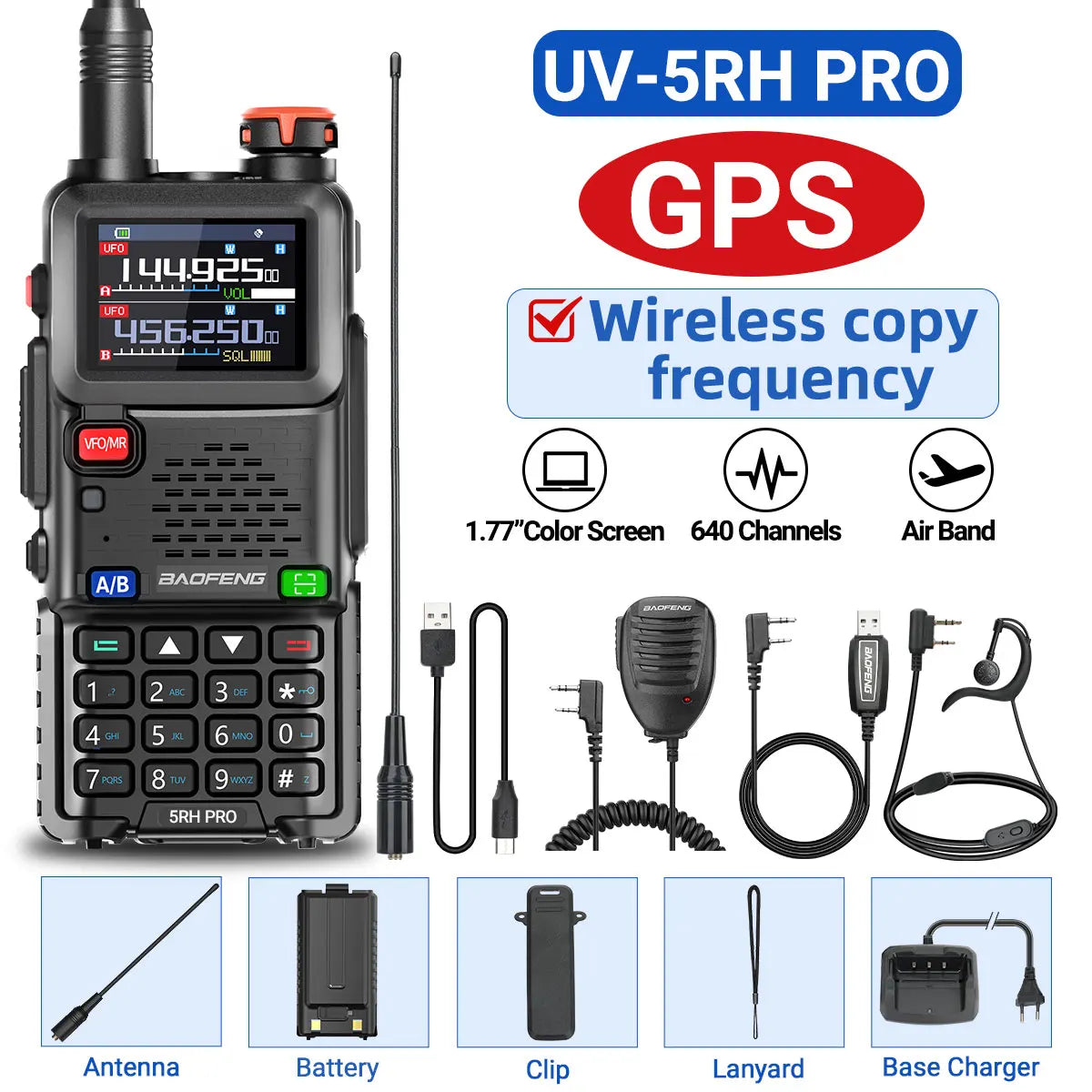

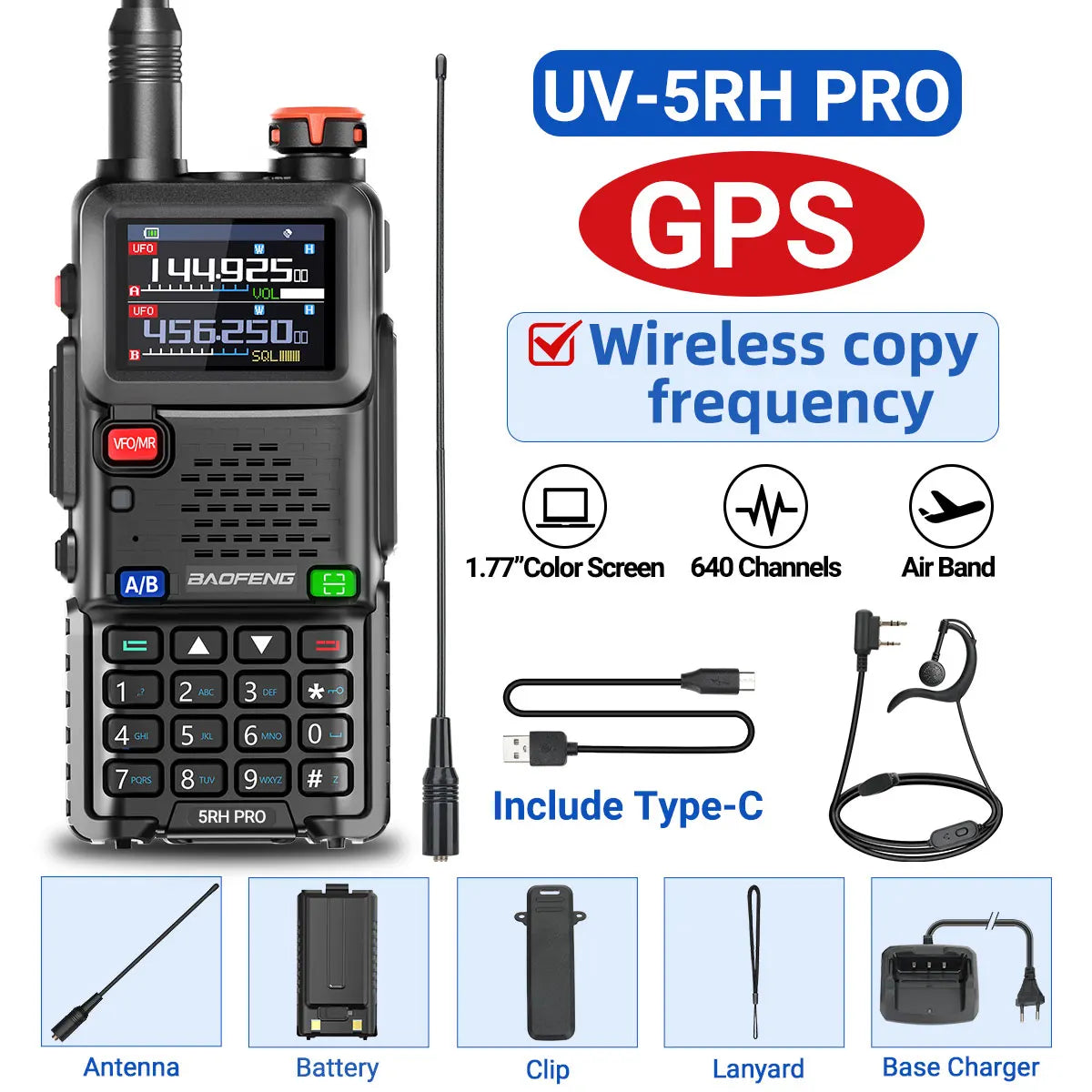

Package Include:
1X Portable radio
1X Antenna
1X Li-ion battery pack
1X Belt clip
1X The sling
1X User's manual
