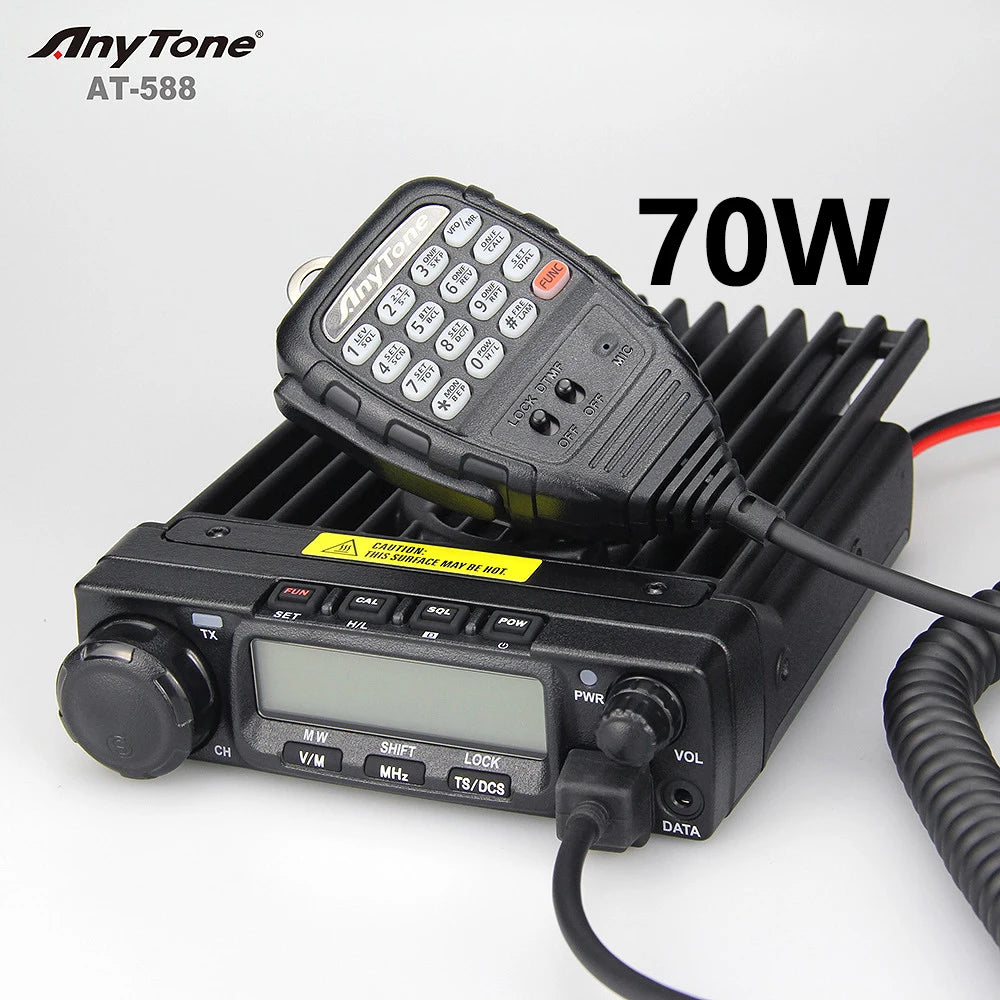

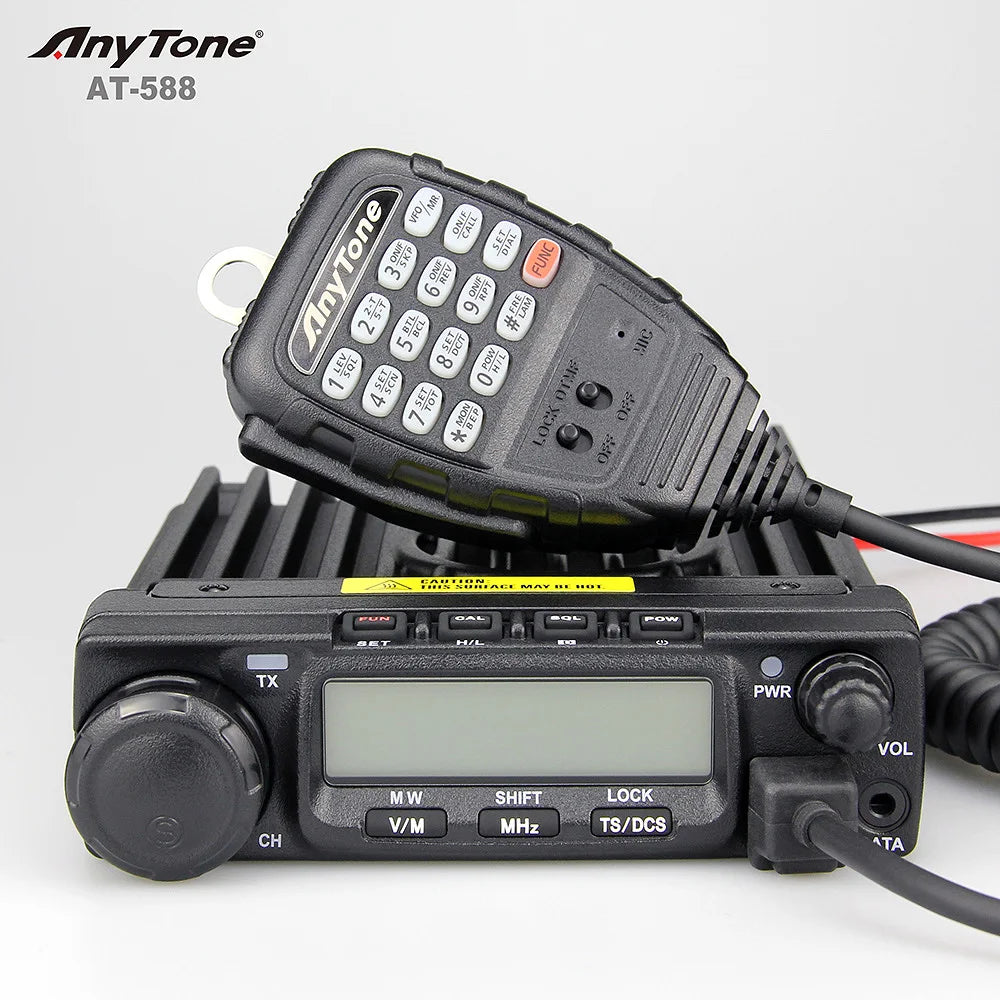

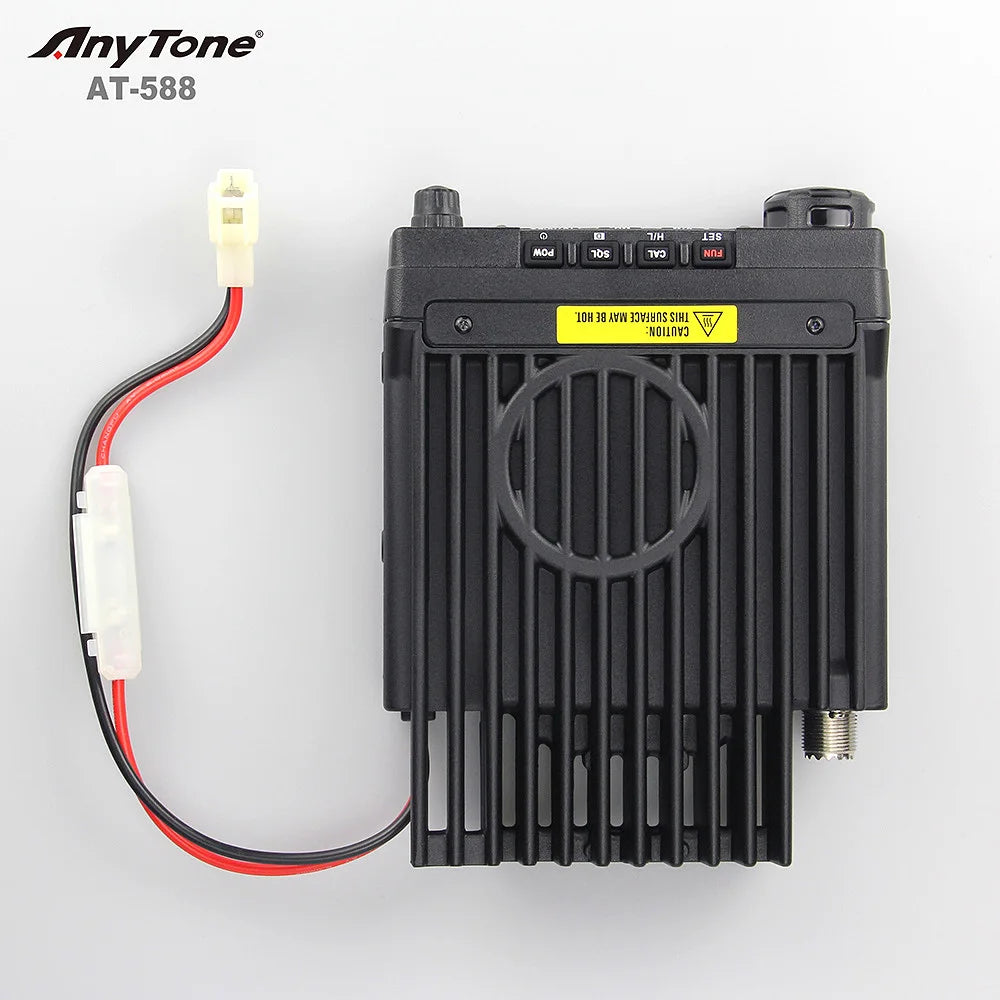

510 Channels ANYTONE AT-588 Single Band With Air Band RX 70w VHF Long Range Walkie Talkie for Vehicle Radio Amateur UHF Radio
510 Channels ANYTONE AT-588 Single Band With Air Band RX 70w VHF Long Range Walkie Talkie for Vehicle Radio Amateur UHF Radio
Regular price
$190.65 USD
Regular price
$0.00 USD
Sale price
$190.65 USD
SPECIFICATIONS
Battery Capacity: Without battery
Brand: Anytone
Brand Name: NONE
Certification: FCC/CE
Channel Spacing: 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band)
Feature: TOT
Function: CTCSS/ DCS
High-concerned chemical: none
IP level: IP23
Material: Plastic
OEM: Accept OEM
Operating Voltage: 13.8 DC ±20%
Origin: Mainland China
Output Power: 70W VHF 45W UHF
Radio Type: Profeesional High Power Radio
Type: Other
Warranty: 18 Months
brand name: AnyTone
customized packaging: 500
feature: Air band
frequency range: 136-174 & 400-490Mhz & 66-88Mhz & 220-280Mhz
frequency type: VHF
model number: Transceiver
operating language: English
output power: 70w
place of origin: Fujian, China
storage channel: 510
talk range: 10KM
walkie talkie type: Marine&Car radio
water resistance level: IPX-1
MODEL NO.: AT-588 Single Band
Frequency:
66~88MHz, 136~173.995MHz, 220~260MHz, 340~400MHz, 400~490MHz(Normal), 440~512MHz etc. 27~43MHz(ODM Project)
Functions:
66~88MHz, 136~173.995MHz, 220~260MHz, 340~400MHz, 400~490MHz(Normal), 440~512MHz etc. 27~43MHz(ODM Project)
Functions:
1. Working Mode: Amateur Transceiver or Professional Transceiver
2. 200 programmable memorized channels, the channels can be marked with letter and digits
3. Output Power : 70W(VHF),40W(UHF)/25W/10W.
4. CTCSS/DCS/DTMF/2Tone/5Tone decode and encode.
(50 groups CTCSS Tone Frequency(Hz) / 1024 groups DCS Code)
5. Four different tone-pluse frequencies. 6. Compander function for decrease the background noise and enhance audio clarity, it
can set compander ON/OFF per channel.
7. Theft alarm provides extra safety 8. ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID. 9. QHM-03 multifunctional microphone with
DTMF.
10. Display on a large LCD with adjustable brightness, convenient for nighttime use.
11. Different band width per channel, 25K for wide band, 20K for middle band, or 12.5K for narrow band.
12. Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
13. Squelch Off/Squelch Off Momentary, Squelch Level Setup 14. Frequency/Channel Scan
15. High/Mid/Low Power Switch, Current Voltage Enquiry
16. Keypad Lockout 17. Busy Channel Lockout.
18. Scrambler Setup (Encryption).
19. Voice Prompt 20. TOT (Time-out timer)
21. APO (Auto power off) 22. DTMF Transmitting Time setup
23. Scramble function (option). 24. 12V/24V for truck which no need extra DC power supply(option)
2. 200 programmable memorized channels, the channels can be marked with letter and digits
3. Output Power : 70W(VHF),40W(UHF)/25W/10W.
4. CTCSS/DCS/DTMF/2Tone/5Tone decode and encode.
(50 groups CTCSS Tone Frequency(Hz) / 1024 groups DCS Code)
5. Four different tone-pluse frequencies. 6. Compander function for decrease the background noise and enhance audio clarity, it
can set compander ON/OFF per channel.
7. Theft alarm provides extra safety 8. ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID. 9. QHM-03 multifunctional microphone with
DTMF.
10. Display on a large LCD with adjustable brightness, convenient for nighttime use.
11. Different band width per channel, 25K for wide band, 20K for middle band, or 12.5K for narrow band.
12. Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
13. Squelch Off/Squelch Off Momentary, Squelch Level Setup 14. Frequency/Channel Scan
15. High/Mid/Low Power Switch, Current Voltage Enquiry
16. Keypad Lockout 17. Busy Channel Lockout.
18. Scrambler Setup (Encryption).
19. Voice Prompt 20. TOT (Time-out timer)
21. APO (Auto power off) 22. DTMF Transmitting Time setup
23. Scramble function (option). 24. 12V/24V for truck which no need extra DC power supply(option)
Specification
|
GENERAL
|
||||||
|
Frequency Range
|
VHF: 66-88MHz, 136-174MHz
245-245.9875MHz (220~260MHz)
UHF: 400~490MHz
|
|||||
|
Number of Channels
|
200 channels
|
|||||
|
Channel Spacing
|
25K (Wide Band)
20K(Middle Band)
12.5K (Narrow band)
|
|||||
|
Phase-locked Step
|
5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
|
|||||
|
Operating Voltage
|
13.8V DC ±15%
|
|||||
|
Squelch
|
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
|
|||||
|
Frequency Stability
|
±2.5ppm
|
|||||
|

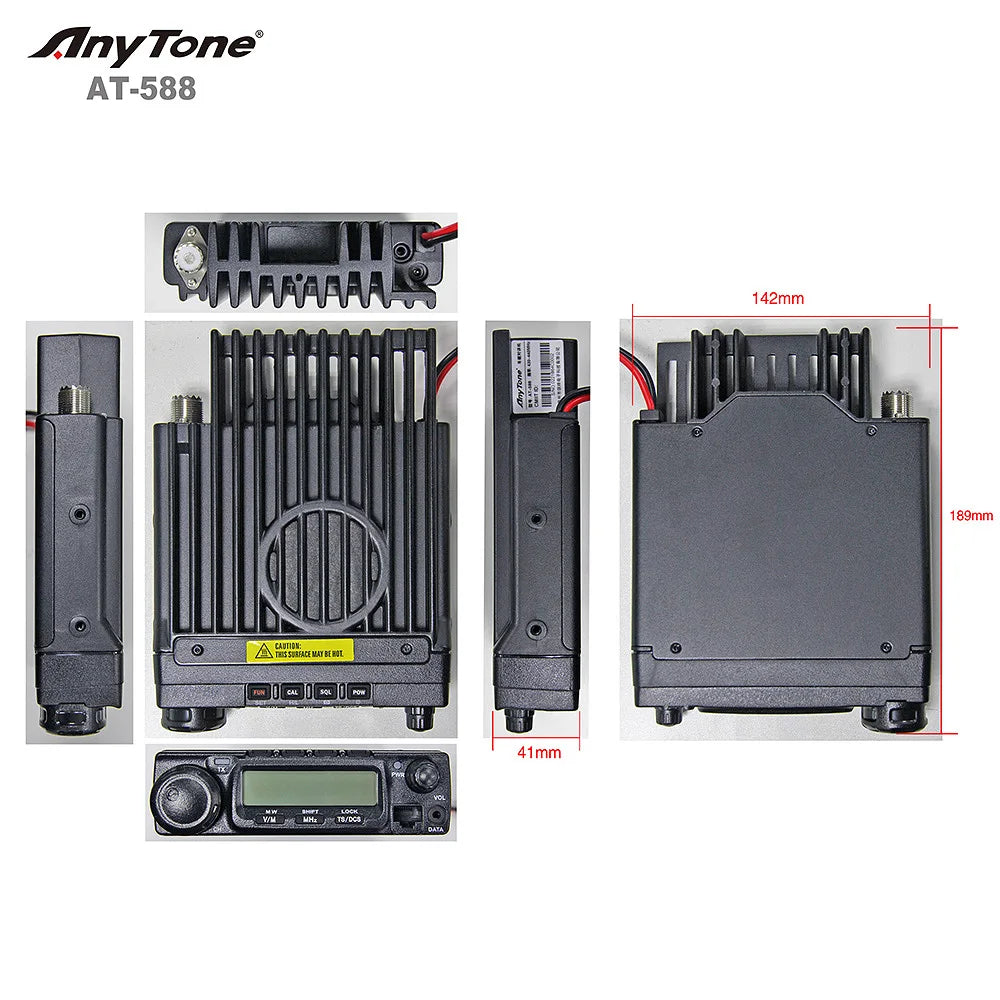

Dimensions
|
145 (W) x 47 (H) x 190 (L)mm
|
|||||
|
Weight
|
about 1.2Kg
|
|||||
|
Operating Temperature Range
|
-20鈩� to +60鈩�
|
|||||
|
**Specifications are subject to change without notice due to advancements in technology.
|
||||||
|
Receiver (ETSI EN 300 086 standard testing )
|
||||
|
Wide band
|
Narrow band
|
|||
|
Sensitivity (12dB Sinad)
|
≤0.25μV
|
≤0.35μV
|
||
|
Adjacent Channel Selectivity
|
≥70dB
|
≥60dB
|
||
|
Intermodulation
|
≥65dB
|
≥60dB
|
||
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
||
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
||
|
Hum & Noise
|
≥45dB
|
≥40dB
|
||
|
Audio distortion
|
≤5%
|
|||
|
Audio power output
|
锛�2W@10%
|
|||
|
Transmitter (ETSI EN 300 086 standard testing )
|
||||
|
Wide band
|
Narrow band
|
|||
|
Power Output
|
60W/25W/10W(136-174MHz) 60W/25W/10W(220-260MHz) 35W/25W/10W(66-88MHz)
|
45W/25W/10W(UHF)
|
||
|
Modulation
|
16KΦF3E
|
11KΦF3E
|
||
|
Adjacent Channel Power
|
≥70dB
|
≥60dB
|
||
|
Hum & Noise
|
≥40dB
|
≥36dB
|
||
|
Spurious Emission
|
≥60dB
|
≥60dB
|
||
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
||
|
Audio Distortion
|
≤5%
|
|||
Product Description
Packing & Delivery
Package Includes:
AT-588 Radio

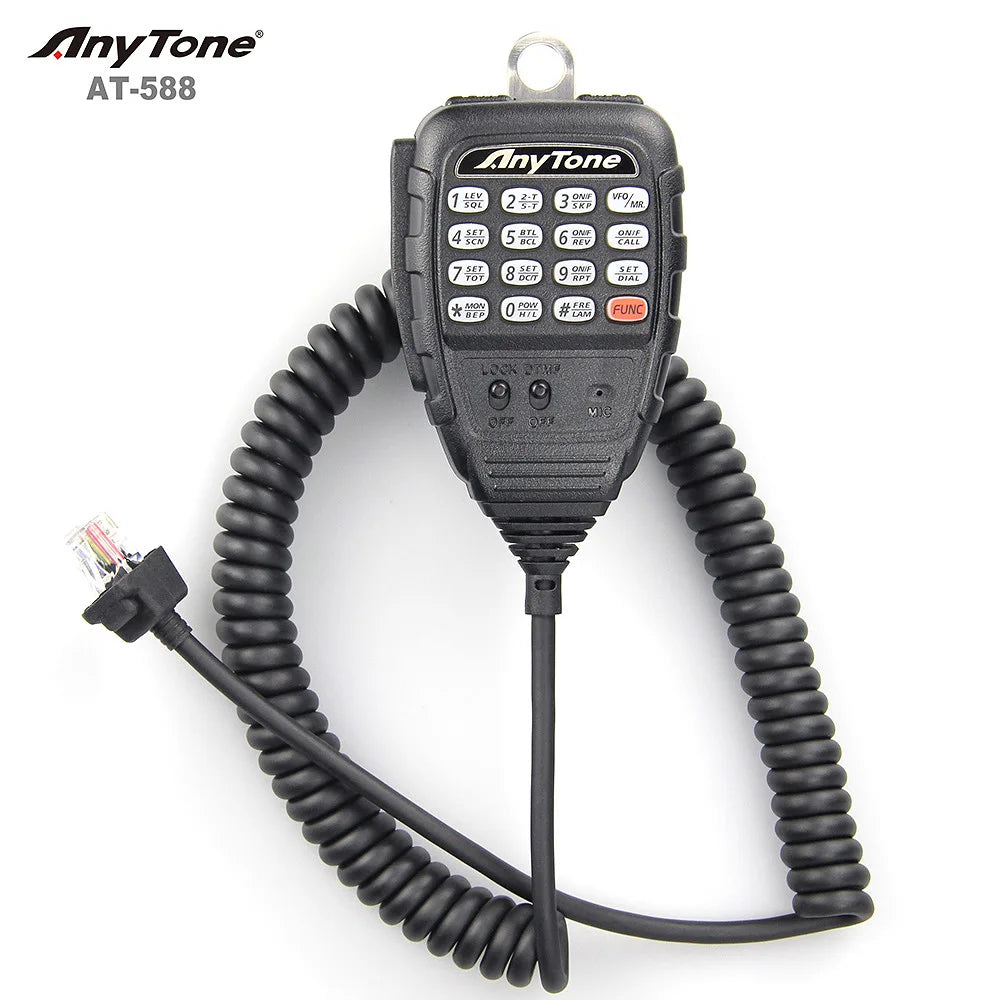

Microphone
DC Power cable

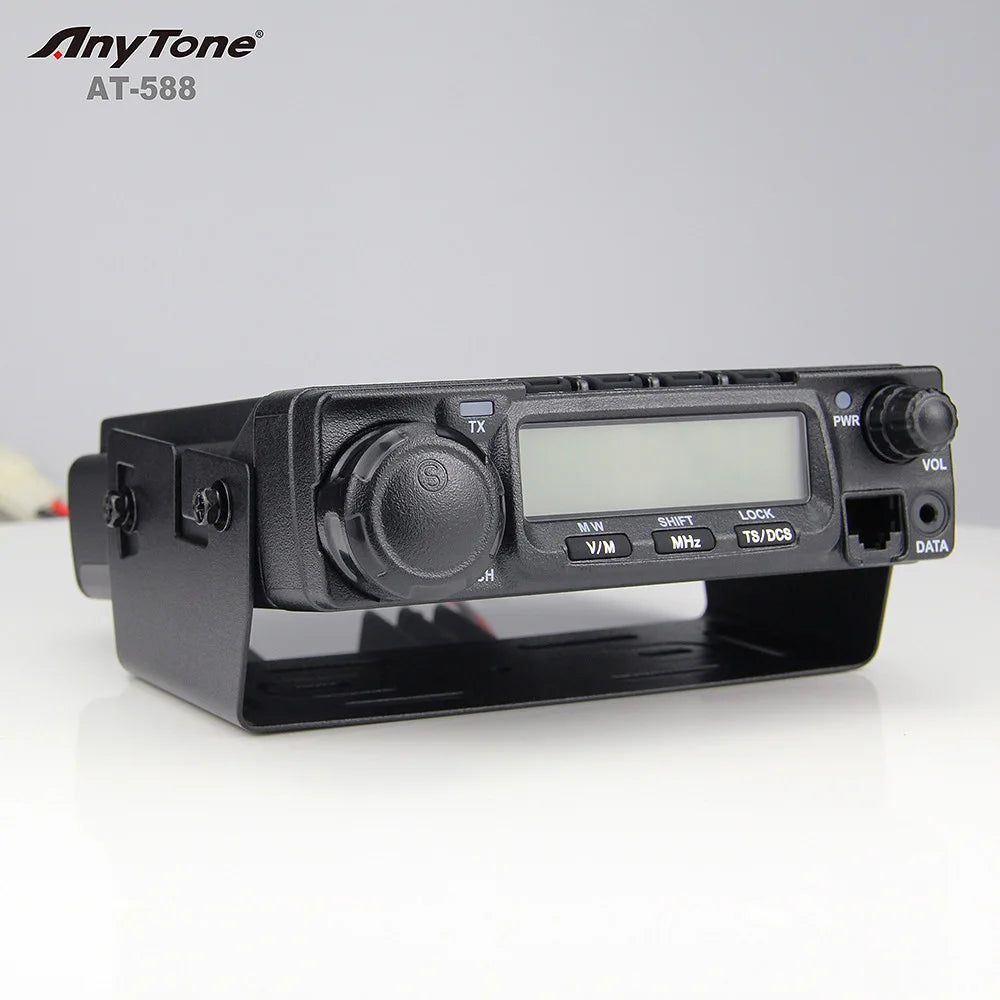

Bracket and accessories
Bracket and accessories
Downloadable software
User manual
