Retevis RT85 Walkie Talkie Long Range Ham Two-way Radio Station Walkie-talkies VHF UHF Dual Band Amateur Portable Radio Hiking

Retevis RT85 Walkie Talkie Long Range Ham Two-way Radio Station Walkie-talkies VHF UHF Dual Band Amateur Portable Radio Hiking

Normaler Preis $63.98 USD
Normaler Preis $0.00 USD Verkaufspreis $63.98 USD
Sale Ausverkauft

SPECIFICATIONS

Antenna Connector: SMA-M

Audio Connector: Compatible with Kenwood K Pin

Battery Capacity(mAh): 1400

Battery Included: Yes

Brand Name: RETEVIS

CHIP: BK4815

CTCSS/DCS: 62.5-754I

Certification: CE,FCC

Compatible Handheld Speaker Microphone: C9001A / C9021A

Dimensions: 116x53x36mm(without antenna)

Display: DOT-MATRIX LCD display

FM Radio: 24 stations memory

Frequency Range: Dual band VHF 136-174MHz & UHF 400-470MHz

High-concerned chemical: none

Is_Display: Yes

Maximum Range: 1.5km-3km

Mic Gain: 1.5dB

Model Number: RT85

Origin: Mainland China

Output Power(w): 3w-5w

Power: 1W/5W

Rechargeablebatteryincluded: Yes

Scanning: Channel/Carrier

Squelch: 1-9

Step spacing: 2.5/5/6.25/10/12.5/25/ 50/100KHz

Storage Channel: 200

T0T: 270S

Type: Analog walkie talkie

Usable programming cable: C9018A / C9055A

Use: others

VOX level: 1-7

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: No

Weight: 234g

Working Temperature: -10℃~+50℃

Working Voltage: DC 7.4V









Retevis Walkie Talkie RT85 Ham Two-way Radio Stations 5W Walkie-talkies VHF UHF Dual Band Amateur Portable Radio TYT UV88 uv88






























Tips:

Click the picture below to download the driver of USB programming cable,programming software and firmware. Any questions, please be free to contact us.


Note

After you receive RT85 walkie talkie, if its frequency range can't reach 136.000-174.000MHz & 400.000-470.000MHz , frequency range doesn't fit with description,
or failed to enter VFO mode(realize VFO function)
,please press F button and 1 button and turn on RT85 at the same time, then it will be ok.

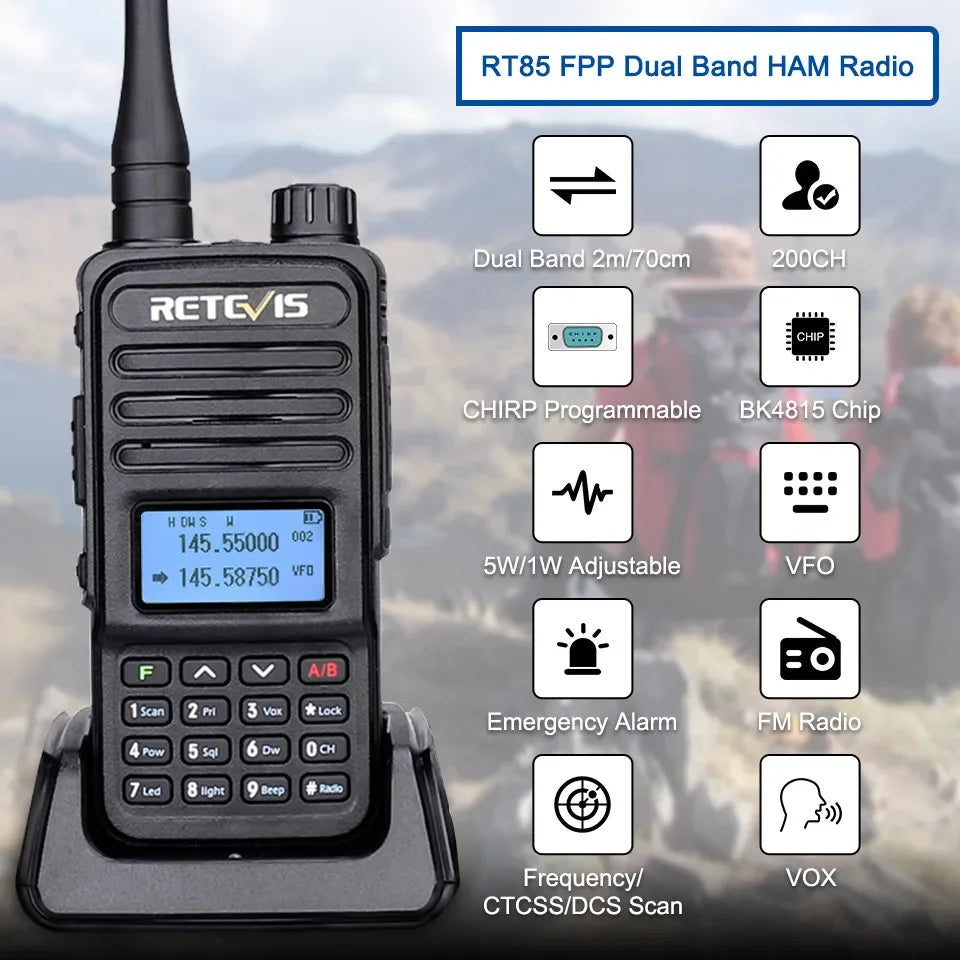

Description:

1.Dual band, dual display, dual standby
2.DOT-MATRIX LCD display
3.200 channels storage and scanning
4.FM Radio and 24 stations memory

Feature:

1.A/B band independent operation
2.Wide/Middle/Narrow band selectable
3.VOX (1-7 grade setting)
4.CTCSS/DCS
5.Scanning
6.1750Hz tone
7.Shortcut menu operation mode
8.Emergency alert
9.DTMF and remote stun/kill/activate
10.ANI function
11.8 group of scrambler
12.2 Tone /5 Tone
13.Multi types for keys lock setting
14.Multi display mode

Introduction to Retevis RT85

The Presentation to RT85 Structure

DOT-MATRIX LCD Display

Dual Band/Dual Display/Dual Standby/Large LCD Screen/Multiple Display Modes allowing you to easily grasp the working status of the walkie-talkie.Corresponding icons will be shown on the screen when the functions start.Such as battery status,channel number,frequency,TX/RX power,scanning,dual watch/standby active,DTMF,Repeater shift direction,2 tone/5 tone,etc.

Note to Icons on Screen

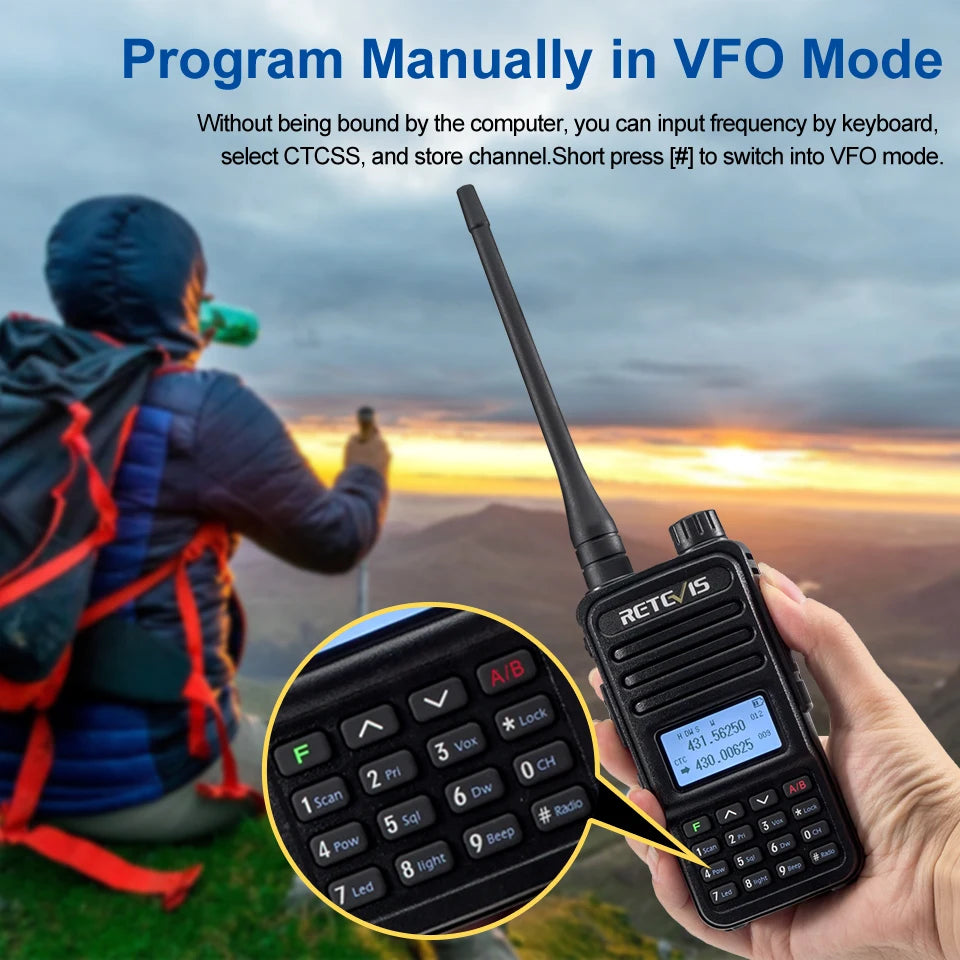

Program Manually in VFO Mode

Without being bound by the computer, you can input frequency by keyboard, select CTCSS, and store channel.Short press [#] to switch into VFO mode.

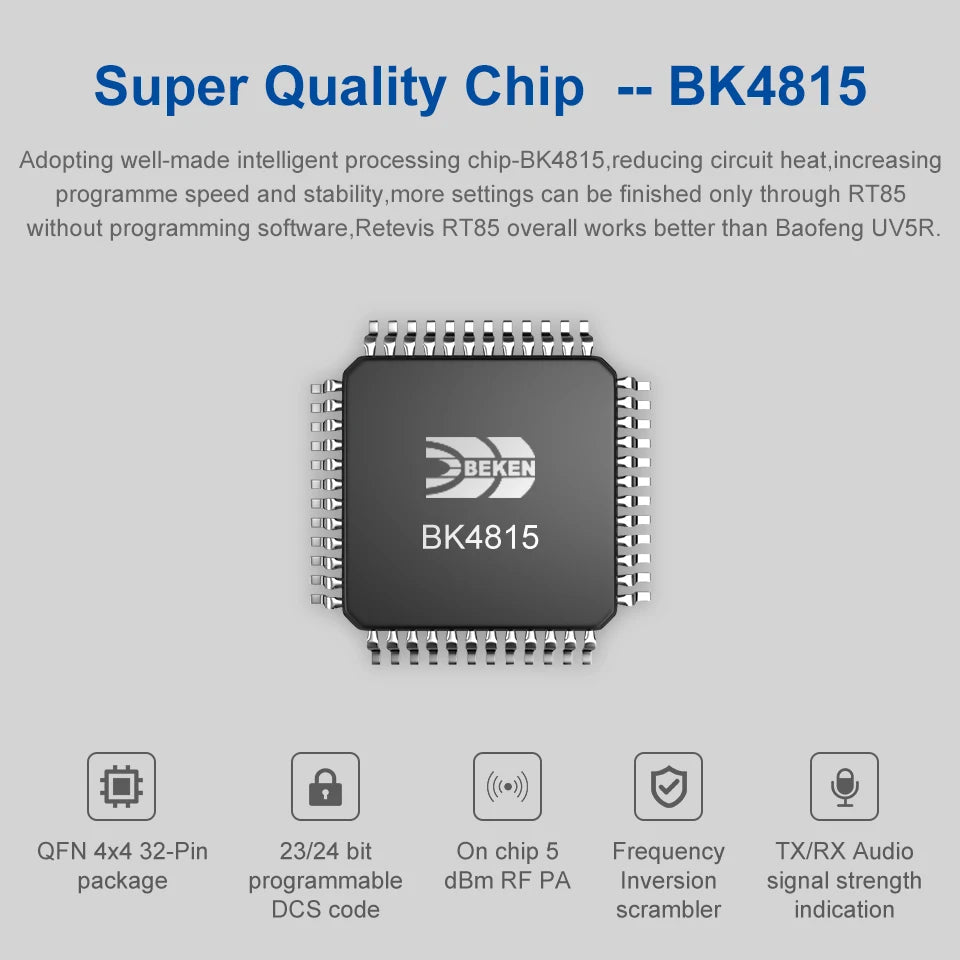

Super Quality Chip -- BK4815

Adopting well-made intelligent processing chip-BK4815,reducing circuit heat, increasing programme speed and stability,more settings can be finished only through RT85 without programming software,Retevis RT85 overall works better than Baofeng UV5R.

Emergency Alarm

"F" + "#" key to activate the emergency alarm function.
Local / Remote Alarm, help quickly call your partners for help in an emergency when you are outdoors.

VOX Hands-free Control

Free your hands and no need to press PTT button,easy to reply.

Rich Flexible Signaling System

Support CTCSS/DCS/DTMF/2 Tone/5 Tone,etc,shield irrelative calls,realize remote stun,remote kill, remote wakeup.Safe vocal transmission,guards your privacy.

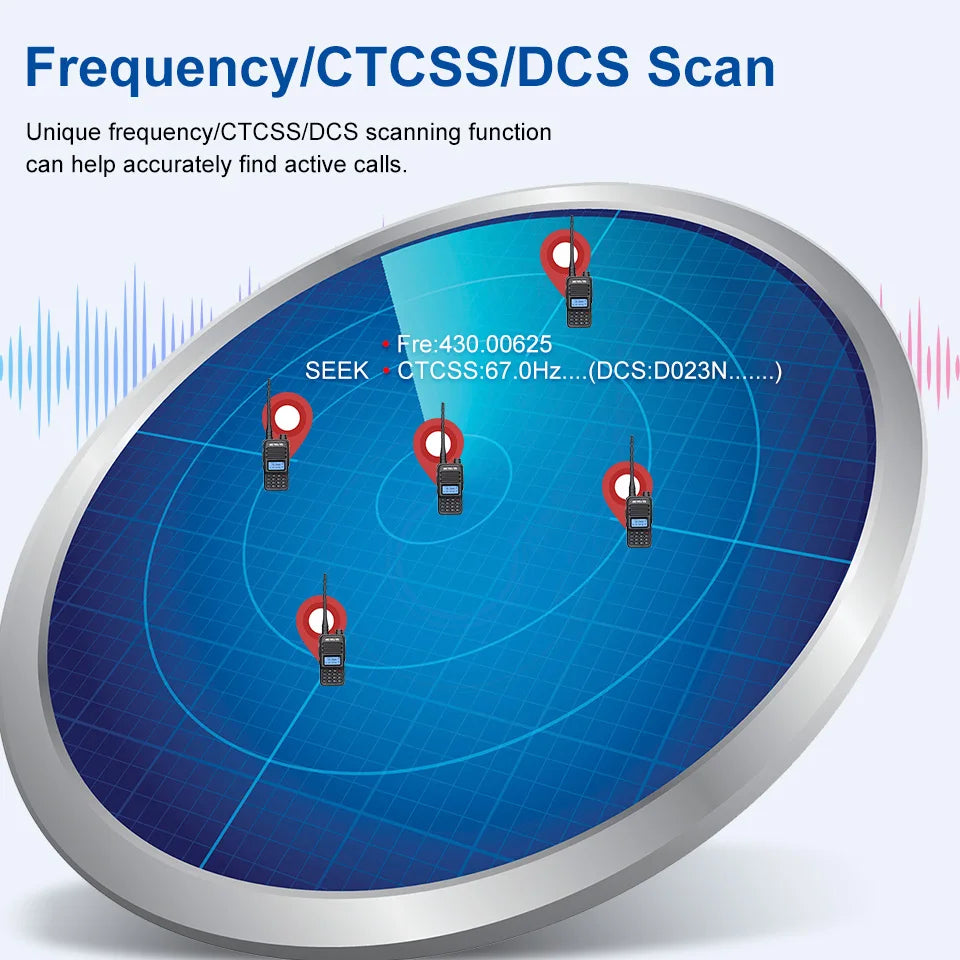

Frequency/CTCSS/DCS Scan

Unique frequency/CTCSS/DCS scanning function can help accurately find active calls.

Support CHIRP Software Programming

From here to enter downloading page: https://bit.ly/3koVbzE

High Brightness Flashlight

Best option for outdoor activities in dark environments or nights,such as camping in forest,hunting,or basements,night patrol,etc.

FM Radio 64-108MHz

Support up to 24 FM stations storage.In leisure time,you can listen to favorite music,news,etc. At the same time you won’t miss any call when Dual Watch function is turned on.

1400 mAh Li-ion Battery

Intelligent Power Saving, Longer Standby Time

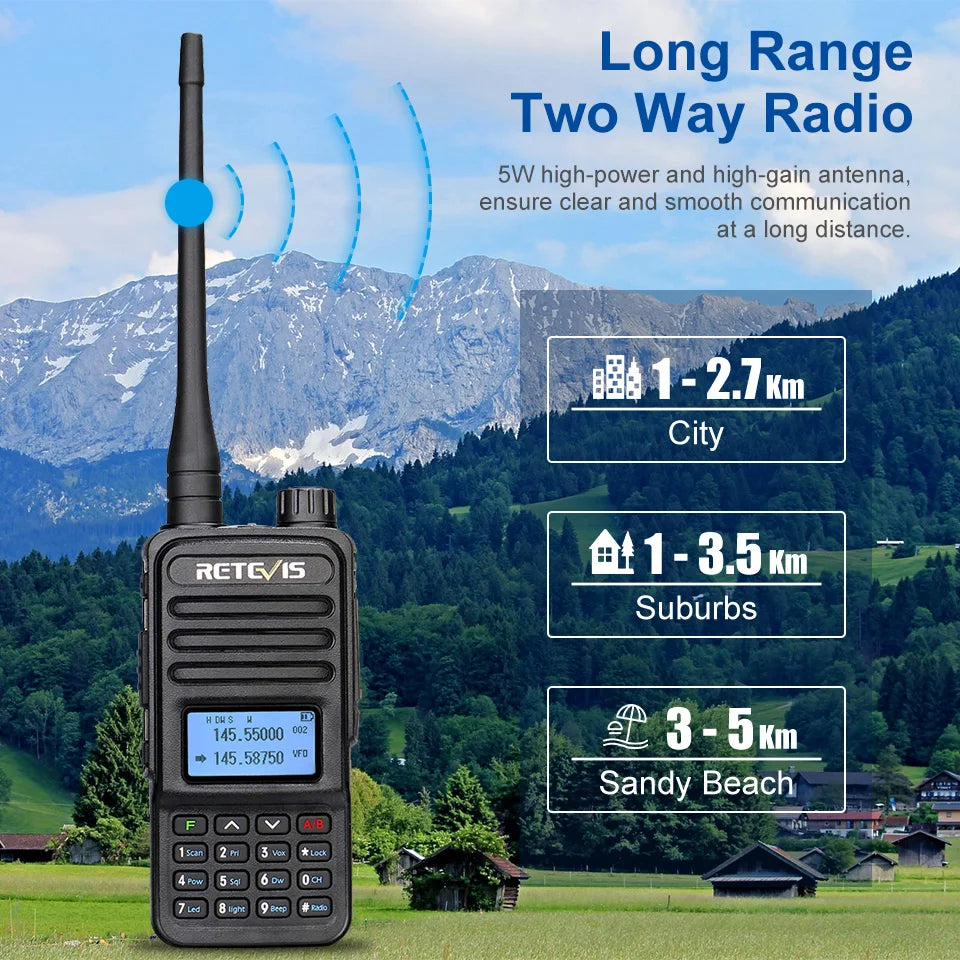

Long Range Two Way Radio

5W high-power and high-gain antenna,ensure clear and smooth communication at a long distance.

Multiple Scenario Application

Multiple functions and superior performance make RT85 suitable for more using environments,such as airsoft games,hunting,fishing,hiking,forest,mushroom picking,self-driving tour,security guard,ect.More popular among ham radio amateurs.

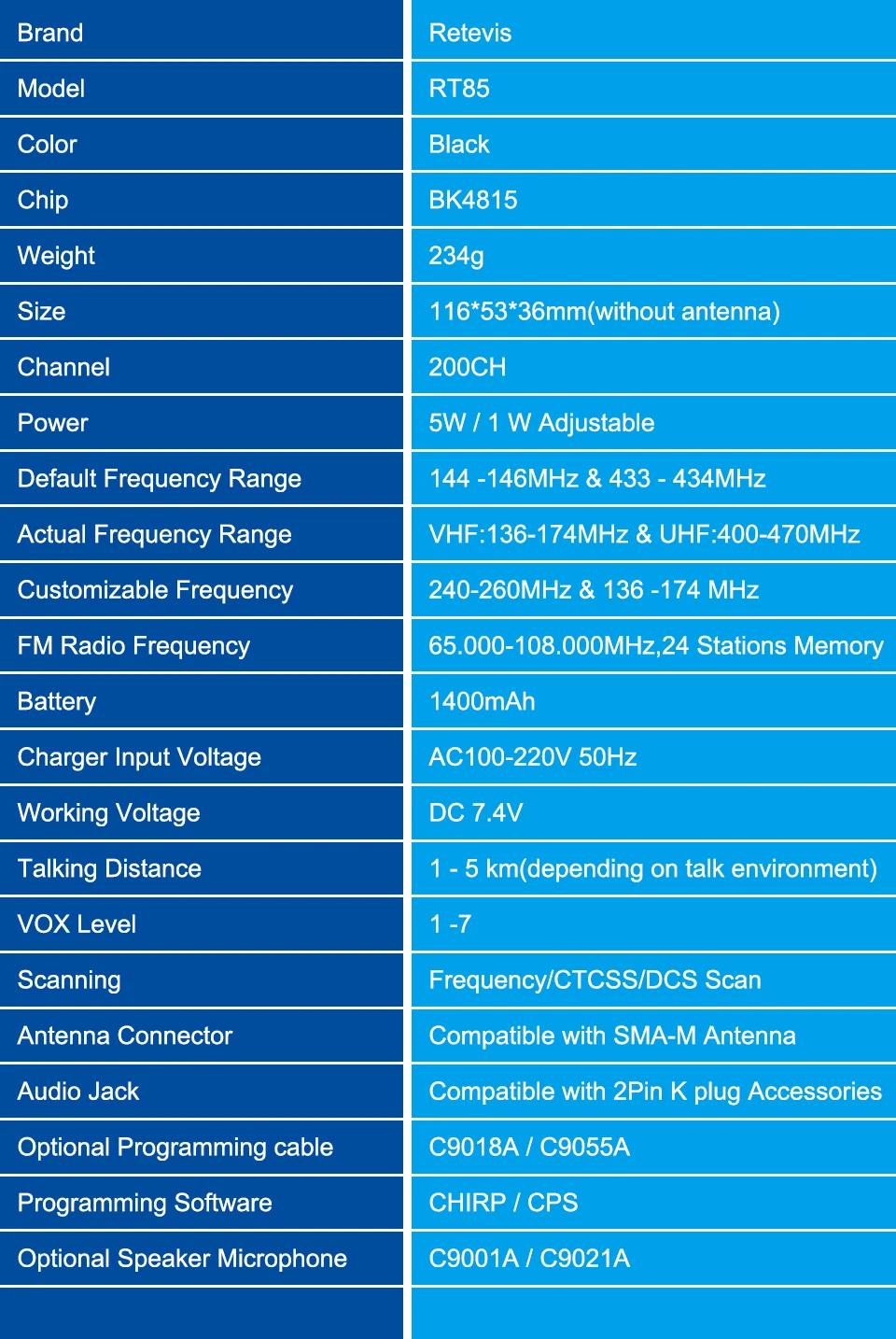

Basic Parameters

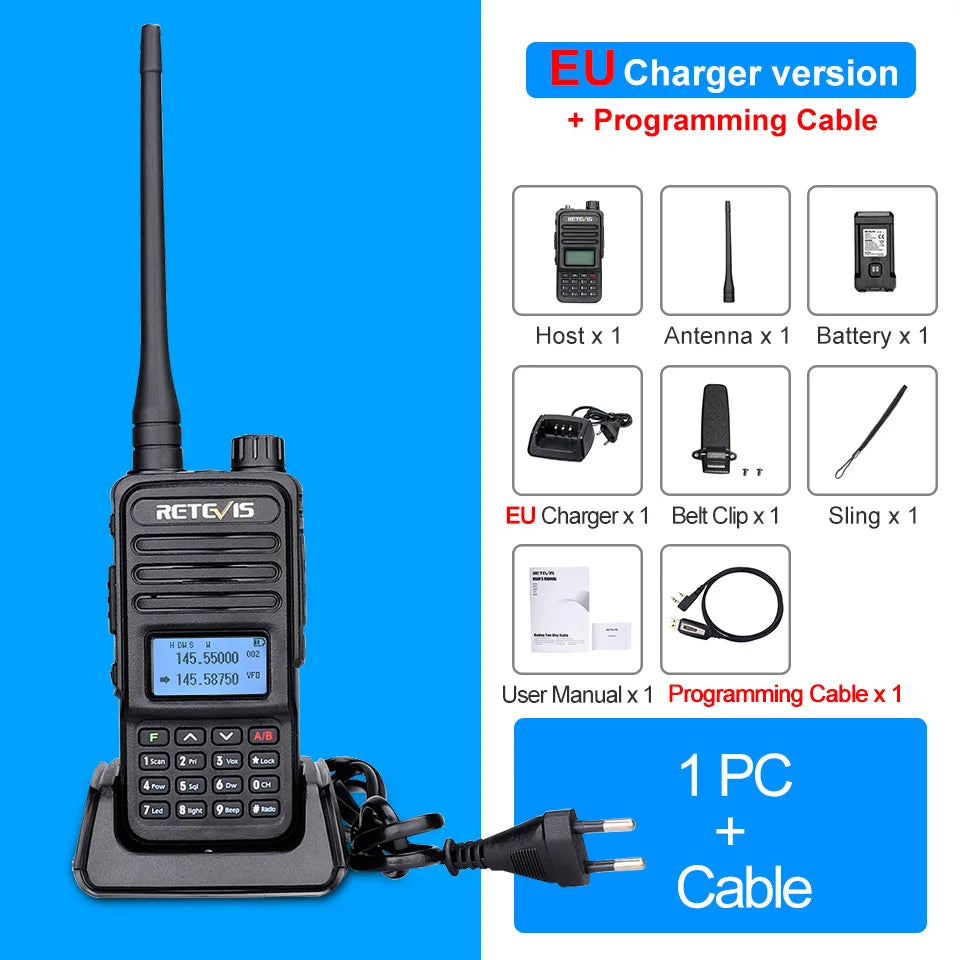

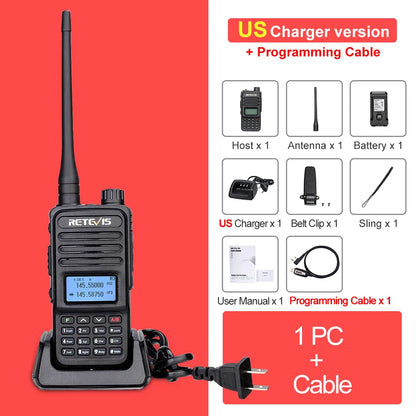

Package includes:

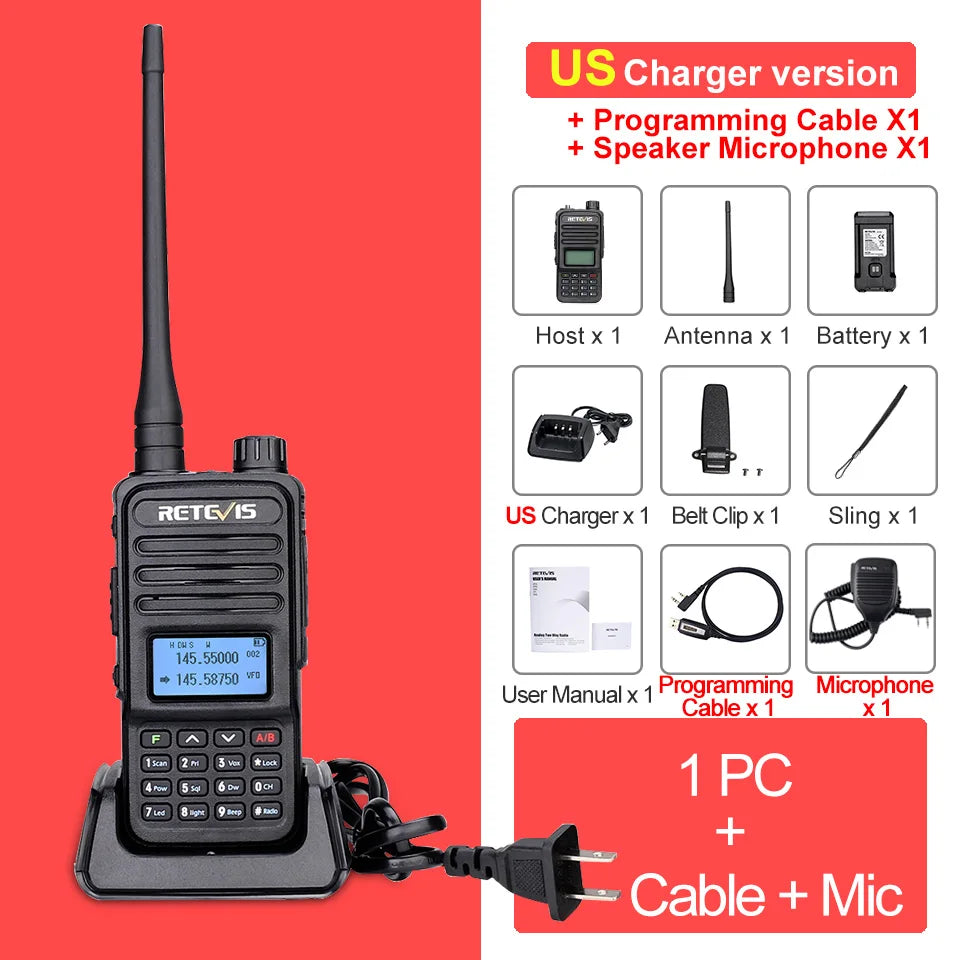

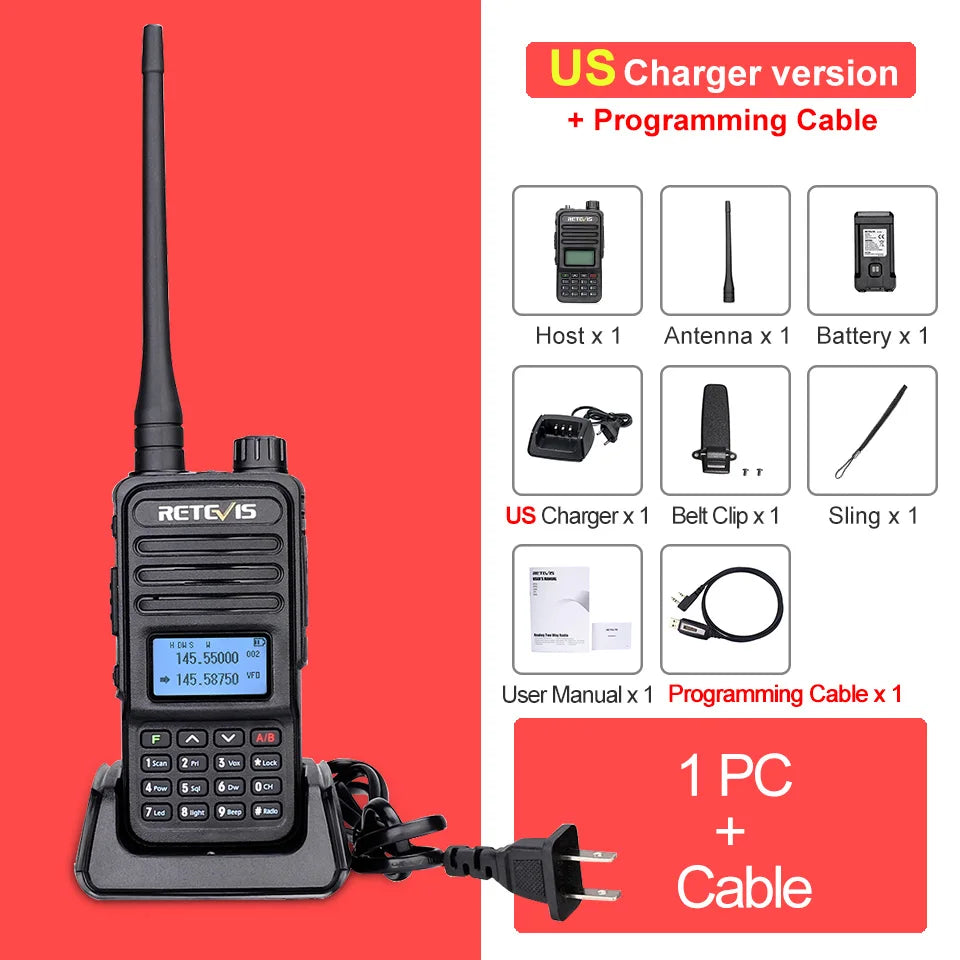

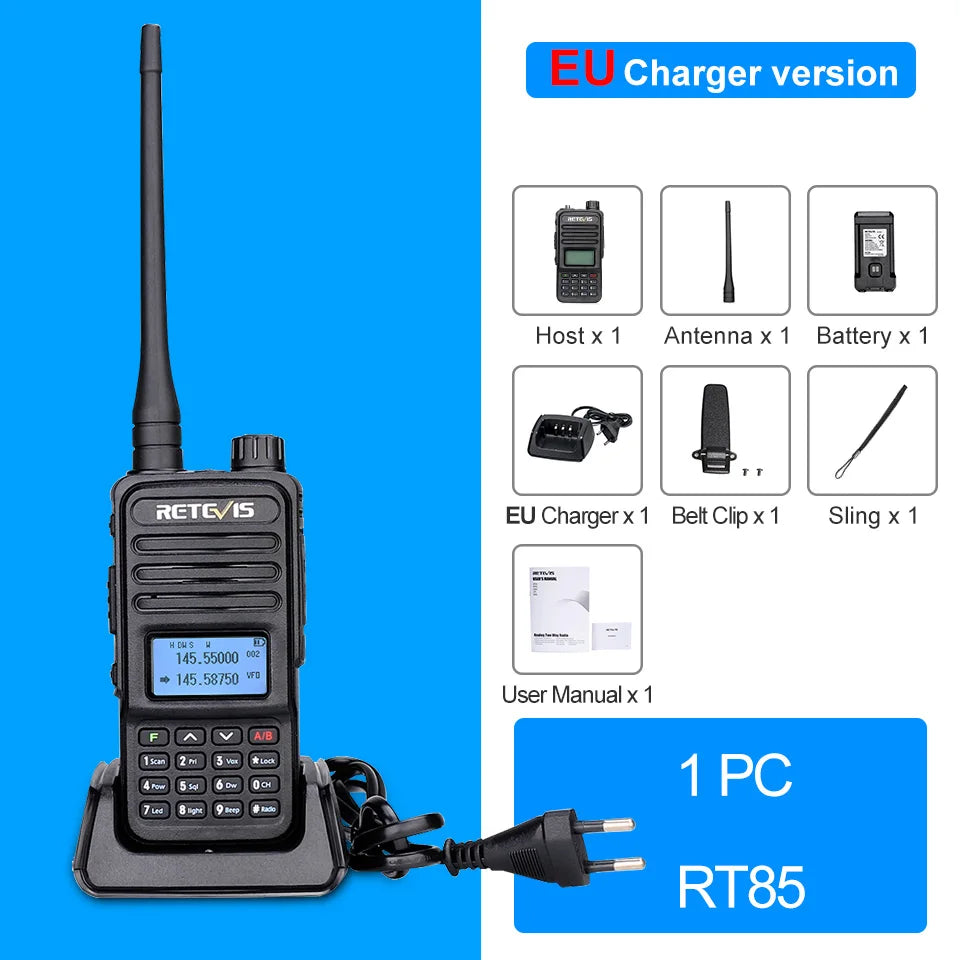

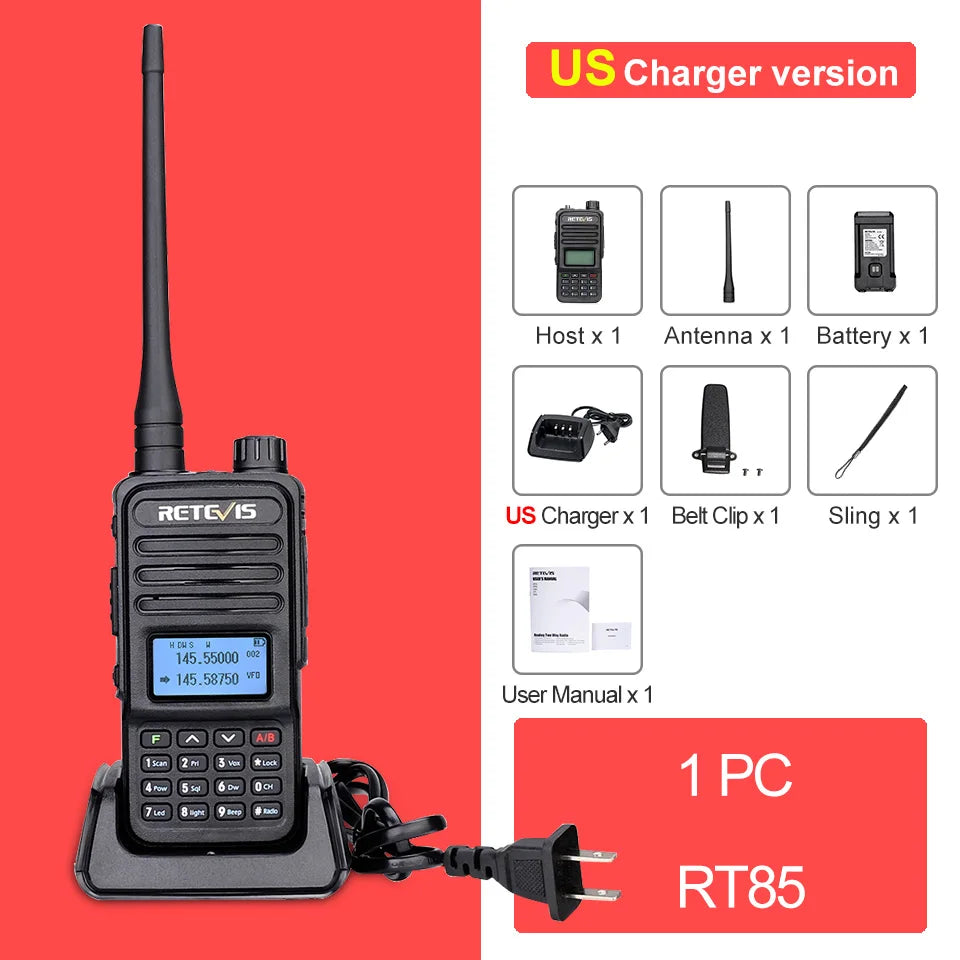

If you choose 1pc,the package includes:
·1 x RT85 Two Way Radio
·1 x Battery
·1 x Antenna
·1 x Charger
·1 x User manual
·1 x Sling
·1 x Programming cable (Optional)
If you need programming cable,please choose the options with a programming cable.

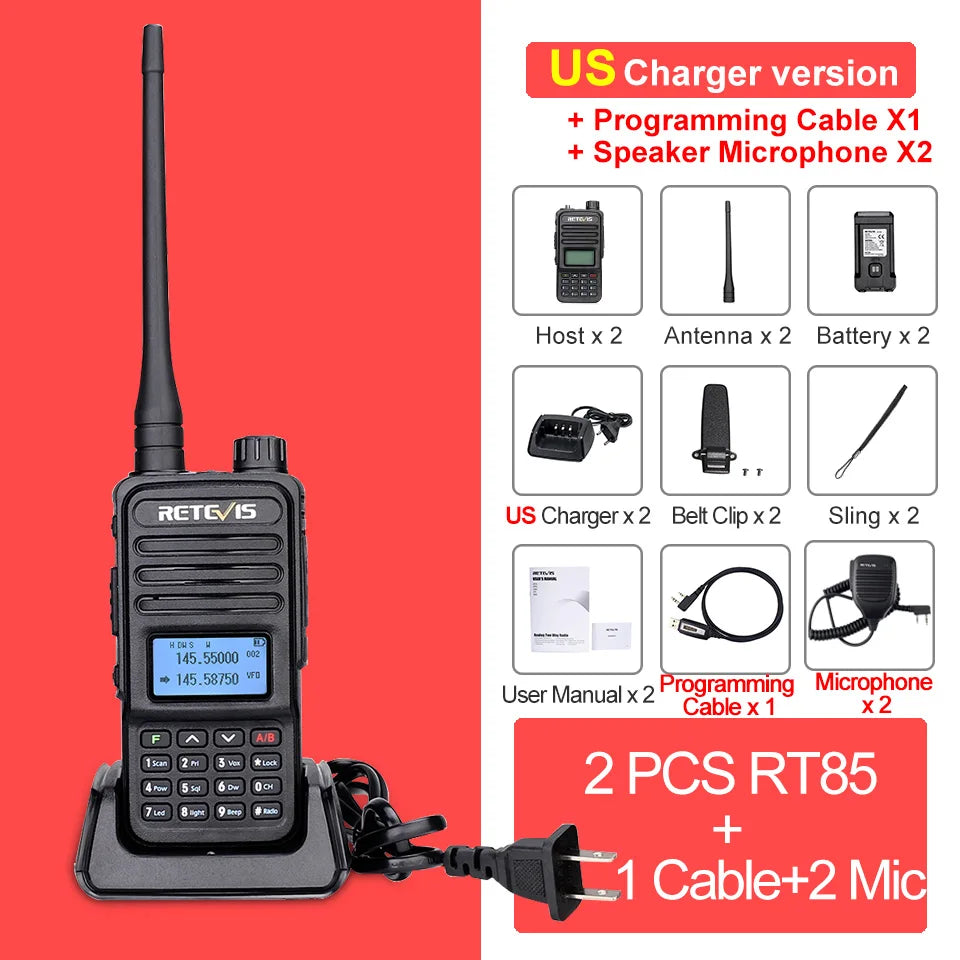

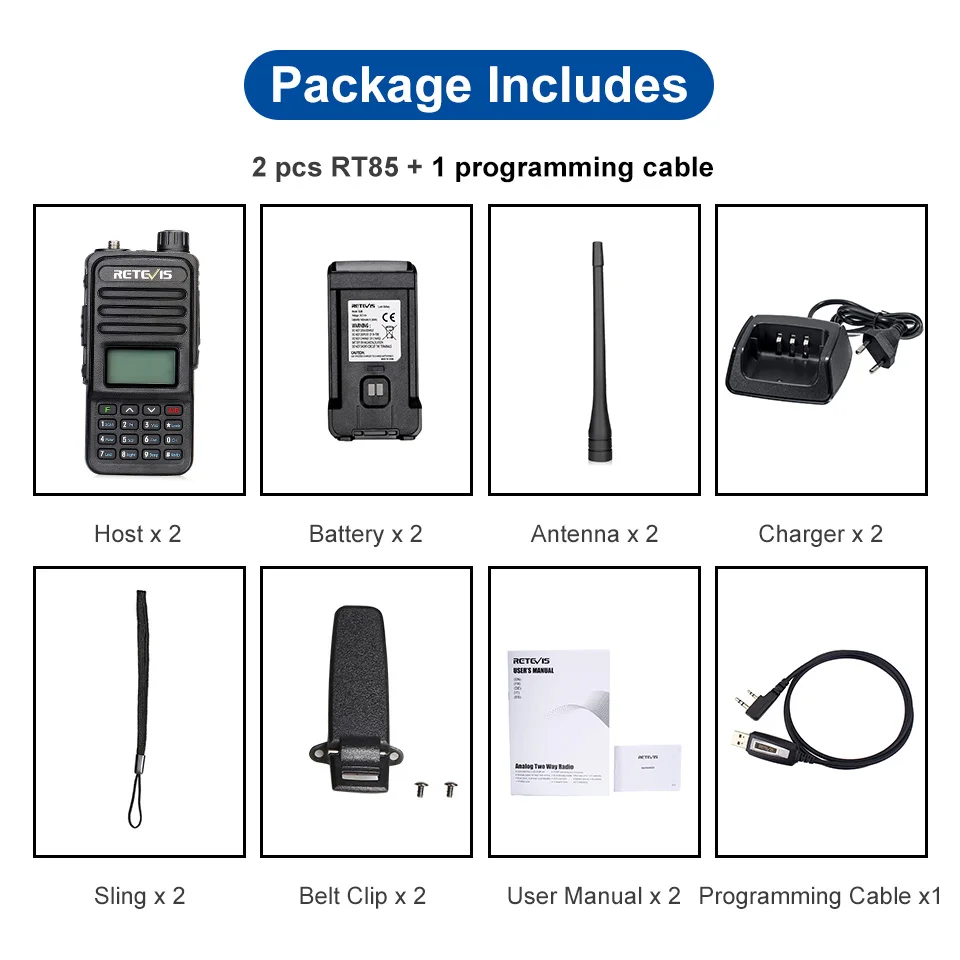

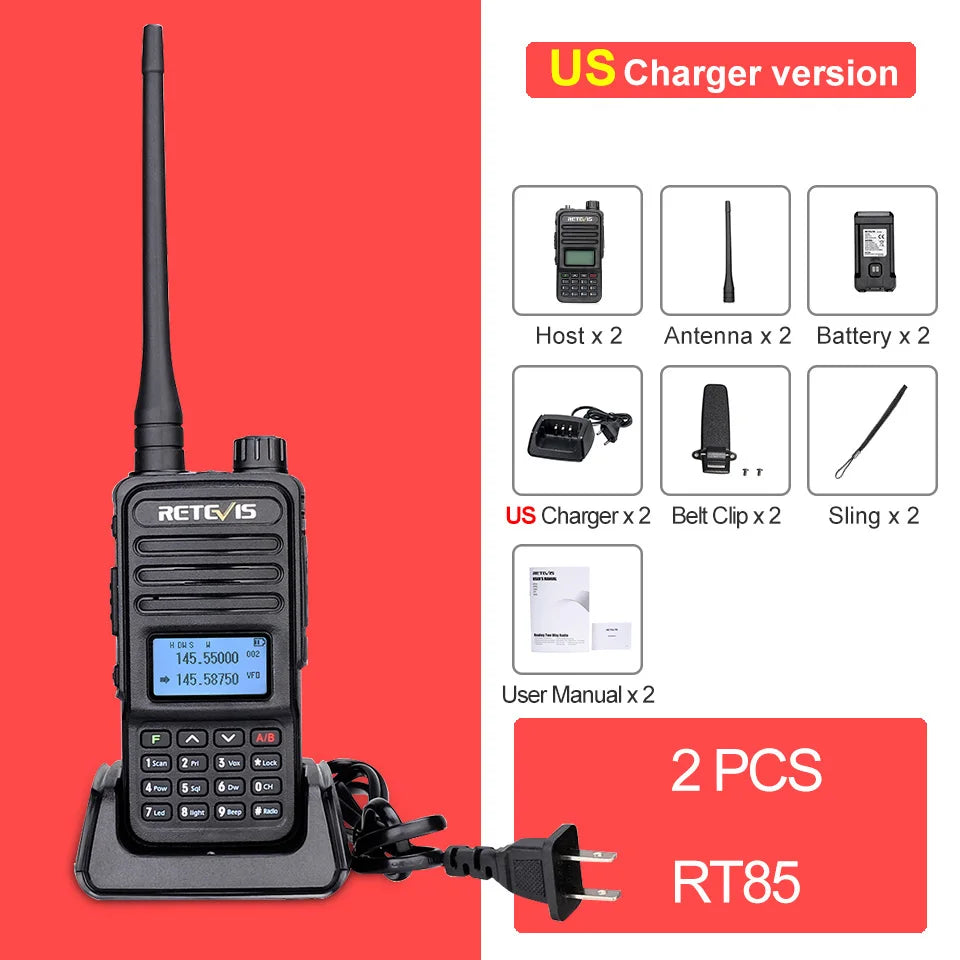

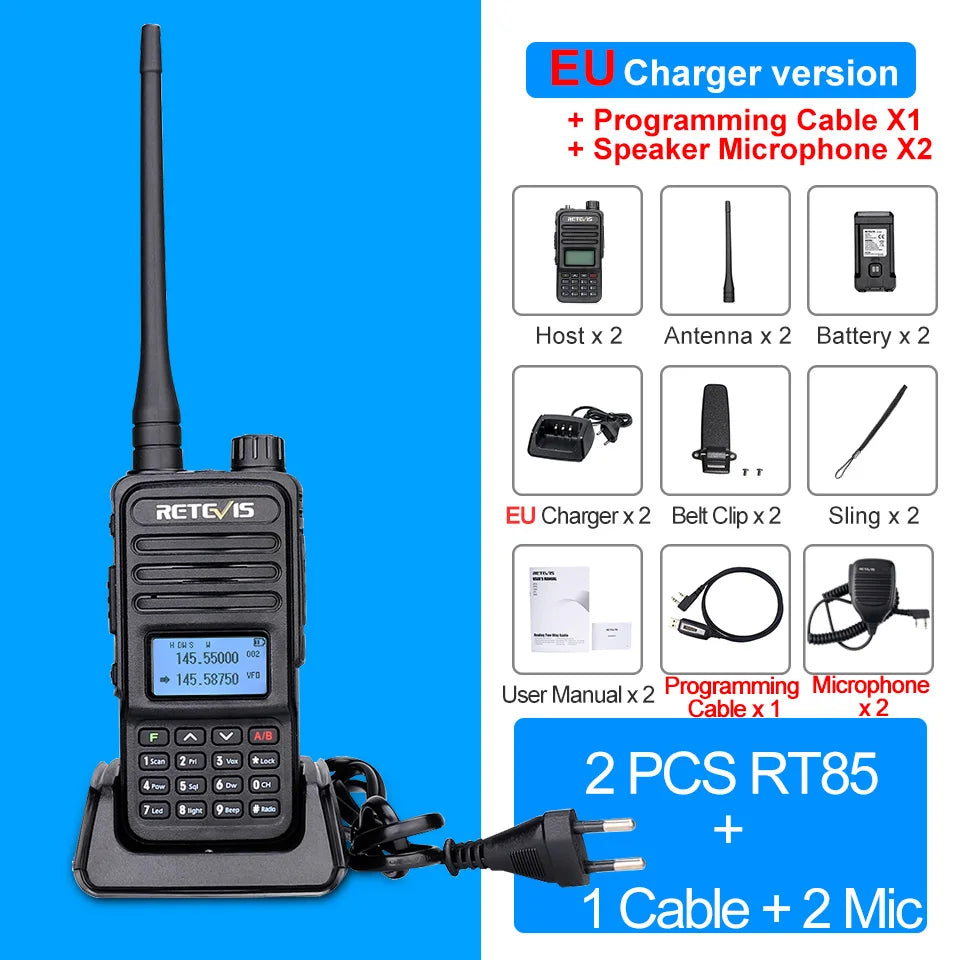

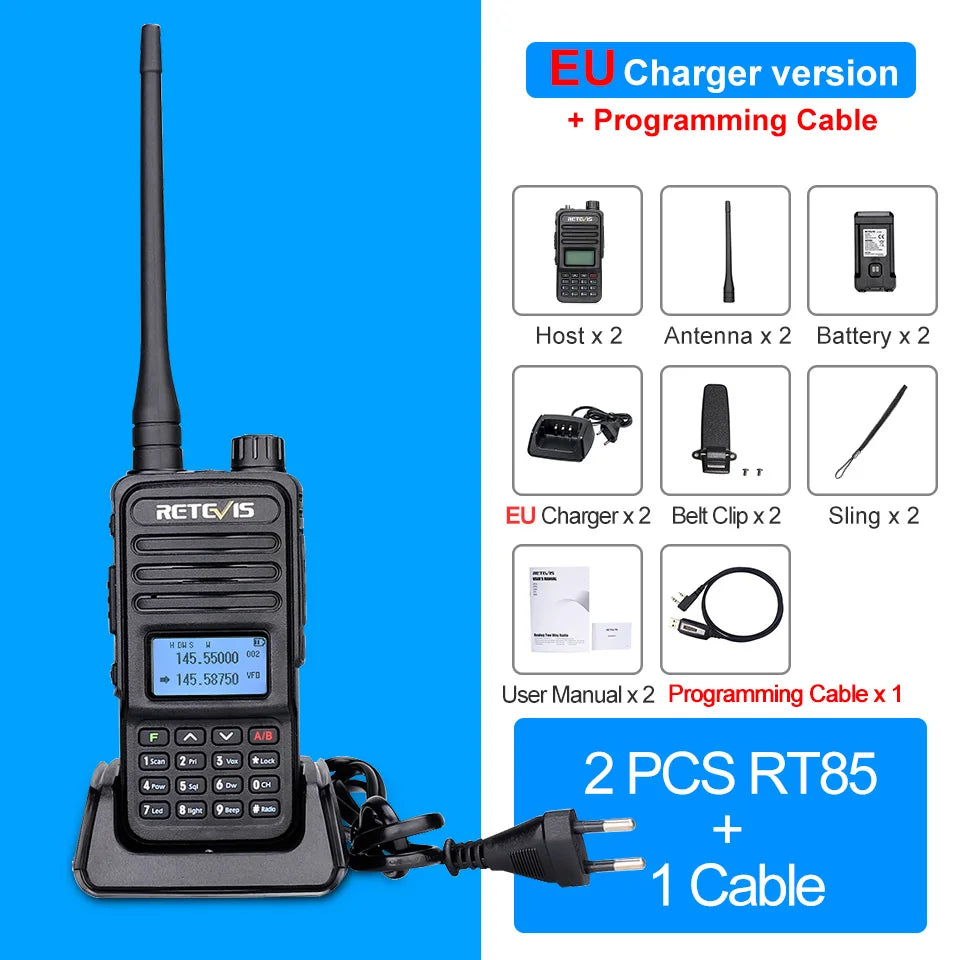

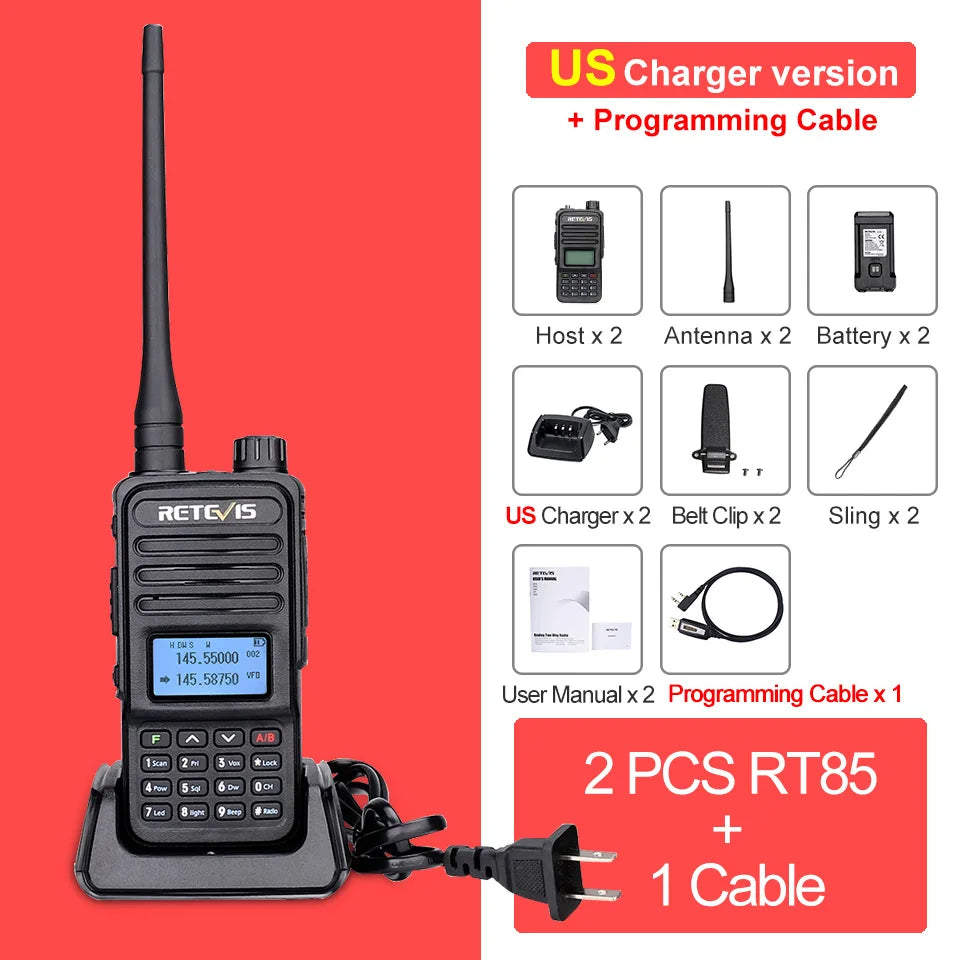

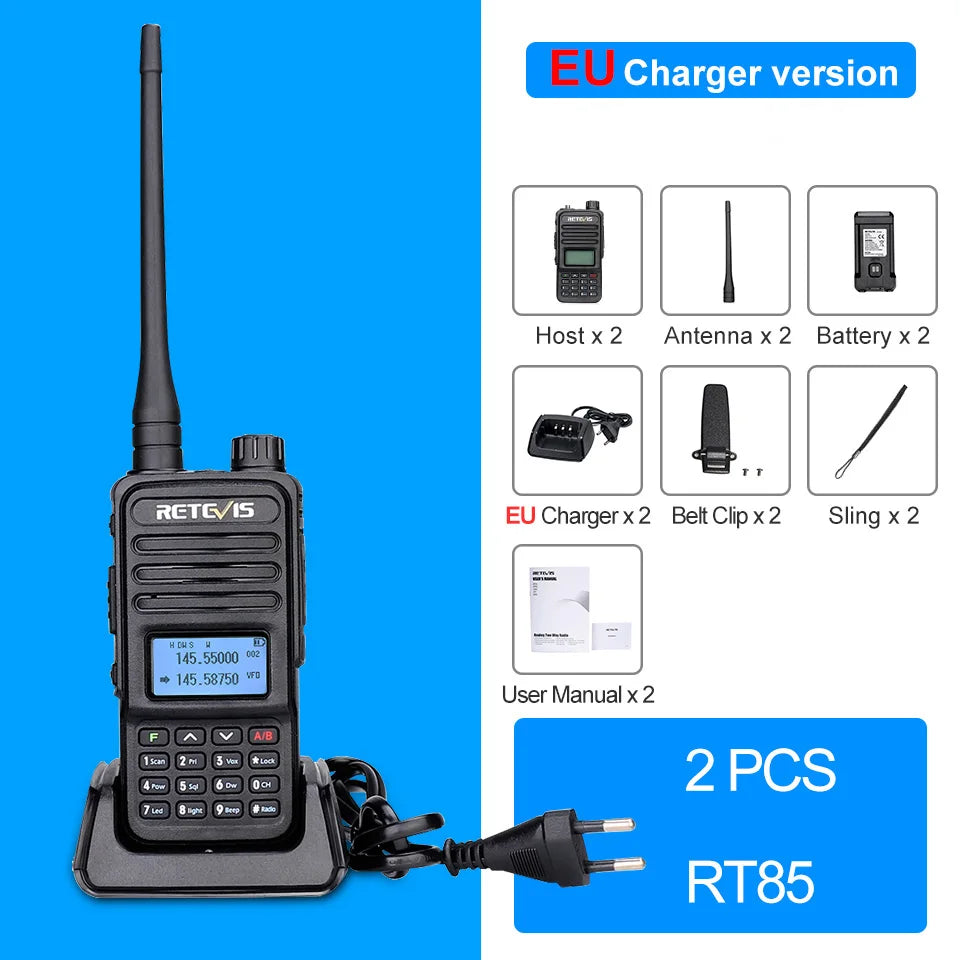

If you choose 2 pcs ,the package includes:
·2 x RT85 Two Way Radio
·2 x Battery
·2 x Antenna
·2 x Charger
·2 x User manual
·2 x Sling
·1 x Programming cable
Please choose right adapter according to your country.

FAQ:

1.Q:Why couldn't my RT85 frequency range reach 136 - 174MHz and 400 - 470MHz? How can I set it ?

A: 1.Restricted by the laws and regulations of walkie talkies in some countries or regions, 136 - 174 MHz and 400 - 470 MHz are not allowed.
2.RT85 frequency range supports 136 - 174 MHz and 400 - 470 MHz,but its factory default range is not this range.
3.If you need 136 - 174 MHz and 400 - 470 MHz, please press F button and 1 button and switch on power knob at the same time, then it will be ok.

2.Q:How to start emergency alert ?A: Press“F”button to enter menu and show “Menu”,and press "#",you will hear alert sound,and press PTT to stop.

3.Q: How to start remote alarm?A:Programme two RT85 and they can talk with each other,press "F" and then press"#" on one RT85,you will hear alarm sound from the other RT85.

4: Q: How to turn on voice broadcast?
A: To tick √ on the “SW Audio”on the software,you will hear vocal broadcast, and when you cancel to tick √,you only hear dududu.

5:Q:Why PTT button fails to work when lock is on ?

A:To check whether you choose "PTT"or “ALL” KEY MODE by the programming software,if you tick √ on either of them,then PTT button will be lock at the same time when keypad lock starts.

Also,you can adjust by radio itself: Press “F” to enter “MENU” ,switch until “Lock MD KEY” (option 32) is displayed and enter, press up or down to select “ALL / PTT / KEY / KEY + S”
