SPECIFICATIONS

Antenna impedance: 50Ω

Battery Capacity(mAh): N/A

Battery Included: no

Brand Name: RETEVIS

Certification: CE

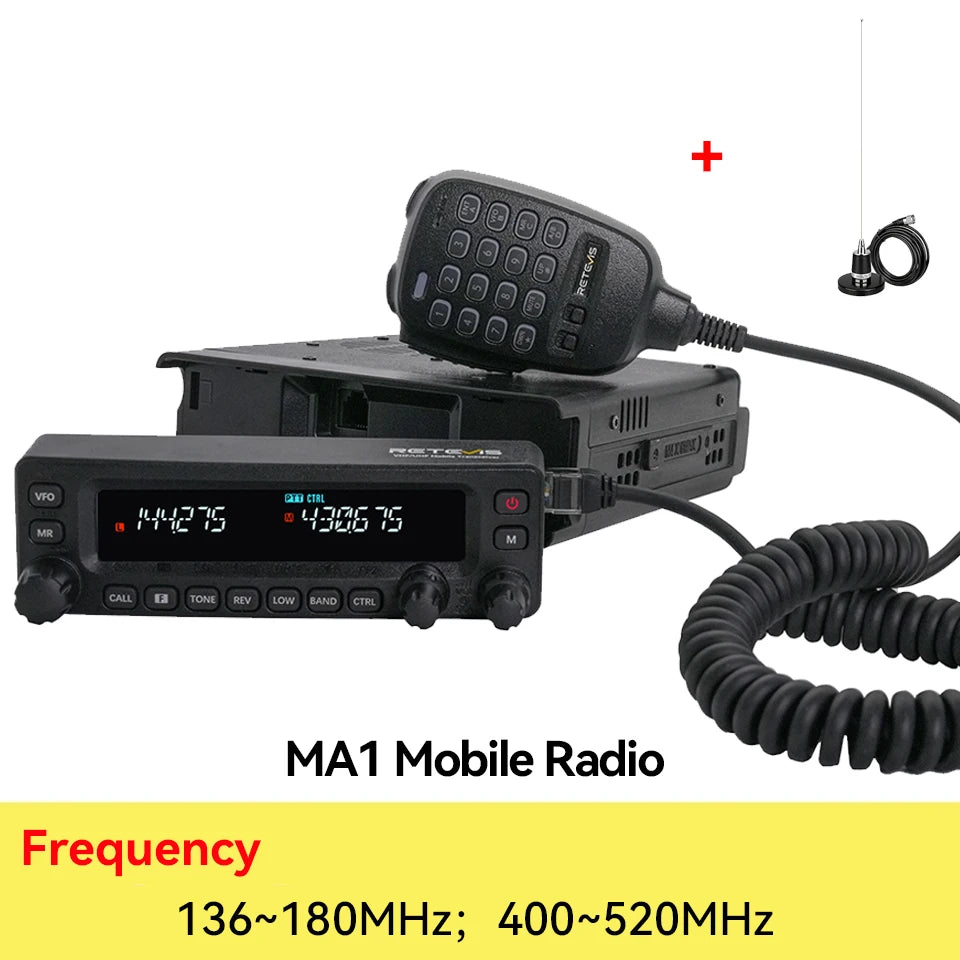

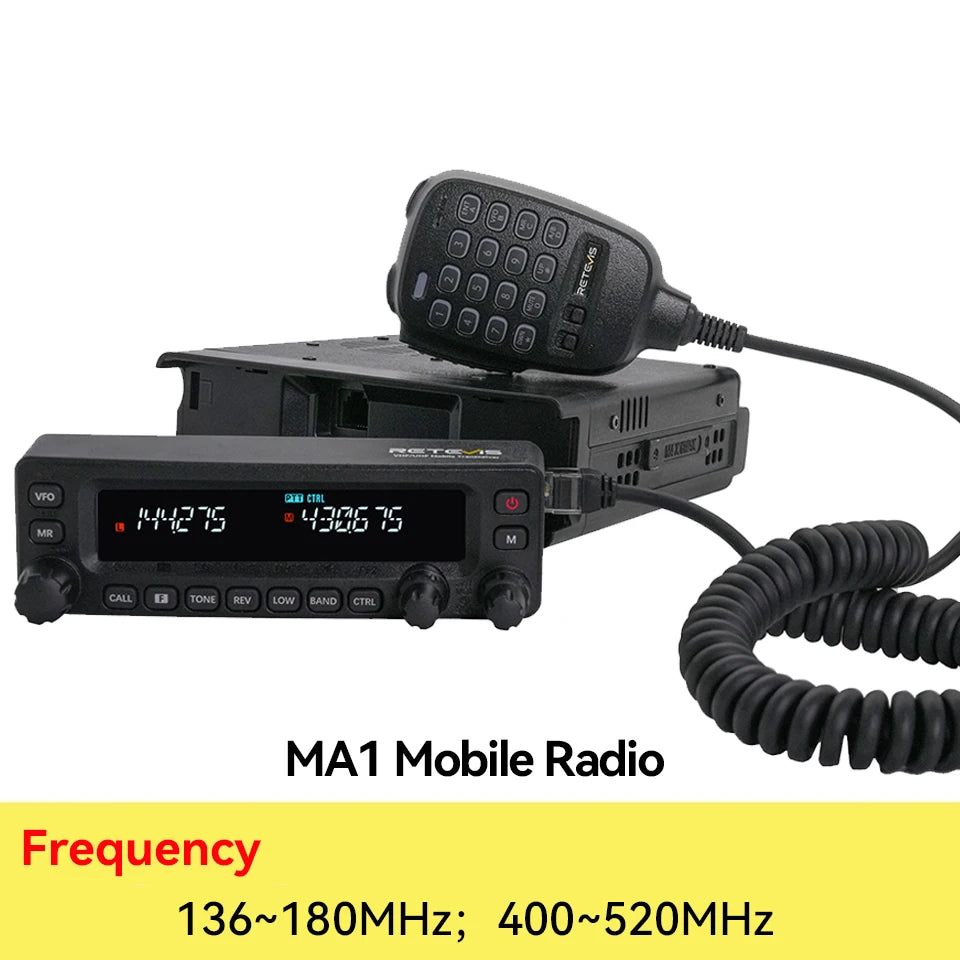

Frequency Range: 136~180MHz 400~520MHz

High-concerned chemical: none

Is_Display: Yes

Maximum Range: 5km-10km

Model Number: MA1

Origin: Mainland China

Output Power(w): 25w-50w

Rechargeablebatteryincluded: Yes

Storage Channel: 999

Use: others

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

Working temperature: -20℃- + 60 ℃

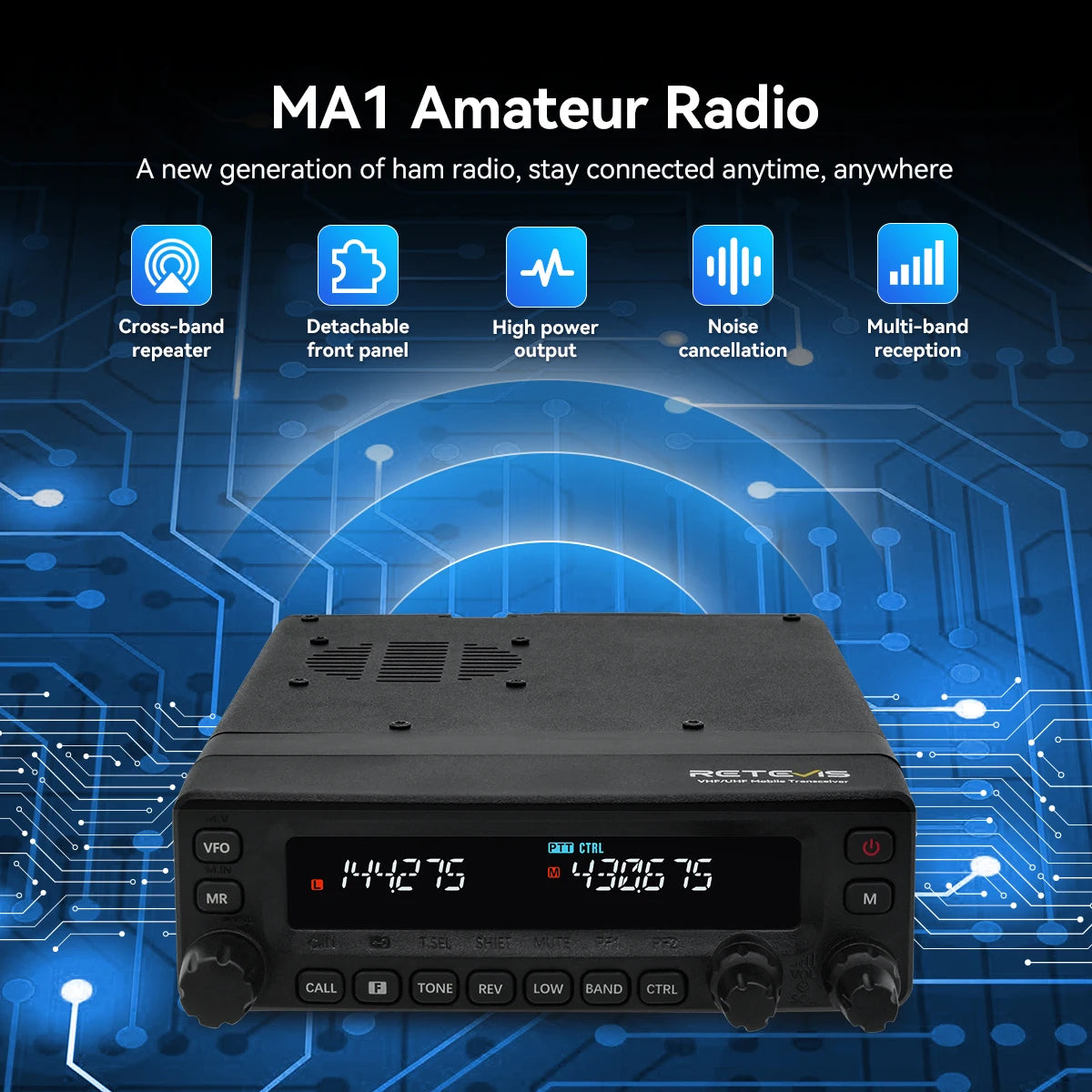

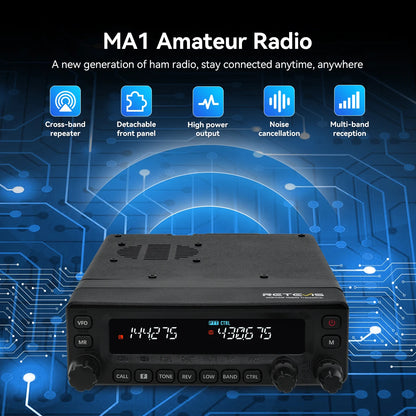

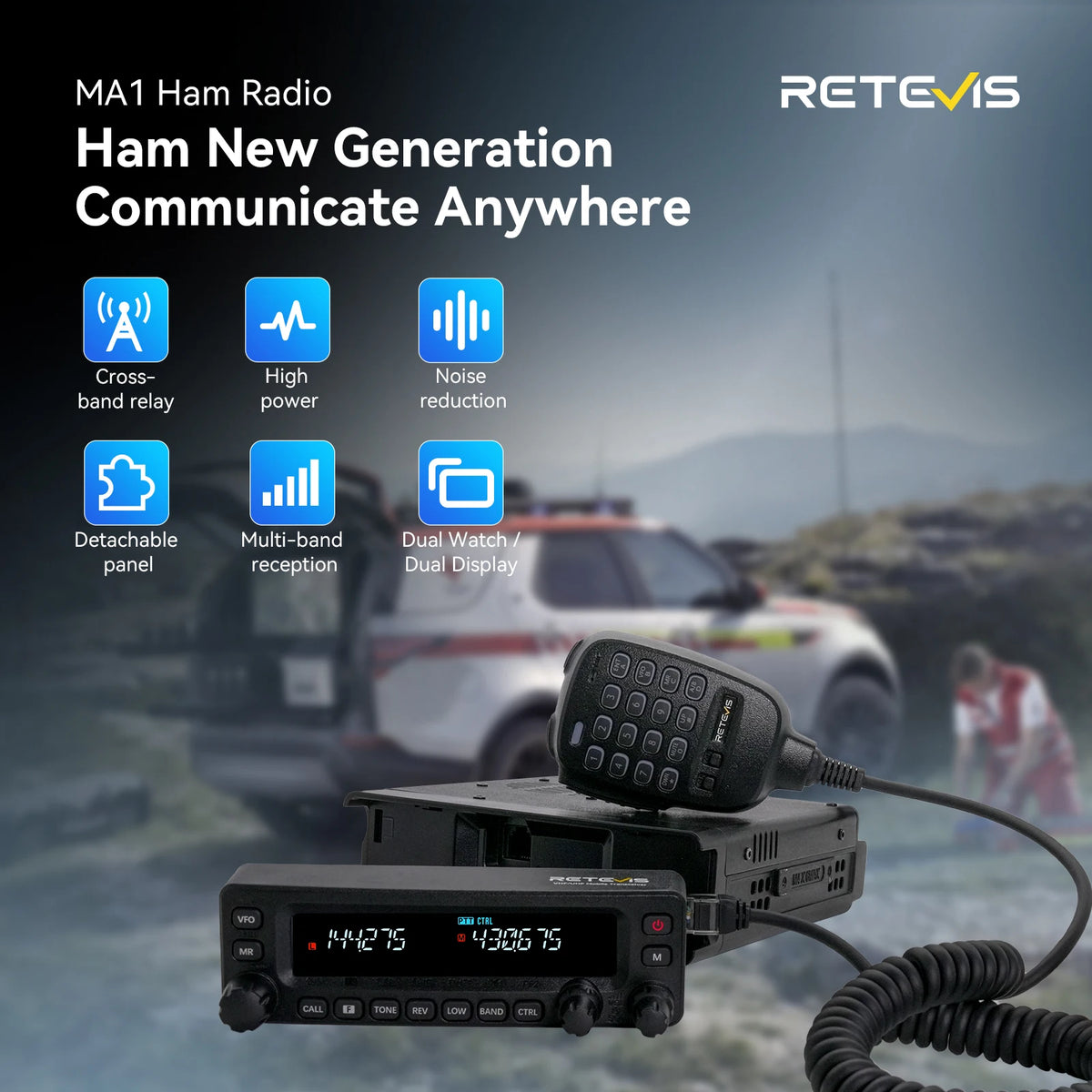

Retevis MA1 70W VHF 60W UHF High Power Amateur Ham Radio with Detachable Front Panel

Multi-band reception provides you with a variety of listening experiences. Whether it is camping, traveling or competing, MA1 will be your better partner. In addition, Retevis MA1 can be used as a cross-band base station to extend the communication range.

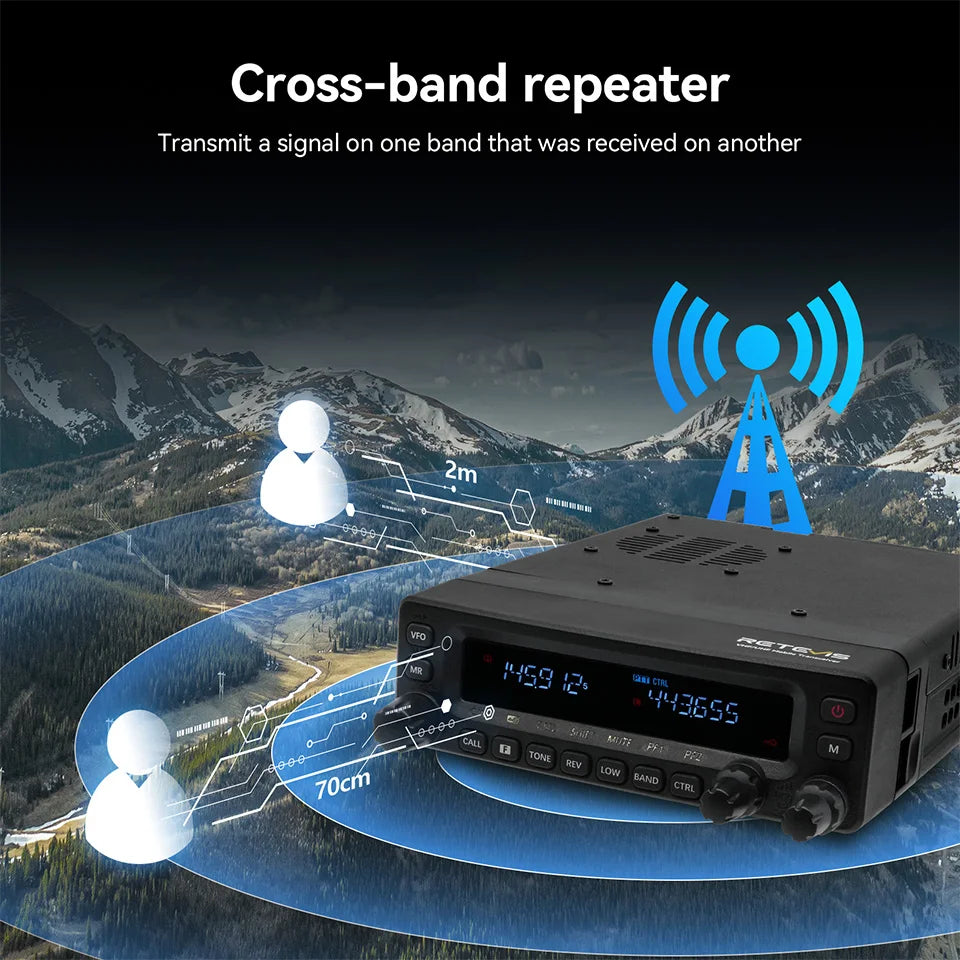

Cross-band Relay

Helps you get an extended communication range and smoothly communicate with members over a distance.

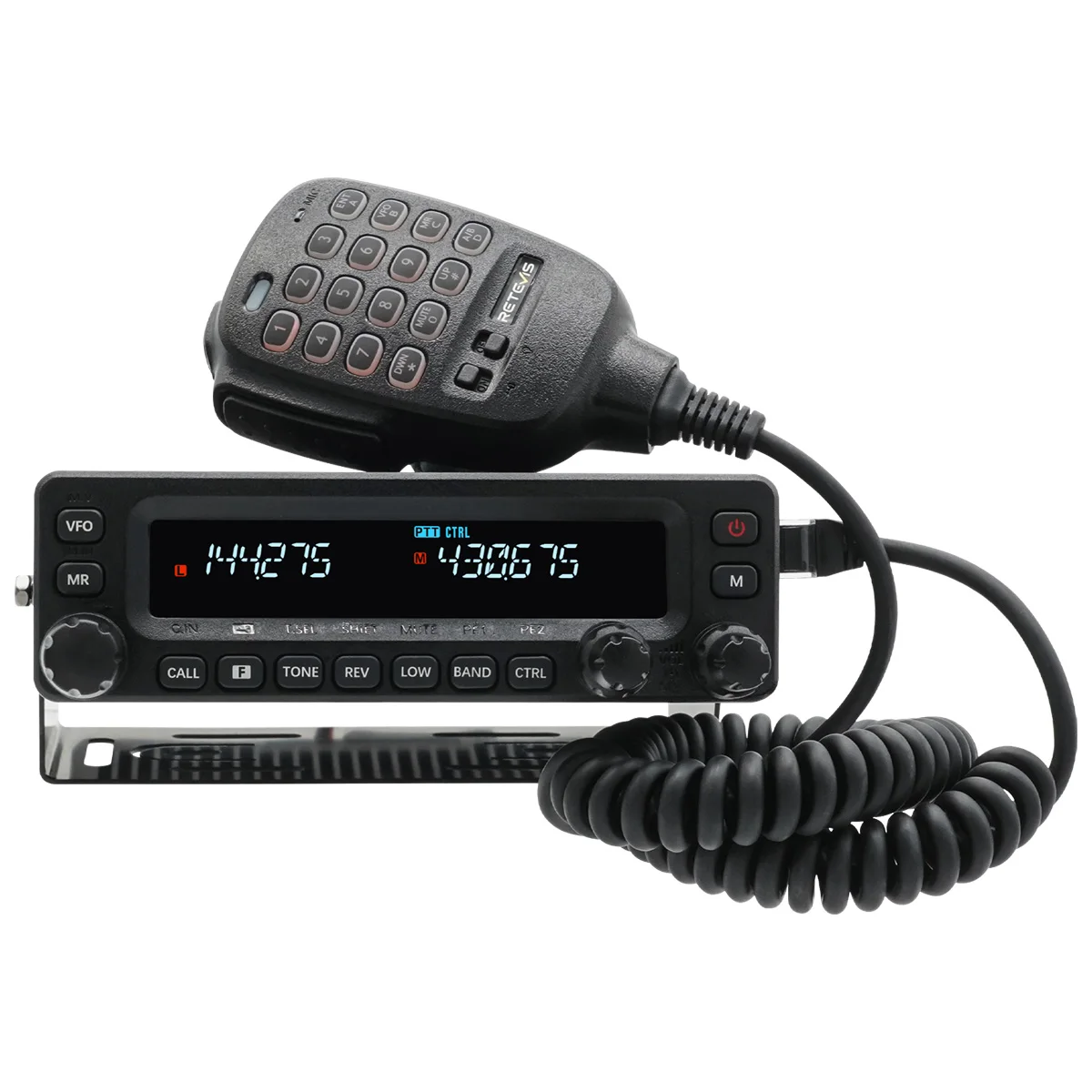

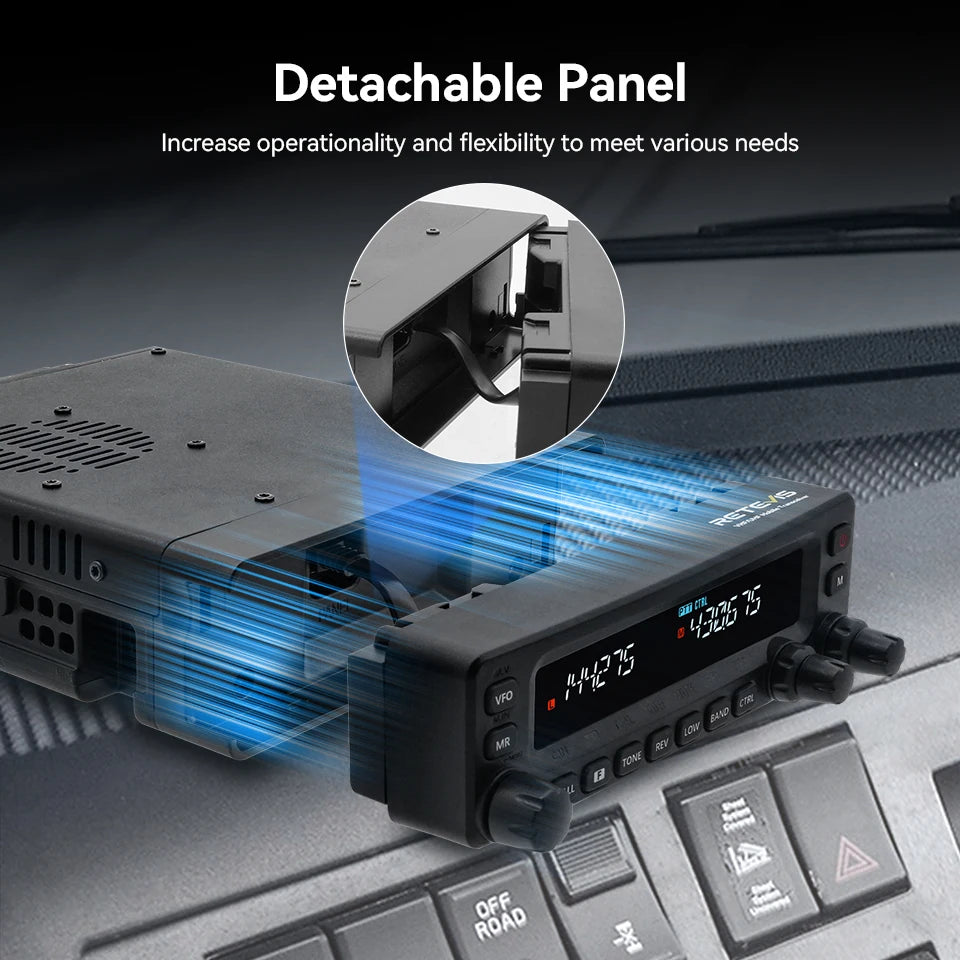

Detachable front panel

Ham radio transceiver supports separate operation randomly; increasing the ease and convenience of use.

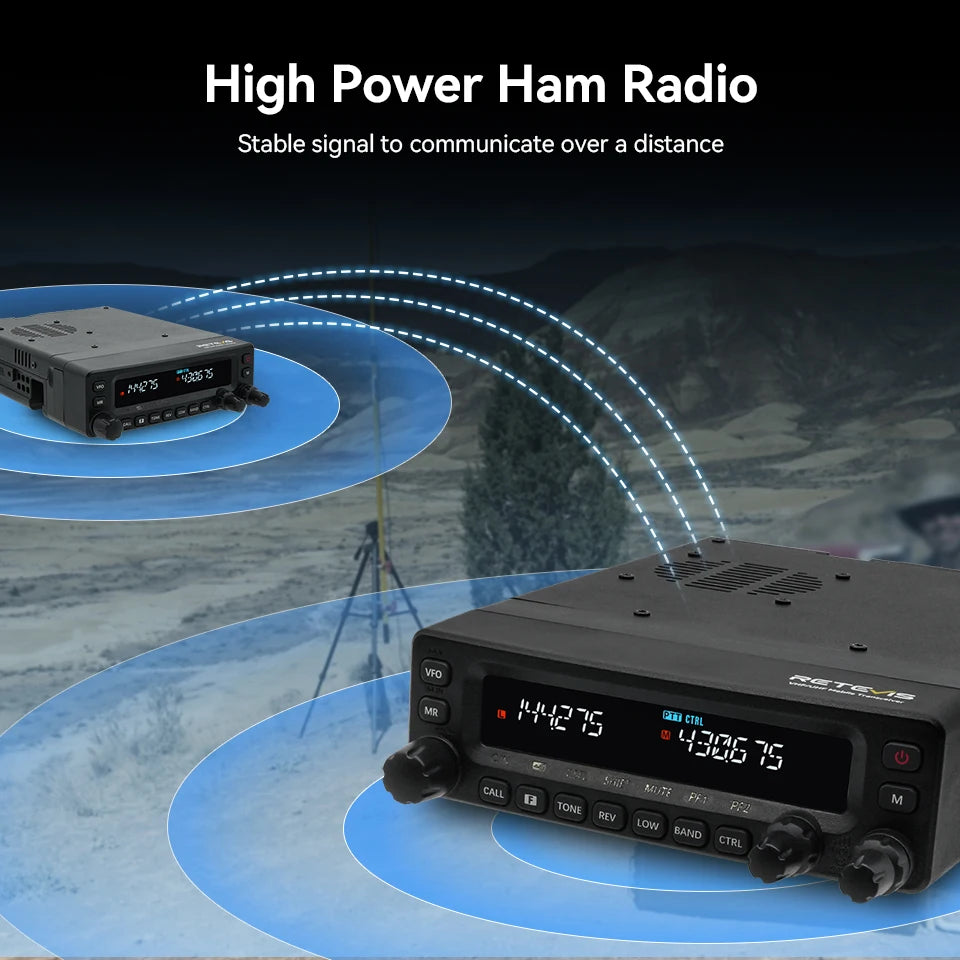

Long Range Ham Radio

High power offers a stable signal, making distant communication smooth when traveling or in emergency rescue.

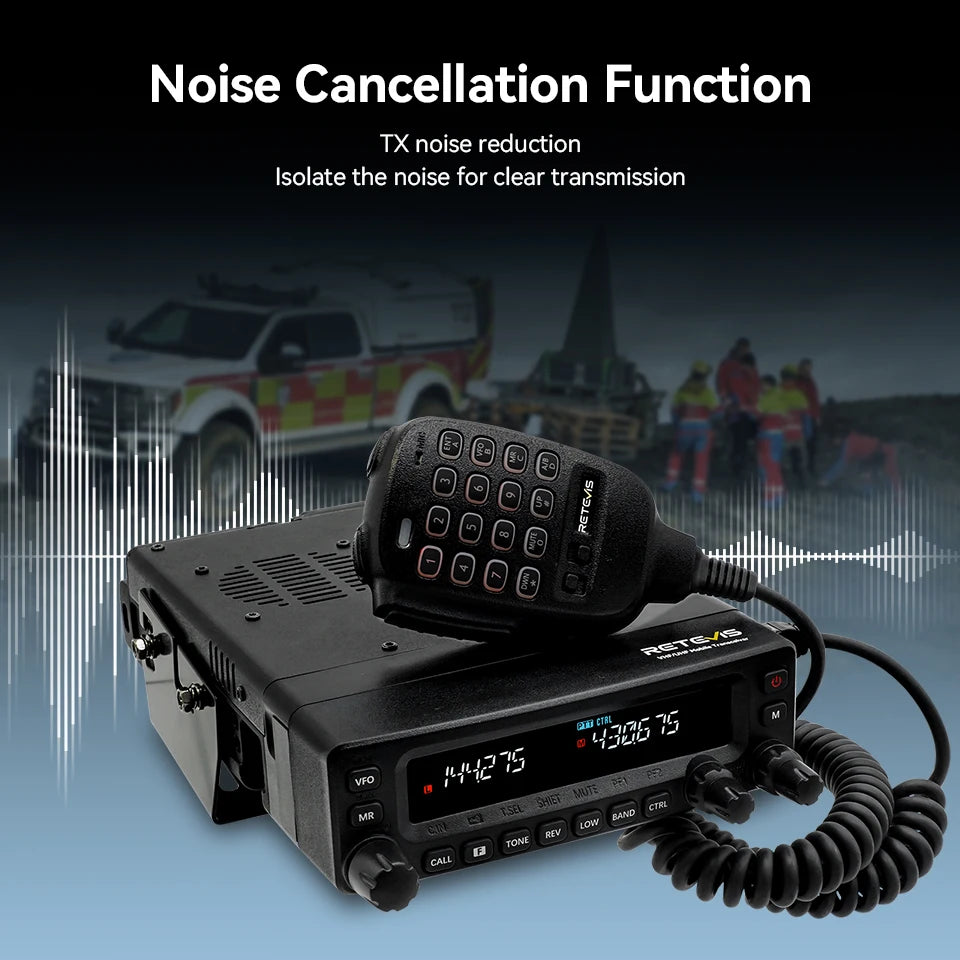

Clear communication

Equipped with TX noise canceling function,mobile ham radio transmits clearly even in noisy emergency situations without affecting timely rescue task.

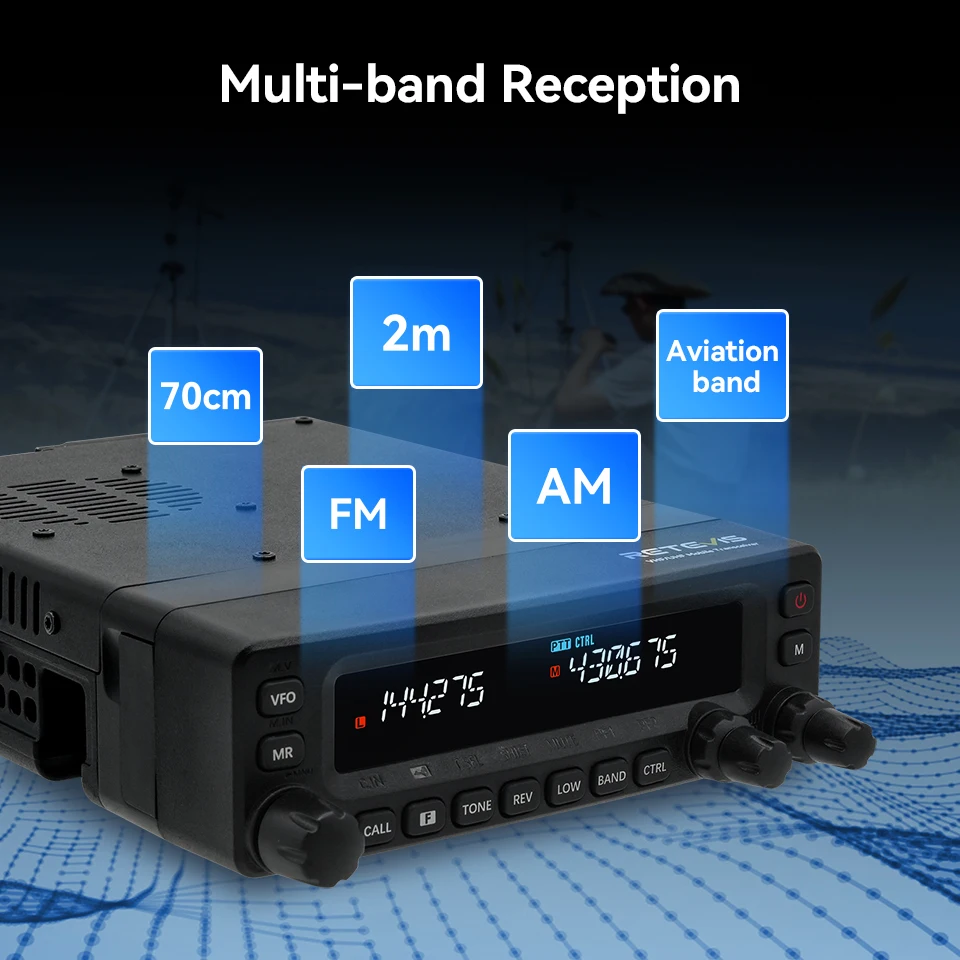

Multi-band Reception

Dual-band mobile radio receives 2 m, 70 cm, FM, AM and aviation band frequencies for versatile listening experiences.

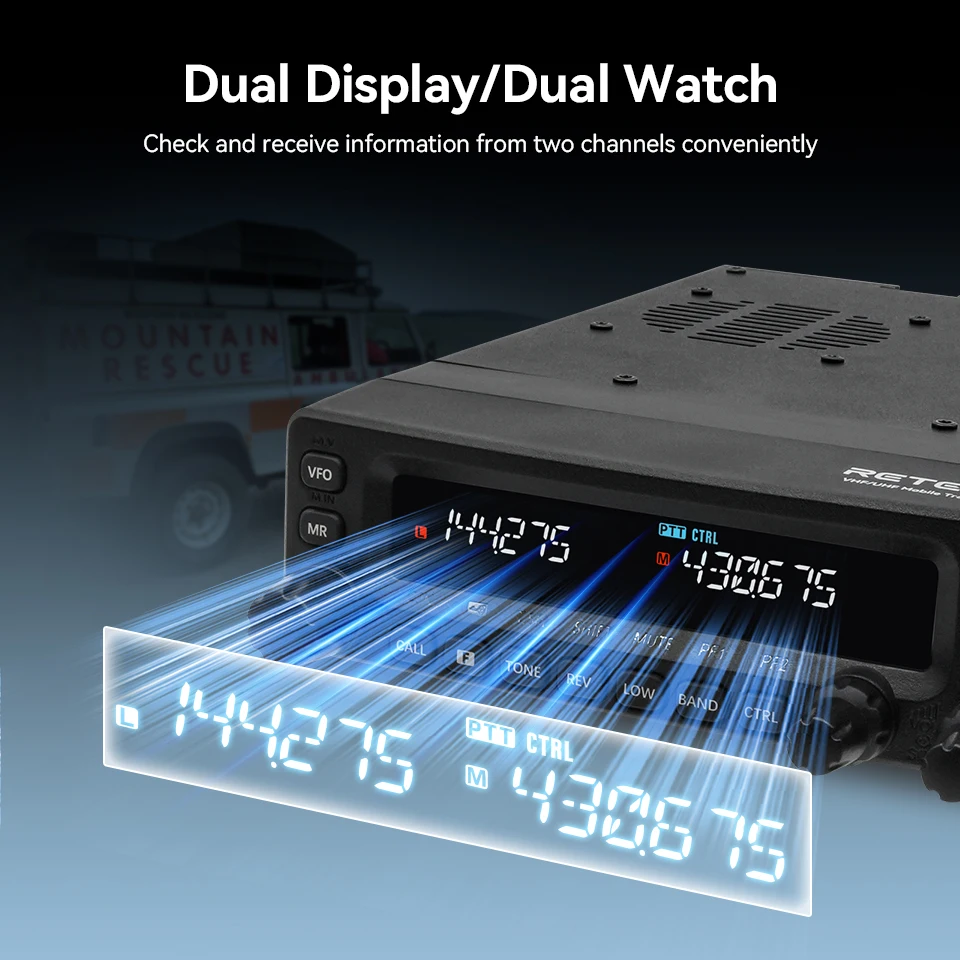

Dual Display/Dual Watch

Displays and monitors 2 m and 70 cm frequencies at the same time, increasing communication flexibility and efficiency.

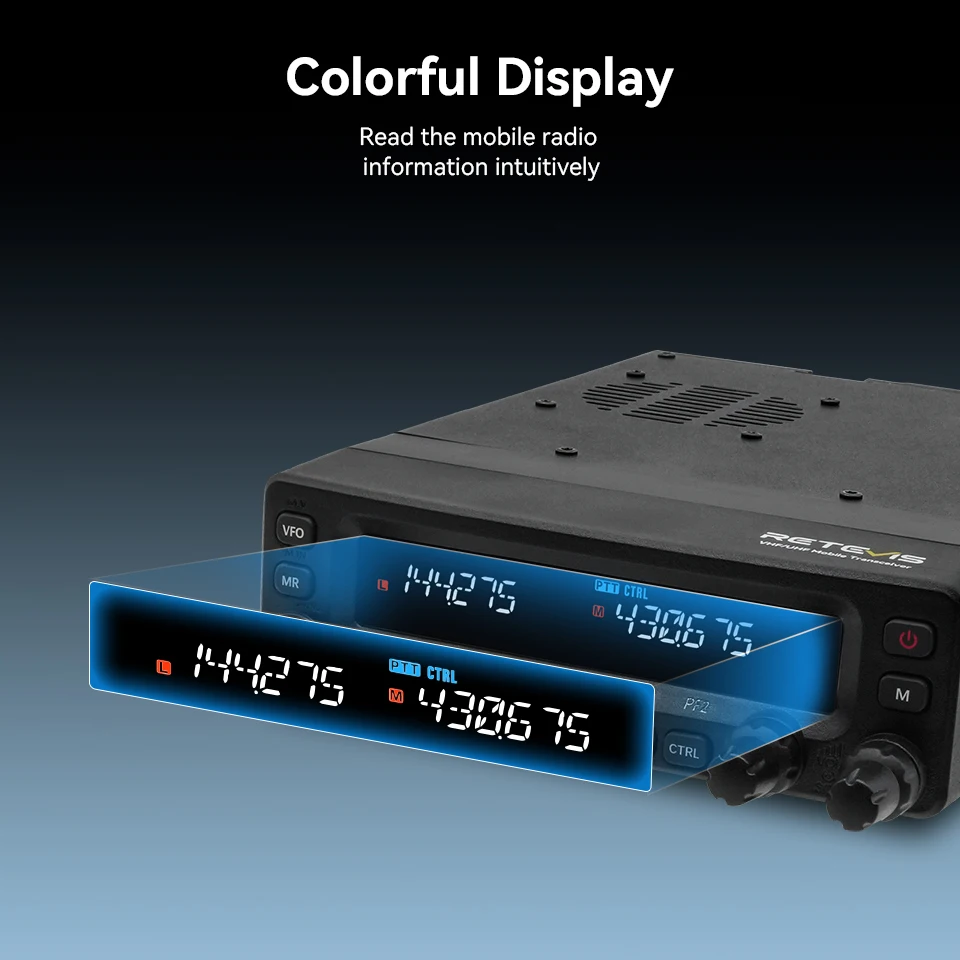

Easy Reading

Features an LCD screen with 8-level adjustable brightness for intuitive viewing of mobile radio information.

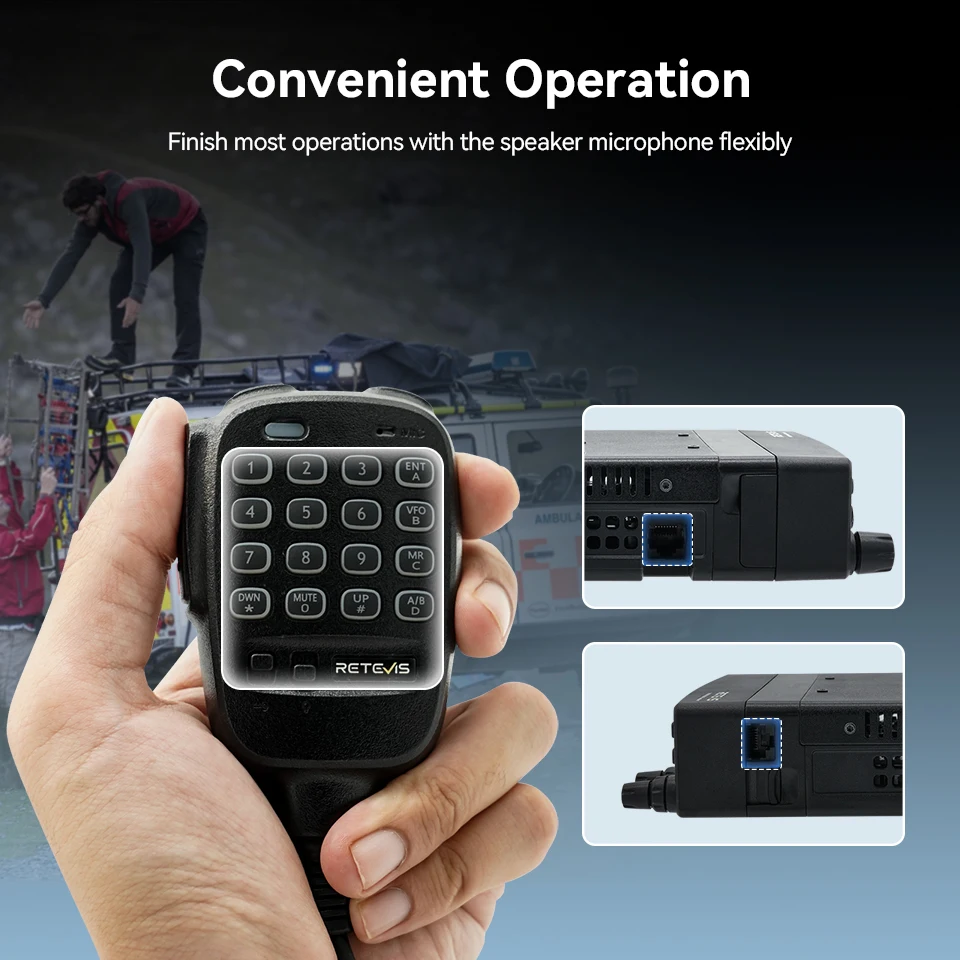

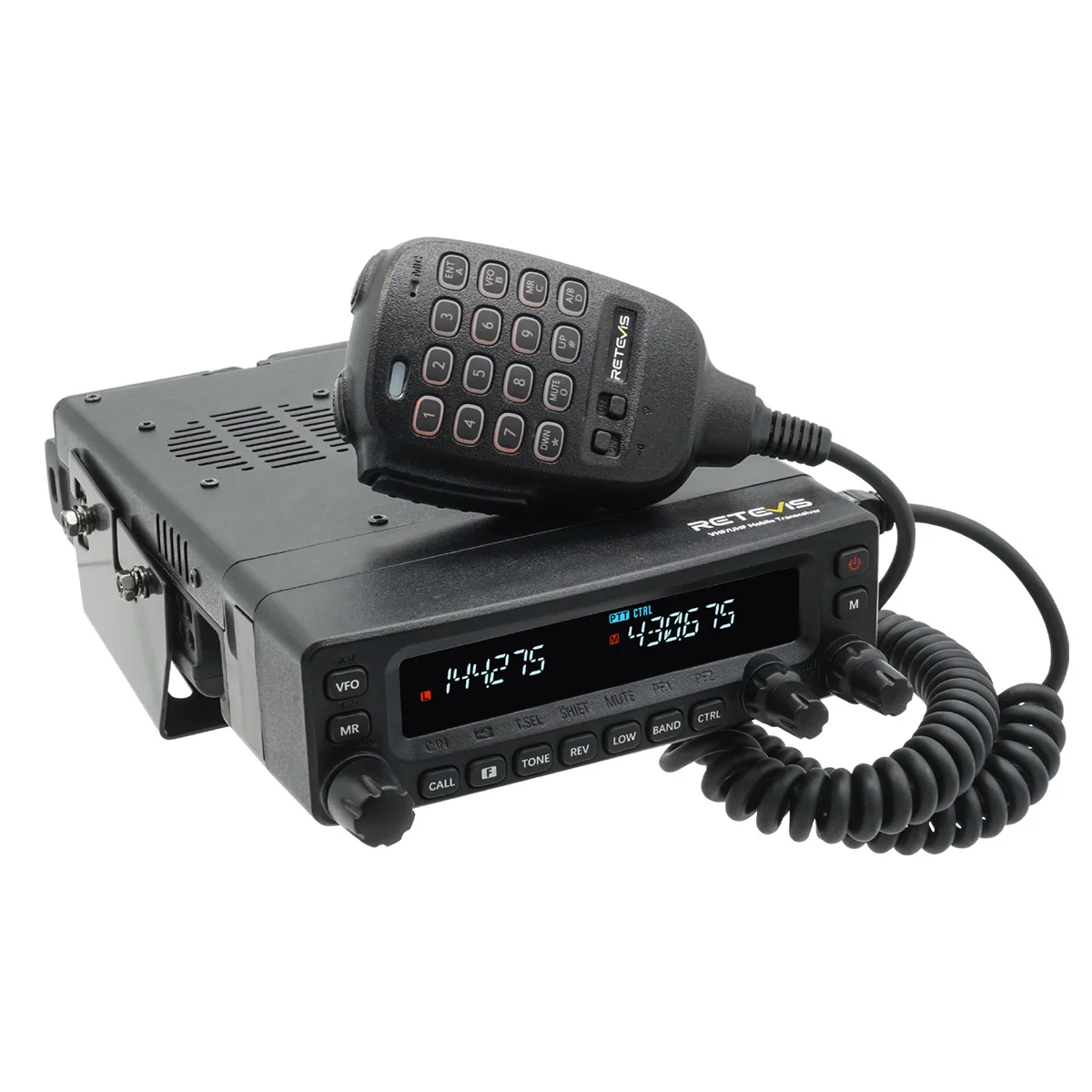

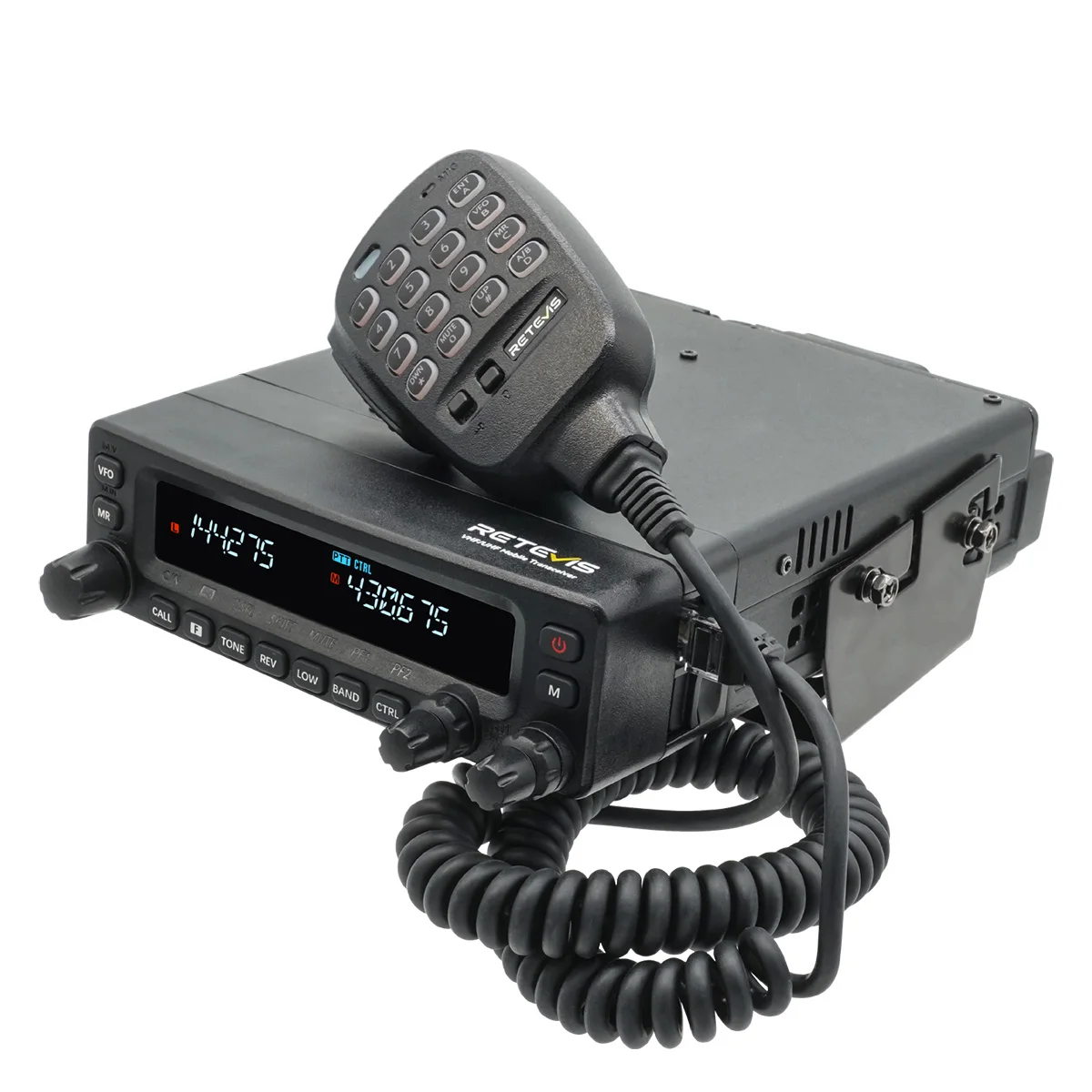

Multi-functional speaker mic

With a full keypad and function keys, you can change frequencies and set functions directly on the mic rather than the ham radio, ensuring driving safety.

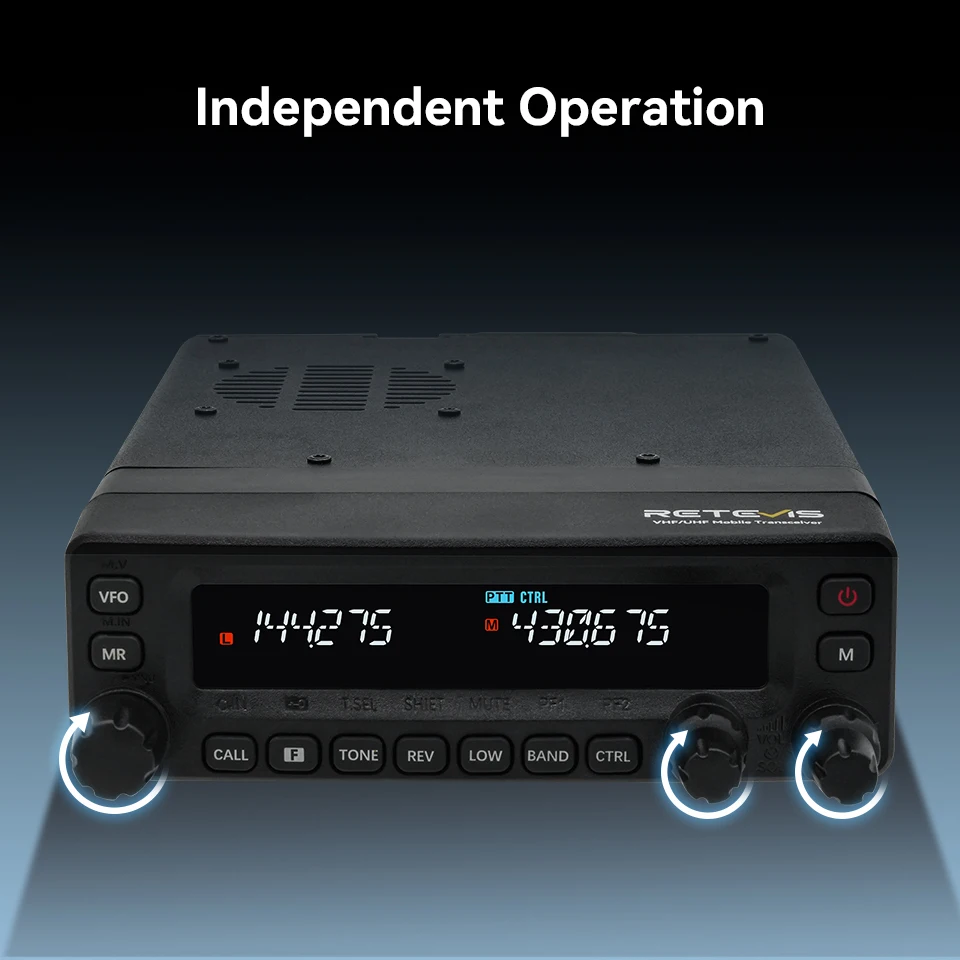

Independent Operation

There are 2 knobs on the right side of the front panel. Ham radio transceiver allows adjusting the 2m and 70cm frequencies separately.

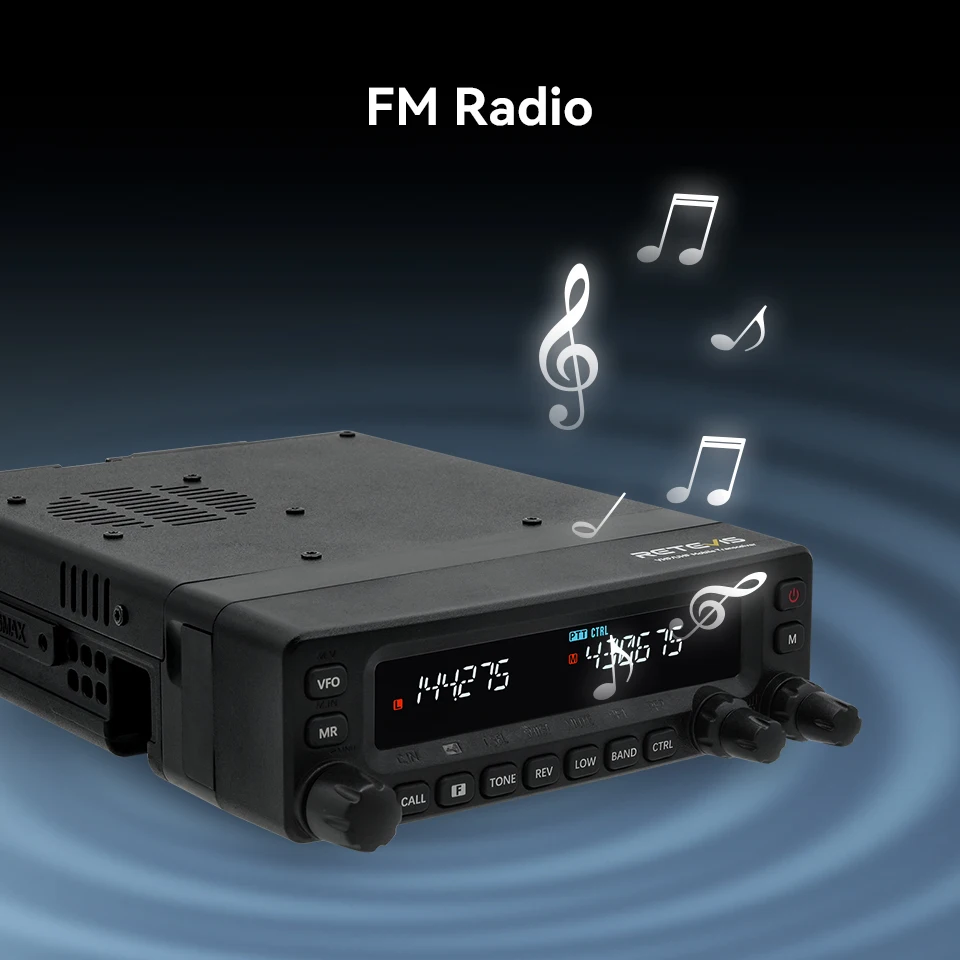

FM Radio Function

With the FM radio, you can listen to the news or anecdotes when traveling on the road, increasing the pleasure of driving alone.

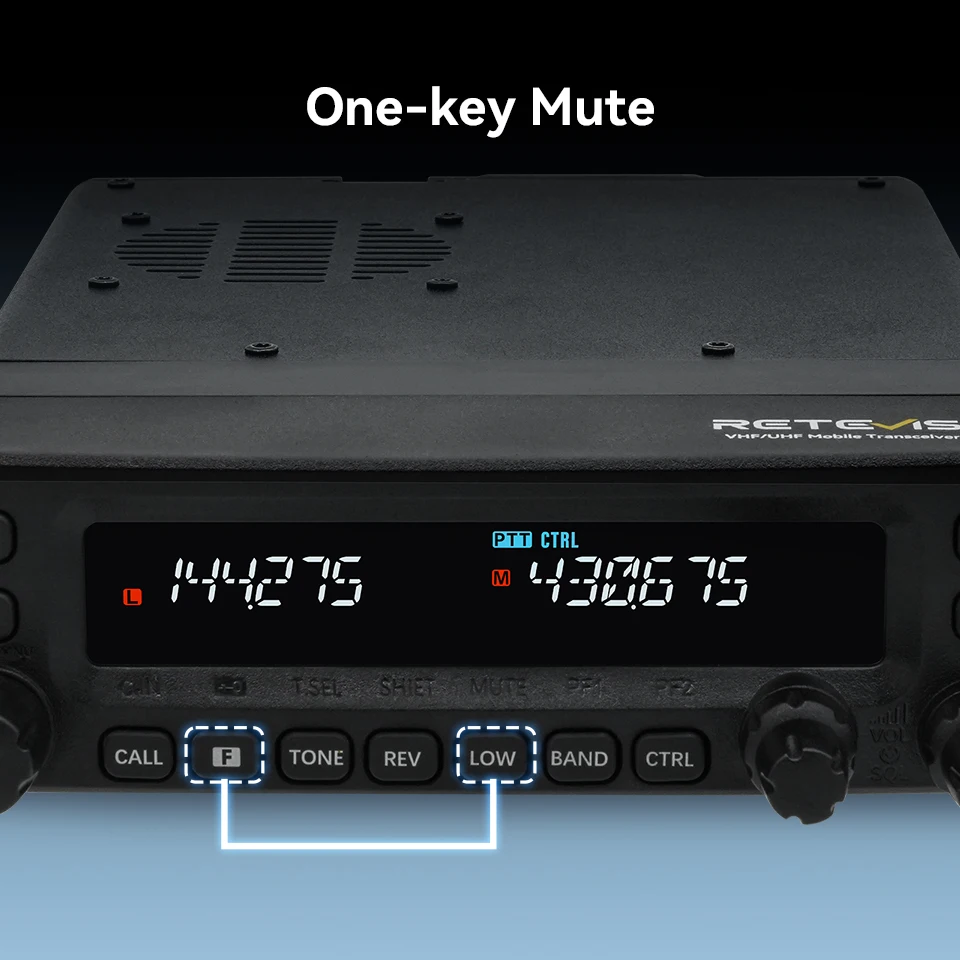

One-key Mute

The function enables you to mute the ham radio with one press, bringing convenience for having a talk with mates in competitions.

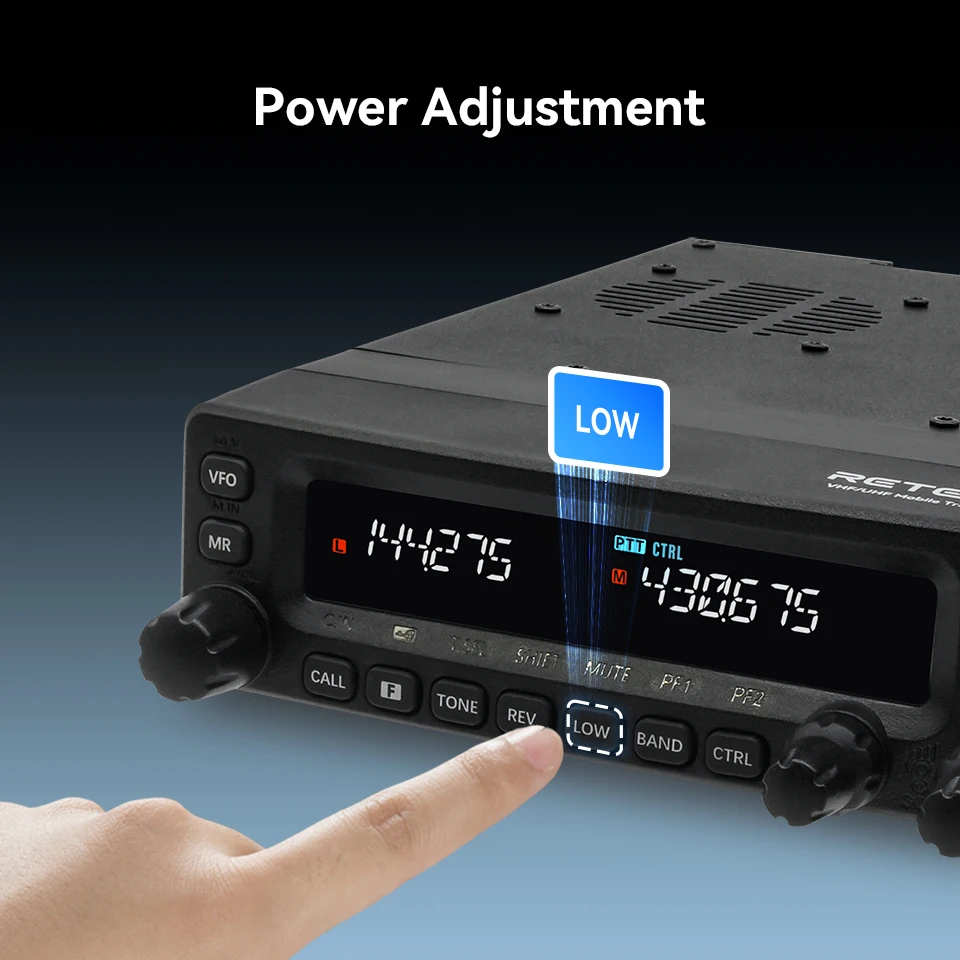

Power Adjustment

MA1 mobile radio supports high, medium, and low power adjustment. Shortly press the Low key to choose the needed power flexibly.

MA1 VS Other

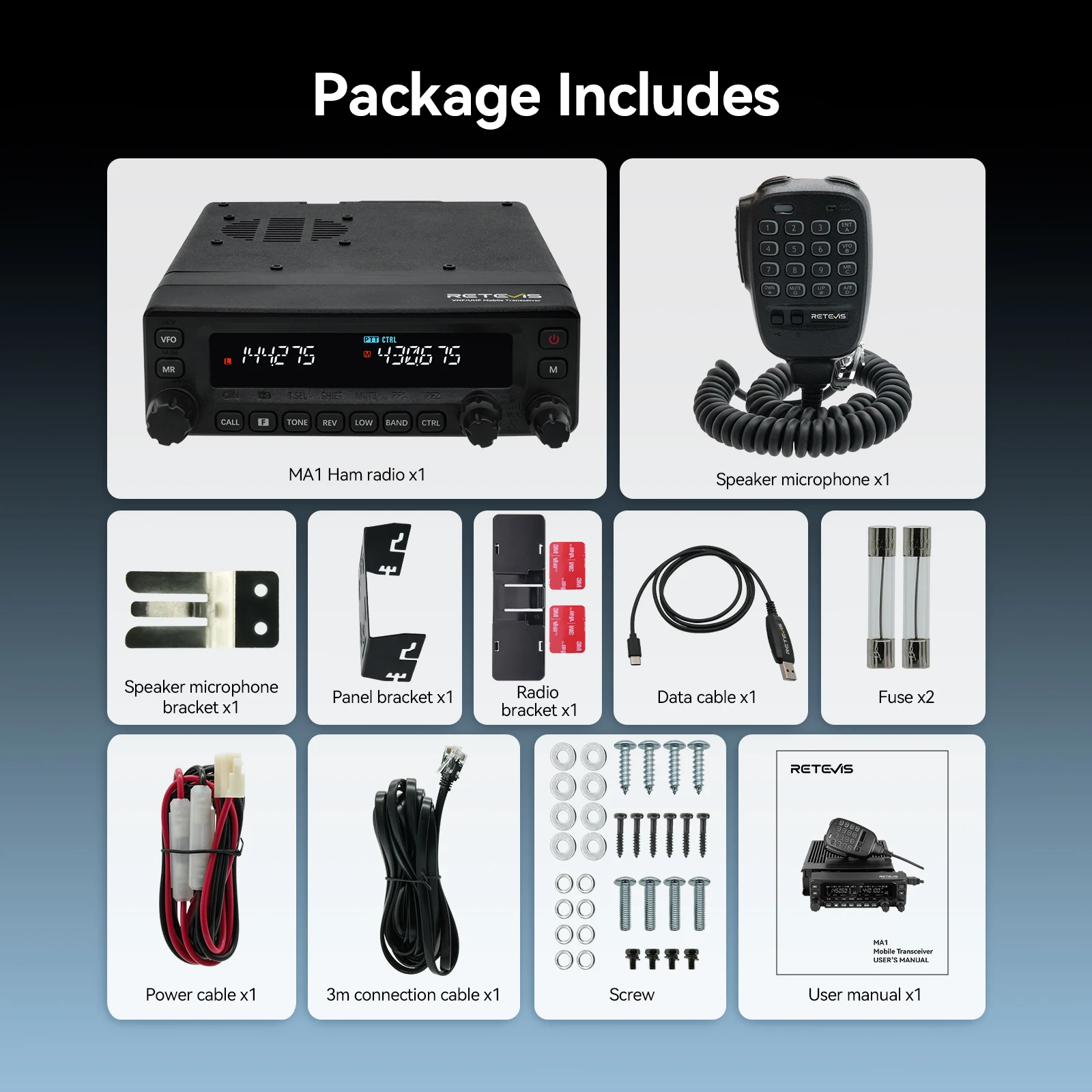

Package Includes

MA1 Ham radio x1

Speaker microphone x1

Speaker microphone bracket x1

Panel bracket x1

Radio bracket x1

Data cable ×1

Fuse x2

Power cable x1

3m connection cable x1

Screw

User manual x1

Antenna (optional)

Technical parameters:

General

Antenna impedance: 50Ω

Frequency stability: ±5ppm @ (-10℃- + 60 ℃）

Working voltage: DC 13.8v (±15%)

Working temperature: -20℃- + 60 ℃

Transmitter

Power amplifier: RF power mosfet

Modulation type: Variable reactance

Max. modulation deviation: ≤ 5KHz/2.5KHz

Spurious emission: ≥ -60dB (144MHz/440MHz)

Receiver

Squelch sensitivity: 0.16uv

Selectivity: 2KHz/30KHz (-6dB/-60dB)

Audio output: 8Ω, 2W

Audio distortion: ＜5%

Hands-on test by the blogger

Details display:
