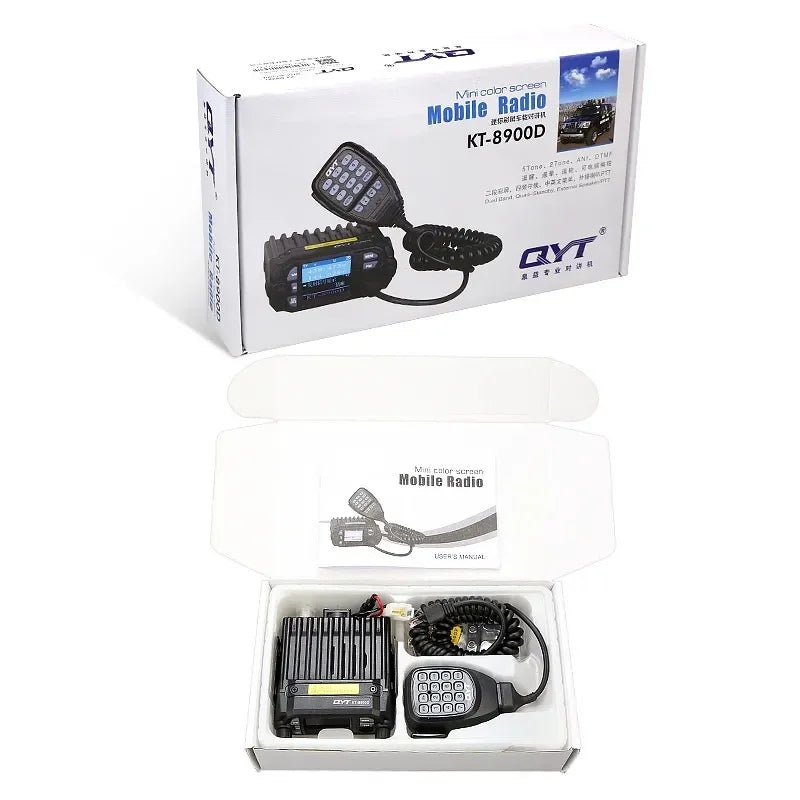

QYT KT-8900D 25-Watt Walkie Talkie Dual Band VHF/UHF 136-174/400-480MHz Quad Watch Car MINI Mobile Radio

$116.80 USD

~~$0.00 USD~~ $116.80 USD

Sale Ausverkauft

SPECIFICATIONS

Battery Capacity(mAh): 0

Battery Included: no

Brand Name: BAOFENG,QYT

Choice: yes

High-concerned chemical: none

Is_Display: Yes

Maximum Range: 10km-50km

Model Number: kt-8900D

Origin: Mainland China

Output Power(w): 25w-50w

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

General Specifications
Frequency Range	136-174MHz,400-480MHz
Channel Capacity	200 channels
Channel Spacing	25KHz, 20KHz, 12.5KHz
Channel Step	5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
Working Voltage	13.8V DC ±15%
Squelch way	CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
Frequency Stability	±2.5ppm
Operating Temperature	-20℃~+60℃
Dimension(WHD)	98(W)43(H)126(D)mm
Weight	448g

Receiver (ETSI EN 300 086 Standardized.Test)
	Wide Band	Narrow band
Sensitivity	≤0.25μV	≤0.35μV
Channel chioce	≥70dB	≥60dB
Intermodulation	≥65dB	≥60dB
Spurious Rejection	≥70dB	≥70dB
Audio response	+1~ -3dB(0.3~3KHz)	+1~ -3dB(0.3~2.55KHz)
Signal to noise ratio	≥45dB	≥40dB
Audio distortion	≤5%
Audio output power	≥2W±10%

Transmitter (ETSI EN 300 086 Standardized.Test)
	Wide Band	Narrow band
Output power	25W/20W (VHF / UHF)
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70dB	≥60dB
Signal noise ratio	≥40dB	≥36dB
Parasitic harmonic	≥60dB	≥60dB
Audio response	+1~ -3dB(0.3~3KHz)	+1~ -3dB(0.3~2.25KHz)
Audio distortion	≤5%
