SPECIFICATIONS

Brand Name: NONE,Ho- Link

Certification: CE RoHS FCC

Fiber connector: FC

High-concerned chemical: none

Item Type: cable

Model Number: HL-48V-202XA

Origin: Mainland China

Power Supply: DC12V/ AC110~240V

Power dissipation: lower 2W

Receiver sensitivity: high than -24db

Transmitter power: high than -7db

Warranty Time: 3 years

Wavelength: 1310nm & 1470nm~1610nm (selected according to the function of the device)

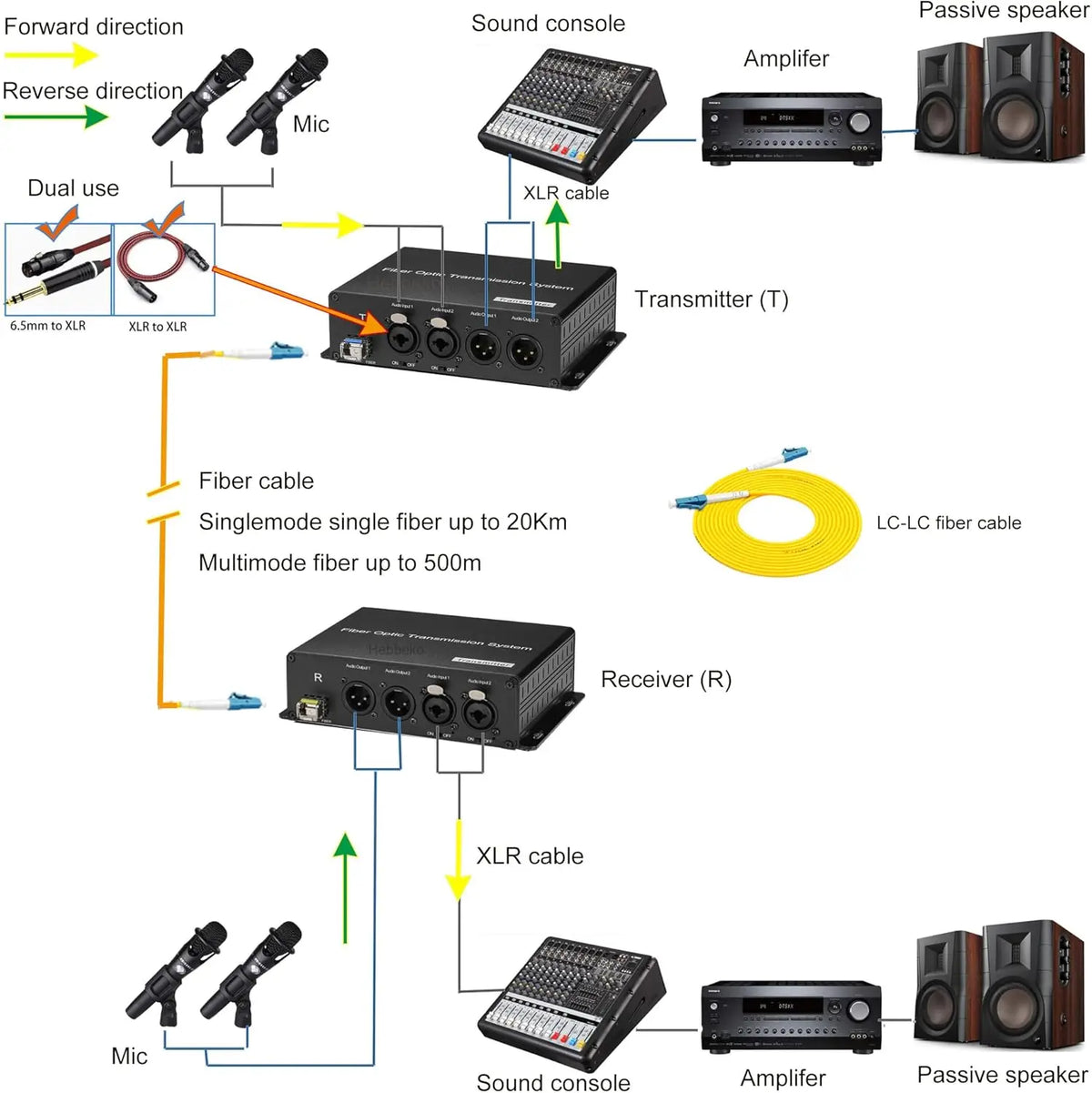

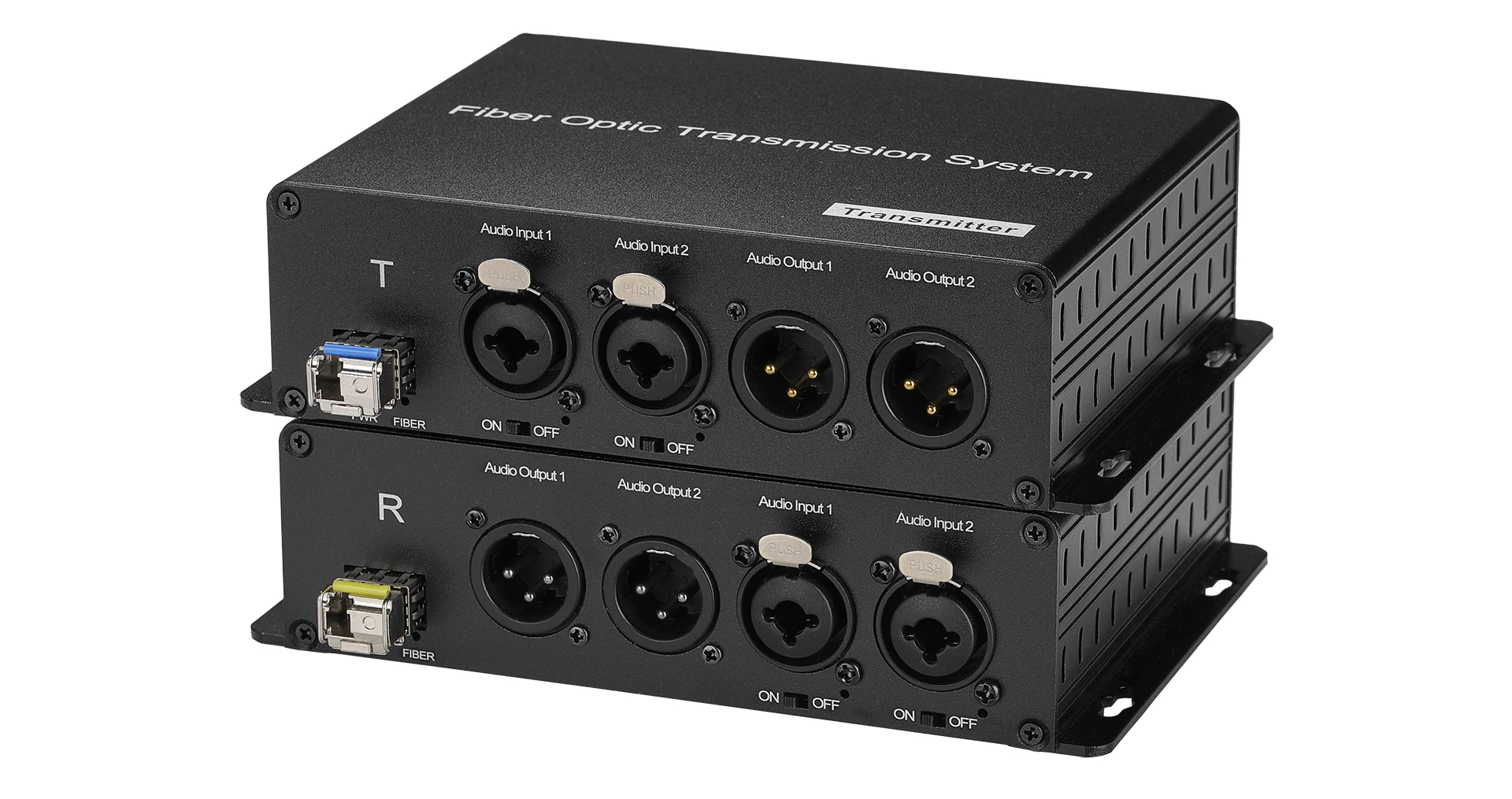

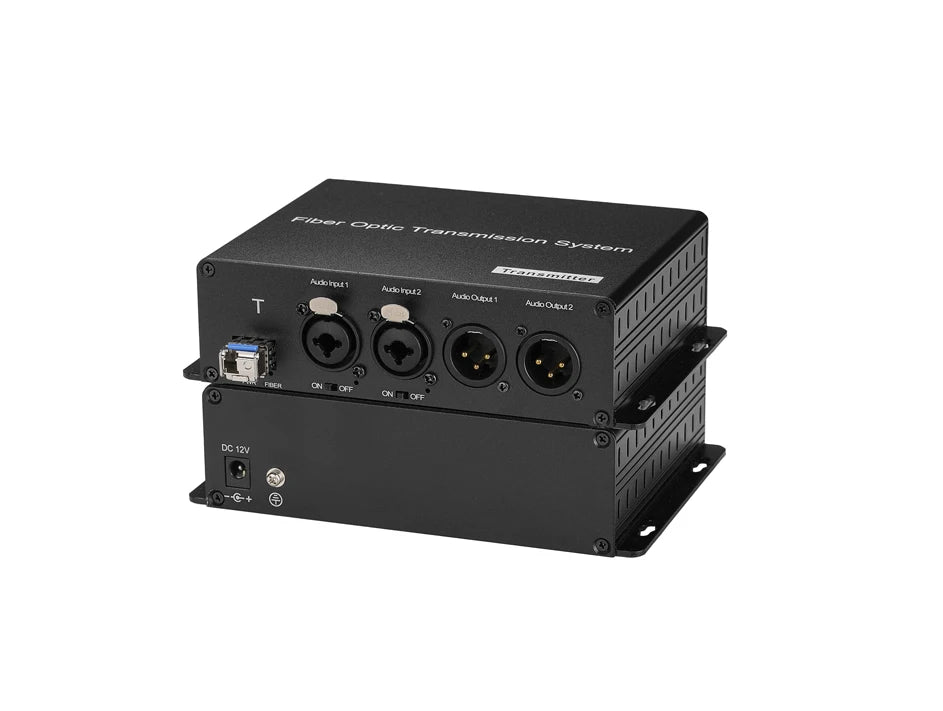

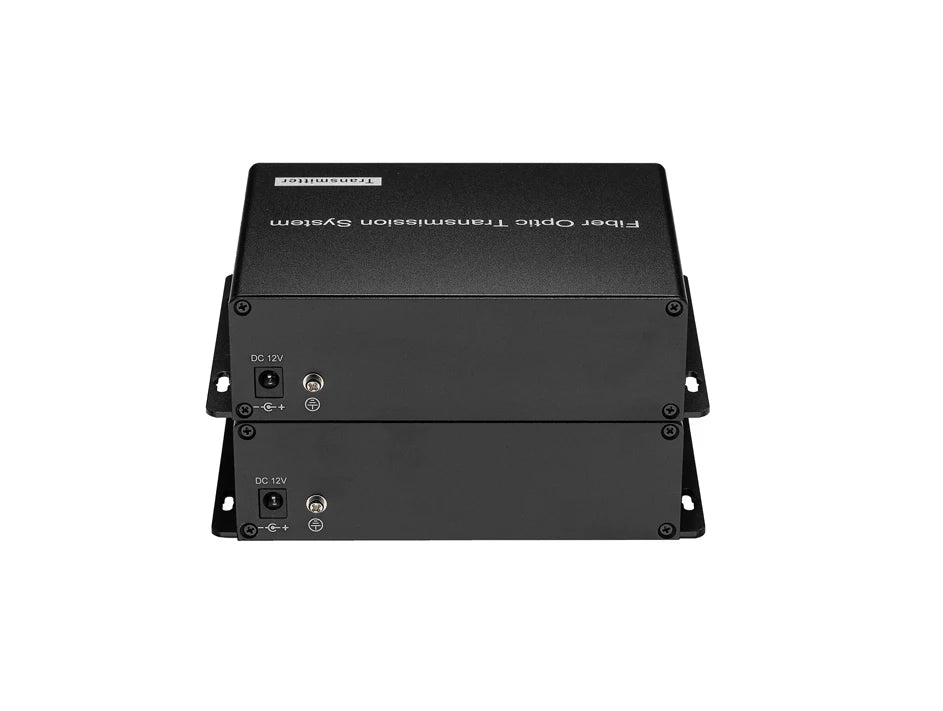

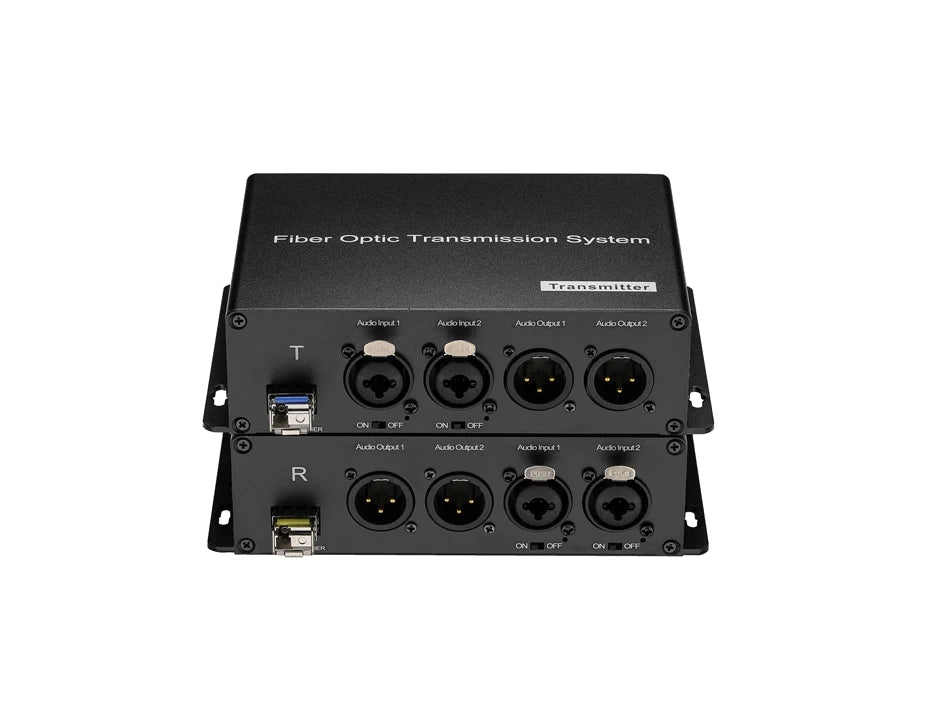

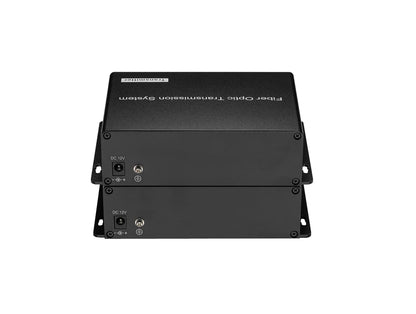

Passive Microphone 48V Phantom Power XLR Audio Over Fiber Optical 2 Channel BIDI Audio Signals

Features

1. Through CWDM technology, it can realize the transmission of one to multiple-channel XLR analog balanced audio

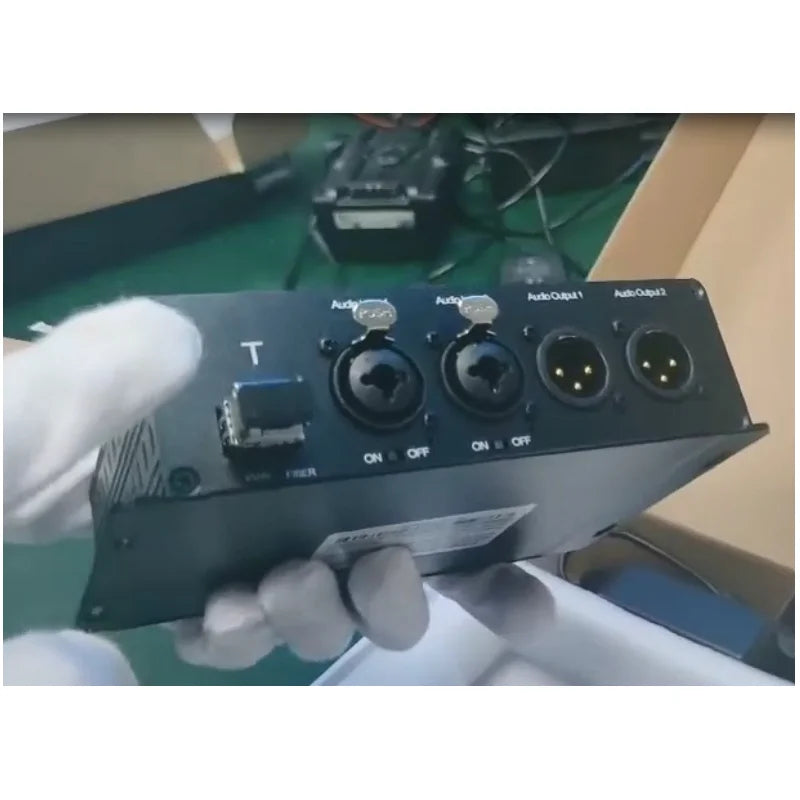

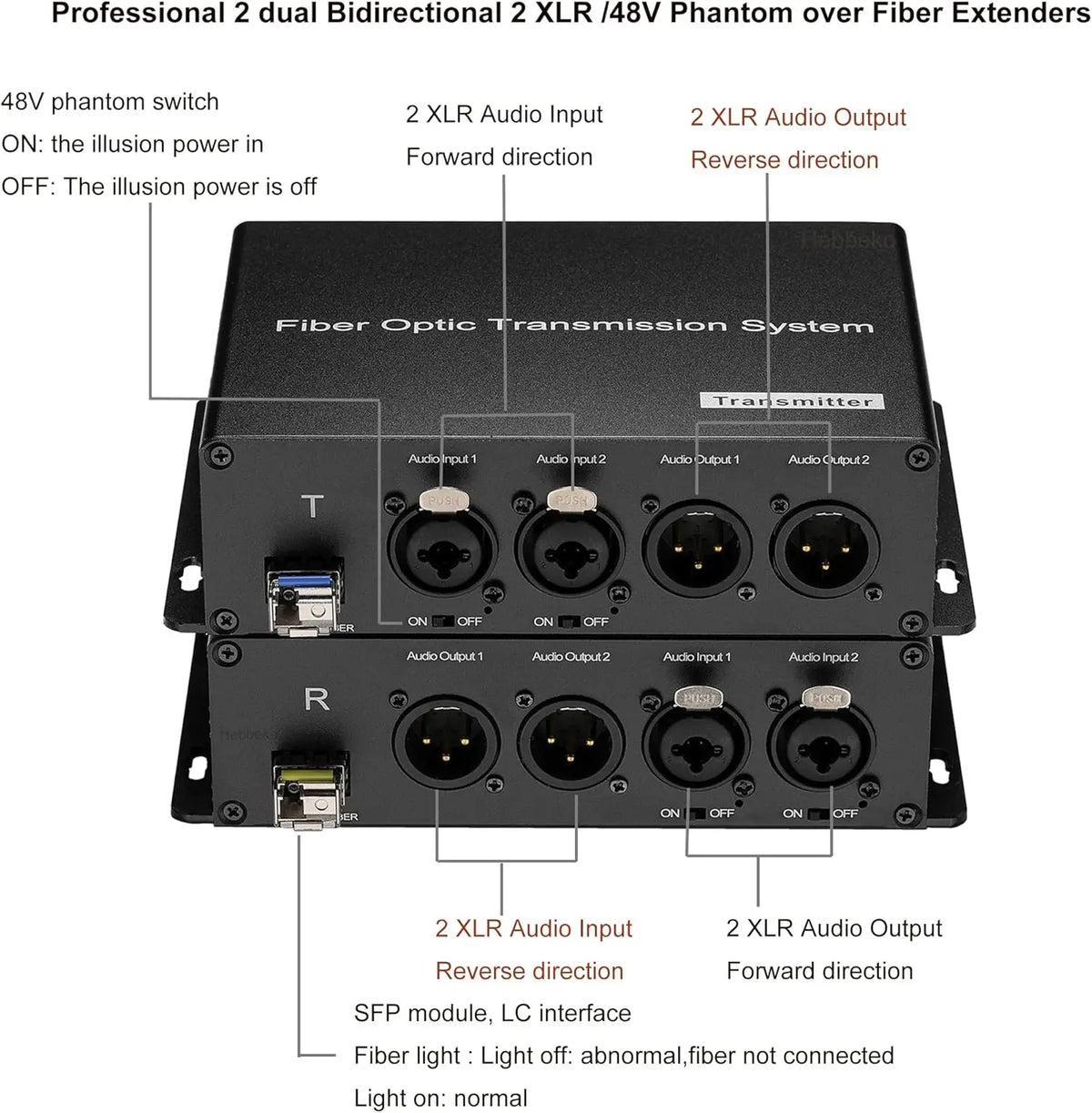

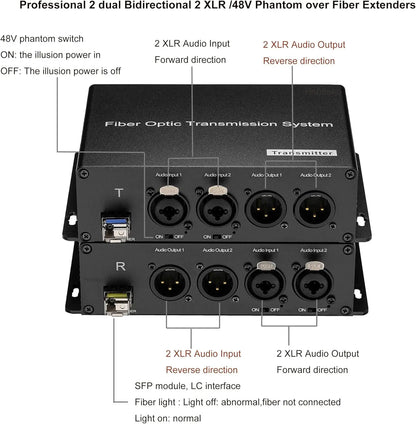

2. Each audio channel supports a 48V phantom power switch key. According to the field demand can adjust the phantom power switch, with high flexibility

3. Using FPGA, digital code, and clock recovery technology, high integration and high stability

4. Automatic high-pass filtering to isolate the DC offset

5. High-intelligent noise reduction system for soft rising or falling ramp waves and simulated squelch with a 100dB signal-to-noise ratio (SNR) without popping sound operation

6. Audio interface is in level 3 lightning protection, up to IEC61000-4-5 (8/20μs) differential mode: 6KV

7. Standard single-mode transmission distance of 20 KM

8. LED status indicator to monitor the running status of the device

9. Plug and play, no setup required

10. Devices are used in pairs. Note that devices are distinguished between the transmitter and the receiver

Specifications

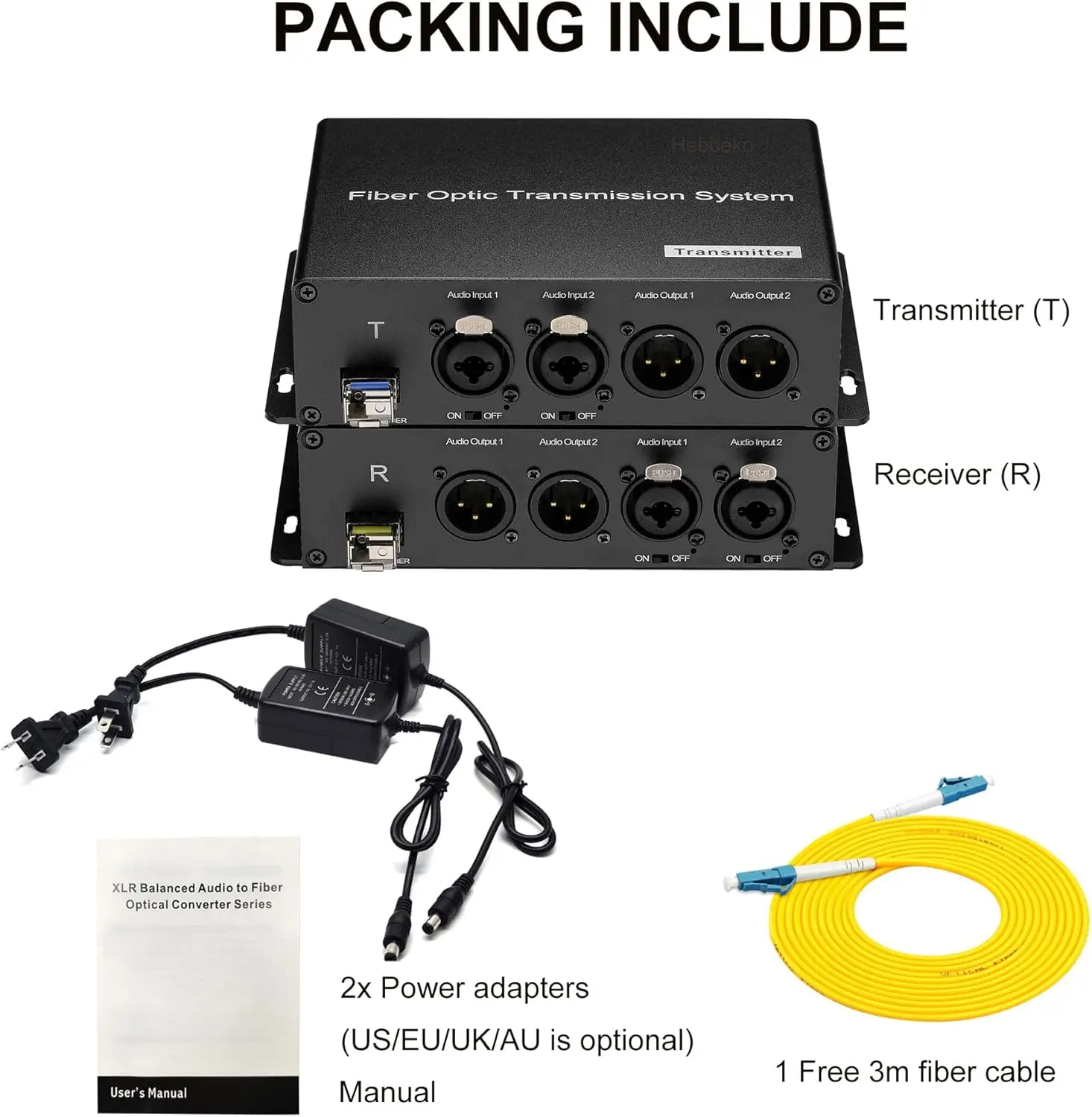

Pictures

Application

1. SMPTE compatible with serial digital interface

2. UHDTV/4K/8K/HDTV/SDTV video

3. IP media gateway

4. Digital video processing and editing

Connection Diagram

Reminder

1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission

2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not output the audio source signal to the fiber optic converter, otherwise the equipment will be burned

Troubleshooting of indicator

1: Power indicator is abnormal (POWER)

Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails

Whether the socket is not tight or loose

2: Fiber indicator is abnormal (FIBER)

Answer: Check whether the optical fiber interface is loose and not plugged in

Check whether the optical fiber is too attenuated

3: Video indicator is abnormal  (VIDEO)

Answer: Check the signal source

Replace the video cable

4: Data indicator is abnormal (DATA)

Answer: Check the COM port, whether the baud rate is consistent

Check whether the serial port cable is connected backward

Attention

Lightning protection, static electricity and grounding:

It is recommended that when install the device, consideration should be given to the impact of grounding by lightning, and take prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plug/unplug the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber as optical components of the optical converter is very fragile, and it should avoid causingdamage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to eyes, so do not have direct eye contactwith the optical components of optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Equipment and installation procedures:

1.Optical fiber installation: please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

2.Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.
