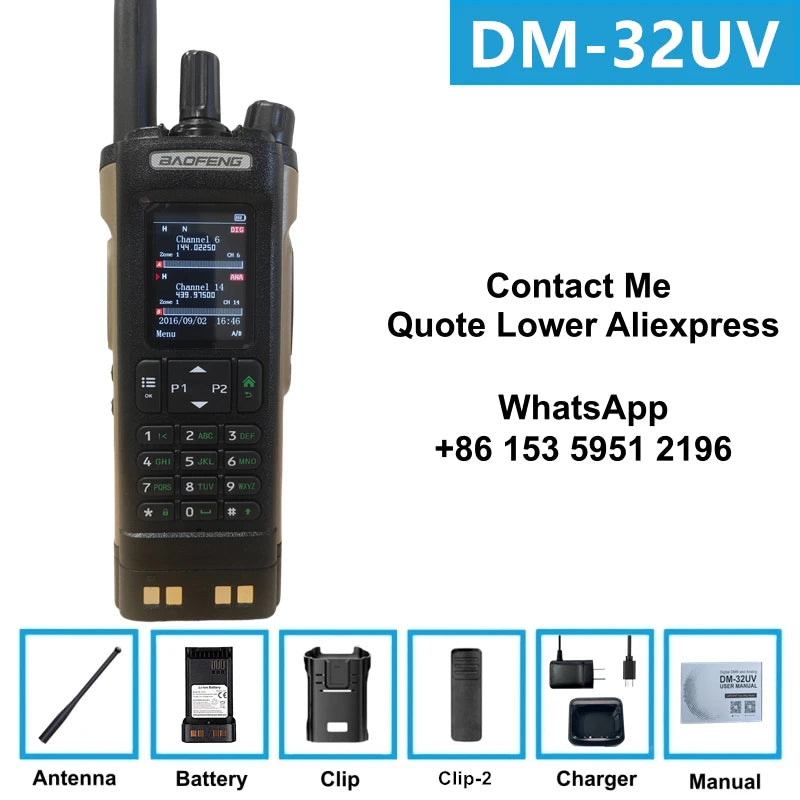

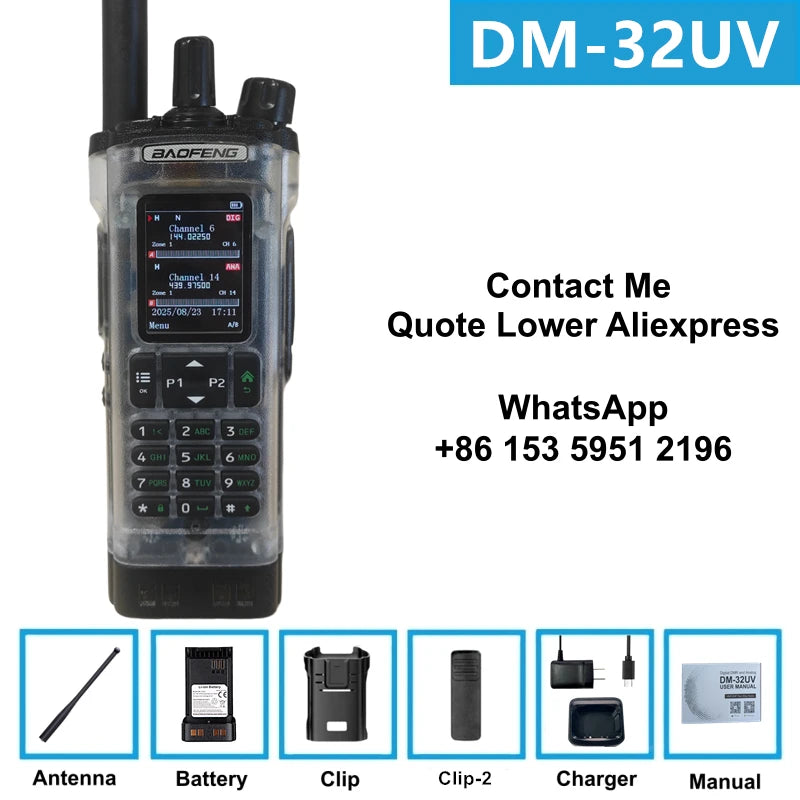

Contact Me Quote Lower Aliexpress

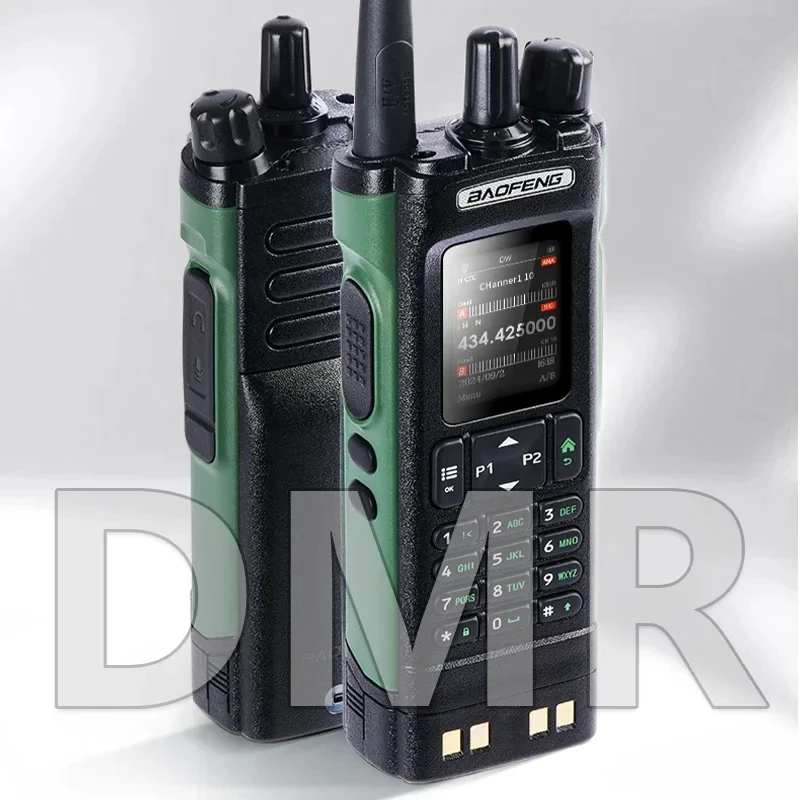

✅【Dual Mode Compatibility Model】

BAOFENG DM-32UV supports Analoge+DMR dual modes, enabling seamless connection between analog and digital communication. It adapts to the networking of new and old devices, with stable anti-interference signals and clear sound quality, meeting communication compatibility needs in various scenarios.

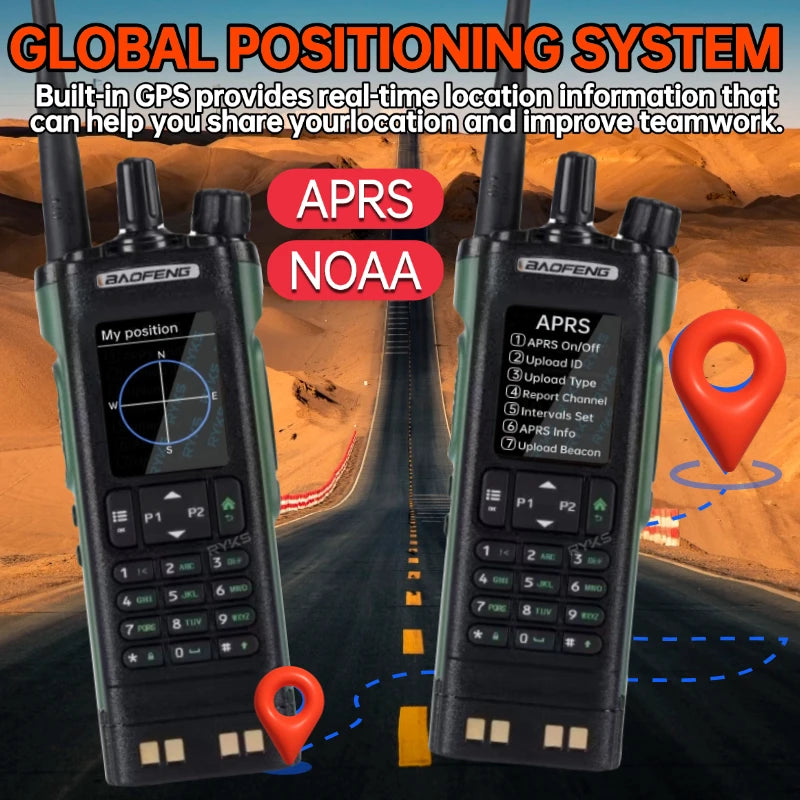

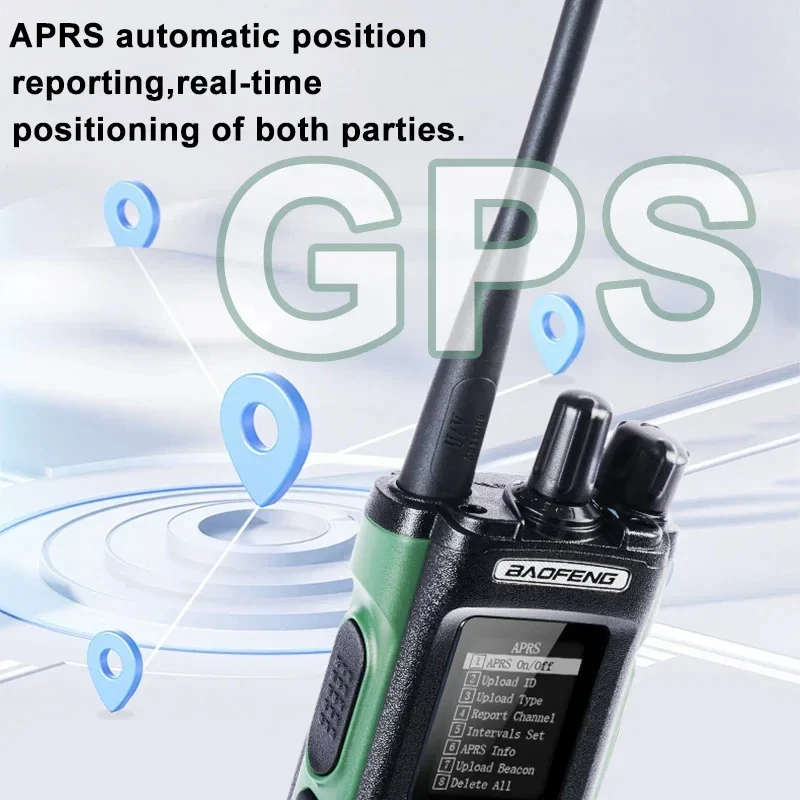

✅【GPS/APRS Positioning Model】

Equipped with built-in GPS and APRS functions, it easily achieves accurate positioning and track sharing. The dual-band ensures signal coverage, allowing real-time synchronization of positions during outdoor adventures and team dispatch to enhance collaboration efficiency and safety.

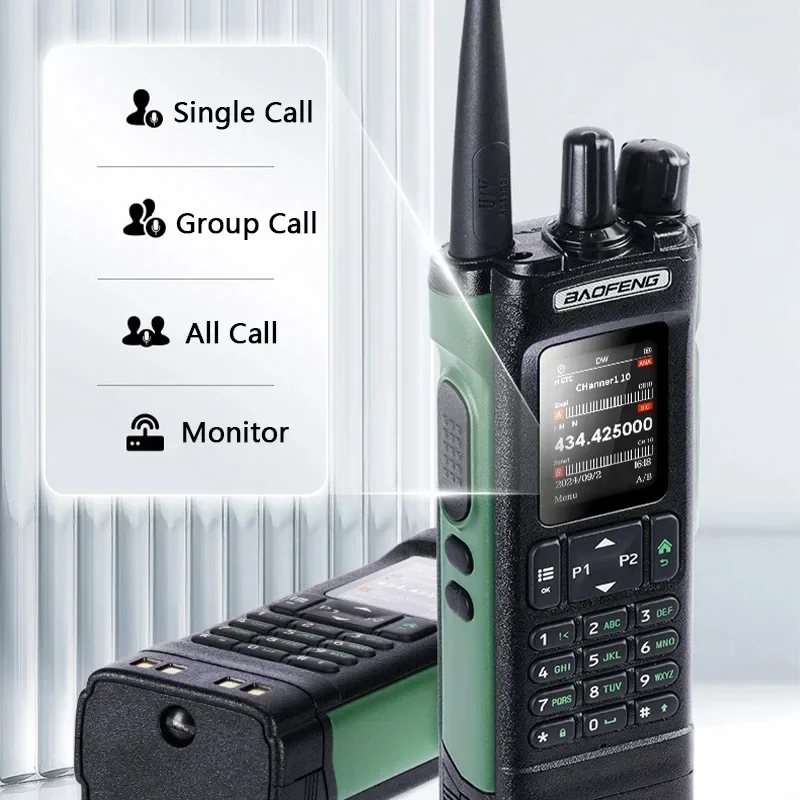

✅【Flexible Multi-Call Mode Model】

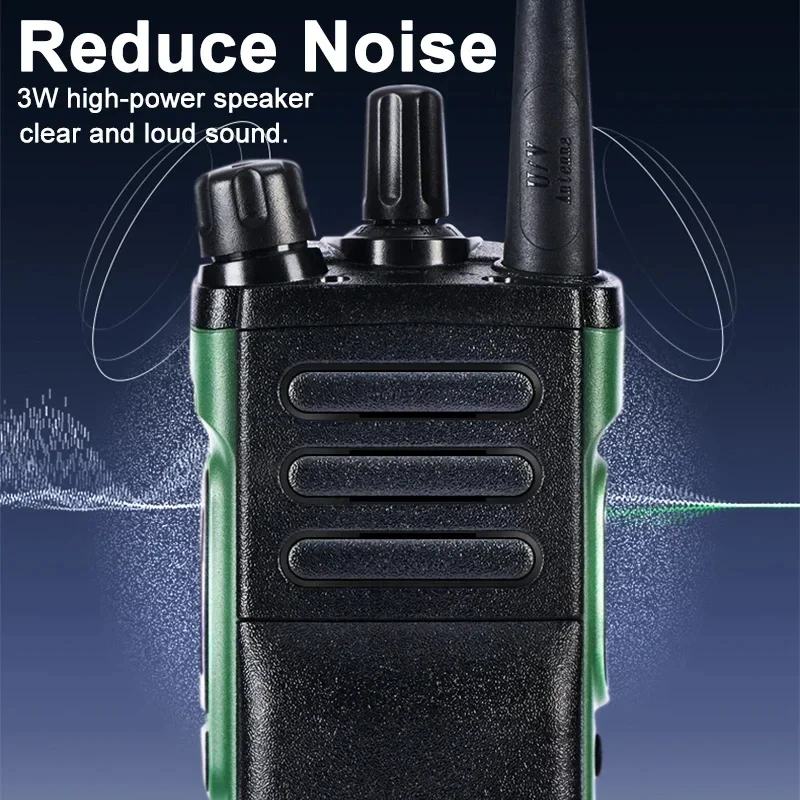

It covers three communication methods: individual call, group call, and broadcast call, which can be switched on demand to adapt to different team sizes. Enhanced by digital noise reduction technology, the call is clear without interference, making communication more efficient for enterprise office and event organization.

✅【AES256 Encryption Security Model】

Featuring high-intensity AES256 encryption technology, it effectively protects communication privacy from leakage. The stable and smooth digital communication is suitable for professional scenarios requiring privacy, such as business negotiations and security duty.

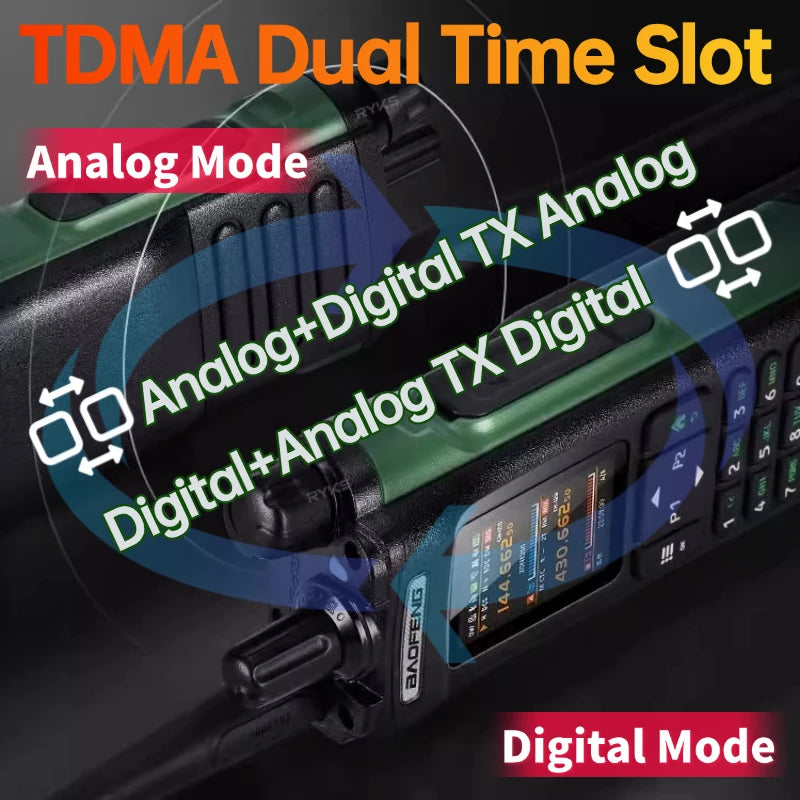

✅【Dual Time Slot High-Efficiency Model】

Supporting Dual Time Slot Tier 1&2, it greatly improves channel utilization. Multi-person simultaneous communication runs without lag, paired with clear sound quality and stable signals, making high-frequency communication more worry-free for professional teams.

--------------------------

★【Features and Functions】

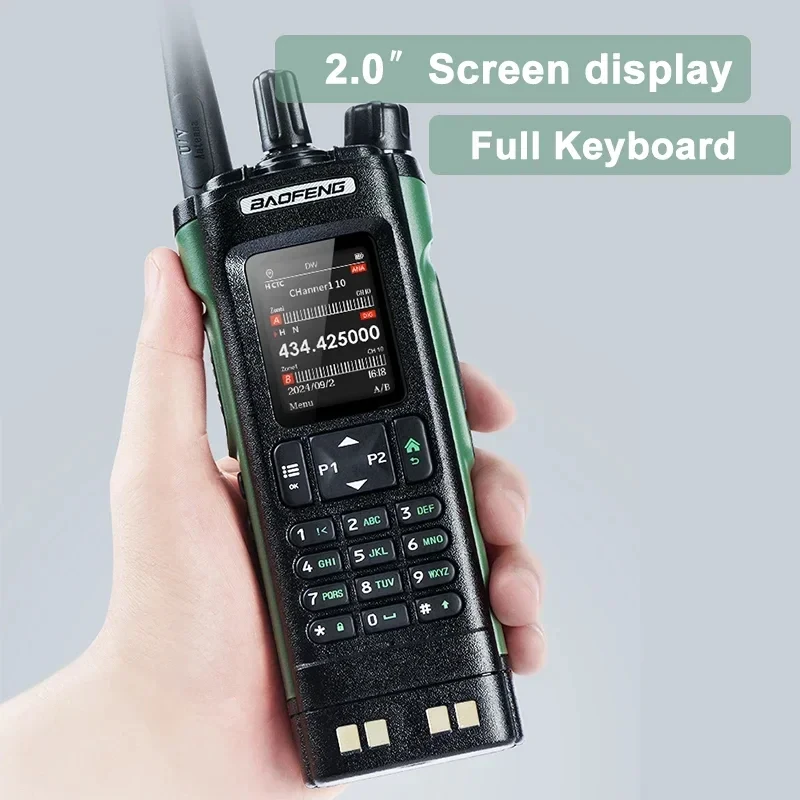

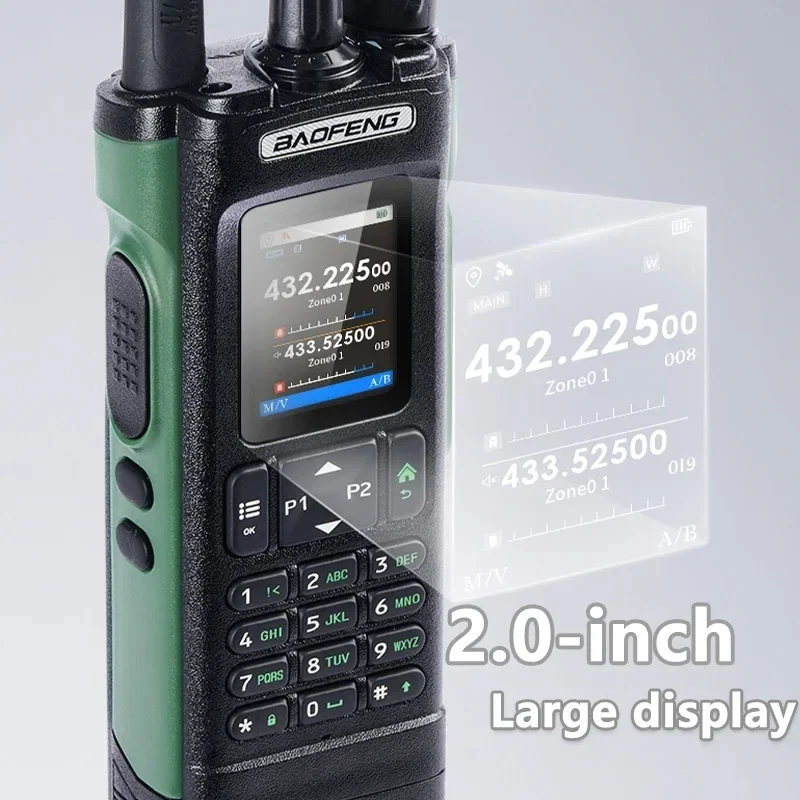

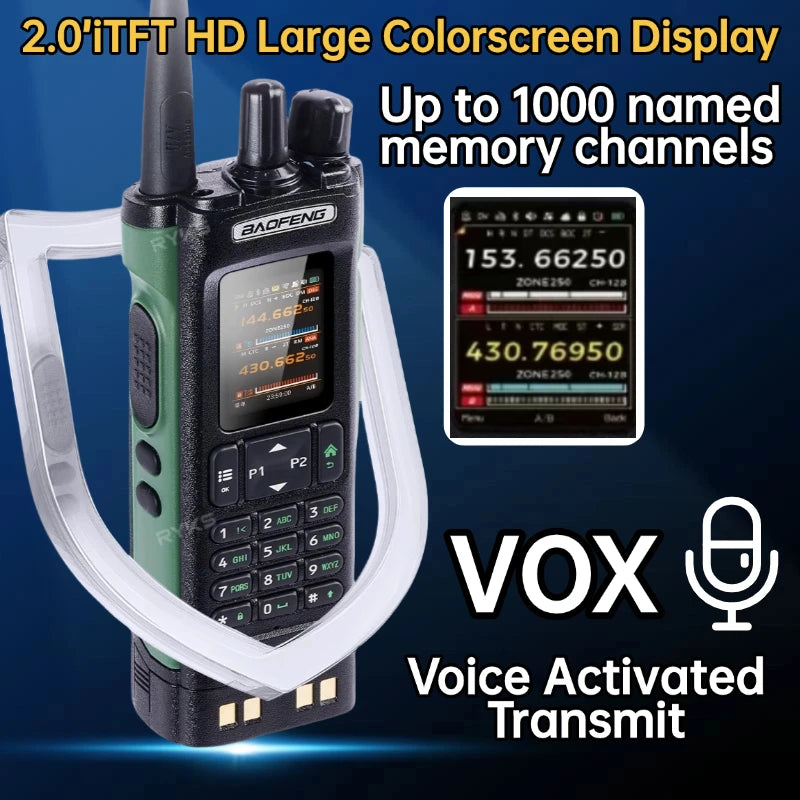

● 2.0" TFT large screen, full keyboard, fully open menu operation

● GPS positioning function

● 10 zones storage, Up to 1000 named memory channels.

● High/Middle/Low power selectable.

● Scanner function: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, scan channel addition and removal

● Built-in input method, allows this device to edit channel name

● NOAA Weather Radio Channel Reception in the United States and Canada(*North American countries and territories only)

● Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K

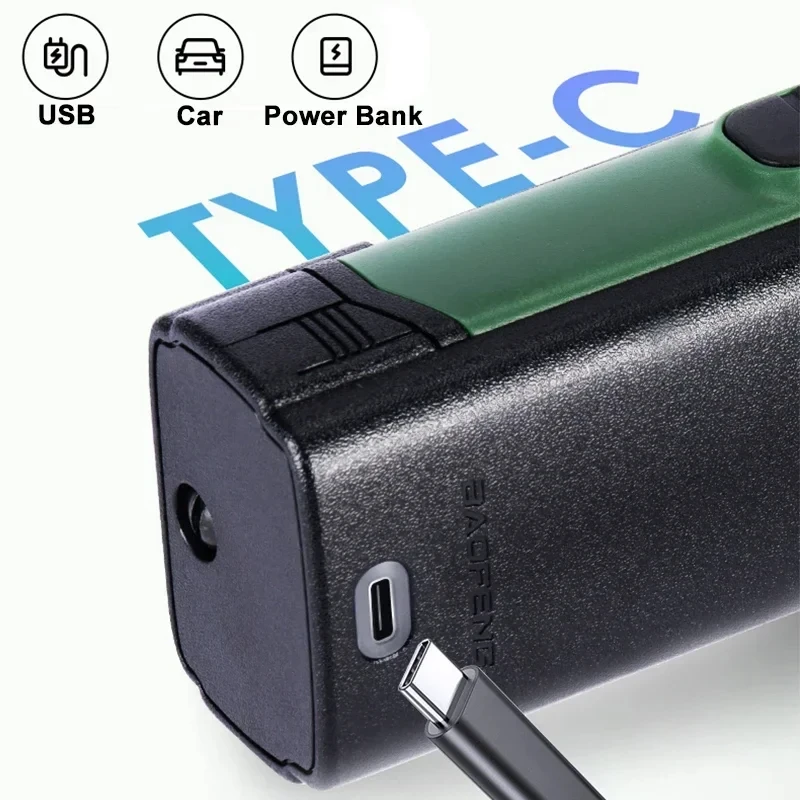

● Type-C direct charging and charging stand, more convenient battery life

● Dual-band handheld transceiver.

● VOX (voice activated transmit).

● High Capacity Lithium-Ion battery.

● Broadcast FM radio receiver 78 - 108 MHz

● Alarm function.

● Display illumination programmable via keypad

● Function beep on the keyboard.

● Dual watch / Dual reception.

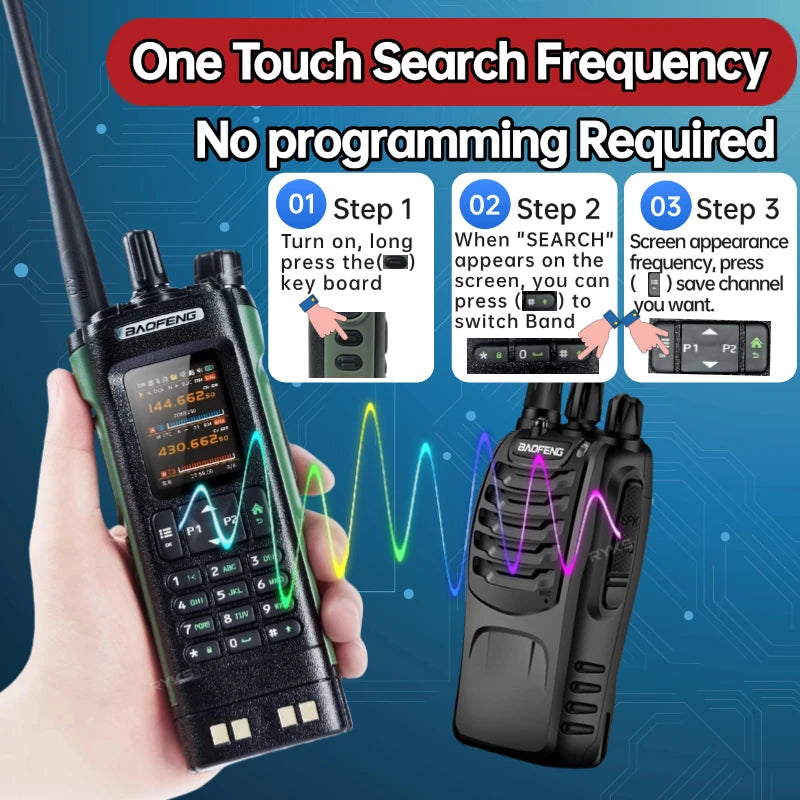

● One touch search frequency

● Two (2) pins for Kenwood accessory port

--------------------------

★【General】

● Product Model DM - 32UV

● Channel Capacity 4000

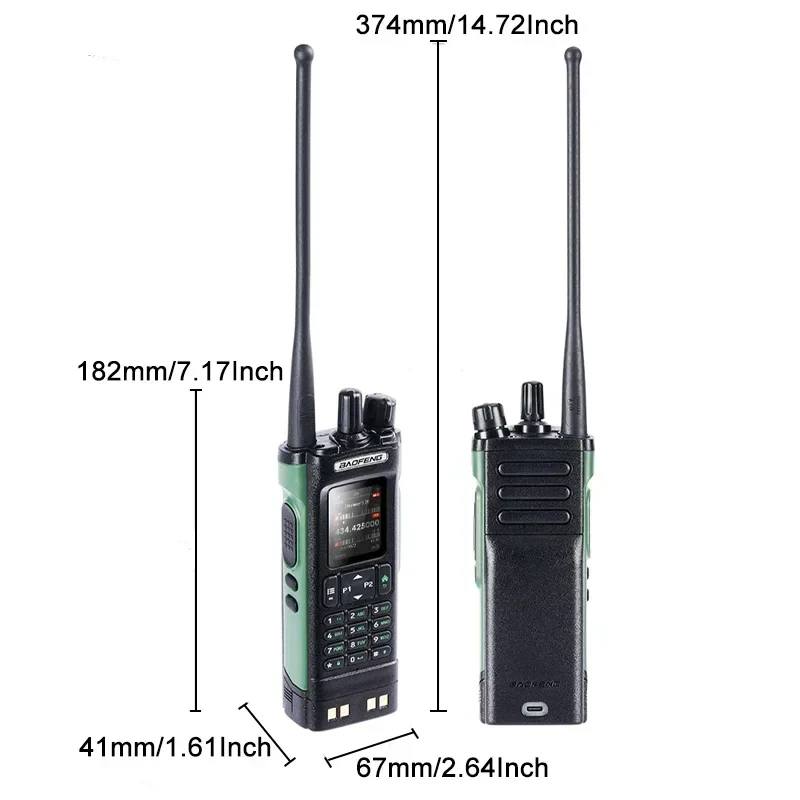

● Dimensions (H*W*L) 182*67*41mm (with battery pack)

● Weight (with antenna & battery) 350g

● Storage Temperature - 10°C ~ +80°C

● Operating Temperature - 10°C ~ +60°C

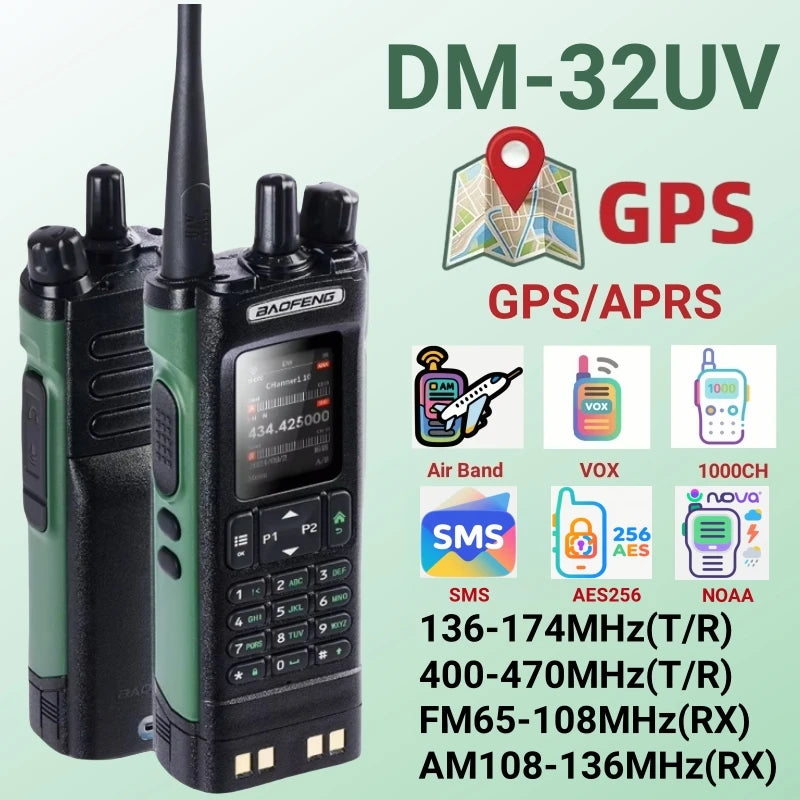

● Receive Frequency Range & Transmit Frequency Range

- Receive: FM65 - 108MHz/AM108 - 136MHz/VHF136 - 174MHz/UHF400 - 470MHz

- Transmit: 136 - 174MHz/400 - 470MHz

● Zone Capacity 250

● Operating Voltage 7.4V

● Battery Capacity 2500mAh (Li - Ion)

● DMR Contacts 800/50000 (.CVS)

● Frequency Stability ±2.5ppm

● Channel Spacing 25KHz/12.5KHz

● Battery Life (5 - 5 - 90 Duty Cycle) 20H (Middle Power)

--------------------------

★【Transmitter】

● Adjacent Channel Power 60dB&12.5KHz, 70dB&25KHz

● Low RF Power Output ≤ 2W

● FM Modulation 11K0F3E&12.5KHz, 6K0F3E&25KHz

● Digital Vocoder Type AMBE+2 ™

● FM Hum & Noise 40dB&12.5KHz, 45dB&25KHz

● High RF Power Output 8W

● Modulation Limiting ±2.5KHz&12.5KHz, ±0.5KHz&25KHz

● Audio Response +1 ~ - 3dB

● Digital Protocol ETSI - TS102 361 - 1,-2,-3

● Audio Distortion ≤ 3%

● 4FSK Digital Modulation:

- 12.5KHz Data Only: 7K60FXD

- 12.5KHz Data & Voice: 7K60FXW

● Conducted/Radiated Emission - 20dBm < 1GHz, - 20dBm > 1GHz

--------------------------

★【Receiver】

● Analog Receiver Sensitivity 0.22μV (Typical) (12dB SIN AD)

● Hum & Noise 45dB & 12.5KHz, 40dB & 25KHz

● Digital Sensitivity 0.22μV / BER 5%

● First fix time, cold start < 1 minute

● Rated Audio Distortion < 5%

● Conducted Spurious Emission - 57dBm < 1GHz, - 47dBm > 1GHz

● Audio Response +1 ~ - 3dB

● First fix time, hot start < 10 seconds

● Spurious Response Rejection 70dB

● Satellite system support GPS, Beidou, GPS + Beidou

● Inter - Modulation 65dB & 12.5KHz / 25KHz

● Horizontal accuracy < 10 meters

● Adjacent Channel Selectivity 70dB / 60dB

● Rated Audio Power Output 1.5W & 16Ω

--------------------------

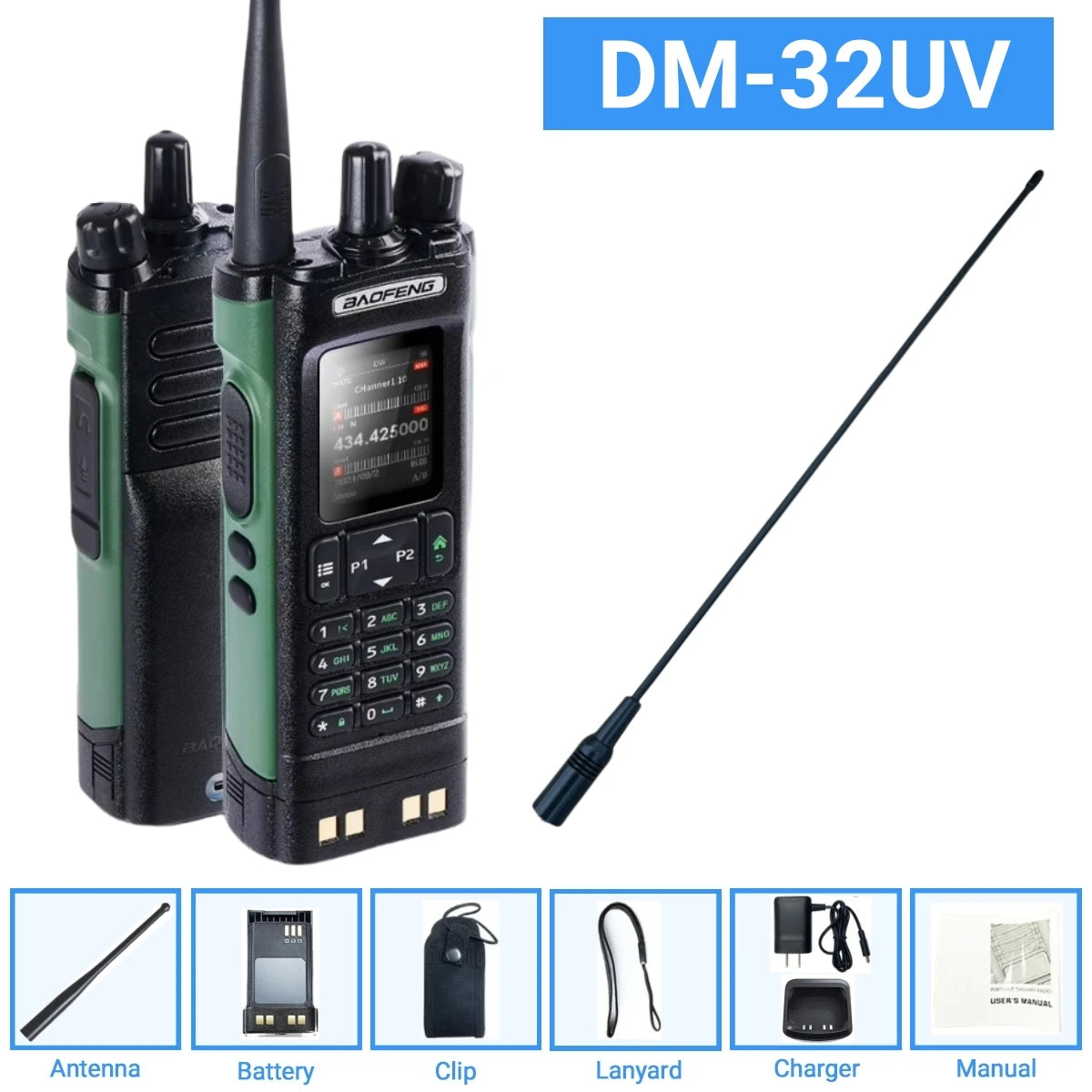

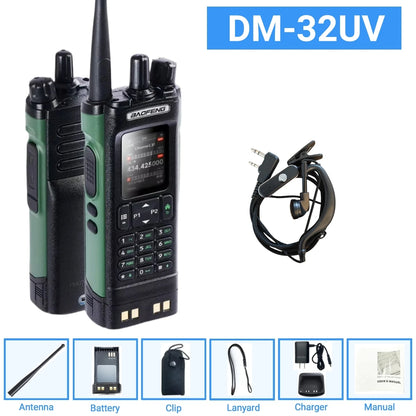

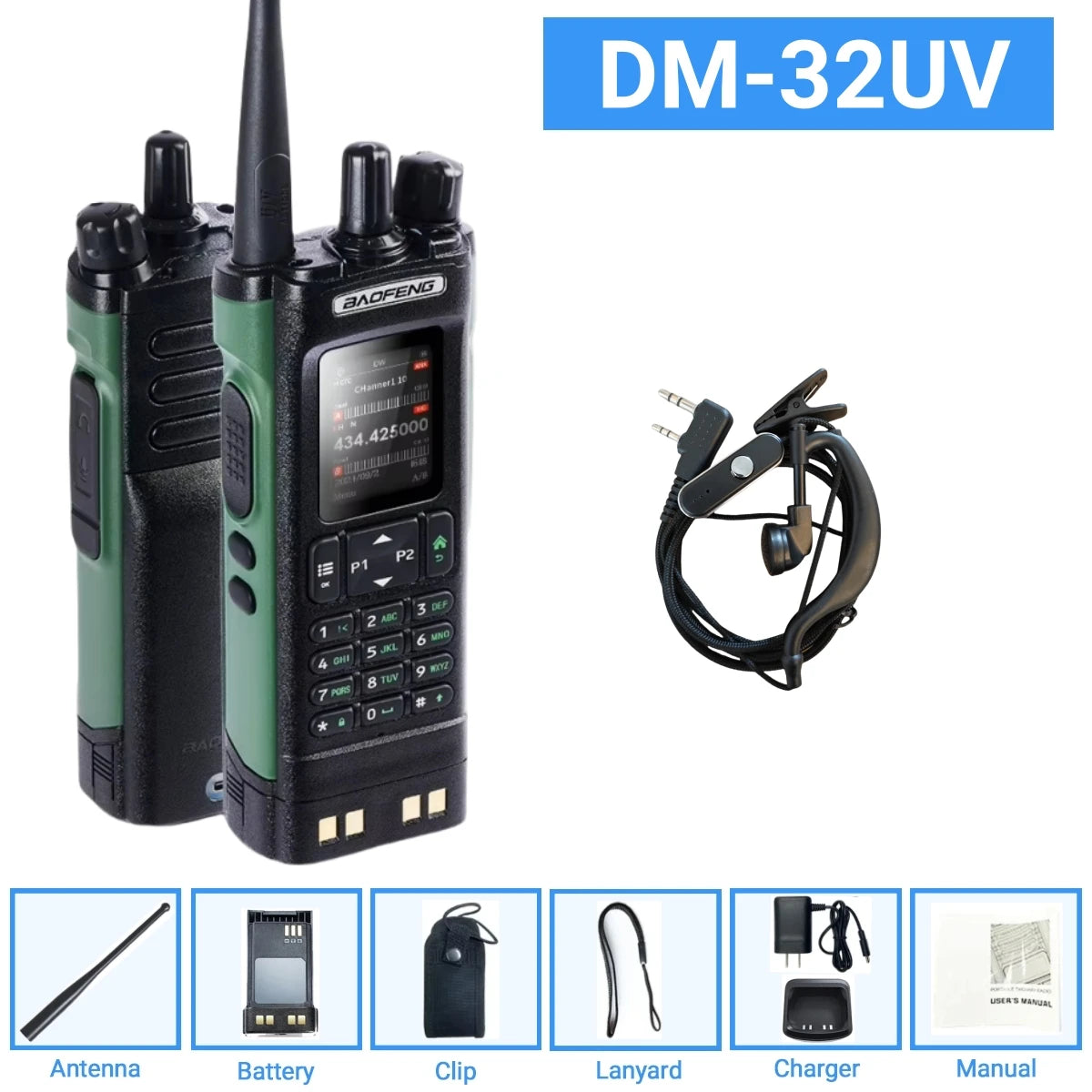

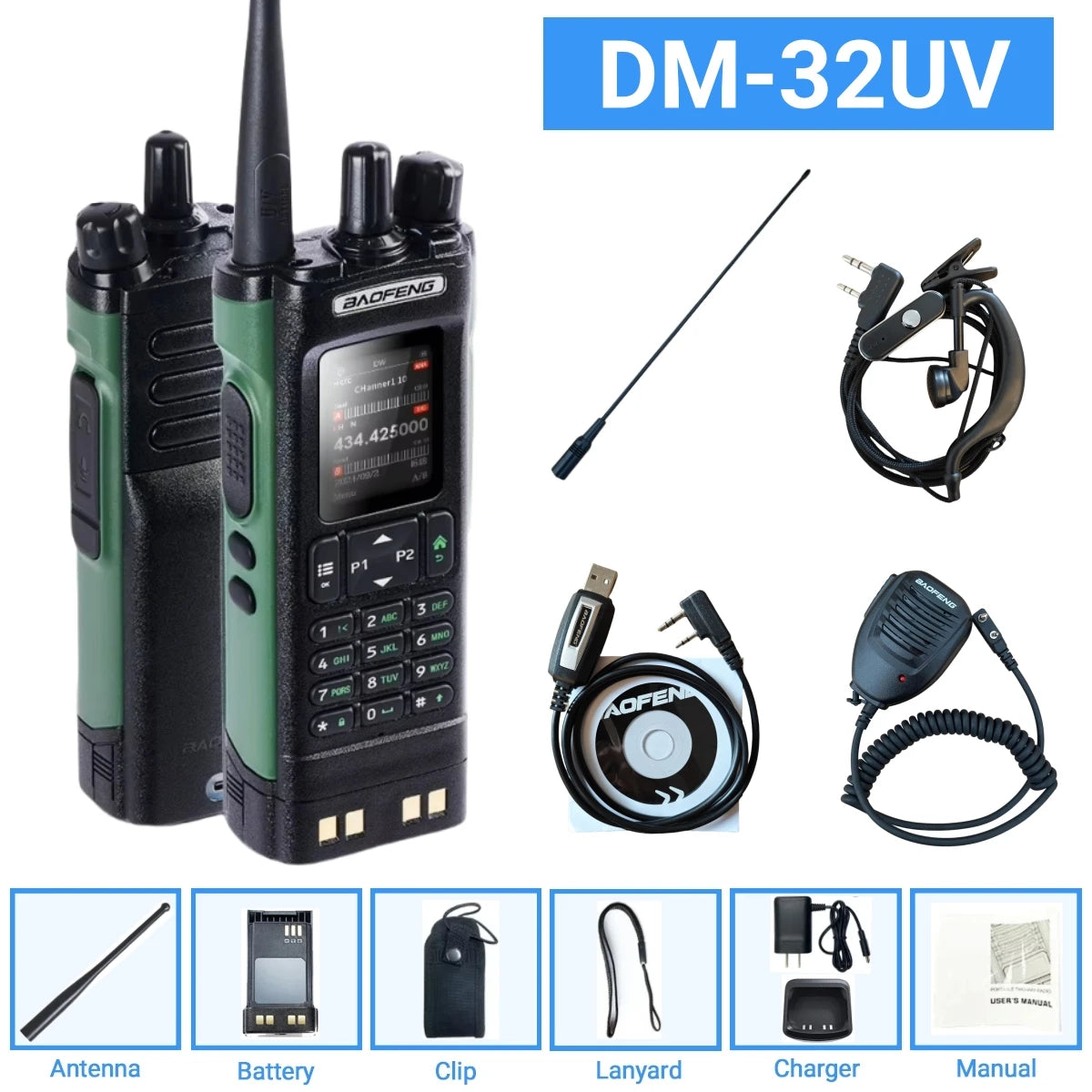

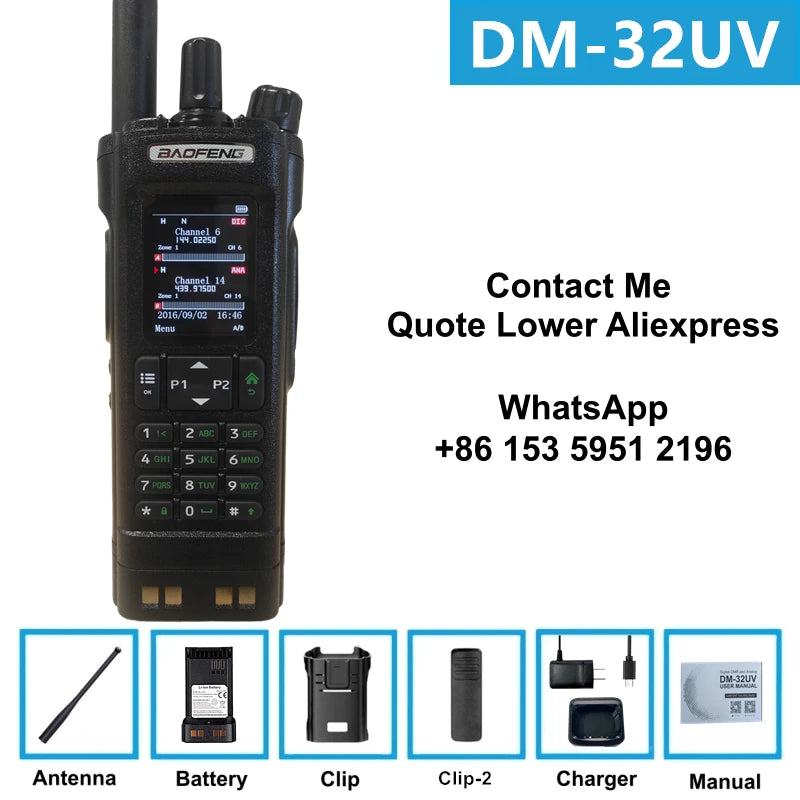

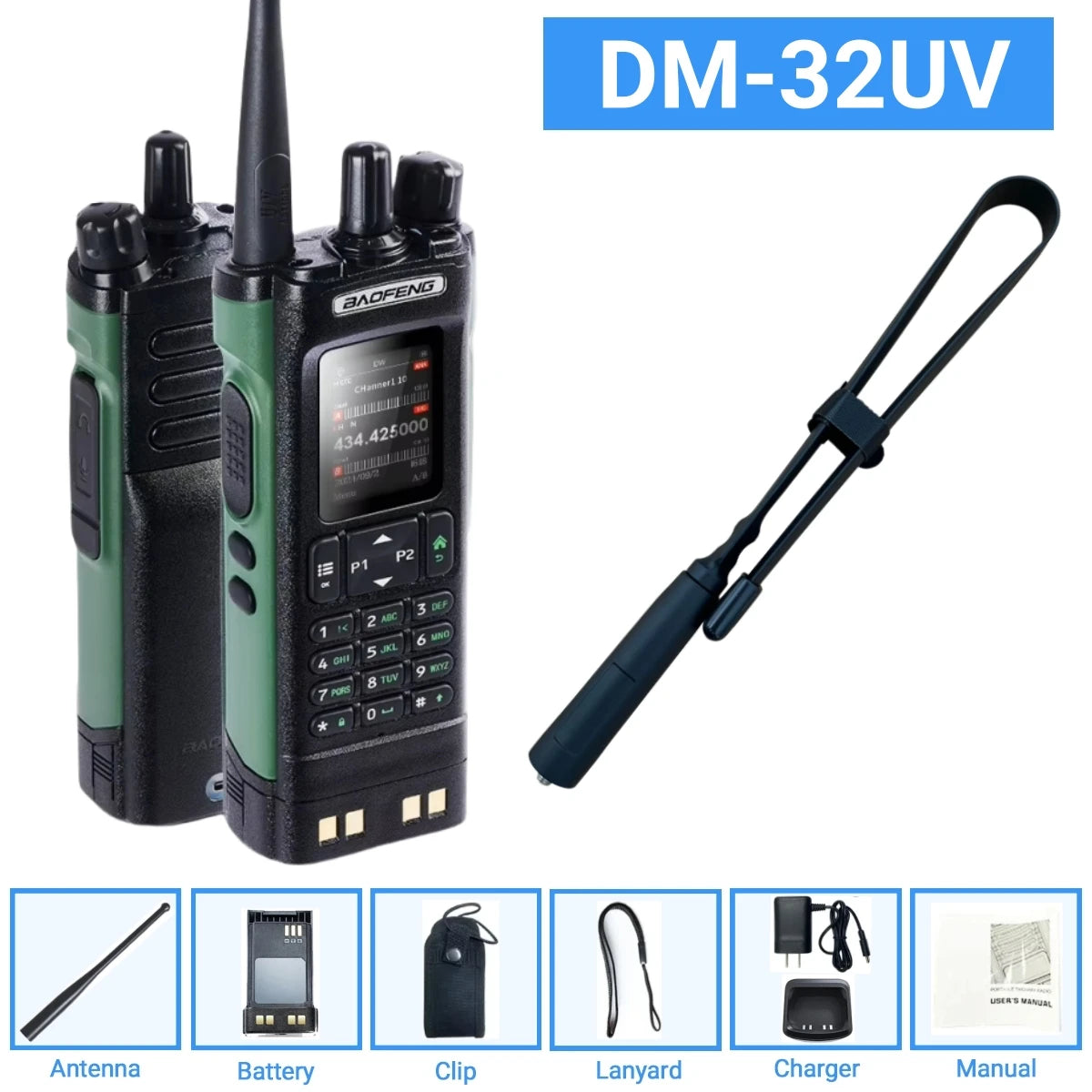

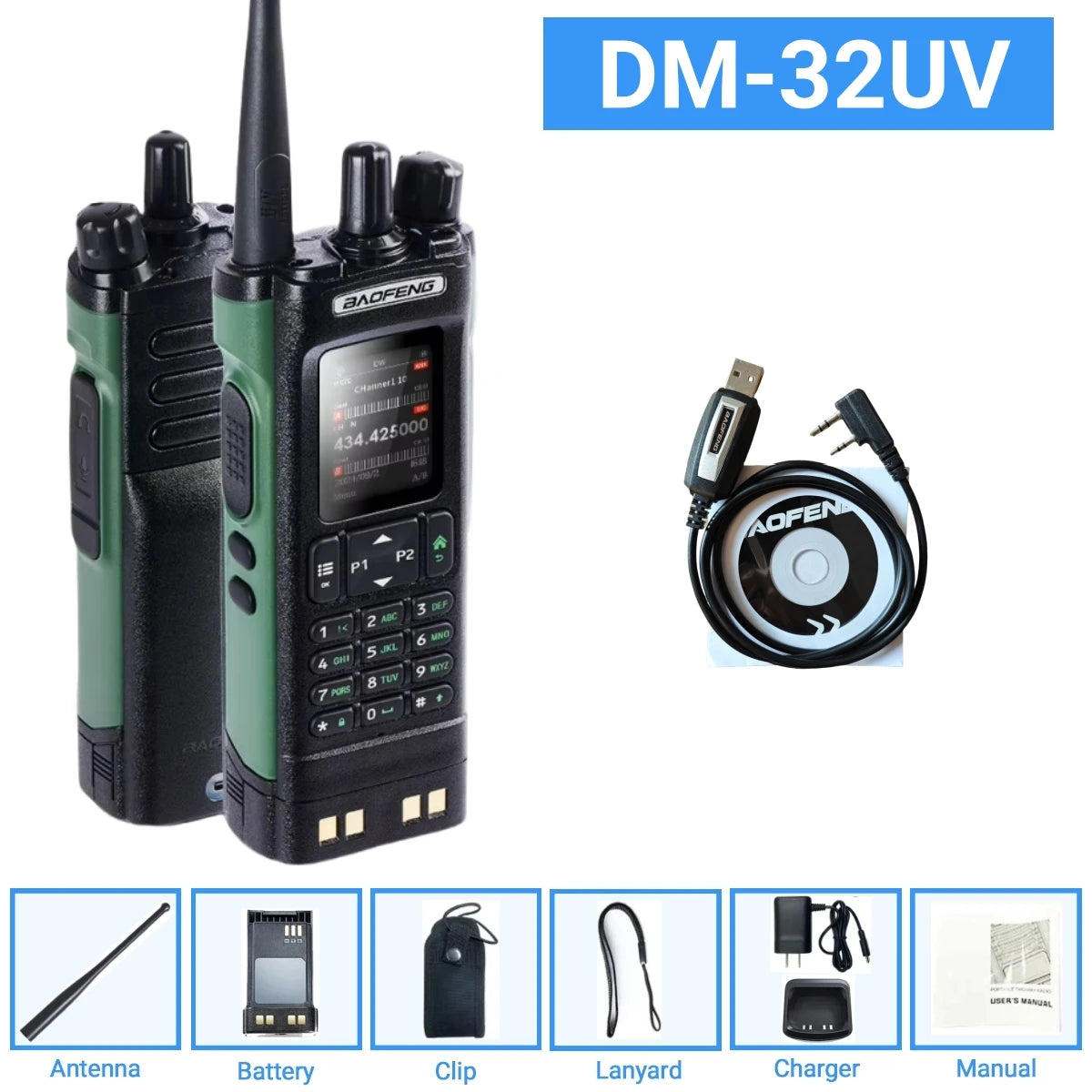

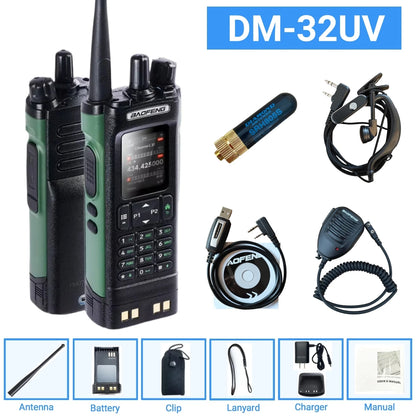

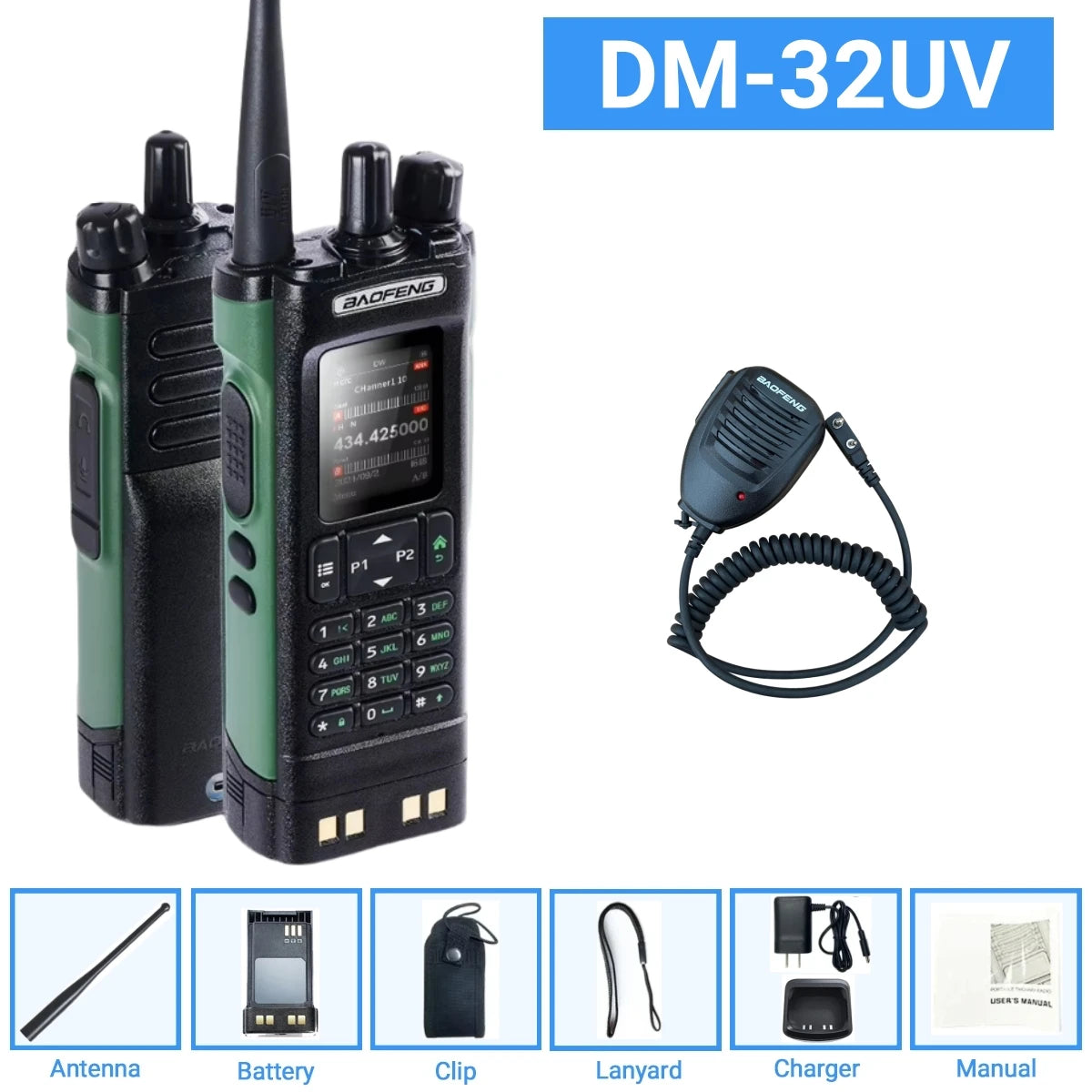

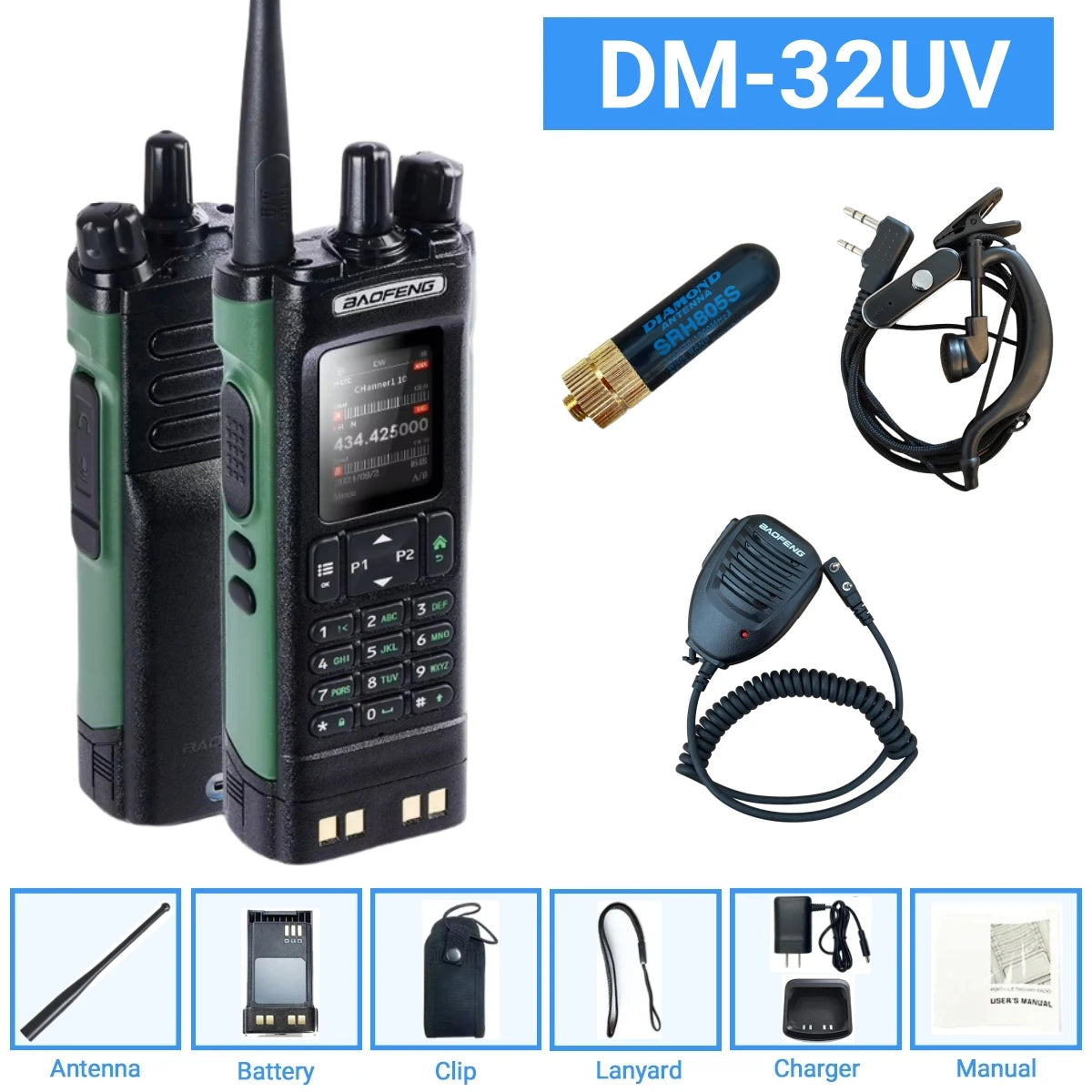

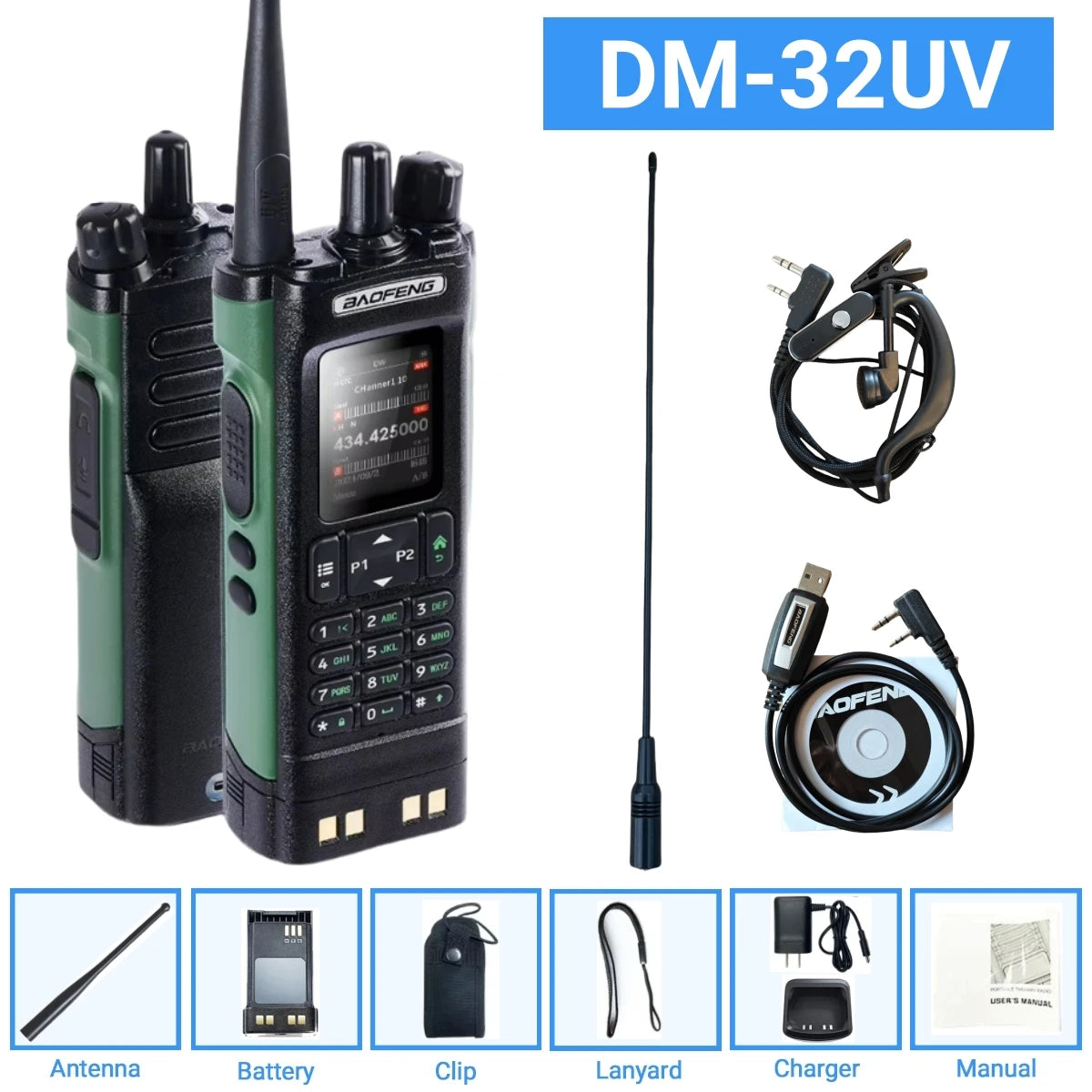

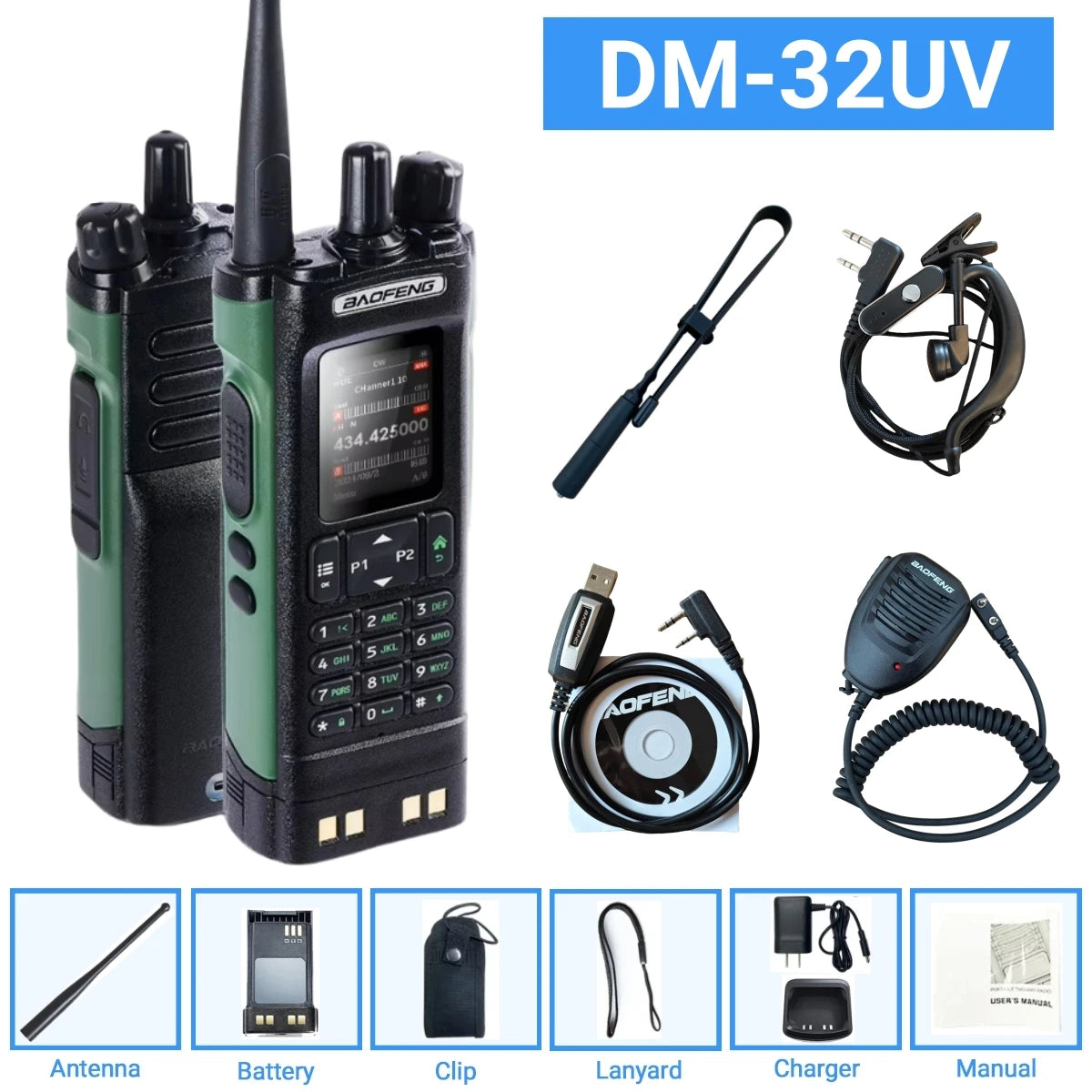

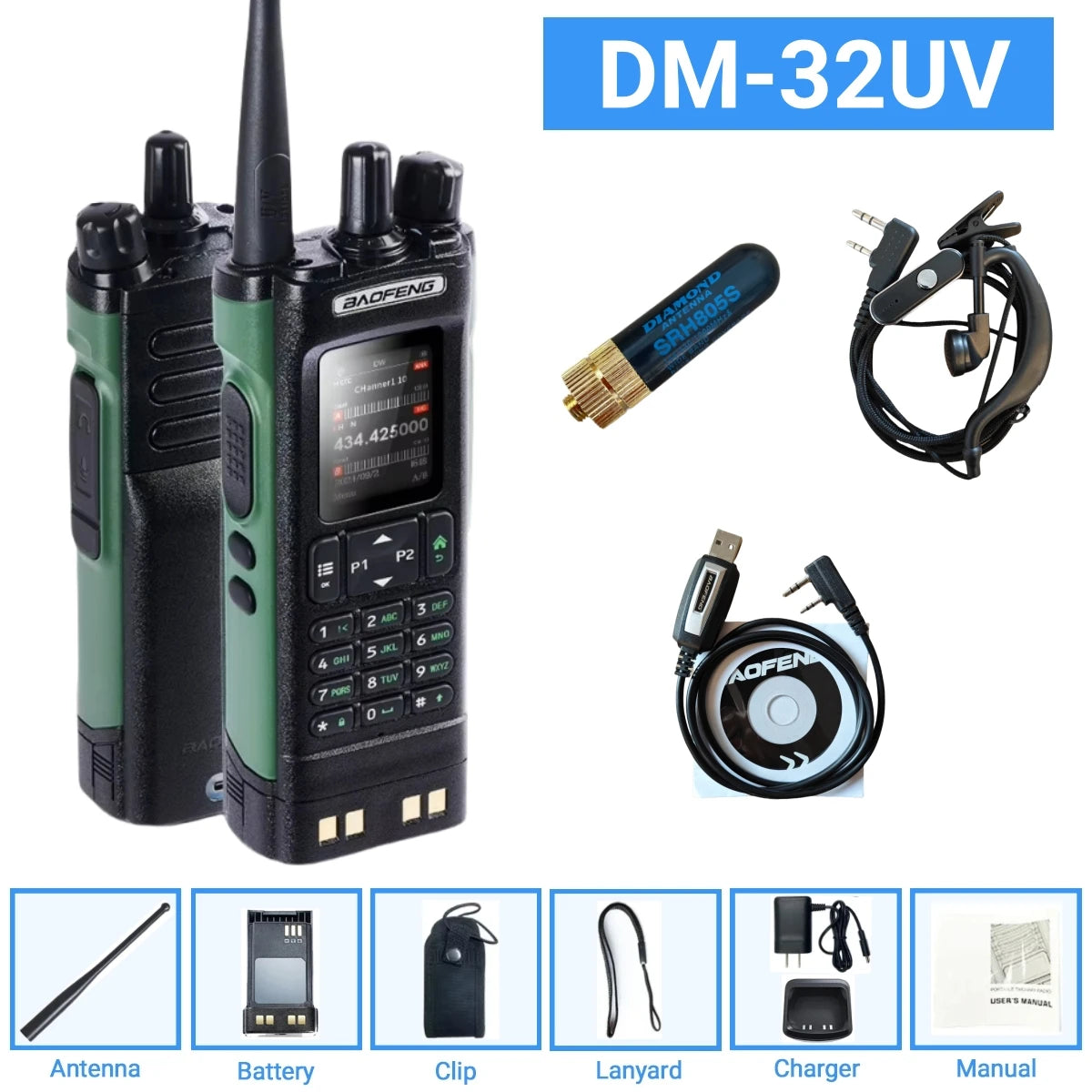

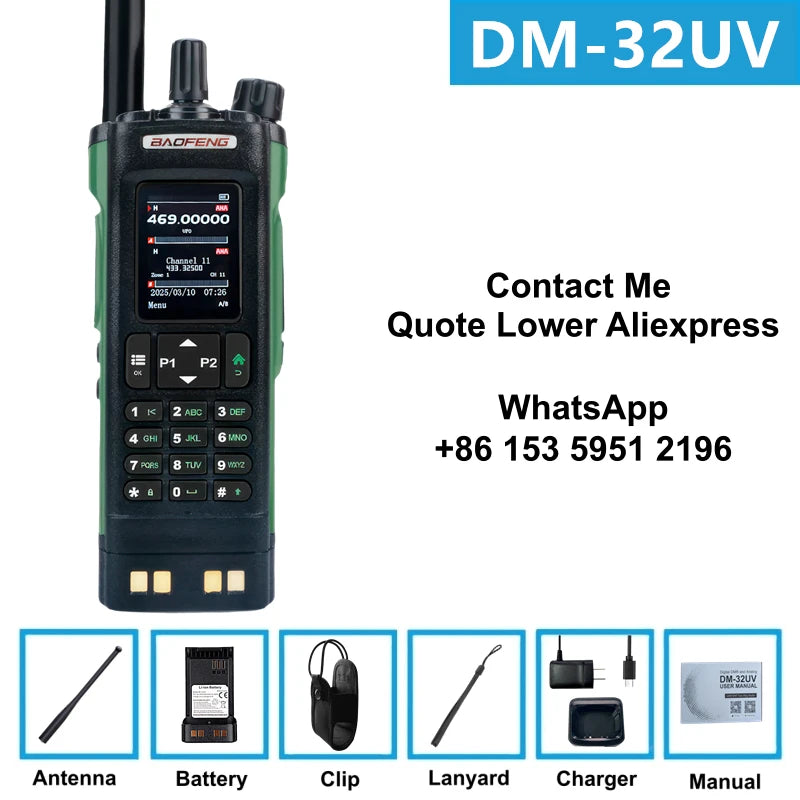

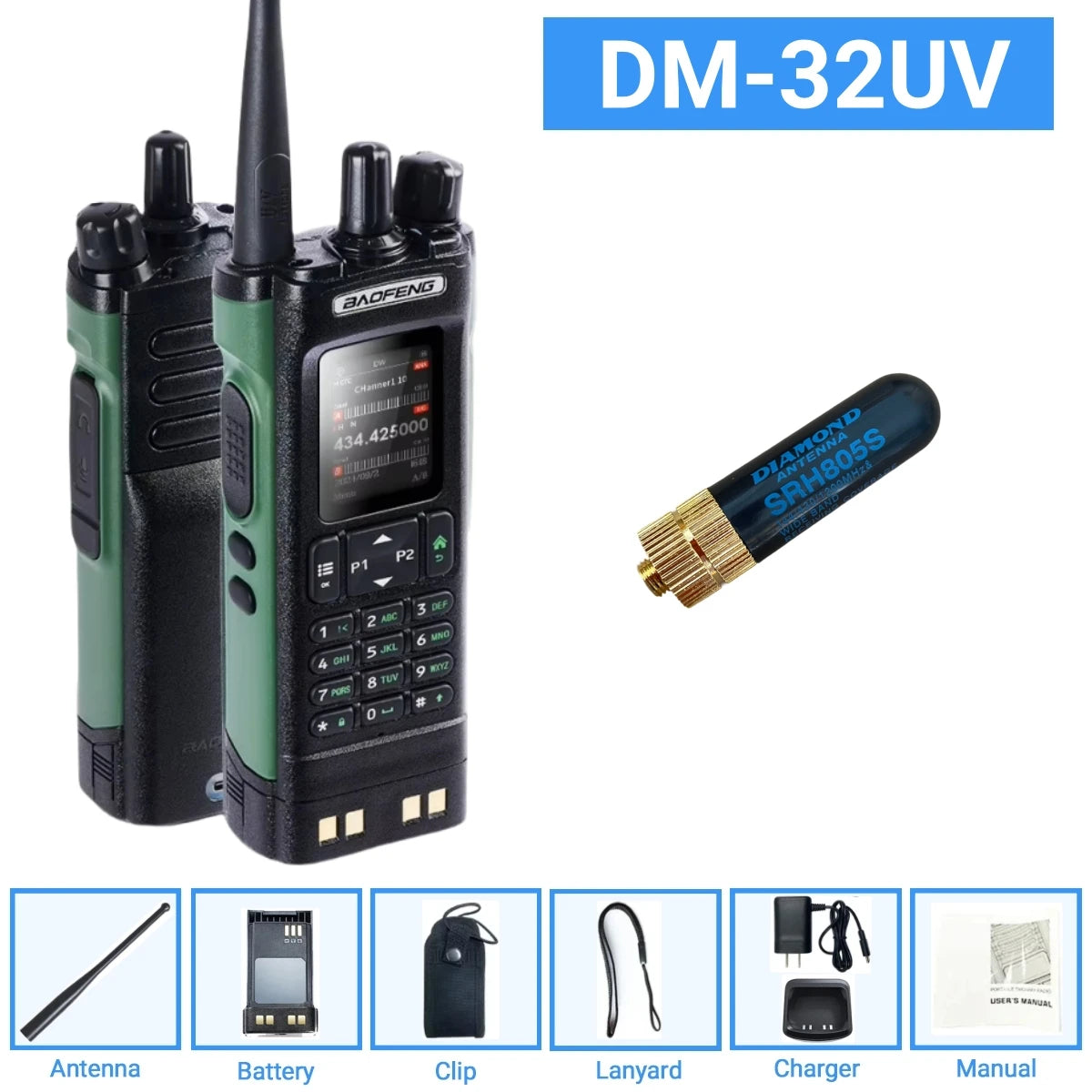

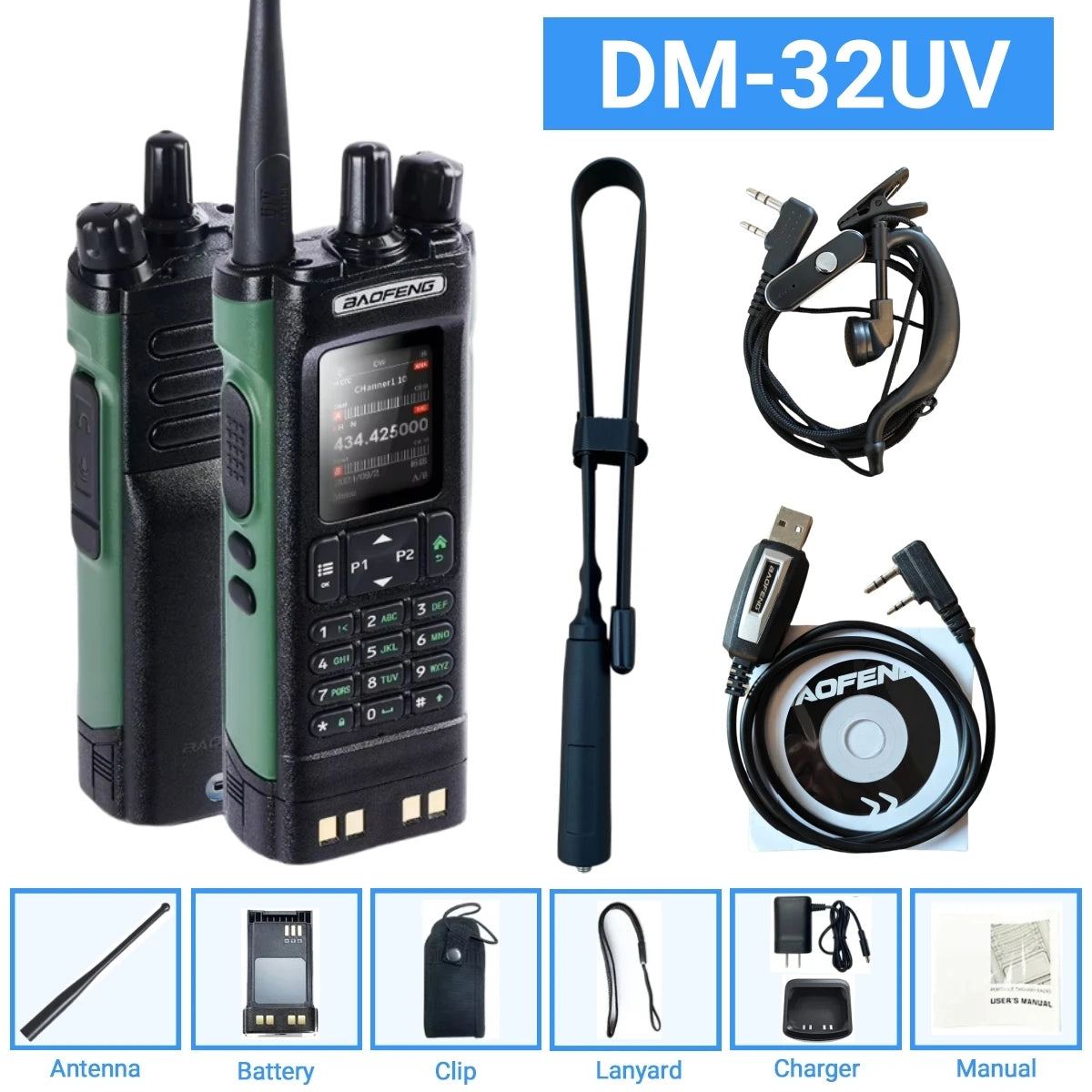

★【Package Include】

● 1X Portable radio

● 1X Antenna

● 1X Li - ion battery pack

● 1X Carry Bag

● 1X The sling

● 1X Type - C cable

● 1X User's manual

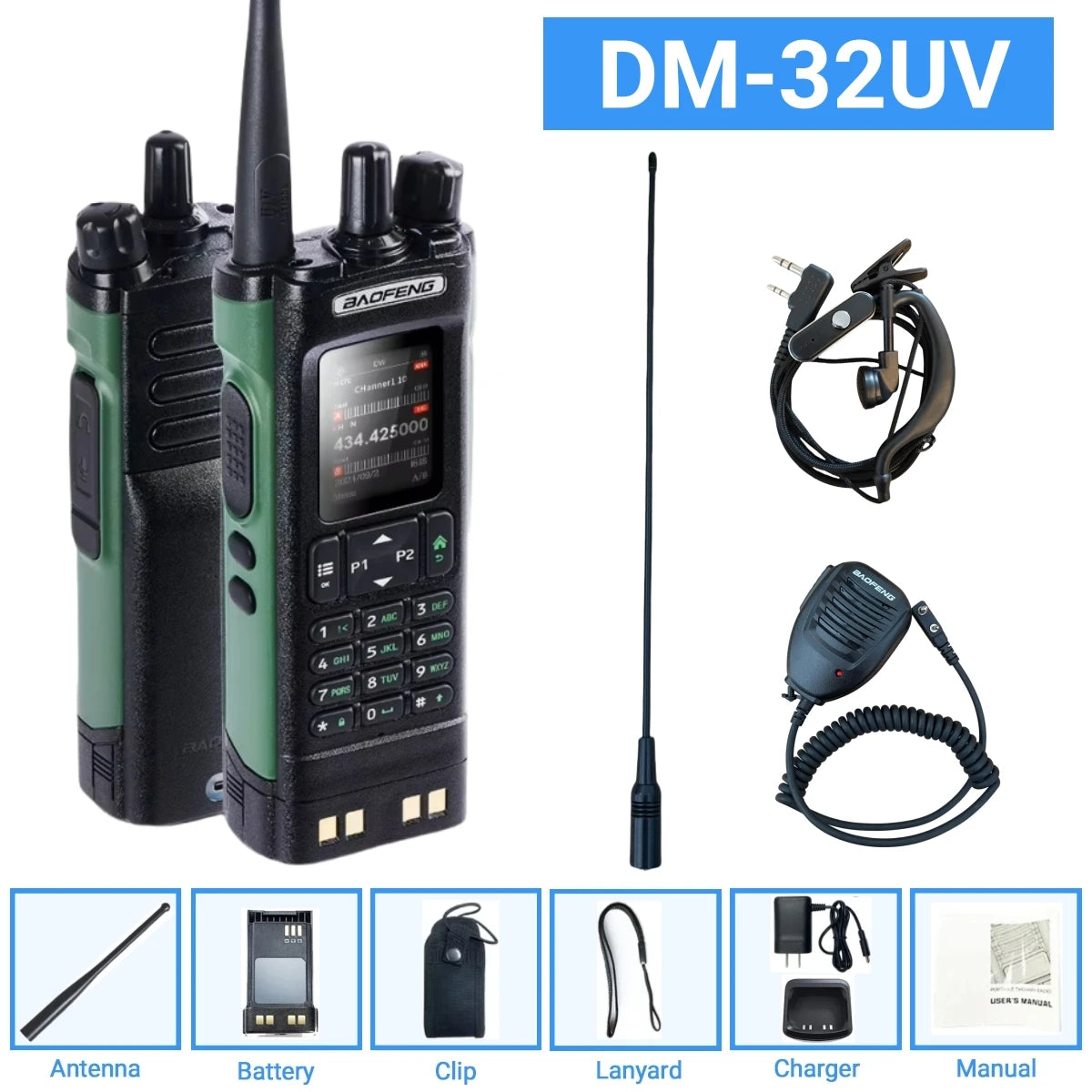

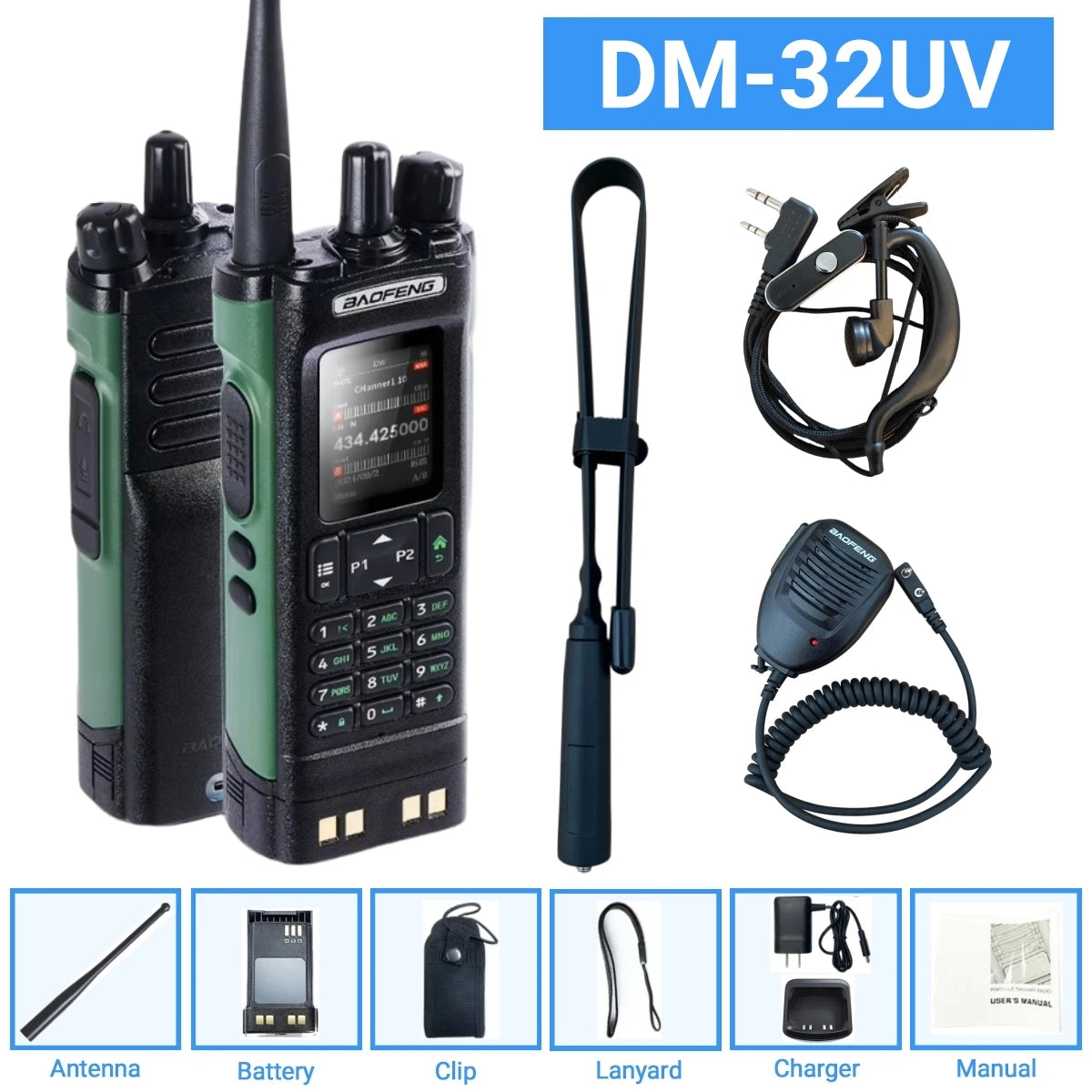

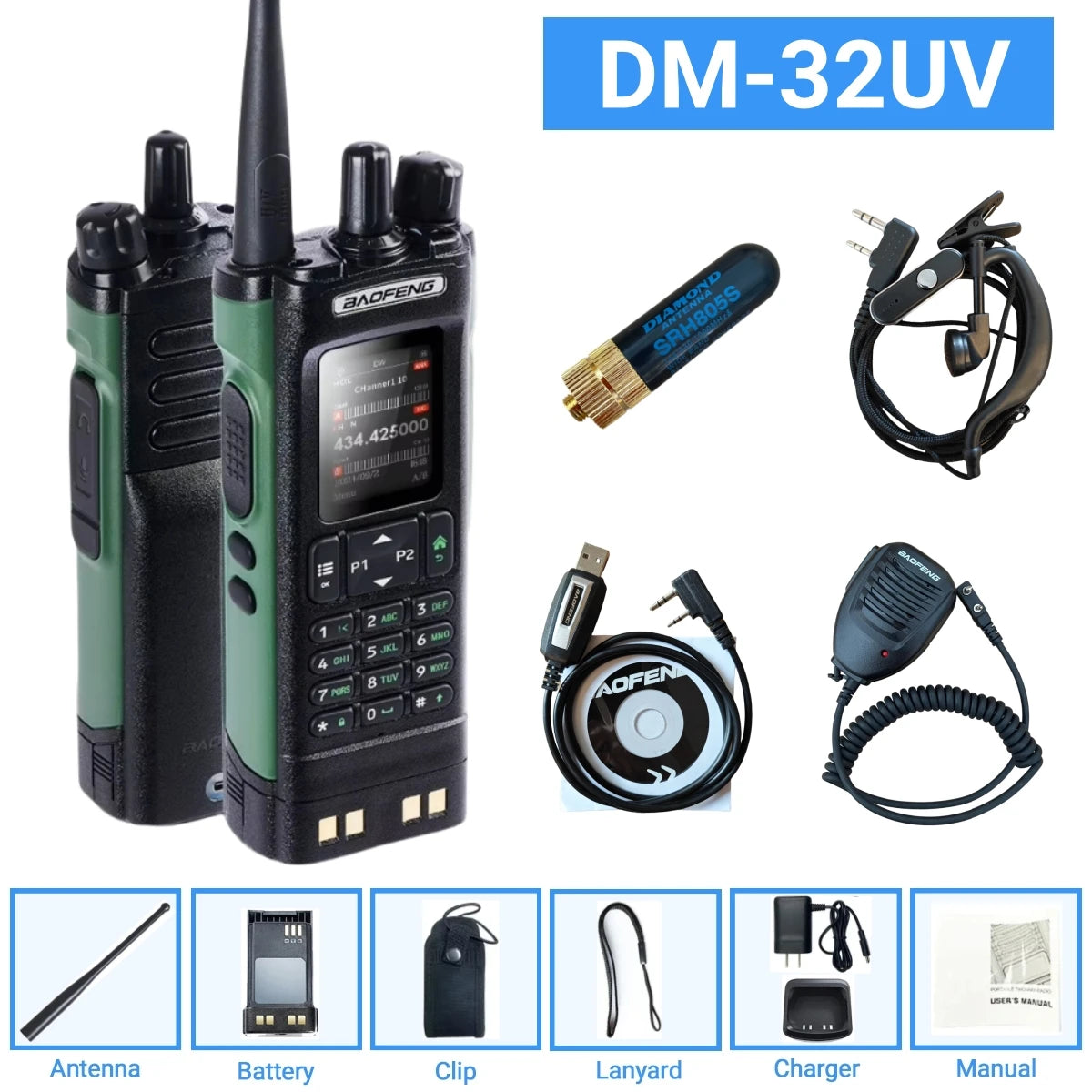

(And other accessory depend on your choice in the link)
