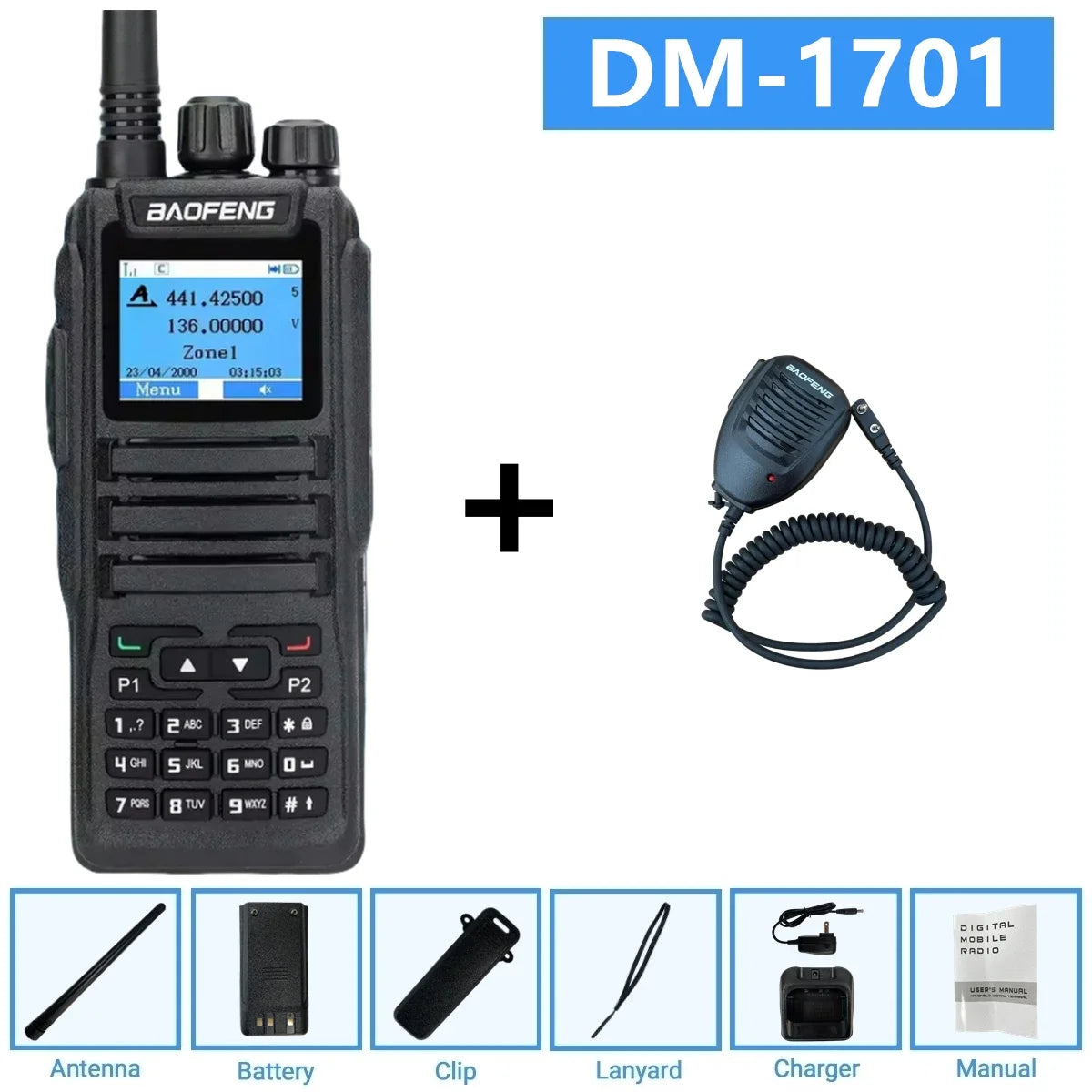

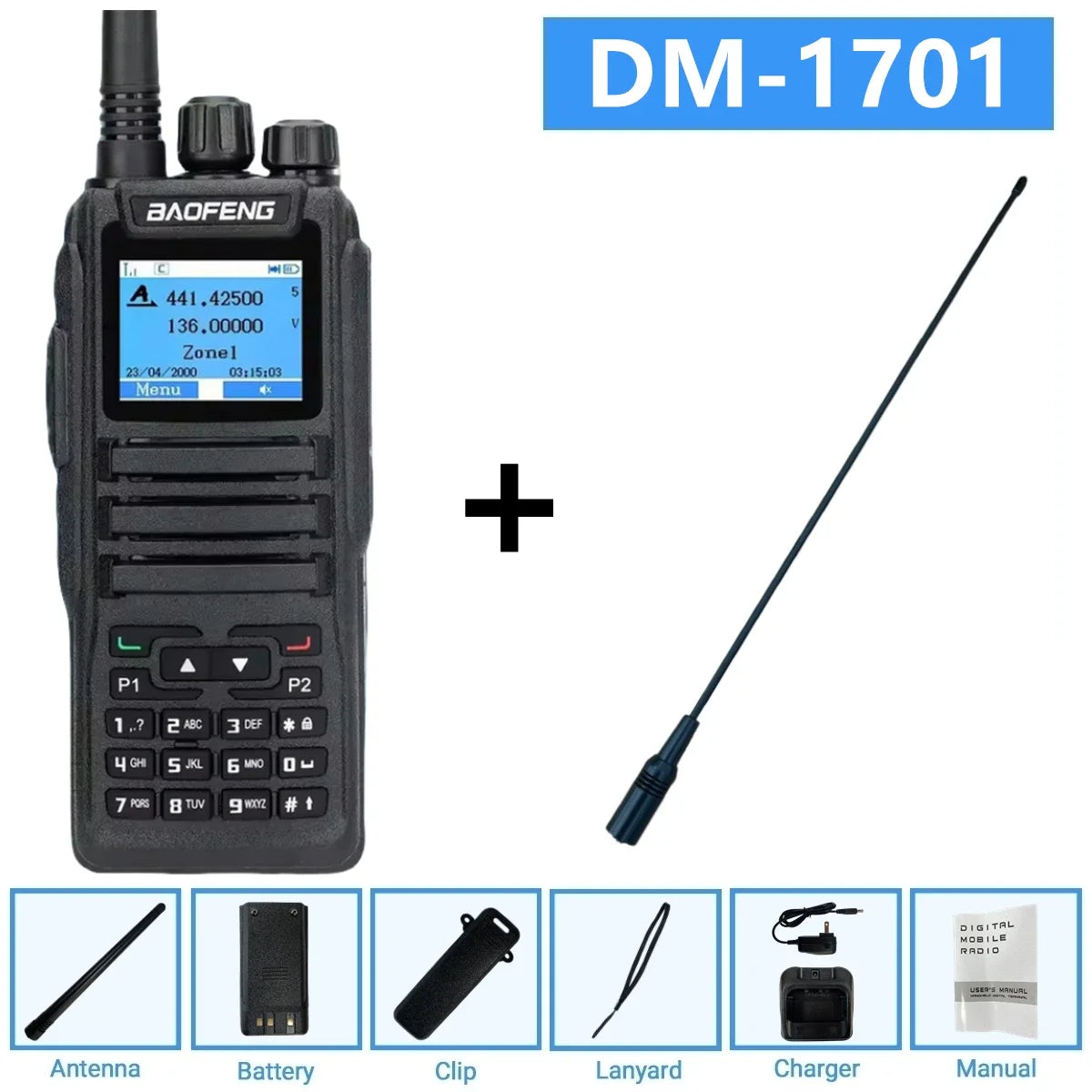

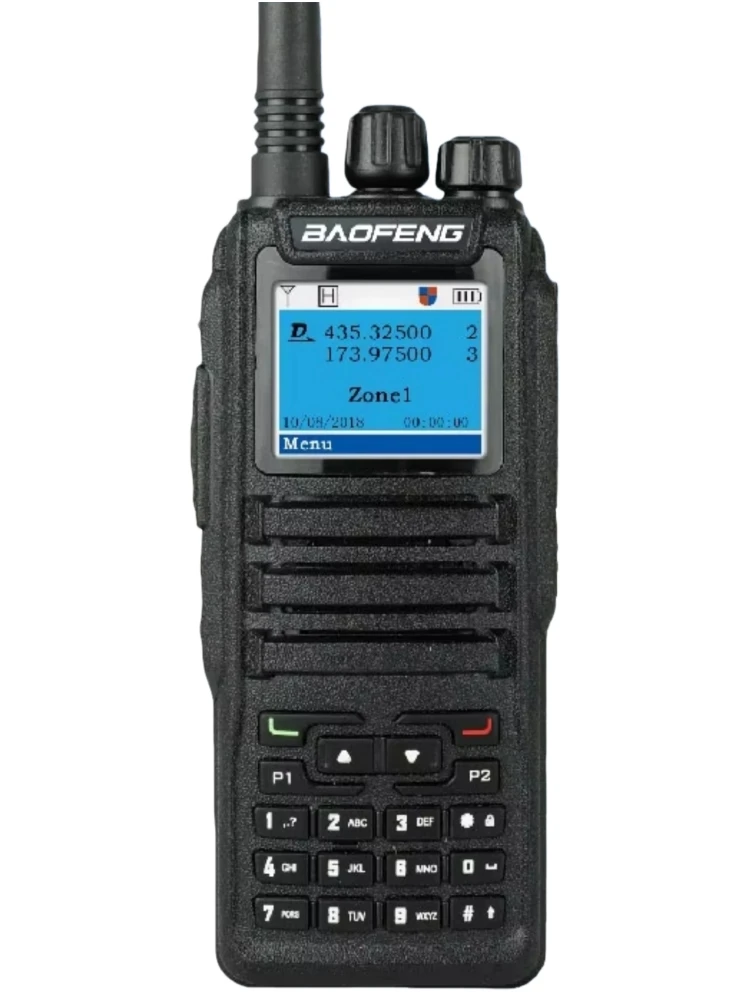

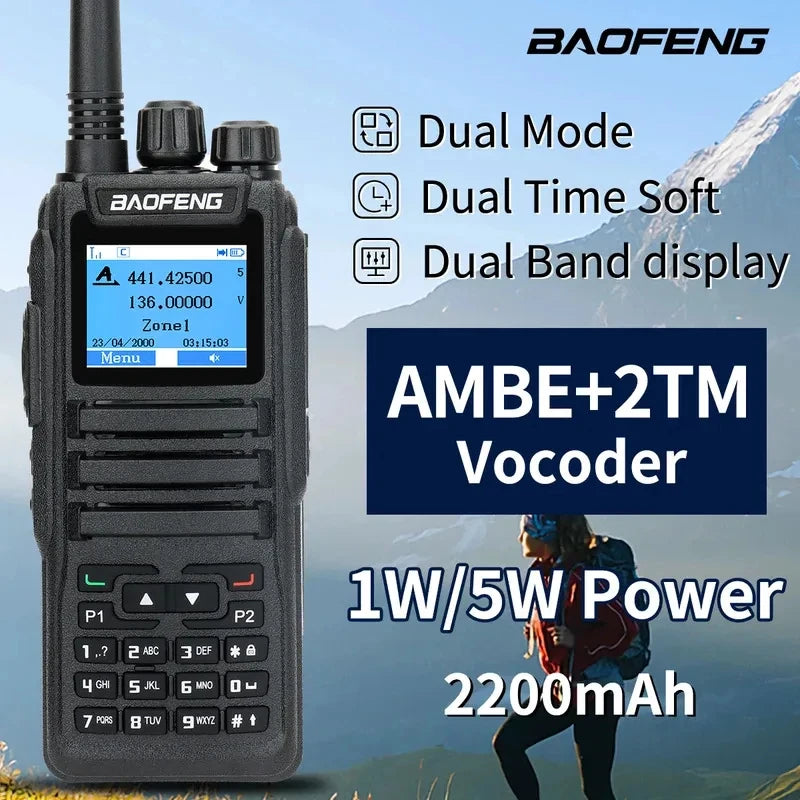

BAOFENG DM-1701 DMR Radio

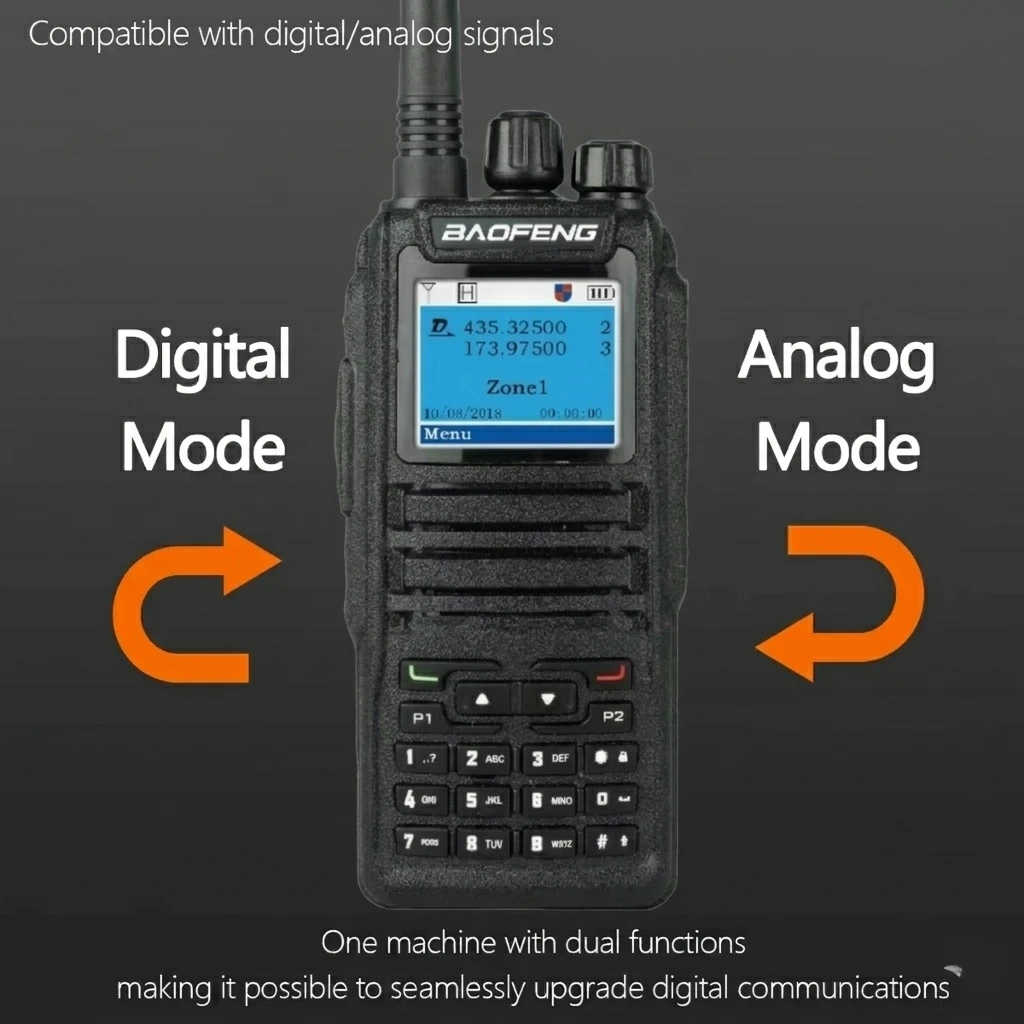

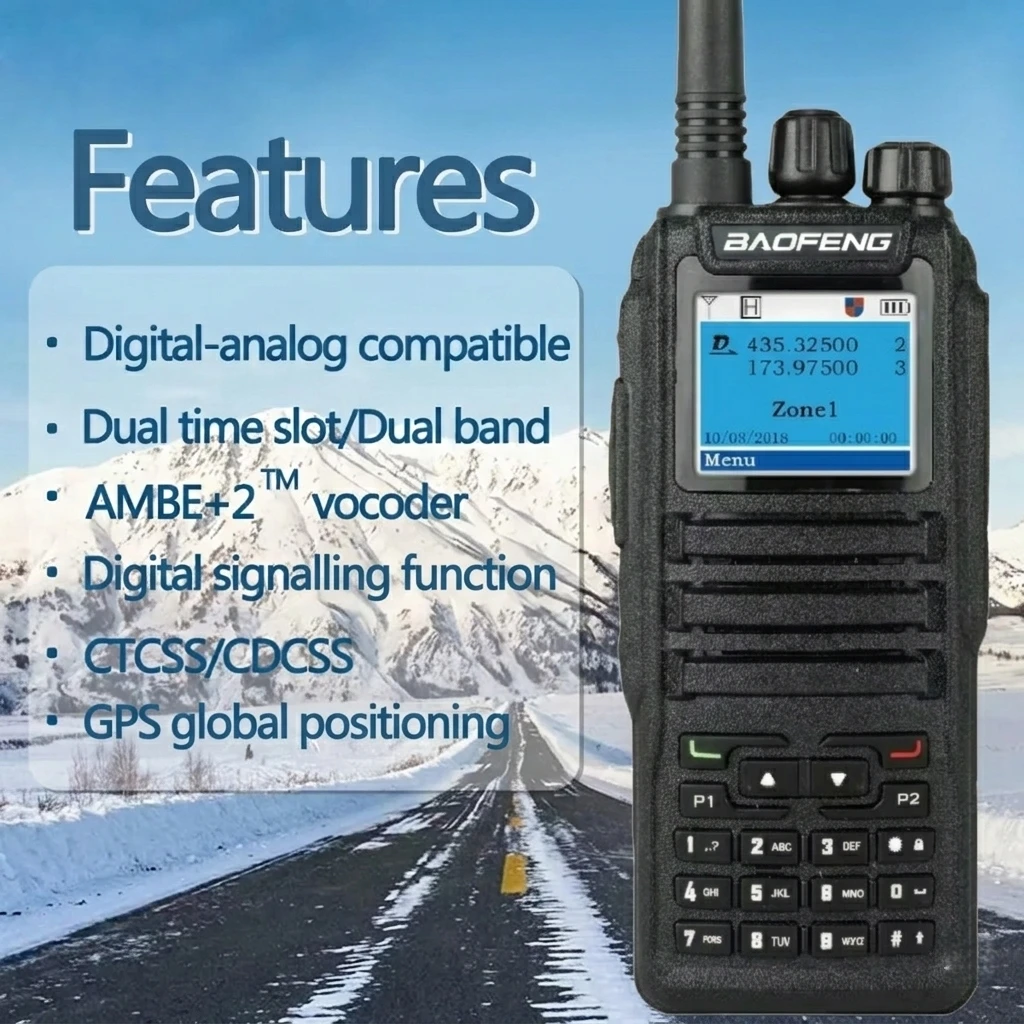

★【Digital & Analog Compatible】
- ●FCC Part90 Certification ID: 2AJGM - DM1701. The DM - 1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136 - 174MHz and 400 - 480MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

★【Multi - function & 1.77" color TFT Display】

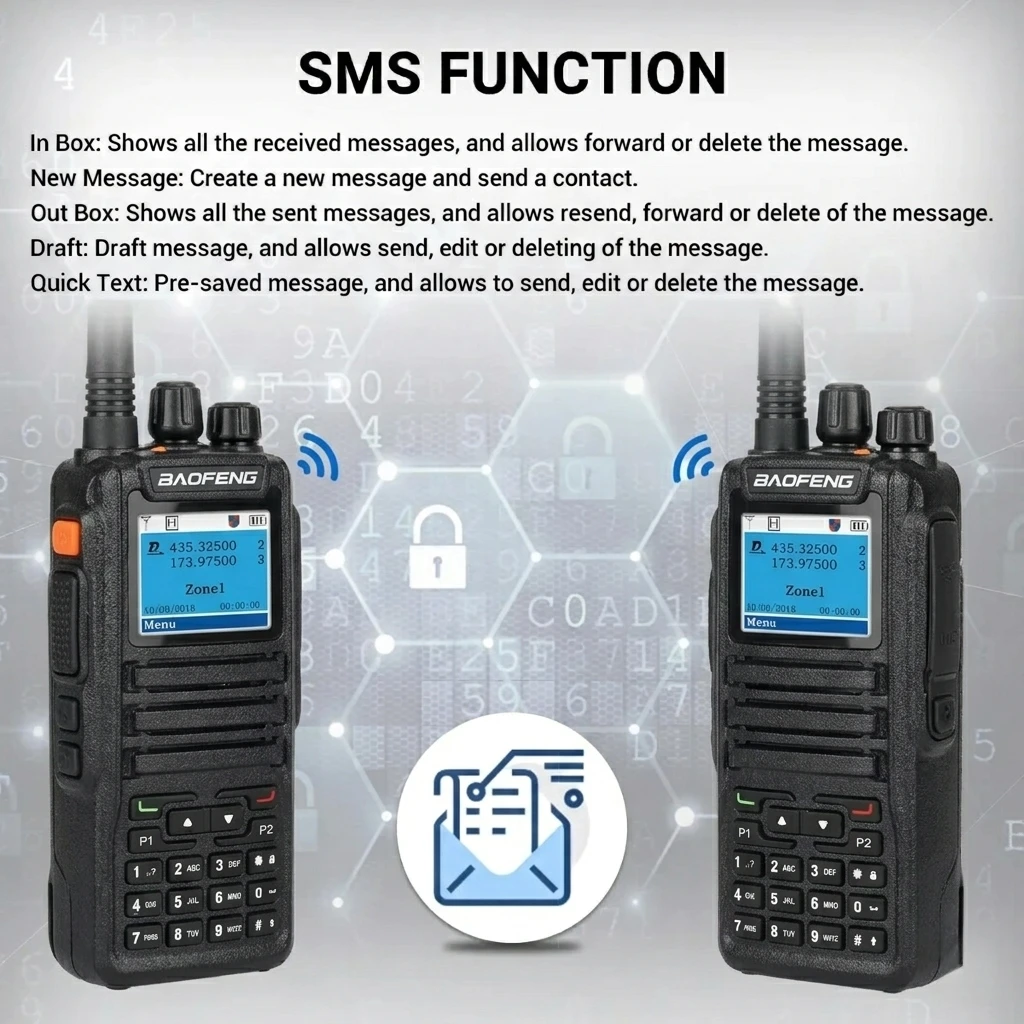

- ●The DM - 1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

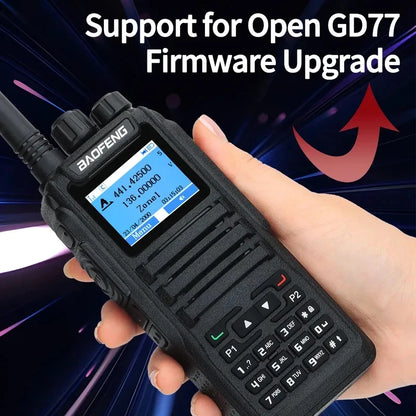

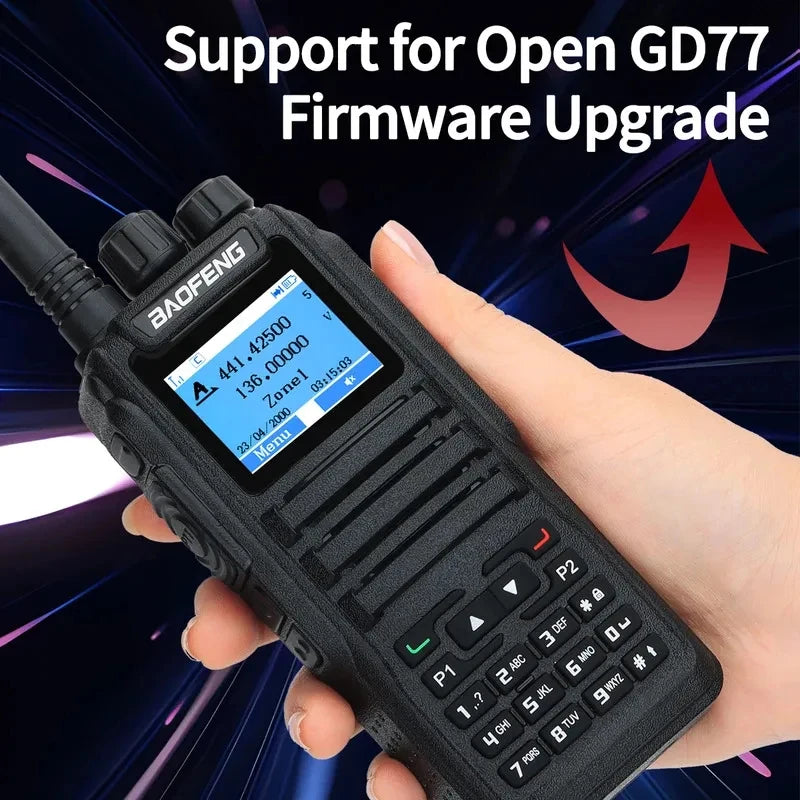

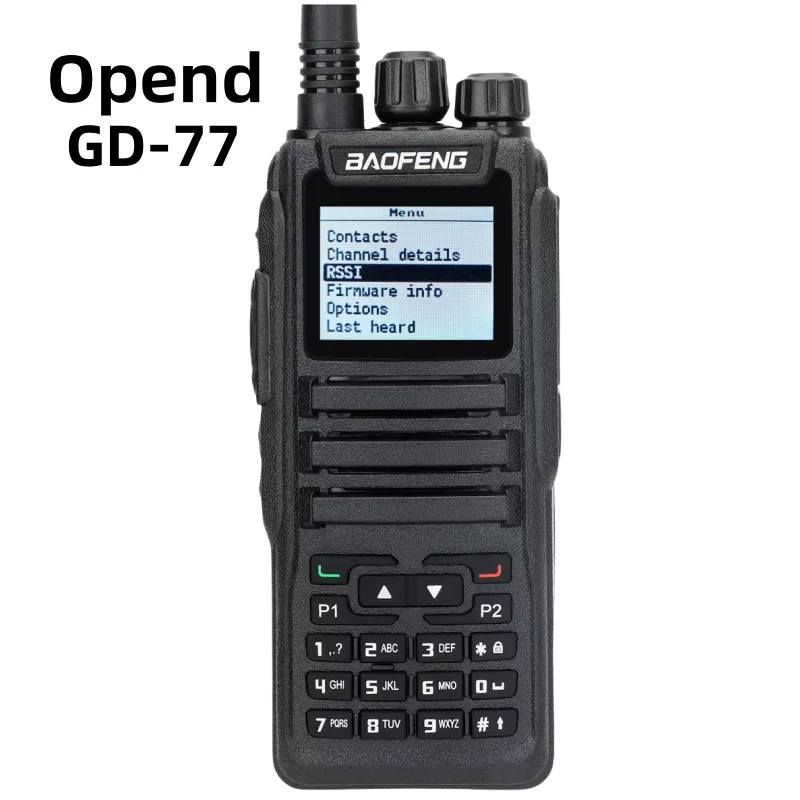

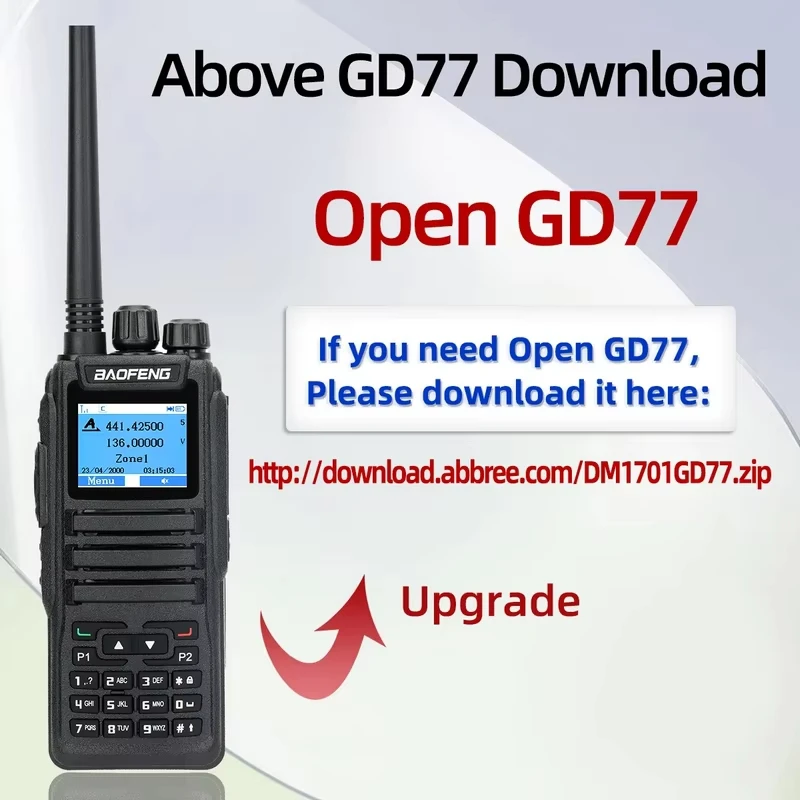

★【Updated Software & Firmware Support】
- ●The DM - 1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write codeplugs. Firmware and software upgrading for new functions are life - time - free.

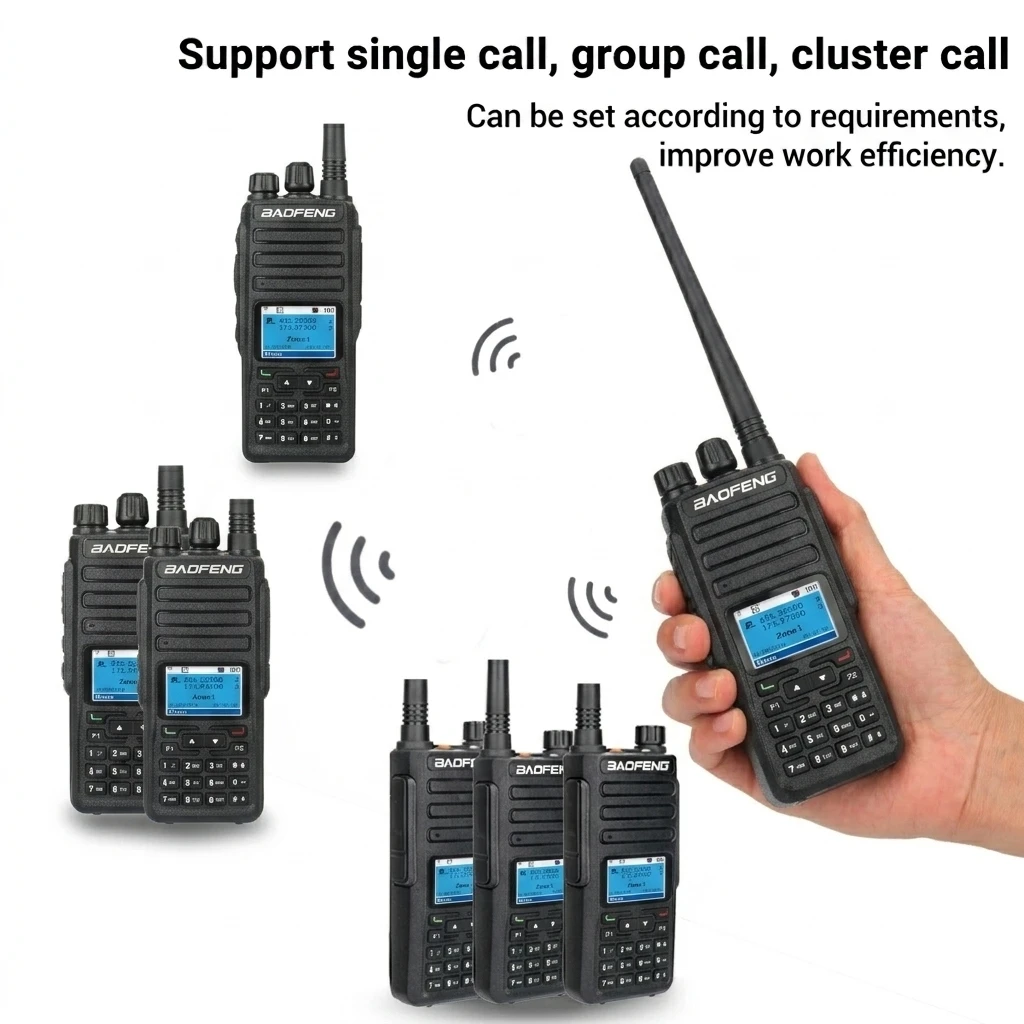

★【DMR True 2 Time Slot】
- ●Direct mode dual slot communication achieves two groups of calls at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

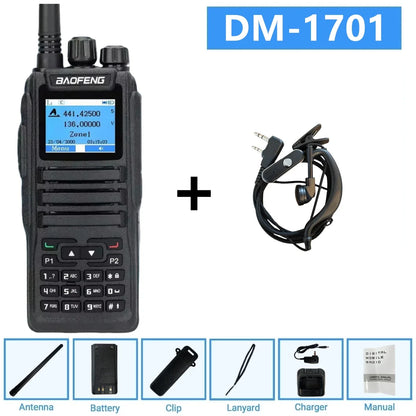

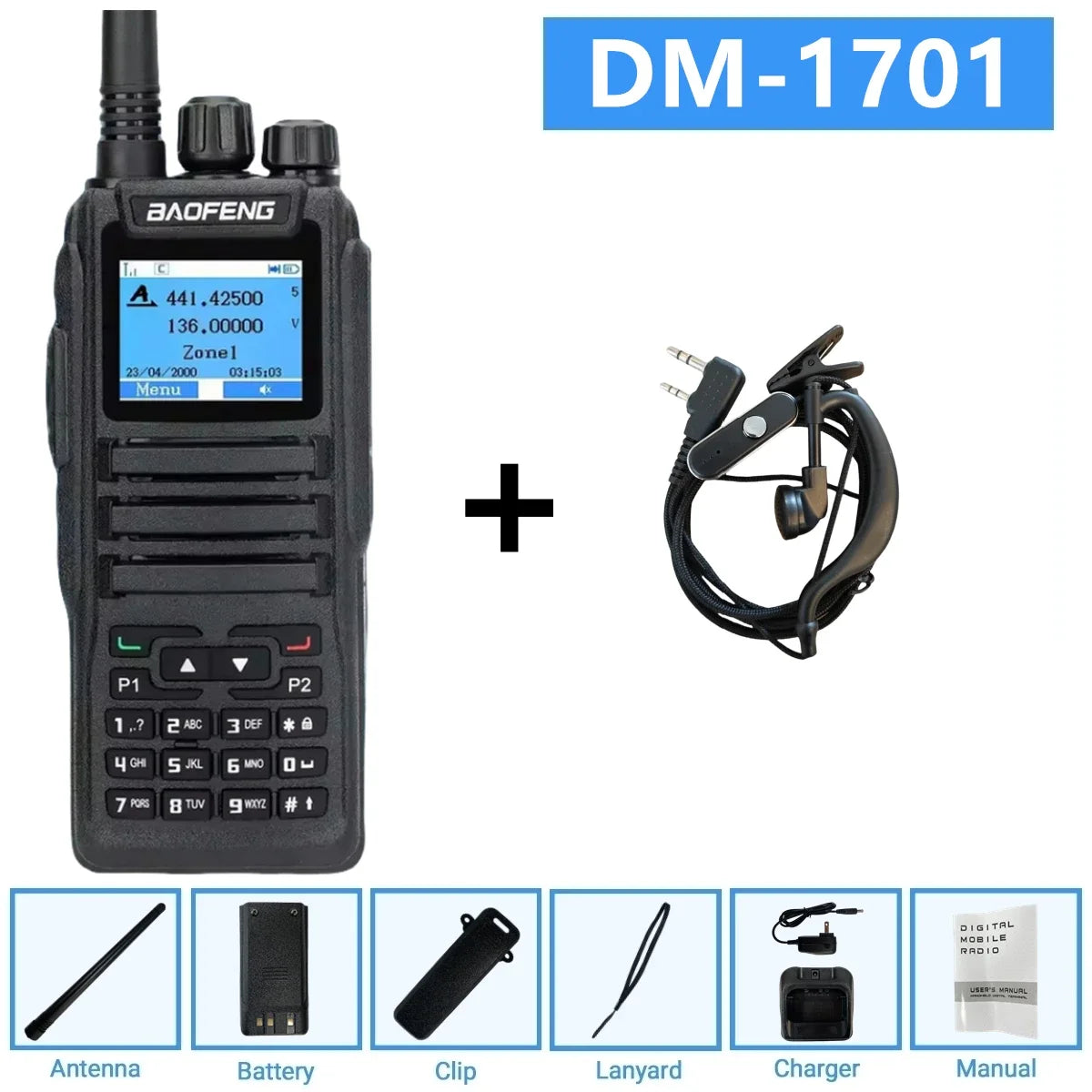

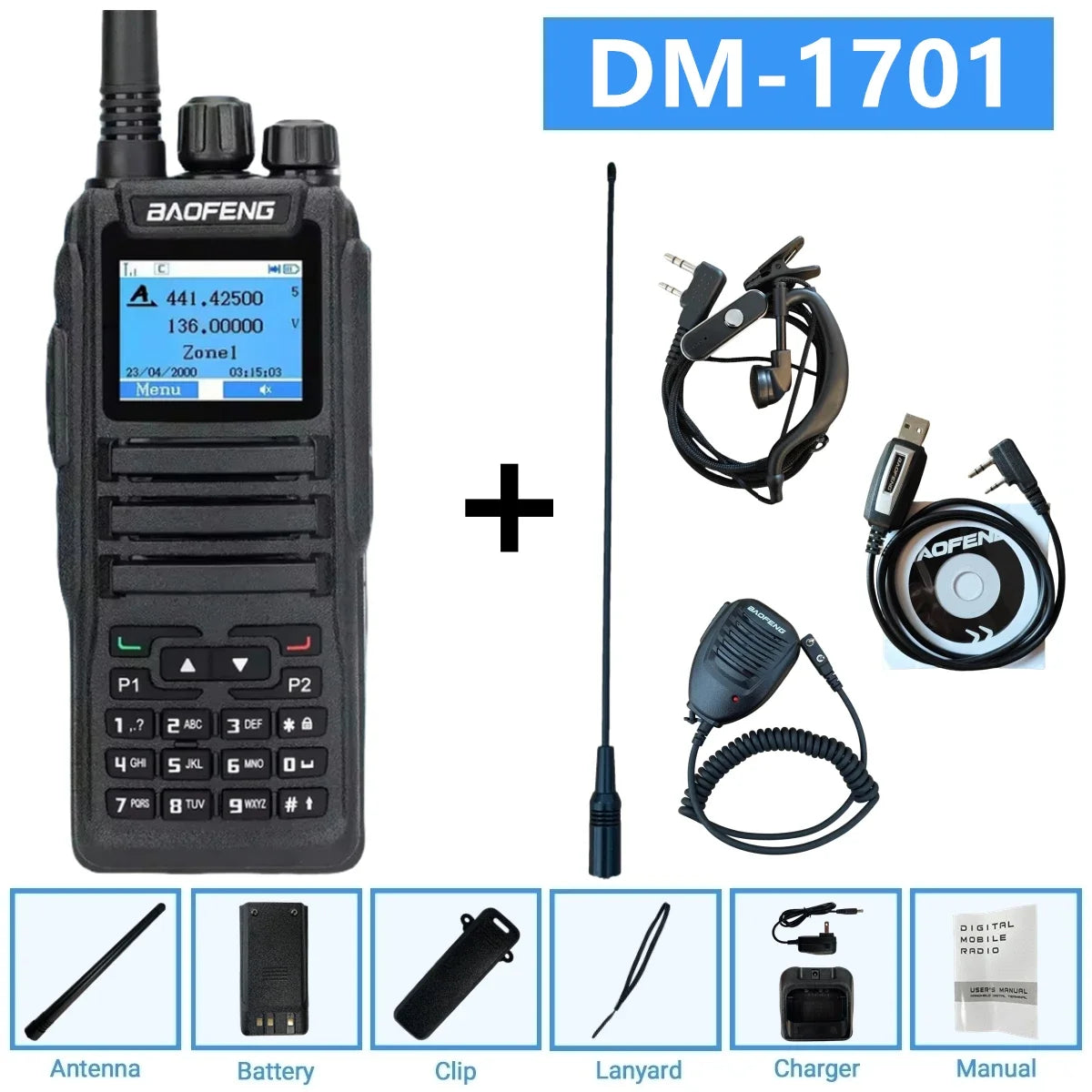

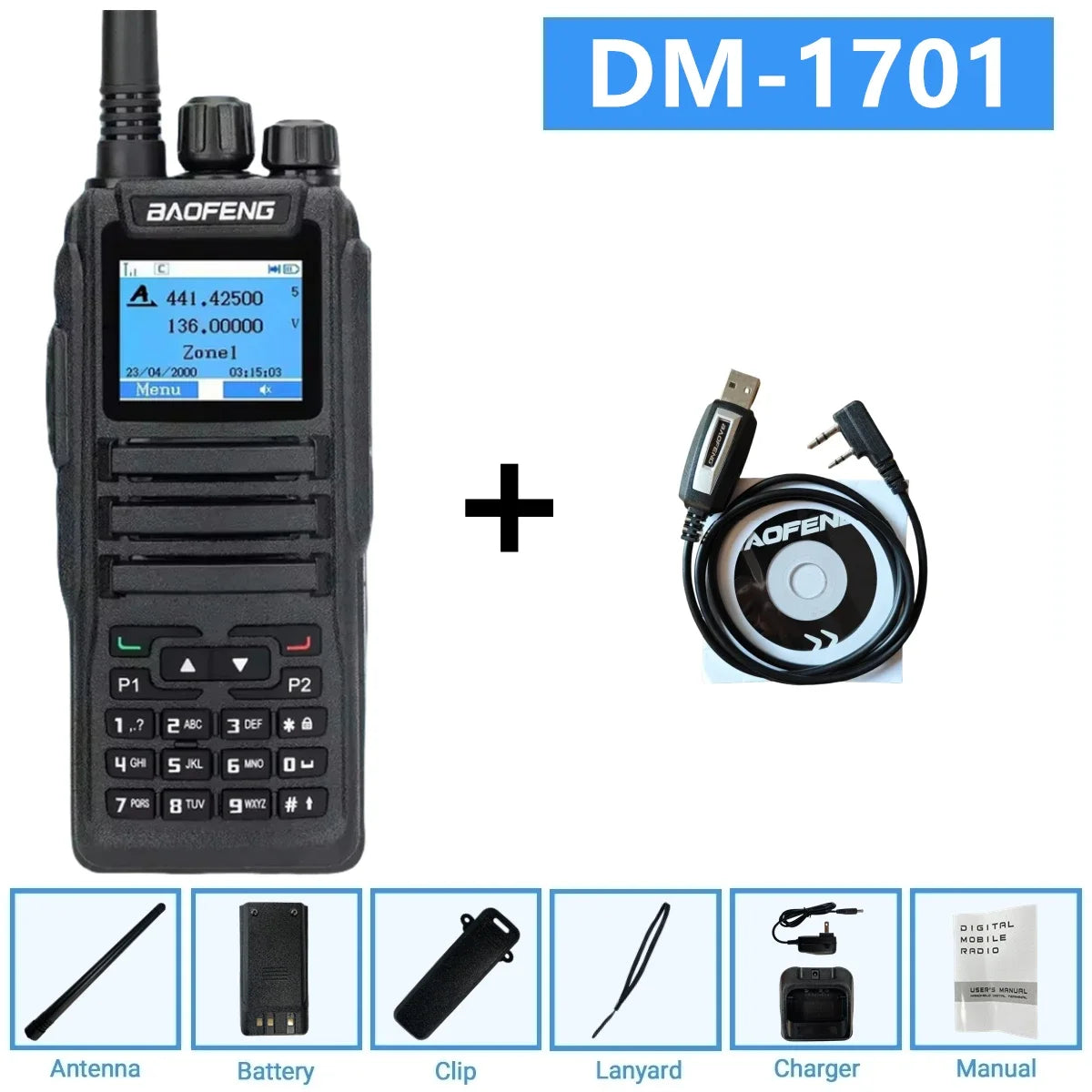

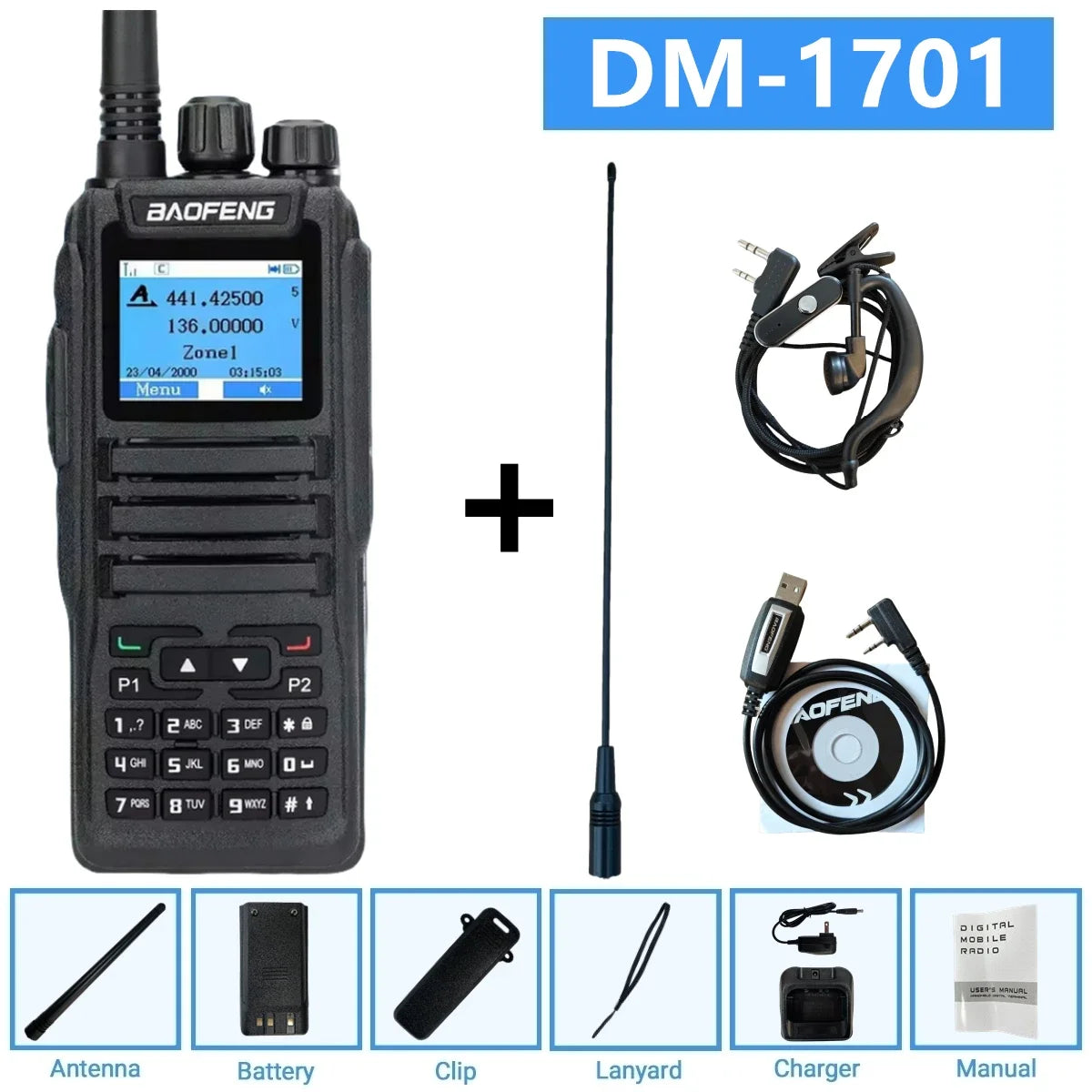

★【Free Programming Cable, Software & PTT Earpiece】
- ●Programming cable for easier PC programming (Microsoft Window 7/8/10 ONLY, Mac/Linux not supported). We have great fan base Facebook groups and website sharing tips for using the radio.

★【Specification】
- ●Frequency Range: VHF 136 - 174MHz & UHF 400 - 480MHz
- ●Storage channel: up to 3000
- ●Operating Voltage: DC 7.4V
- ●Frequency Stability: ±1.0ppm
- ●Operating Temperature: - 30°c ~ 60°c
- ●Operating Mode: Same - frequency simple or different - frequency simplex
- ●Antenna Impedance: 50Ω
- ●Battery Capacity: 2200mAh
- ●Weight: about 300g(with battery & antenna)

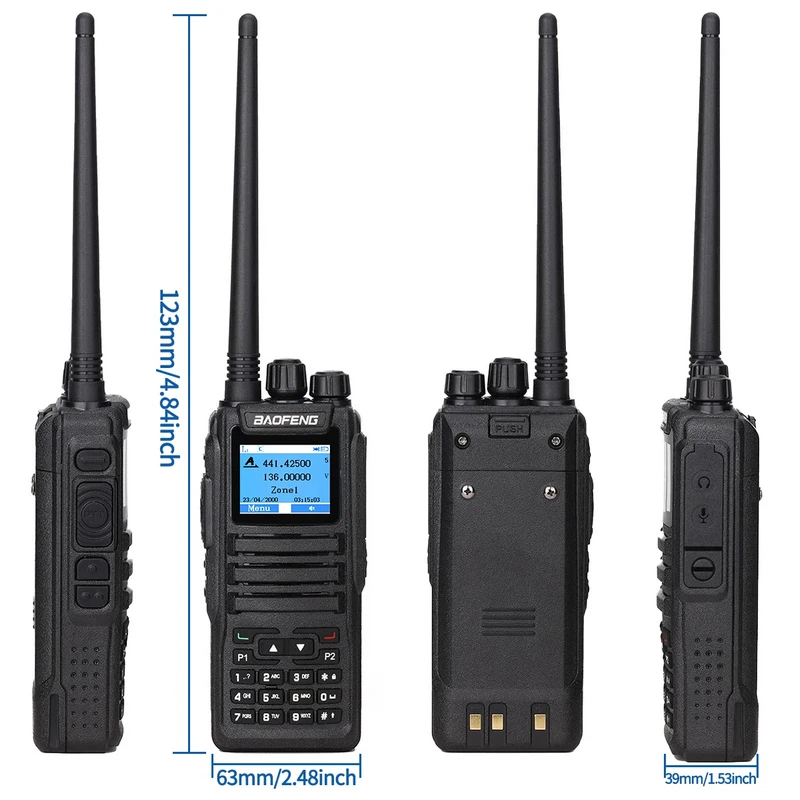

- ●Volume: 133*62*36mm(antenna 14cm not including)
-----------------------
★【Transmitting】
- ●Output Power: 1W/2W/5W
- ●Digital: Tier & Ⅱ
- ●Adjacent channel: ≤ - 65dB ≤ - 60dB
- ●Modulation Distortion: ≤5%
- ●Digital Protocol: etsi - ts102 361 - 1,-2,-3
- ●Vocoder type: AMBE + 2TM
-----------------------
★【Receiving】
- ●Analog sensitivity: - 122dBm (12dB SINAD)
- ●Digital sensitivity: - 120dBm (BER ≤5%)
- ●Audio Power: 1W
- ●Audio Distortion: <10%
- ●Inter - mediation: ≥62dB / ≥ 58dB
- ●Adjacent channel selectivity: ≥65dB /≥60dB
- ●Receiving current: ≤380mA
- ●PM Noise : ≥ 45dB*25KHz; ≥ 40dB*12.5KHz
-----------------------

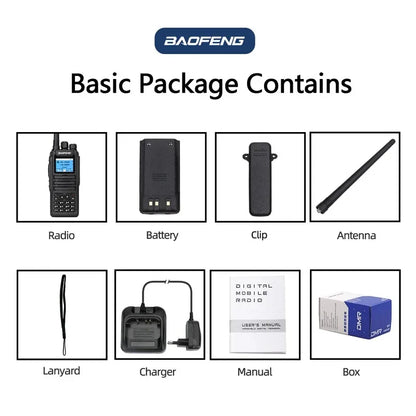

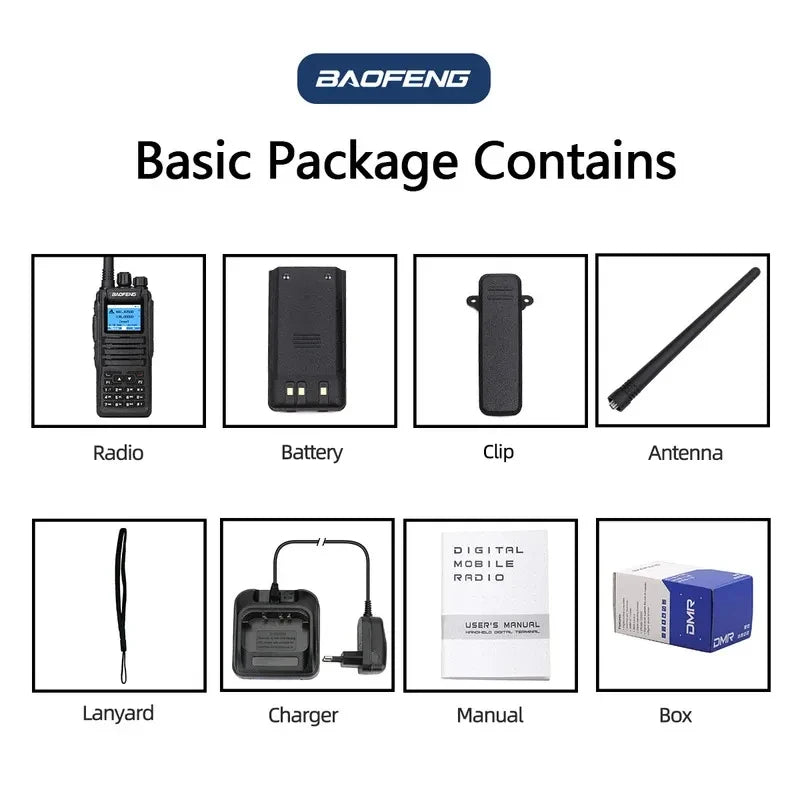

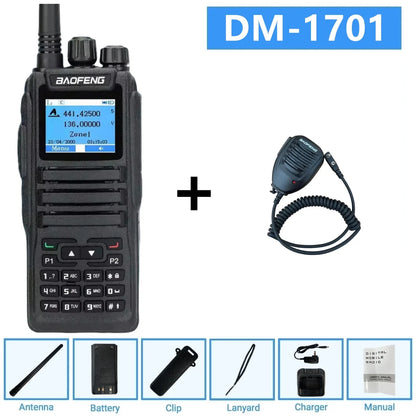

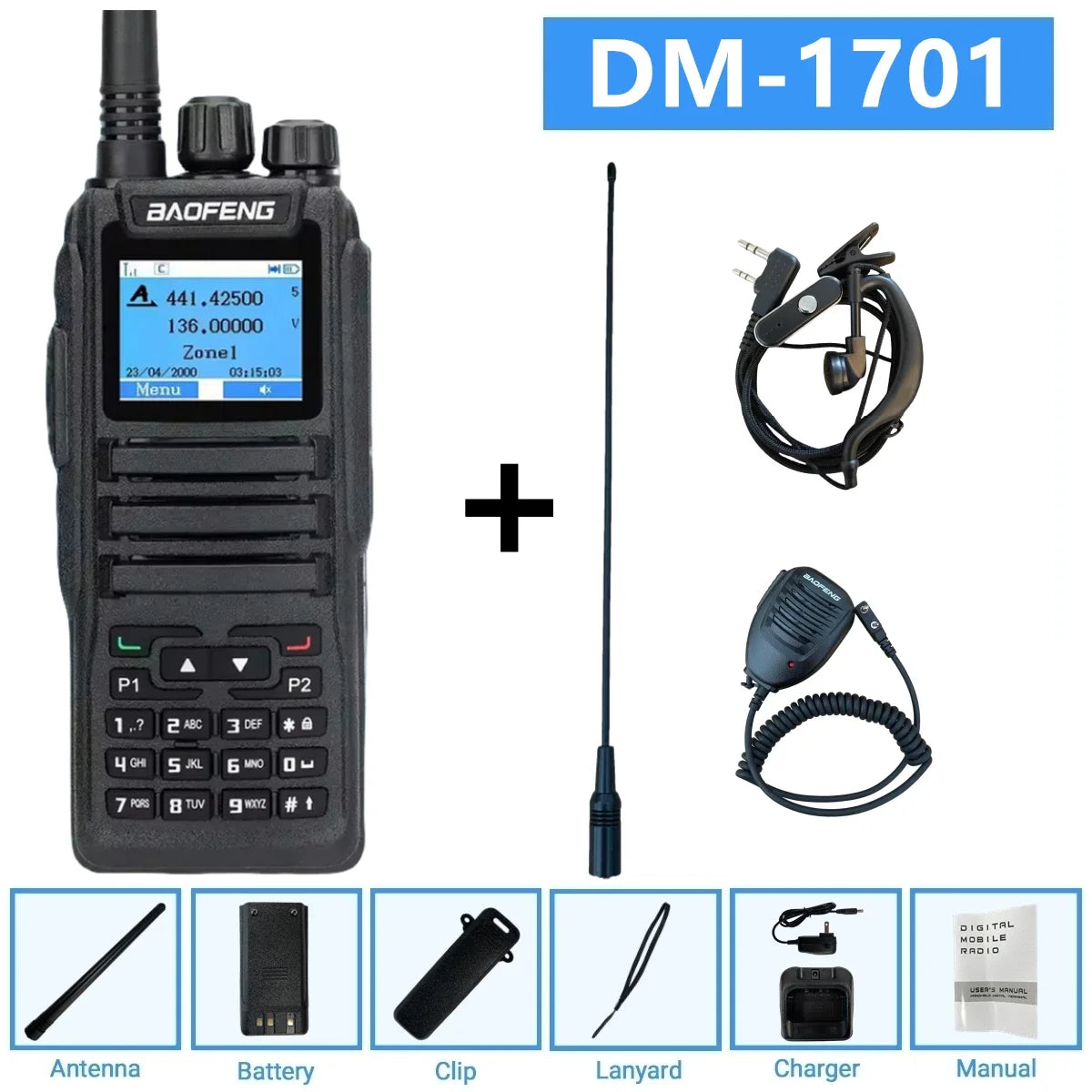

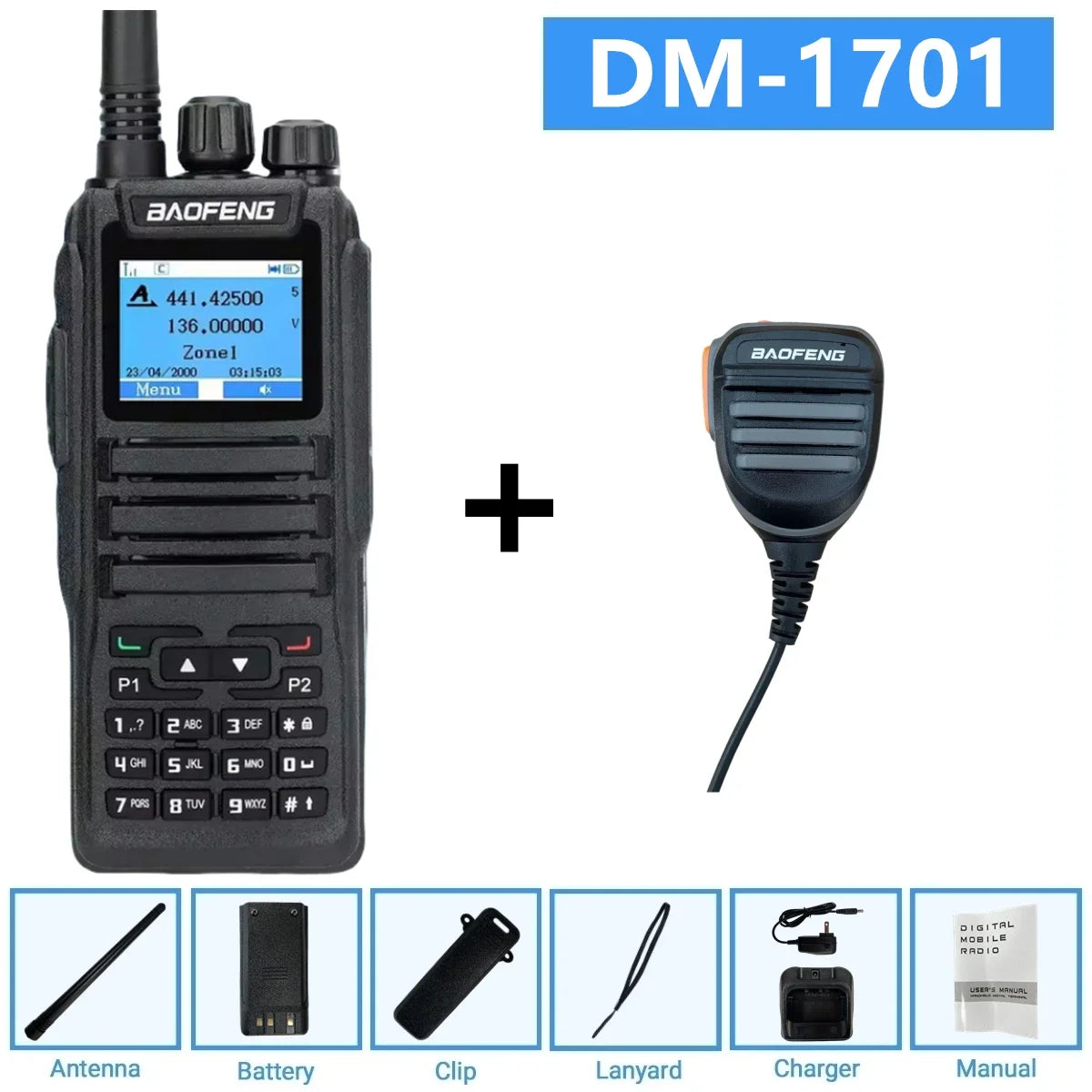

★【Package Included】
- ●1 x baofeng Radio
- ●1 X Antenna
- ●1 X Li - ion battery pack
- ●1 x charger
- ●1 X Belt clip
- ●1 x Lanyard
- ●1 X User manual
-----------------------
