SPECIFICATIONS

Battery Included: no

Brand Name: AnyTone

Certification: CE,RoHS,FCC

Choice: yes

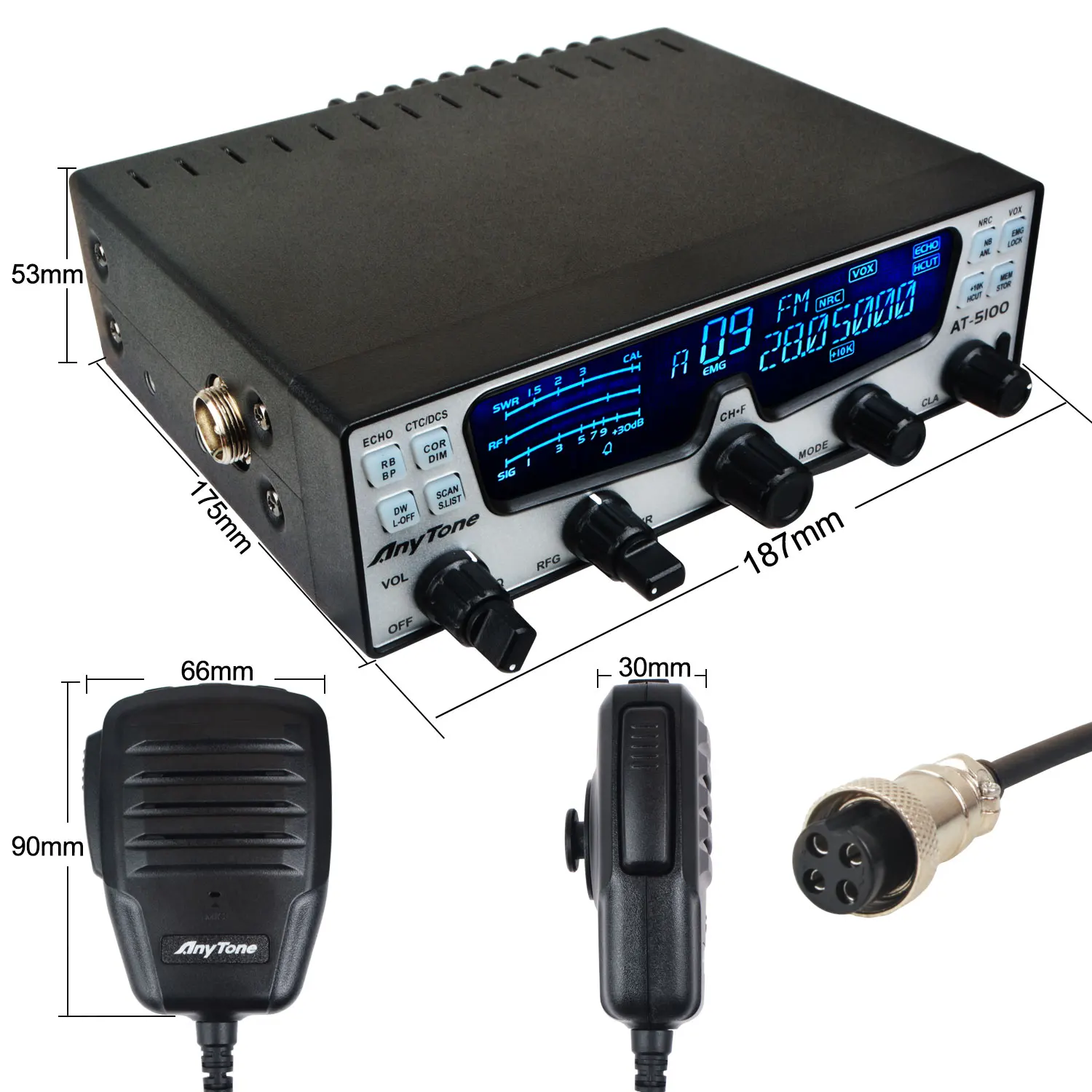

Dimensions: 187(L)*175(W)*53(H)

Frequency Range: 27Mhz

High-concerned chemical: none

Is_Display: Yes

Material: Metal

Maximum Range: >50km

Model Number: AT-5100

Origin: Mainland China

Output Power(w): 25w-50w

Rechargeablebatteryincluded: No

Storage Channel: 40

Use: Motor vehicle

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

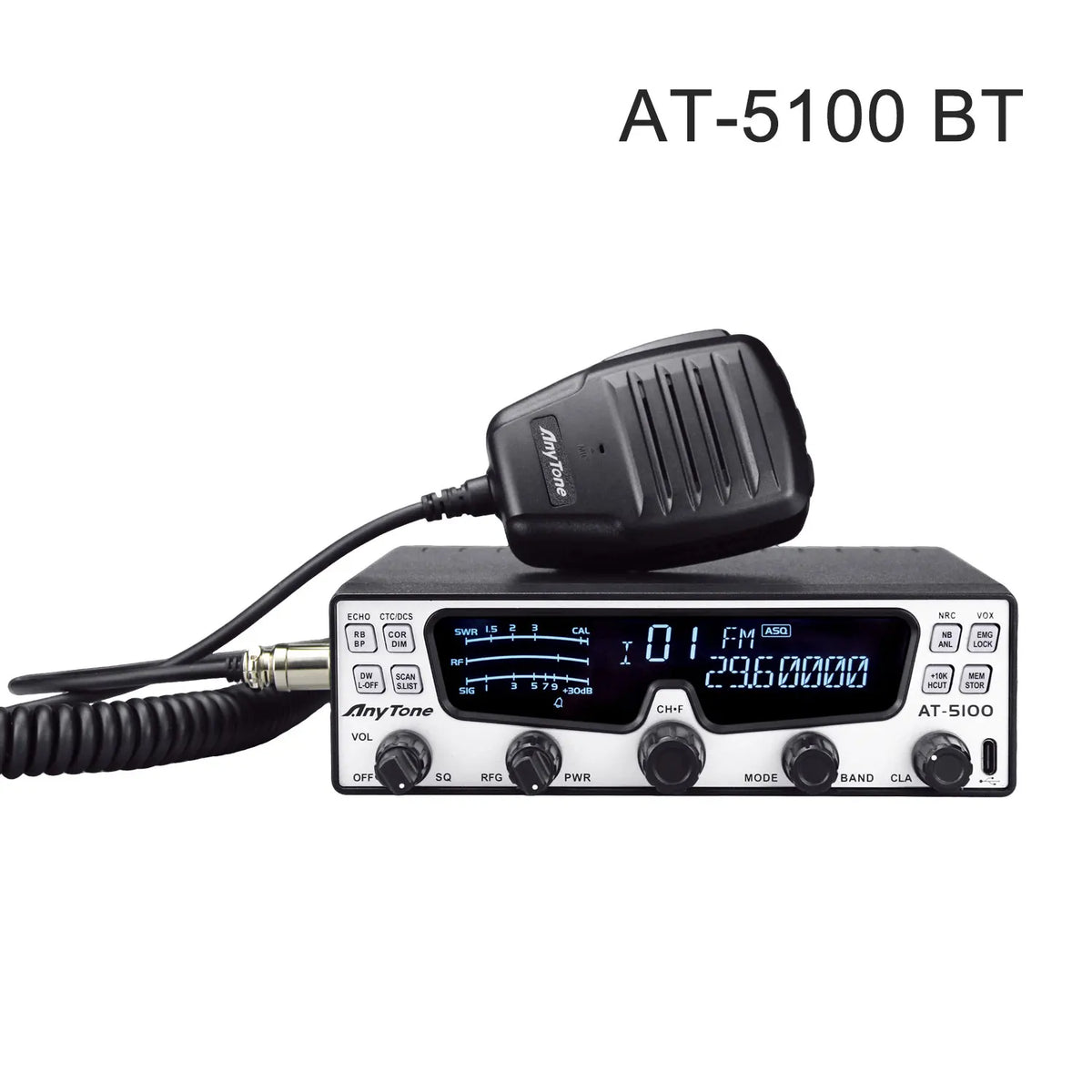

Anytone Walkie Talkie AT-5100 10m Amateur Mobile Radio SSB AM FM USB LSB CW PA 35W PEP NRC Noise Reduction HF CB Transceiver

Product Introduction:

The AT-5100 is a high-performance multi-mode mobile radio designed for users who require wide frequency coverage, flexible operating modes, and precise control.

Built for serious radio enthusiasts, long-distance operators, and mobile installations, the AT-5100 combines AM / FM / SSB capability, advanced noise reduction, and fine frequency tuning in a compact and reliable chassis.

Whether you’re operating on the road, in a fixed station, or exploring extended-range communication, the AT-5100 delivers stable output, clean audio, and full operating flexibility.

Features:

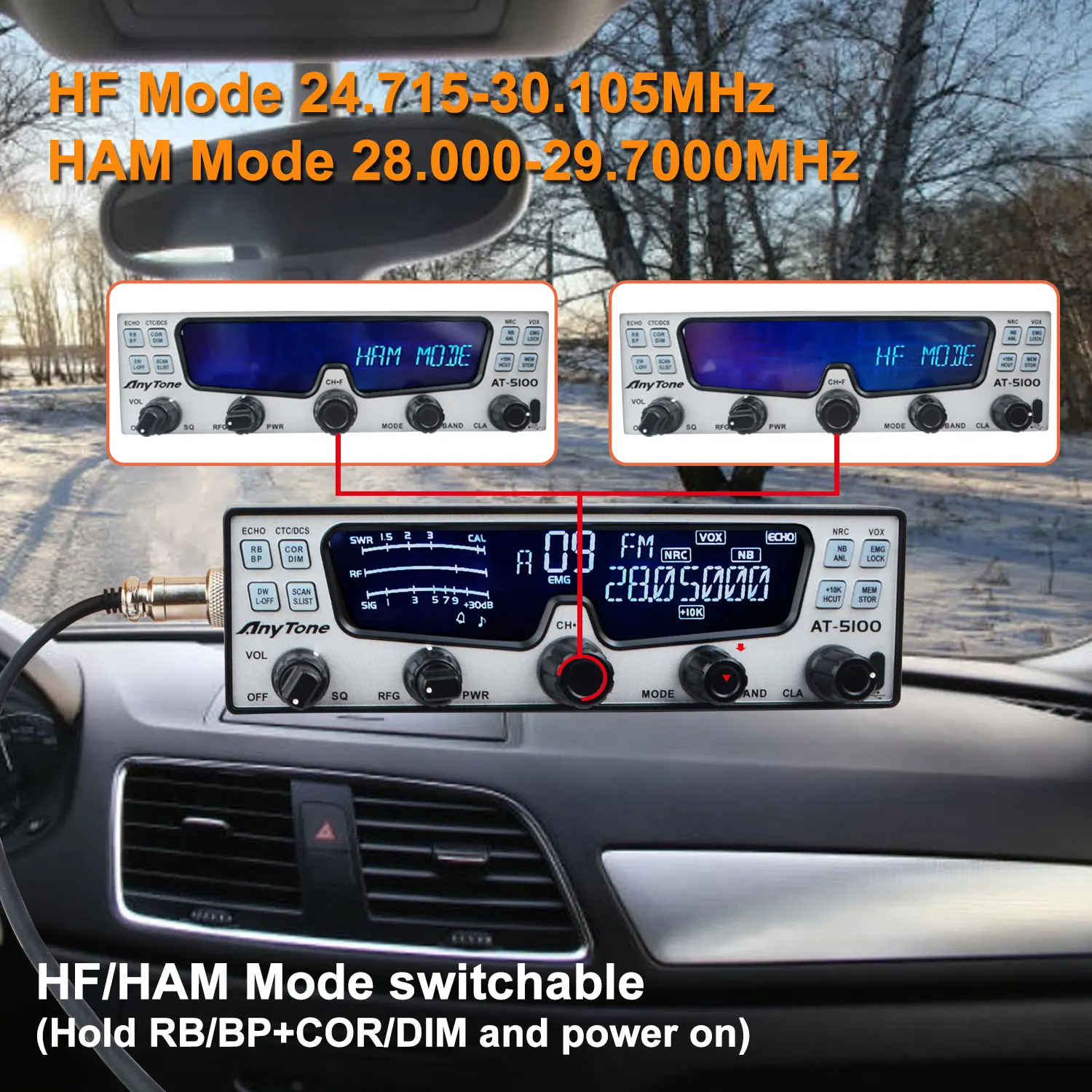

Wide Frequency Coverage – 24.715 ~ 30.105 MHz, suitable for 10m and extended band operation.

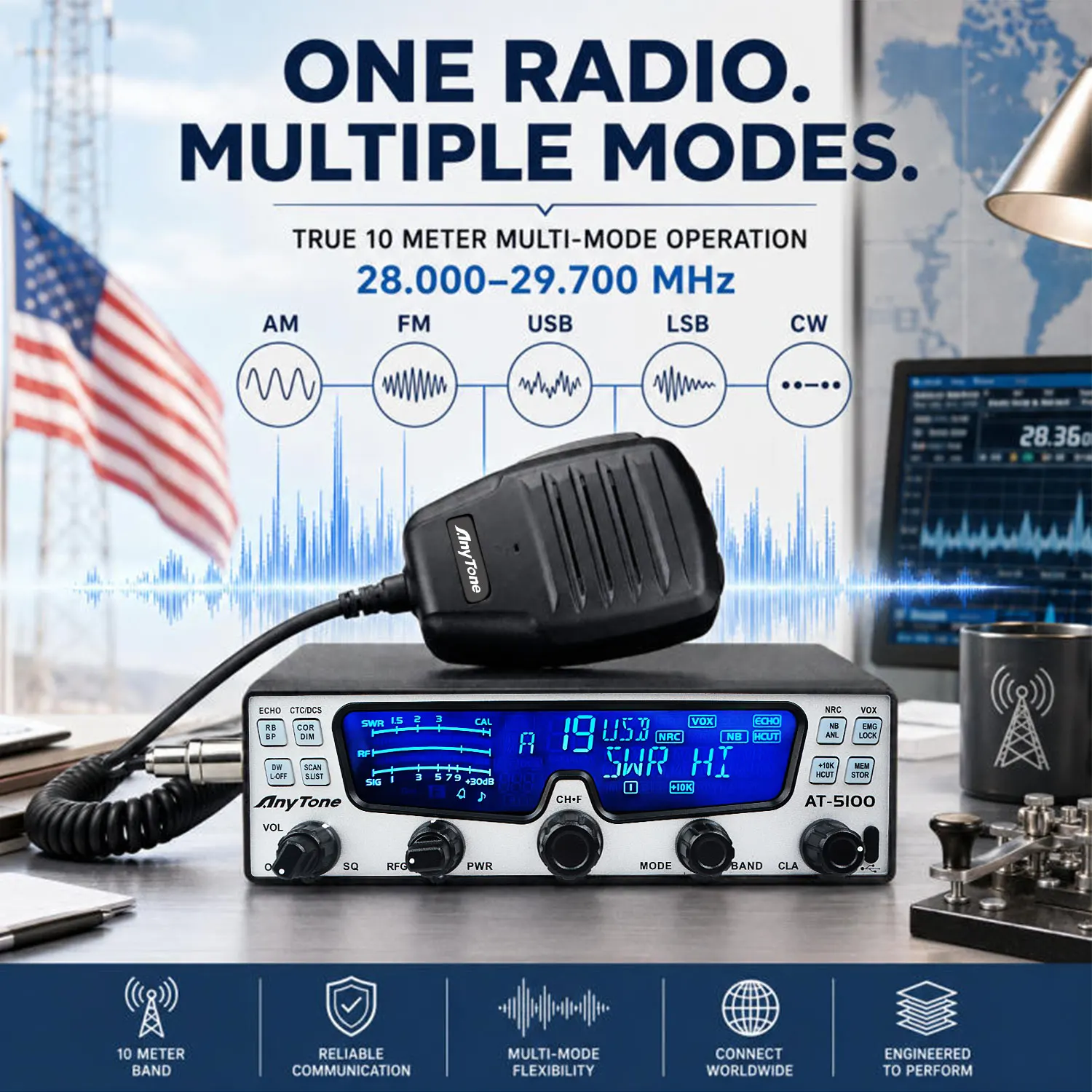

Multi-Mode Operation – Supports AM, FM, USB, LSB, CW, and PA modes.

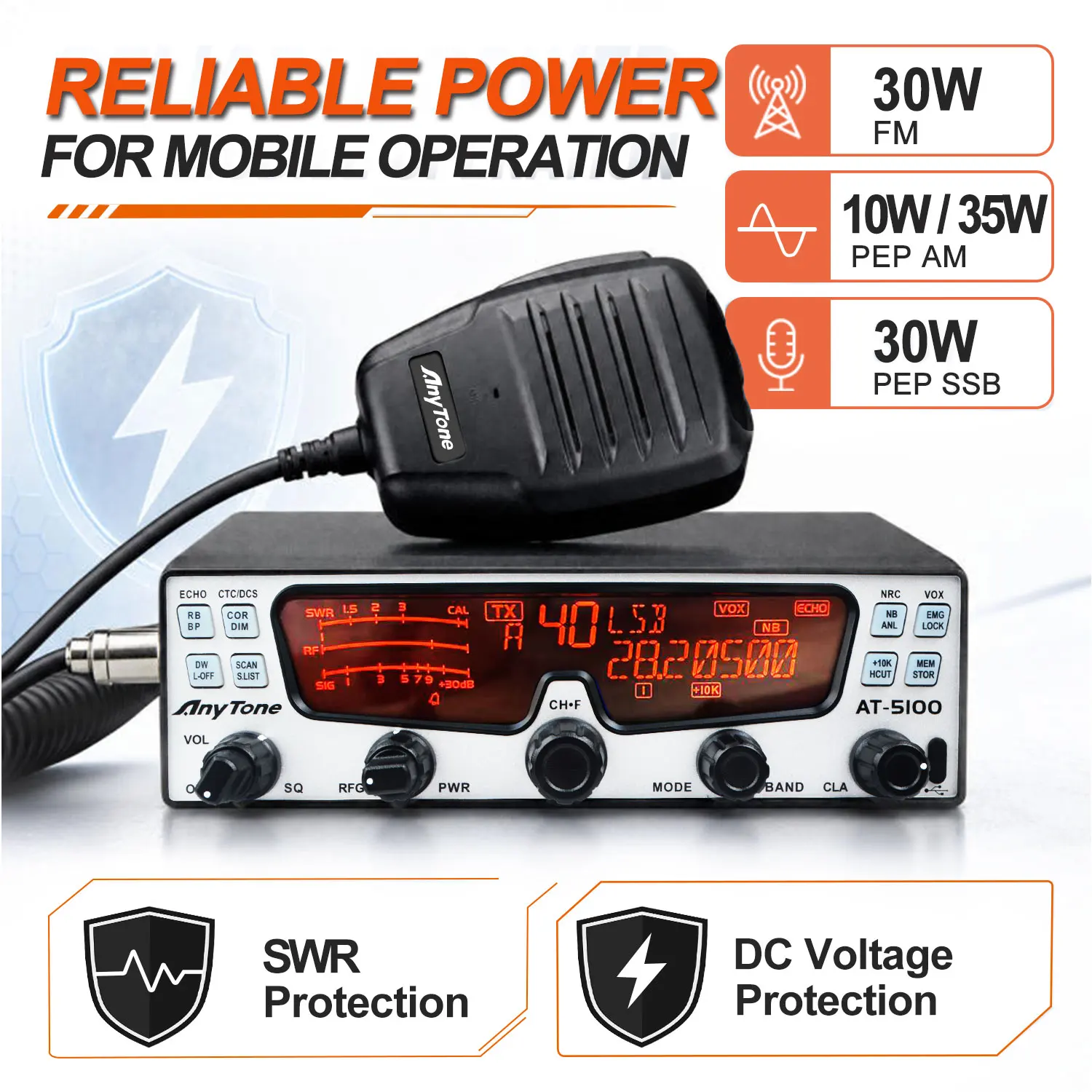

High Output Power

• AM: PEP 35W

• FM: 30W

• SSB: 30W

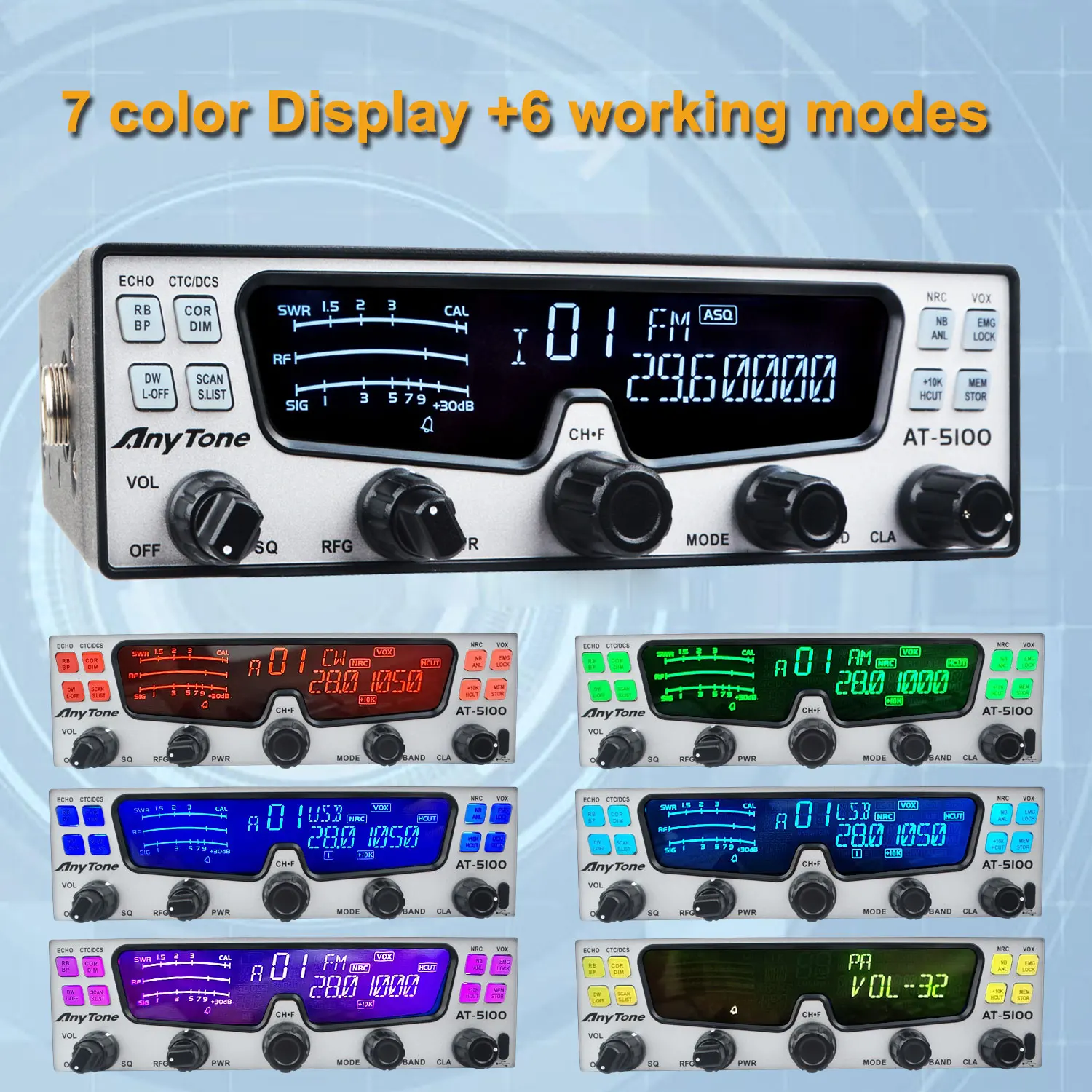

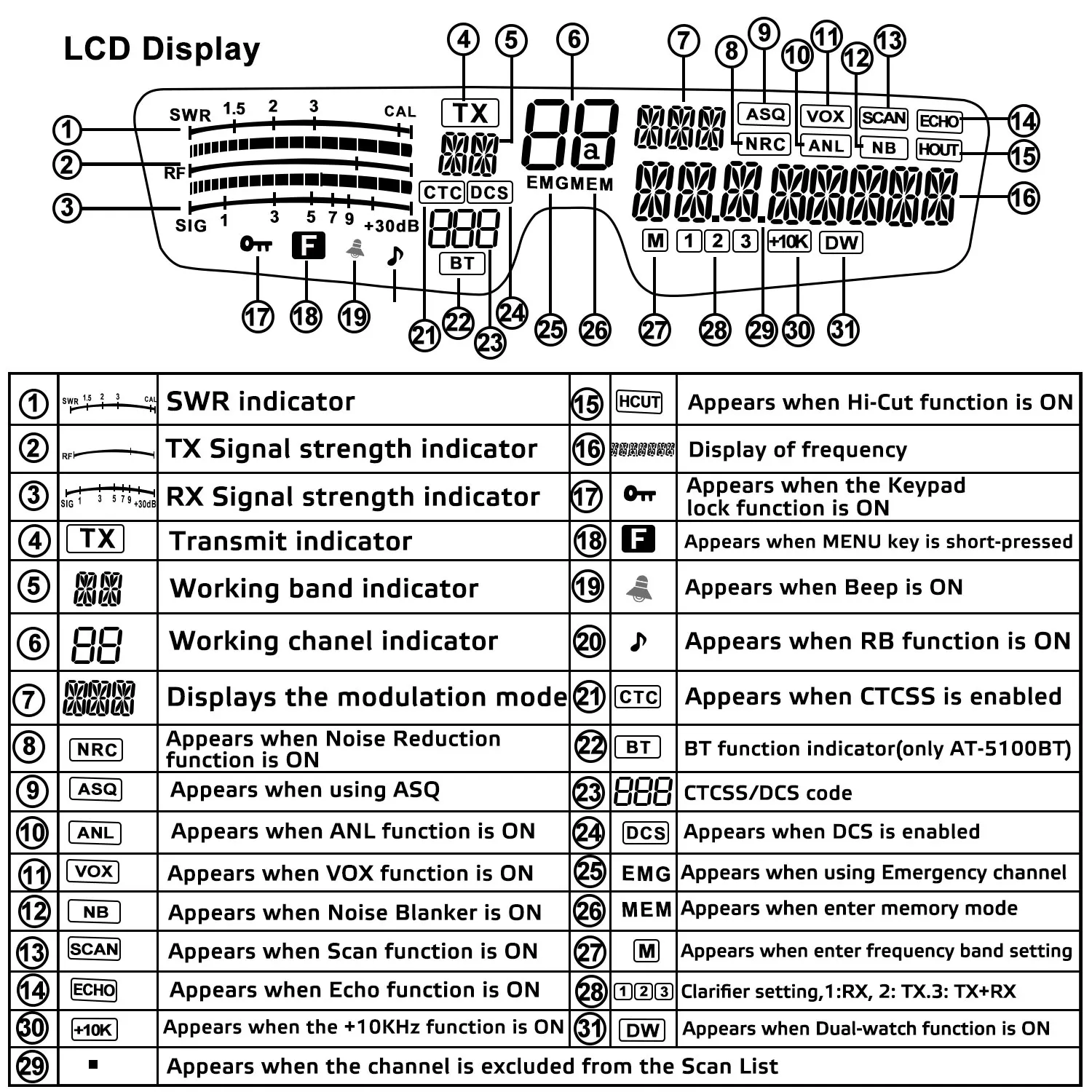

Large LCD display WITH 7 color backlight dimming

±500Hz/5KHz Clarifier adjustment (R/T/R+T selectable)

VHF/BAND/Memory Channel modes

Advanced NRC Noise Reduction – Digital noise reduction for both TX & RX, improving clarity in noisy environments.

SQ,ASQ Function(FM and AM mode only)– Automatic squelch control for smoother signal reception.

CTCSS / DCS with RX/TX Split functions– Enables selective calling and interference reduction.

Echo Function – Adjustable echo for enhanced voice presence when required.

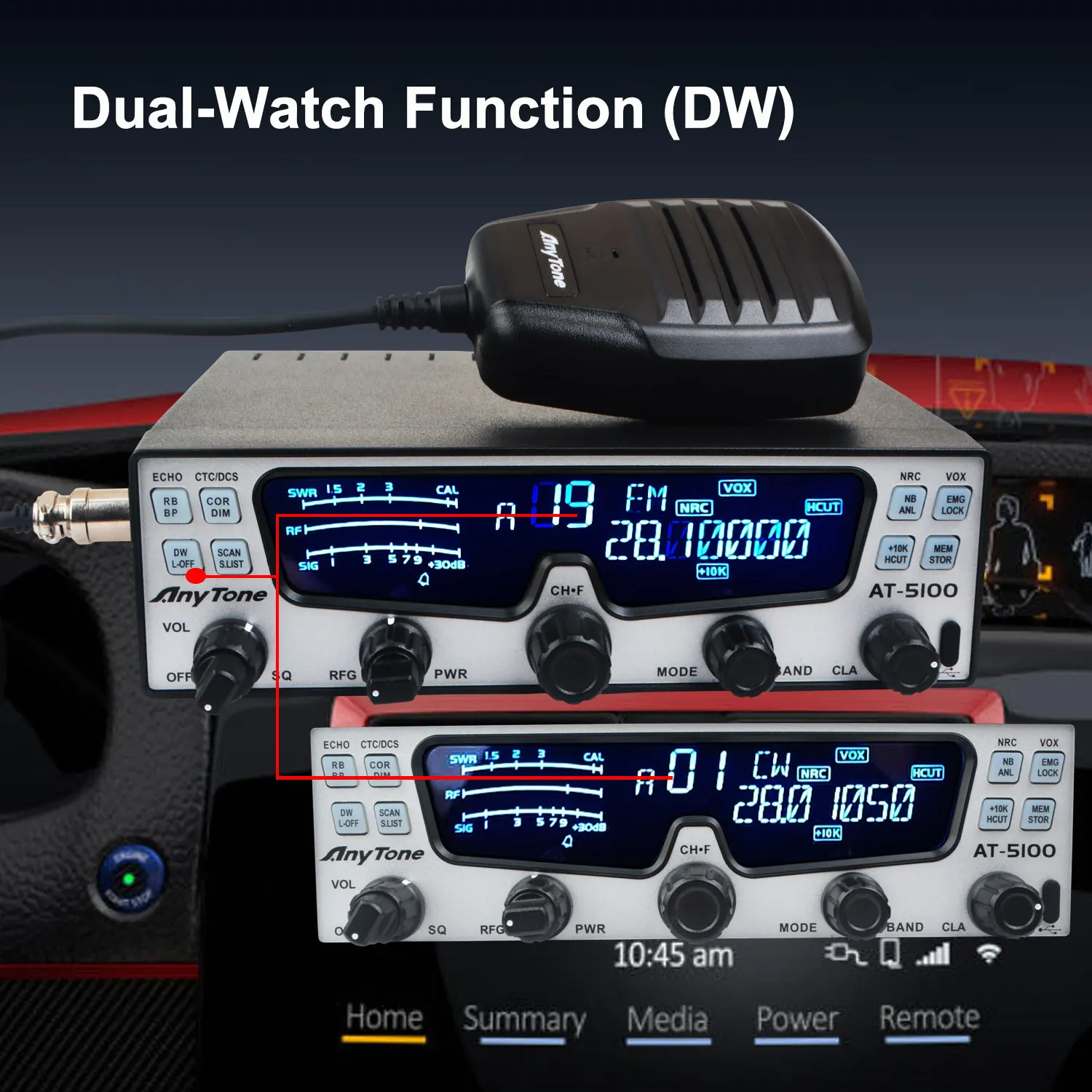

Dual Watch – Monitor two frequencies simultaneously.

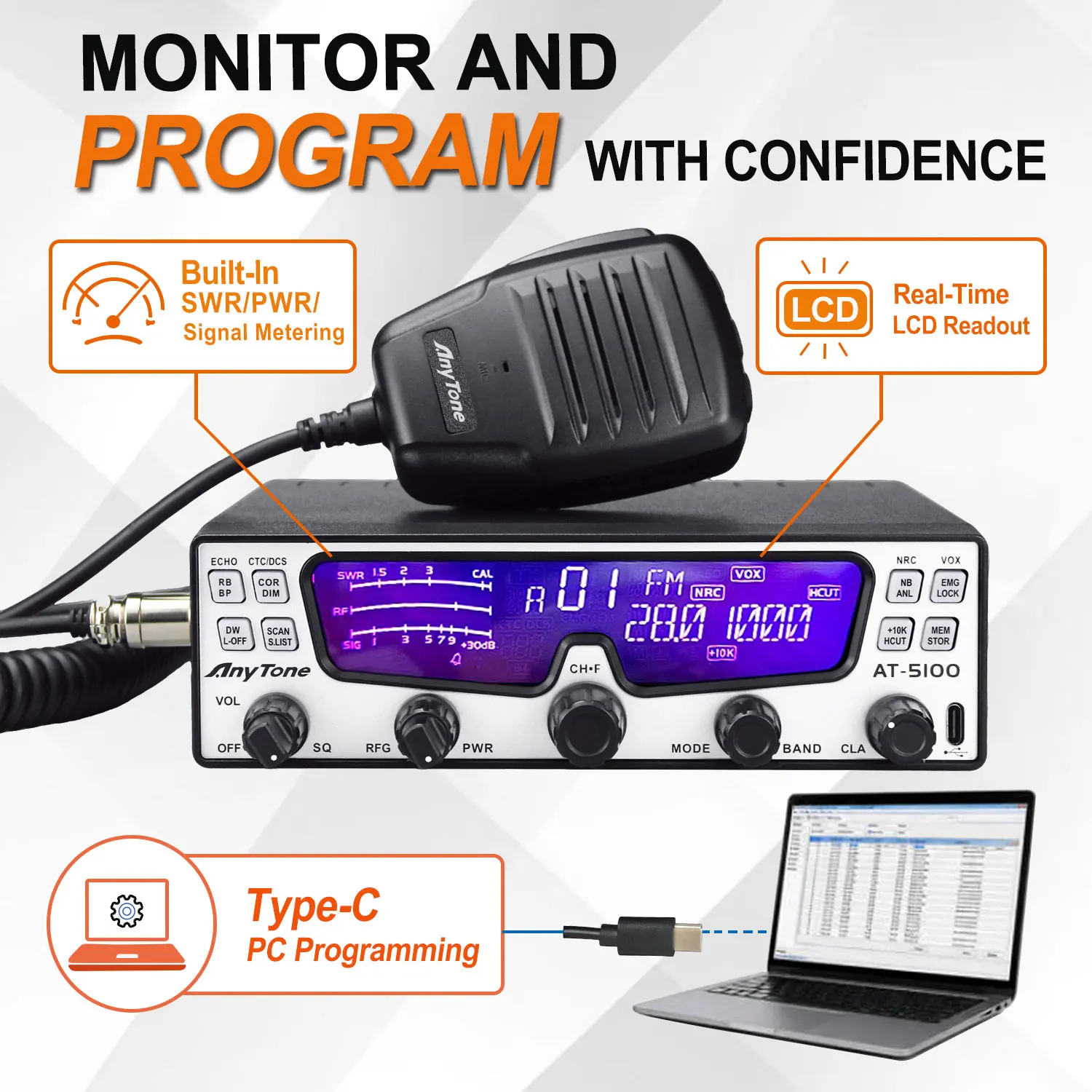

Flexible Menu Functions & PC Programmable – Easy configuration and parameter management via computer software.

Fine Frequency Step Control – 10Hz, 100Hz, 1K, 5K, 10K, 100K, 1MHz step selection for precise tuning.

VOX Function

RF Gain Adjustment

RF PWR Adjustment

Scan Function

NB/ANL Function

Repeater Shift/Offset Frequency Function

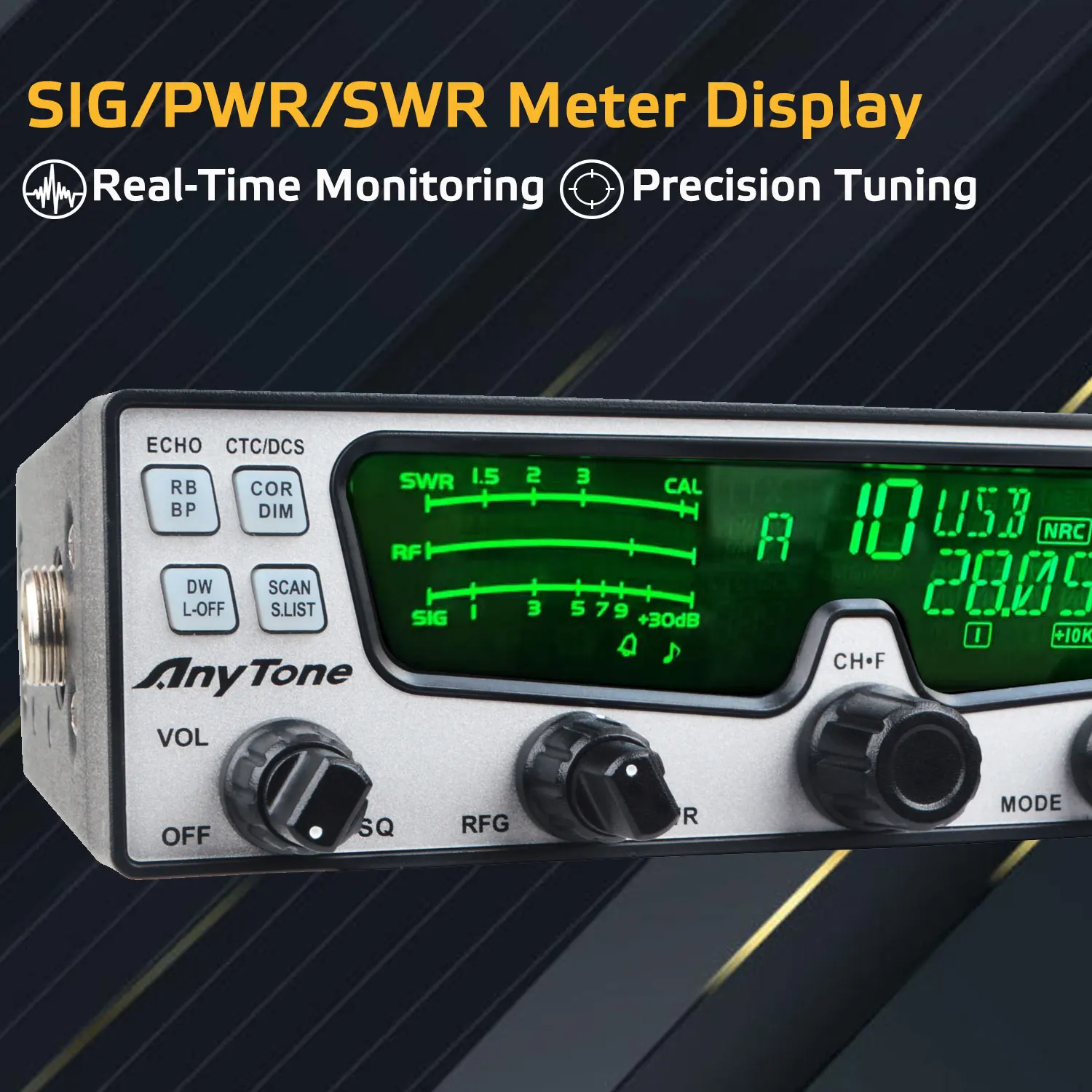

SIG/PWR/SWR Meter function

TOT Function

HI-Cut function

SWR Protection

Power supply voltage Protection

Key-lock function

Band name customization function (Via PC CPS)

Compatible with electret and dynamic MIC Types

Programmable RB Function

Keypad Beep Function

+10KHz function

EMG Channel function

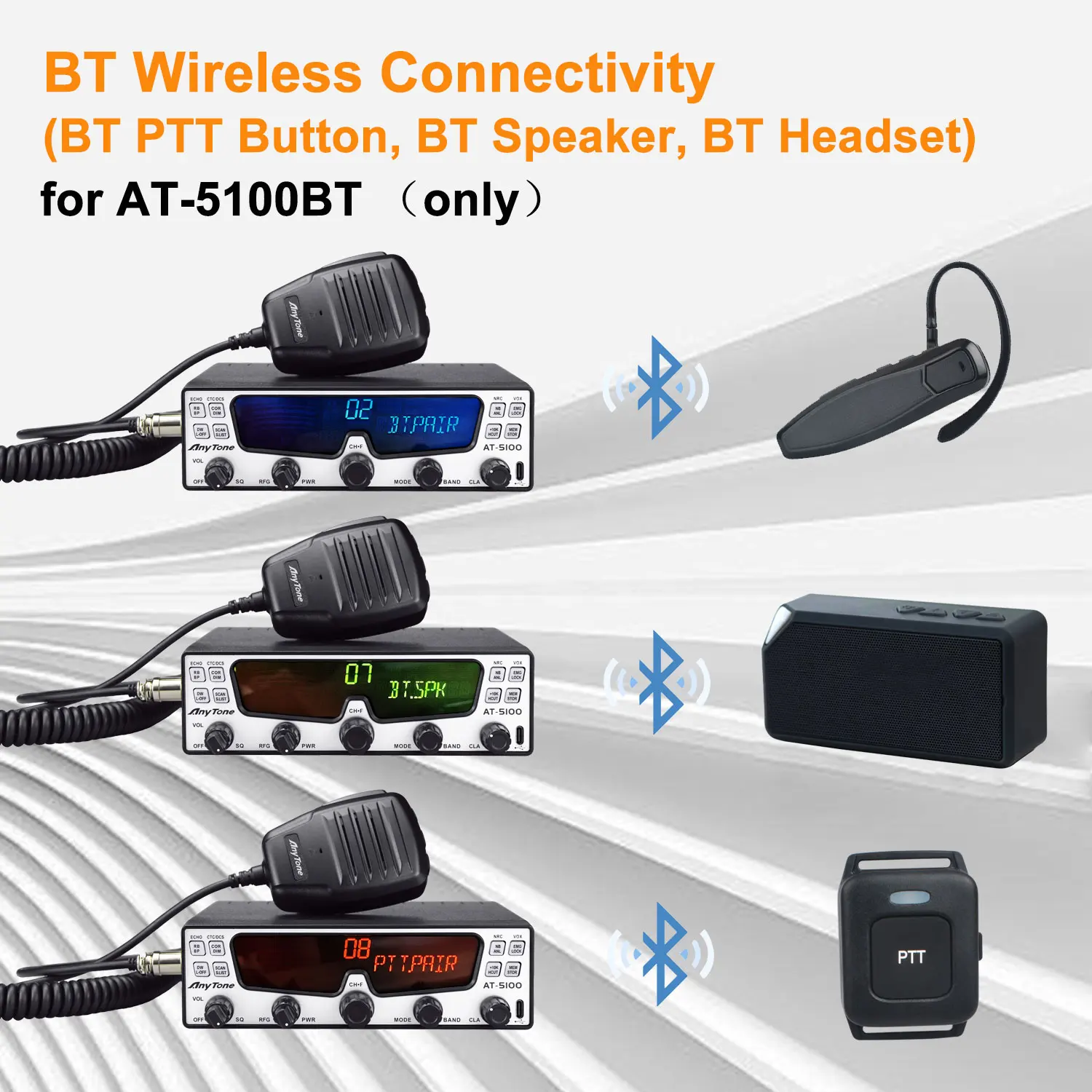

BT Function ( for AT-5100BT Only)

AnyTone AT-5100 Multi-Mode 10m Mobile Radio with SSB, AM/FM USB LSB CW PA, 35W PEP, NRC TX/RX Noise Reduction, compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Anytone summarizes the defects of past products, and continuously improves them. The specifications of AnyTone AT-5100 Multi-Mode 10m Mobile Radio with SSB, AM/FM USB LSB CW PA, 35W PEP, NRC TX/RX Noise Reduction, can be customized according to your needs.

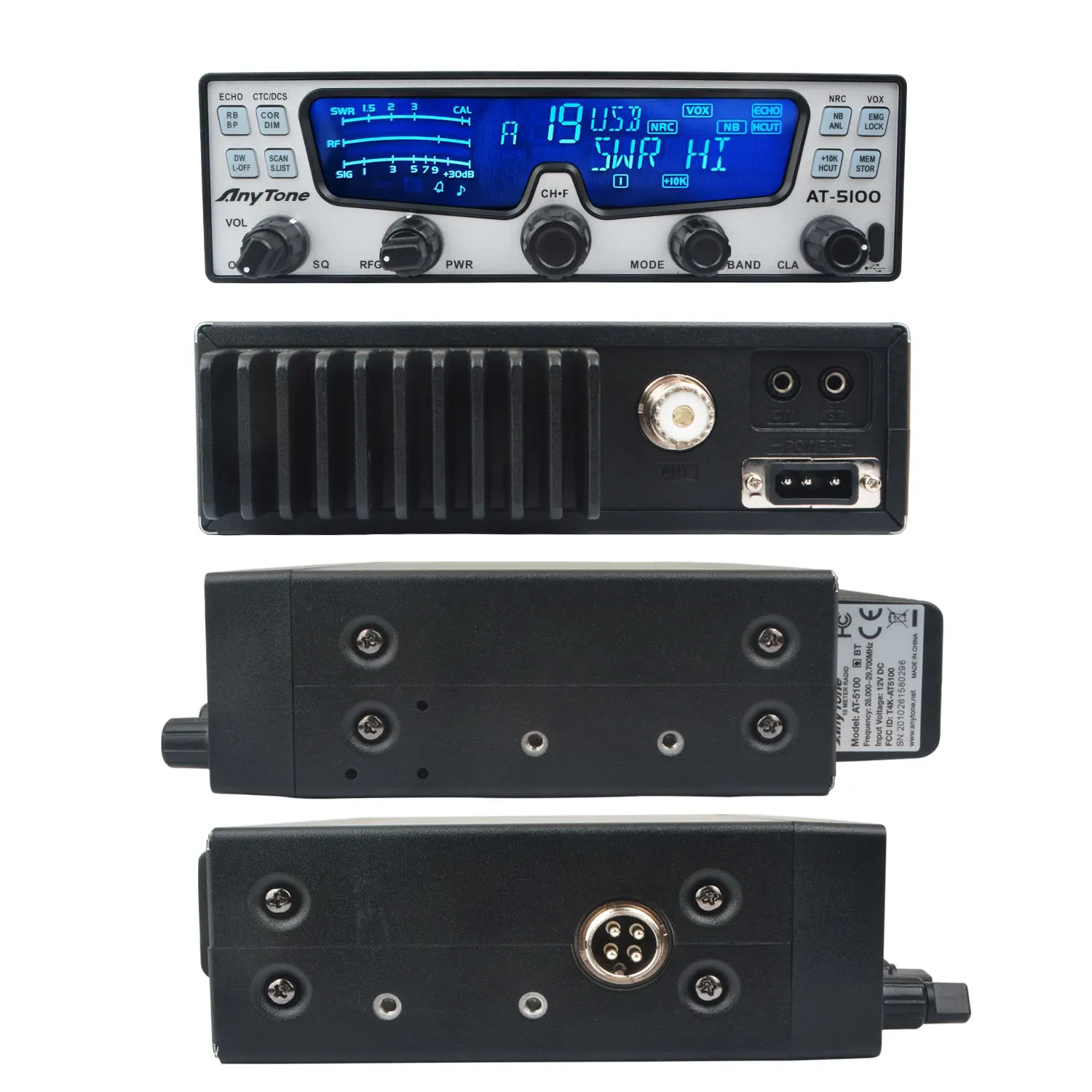

Photos:

Specification:

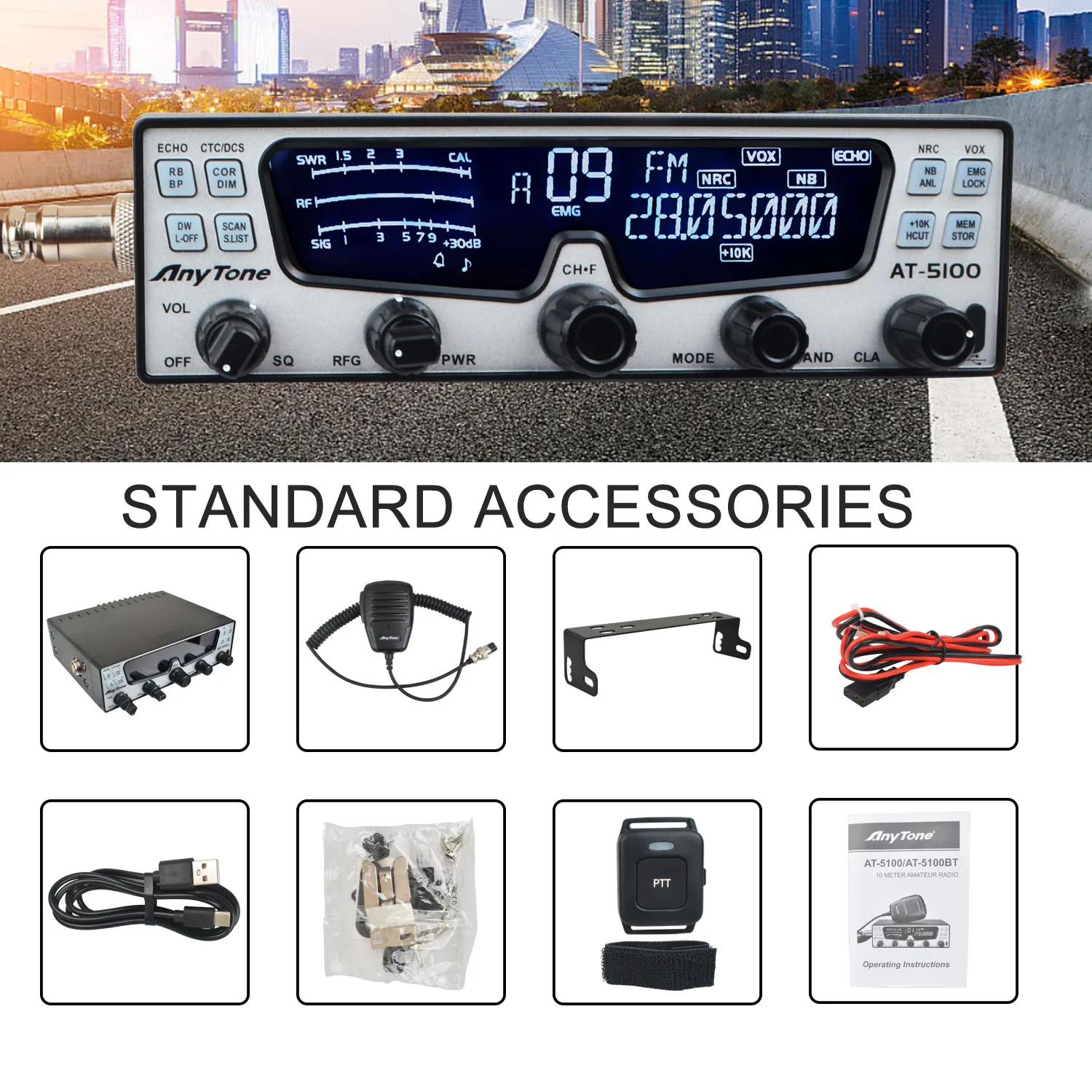

Standard Package Contents of each unit:

1×AT-5100/AT-5100BT Radio

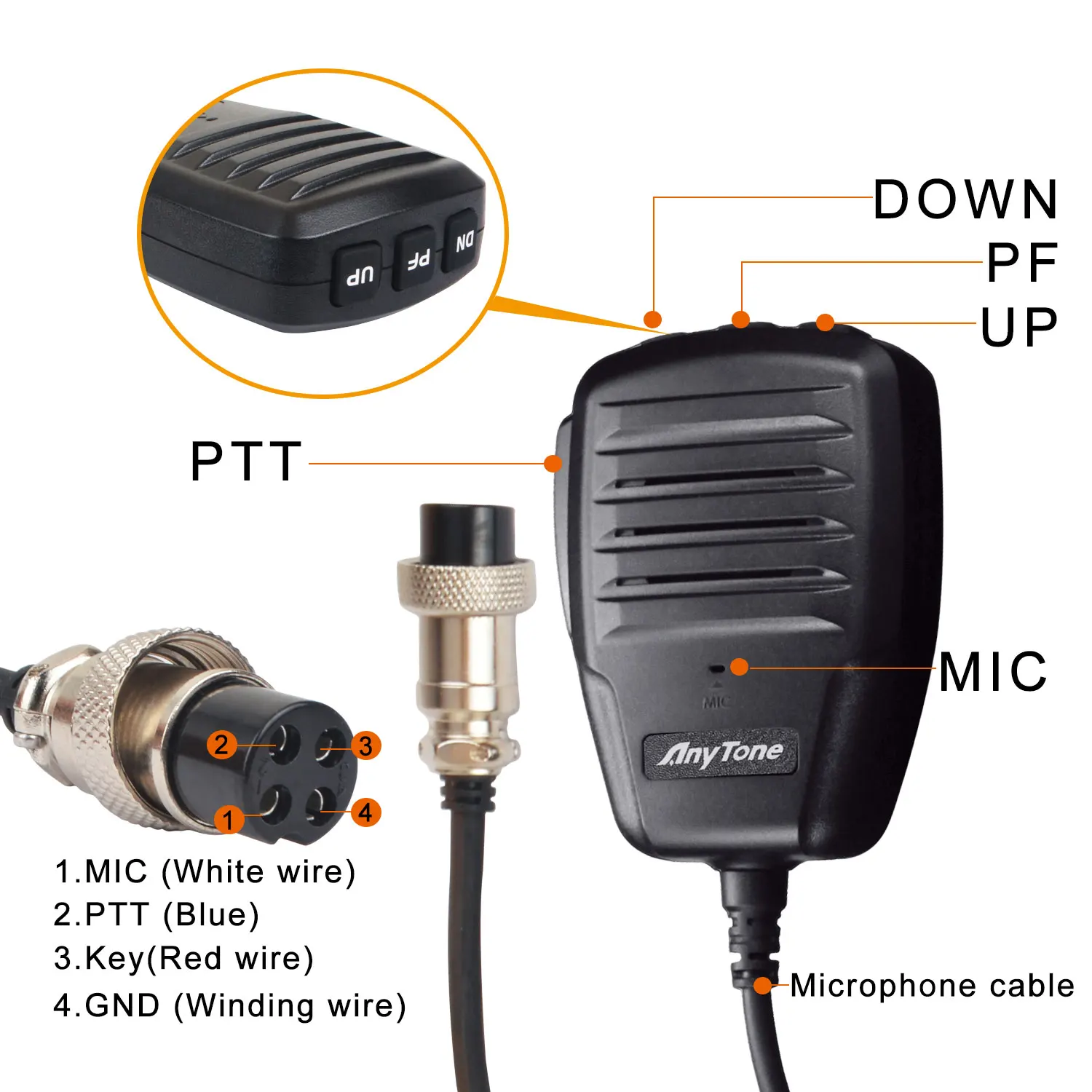

1× Speaker Mic

1× Mounting Bracket

1× DC Power Cable with Fuse Holder

1×Microphone Hanger

2×Non-slip Mat

1× Fixing Screw Sets

1× Spare Fuses(10A,125V)

1× ENG Manual

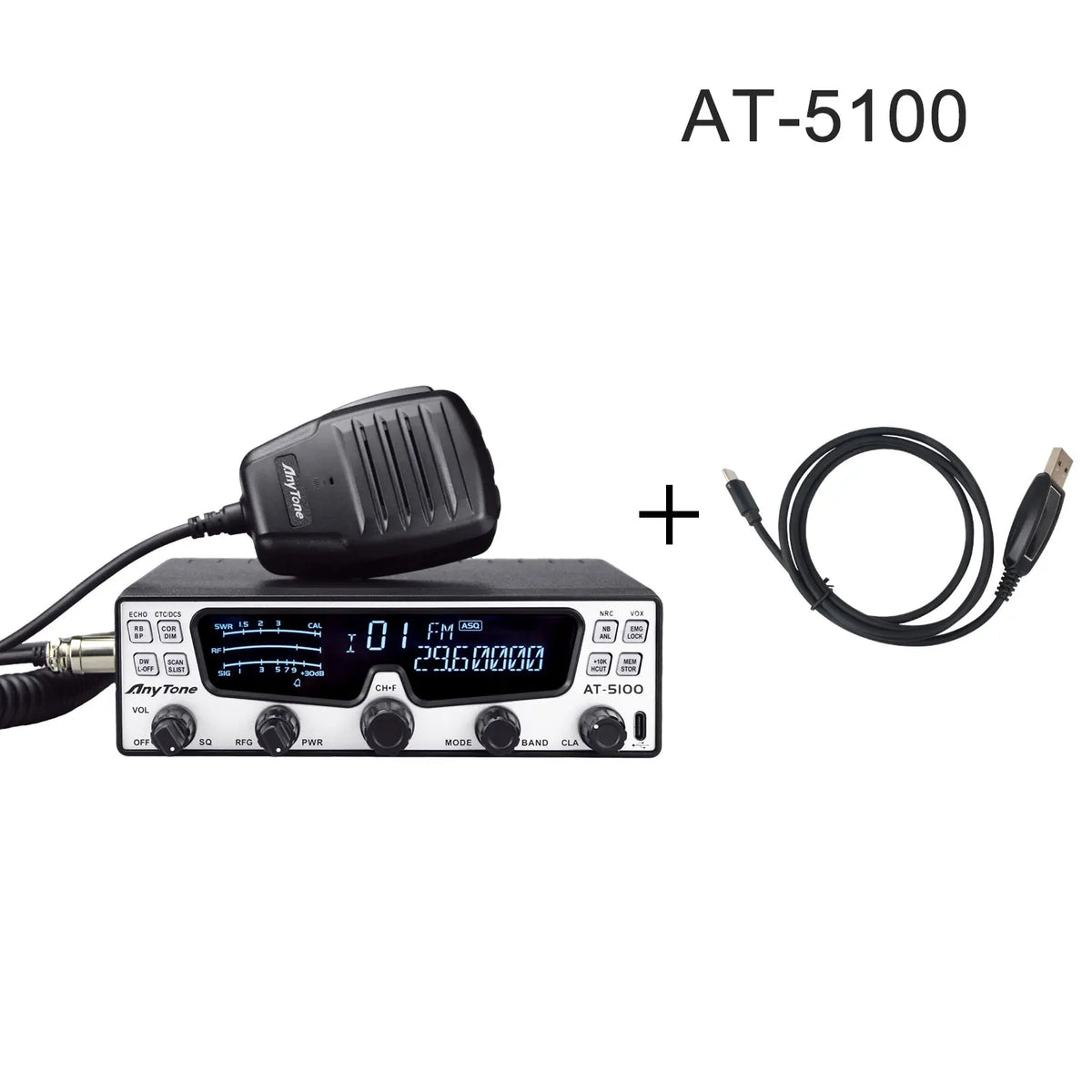

1× USB Type-c Programming Cable (Optional)

1×BT PTT (Optional)

1×BT PTT Charging Cable (Optional)

1×BT PTT Fix Velcro
