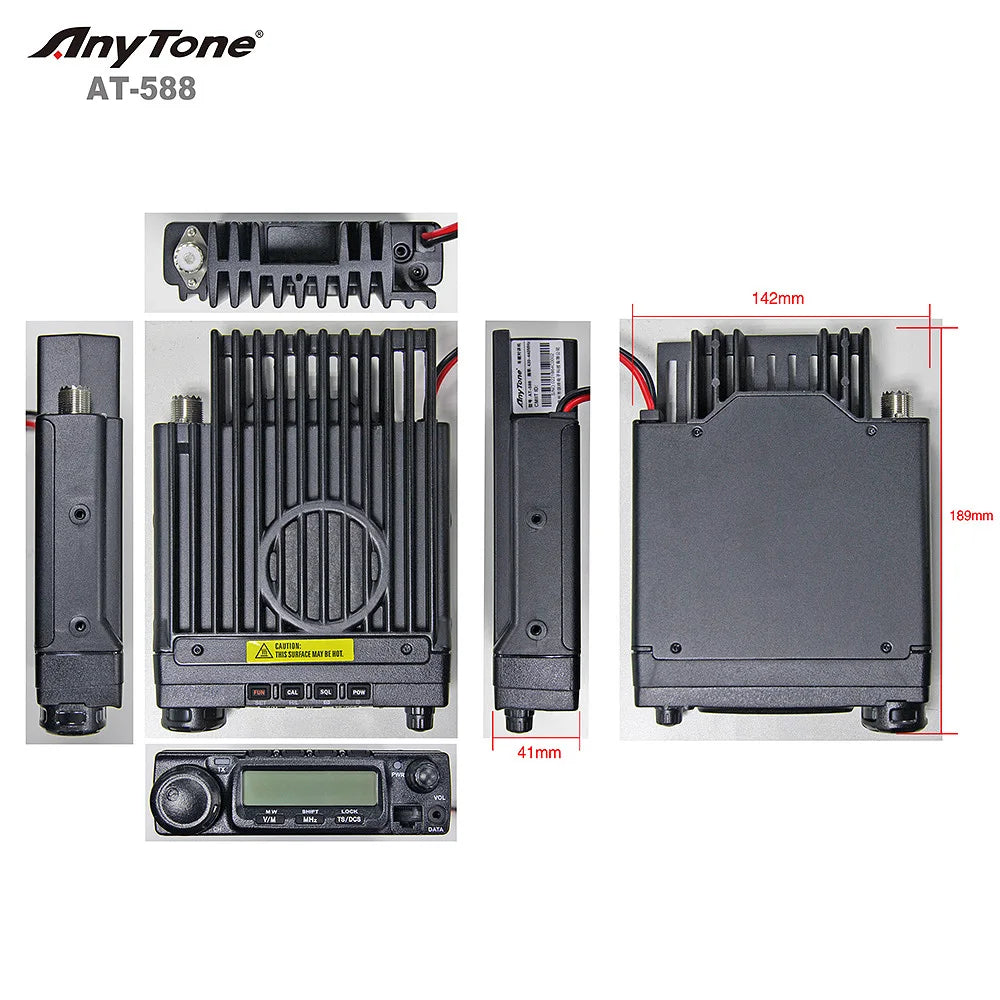

510 Channels ANYTONE AT-588 Single Band With Air Band RX 70w VHF Long Range Walkie Talkie for Vehicle Radio Amateur UHF Radio

$190.65 USD

~~$0.00 USD~~ $190.65 USD

Sale Ausverkauft

SPECIFICATIONS

Battery Capacity: Without battery

Brand: Anytone

Brand Name: NONE

Certification: FCC/CE

Channel Spacing: 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band)

Feature: TOT

Function: CTCSS/ DCS

High-concerned chemical: none

IP level: IP23

Material: Plastic

OEM: Accept OEM

Operating Voltage: 13.8 DC ±20%

Origin: Mainland China

Output Power: 70W VHF 45W UHF

Radio Type: Profeesional High Power Radio

Type: Other

Warranty: 18 Months

brand name: AnyTone

customized packaging: 500

feature: Air band

frequency range: 136-174 & 400-490Mhz & 66-88Mhz & 220-280Mhz

frequency type: VHF

model number: Transceiver

operating language: English

output power: 70w

place of origin: Fujian, China

storage channel: 510

talk range: 10KM

walkie talkie type: Marine&Car radio

water resistance level: IPX-1

MODEL NO.: AT-588 Single Band

Frequency:
66~88MHz, 136~173.995MHz, 220~260MHz, 340~400MHz, 400~490MHz(Normal), 440~512MHz etc. 27~43MHz(ODM Project)

Functions:

1. Working Mode: Amateur Transceiver or Professional Transceiver
2. 200 programmable memorized channels, the channels can be marked with letter and digits
3. Output Power : 70W(VHF),40W(UHF)/25W/10W.
4. CTCSS/DCS/DTMF/2Tone/5Tone decode and encode.
(50 groups CTCSS Tone Frequency(Hz) / 1024 groups DCS Code)
5. Four different tone-pluse frequencies. 6. Compander function for decrease the background noise and enhance audio clarity, it
can set compander ON/OFF per channel.
7. Theft alarm provides extra safety 8. ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID. 9. QHM-03 multifunctional microphone with
DTMF.
10. Display on a large LCD with adjustable brightness, convenient for nighttime use.
11. Different band width per channel, 25K for wide band, 20K for middle band, or 12.5K for narrow band.
12. Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
13. Squelch Off/Squelch Off Momentary, Squelch Level Setup 14. Frequency/Channel Scan
15. High/Mid/Low Power Switch, Current Voltage Enquiry
16. Keypad Lockout 17. Busy Channel Lockout.
18. Scrambler Setup (Encryption).
19. Voice Prompt 20. TOT (Time-out timer)
21. APO (Auto power off) 22. DTMF Transmitting Time setup
23. Scramble function (option). 24. 12V/24V for truck which no need extra DC power supply(option)

Specification

GENERAL
Frequency Range			VHF: 66-88MHz, 136-174MHz 245-245.9875MHz (220~260MHz) UHF: 400~490MHz
Number of Channels			200 channels
Channel Spacing			25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band)
Phase-locked Step			5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
Operating Voltage			13.8V DC ±15%
Squelch			Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability			±2.5ppm
Dimensions			145 (W) x 47 (H) x 190 (L)mm
Weight			about 1.2Kg
Operating Temperature Range			-20鈩� to +60鈩�
**Specifications are subject to change without notice due to advancements in technology.

Receiver (ETSI EN 300 086 standard testing )
	Wide band	Narrow band
Sensitivity (12dB Sinad)	≤0.25μV	≤0.35μV
Adjacent Channel Selectivity	≥70dB	≥60dB
Intermodulation	≥65dB	≥60dB
Spurious Rejection	≥70dB	≥70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Hum & Noise	≥45dB	≥40dB
Audio distortion	≤5%
Audio power output	锛�2W@10%
Transmitter (ETSI EN 300 086 standard testing )
	Wide band	Narrow band
Power Output	60W/25W/10W(136-174MHz) 60W/25W/10W(220-260MHz) 35W/25W/10W(66-88MHz)	45W/25W/10W(UHF)
Modulation	16KΦF3E	11KΦF3E
Adjacent Channel Power	≥70dB	≥60dB
Hum & Noise	≥40dB	≥36dB
Spurious Emission	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Audio Distortion	≤5%

Product Description

Packing & Delivery

Package Includes:

AT-588 Radio

Microphone

DC Power cable
Bracket and accessories

Downloadable software

User manual
