Dual Lens AHD 1080P Car Side View Camera System With Sticker Mount (4PIN aviation connector)

Product Technical Parameters

1) Camera pixel:1080P
2) Camera Signal:AHD signal (Not working with CVBS Monitor or 720P AHD monitor,works only for AHD 1080P Monitor)
3) TV System: AHD 25FPS
4) Waterproof rate:IP68
5) Power supply:DC12-24V

6) Horizontal angle : Front lens 160 degree ,rear lens 120 degree
7) Rotatable lens design for easy angle adjustment
8) Camera sensor:GC2053
9) Wiring method: Flat wire design, passing through the door gap
10) Video output connector: 4PIN aviation connector (RCA connector optional)

11) Optional body color :White and Black
12) Camera mount type: By double-sided tape
13) Optional mount side:Left or right side fender

1.Why install side view cameras?

Dual lens View Camera provide front and side view of car . Users can clearly see the condition of the car body, for example, when driving normally, they can see cars coming from behind. When passing through some narrow roads, the display switches to the front camera image, and the driver can clearly see the image around the front wheels of the car

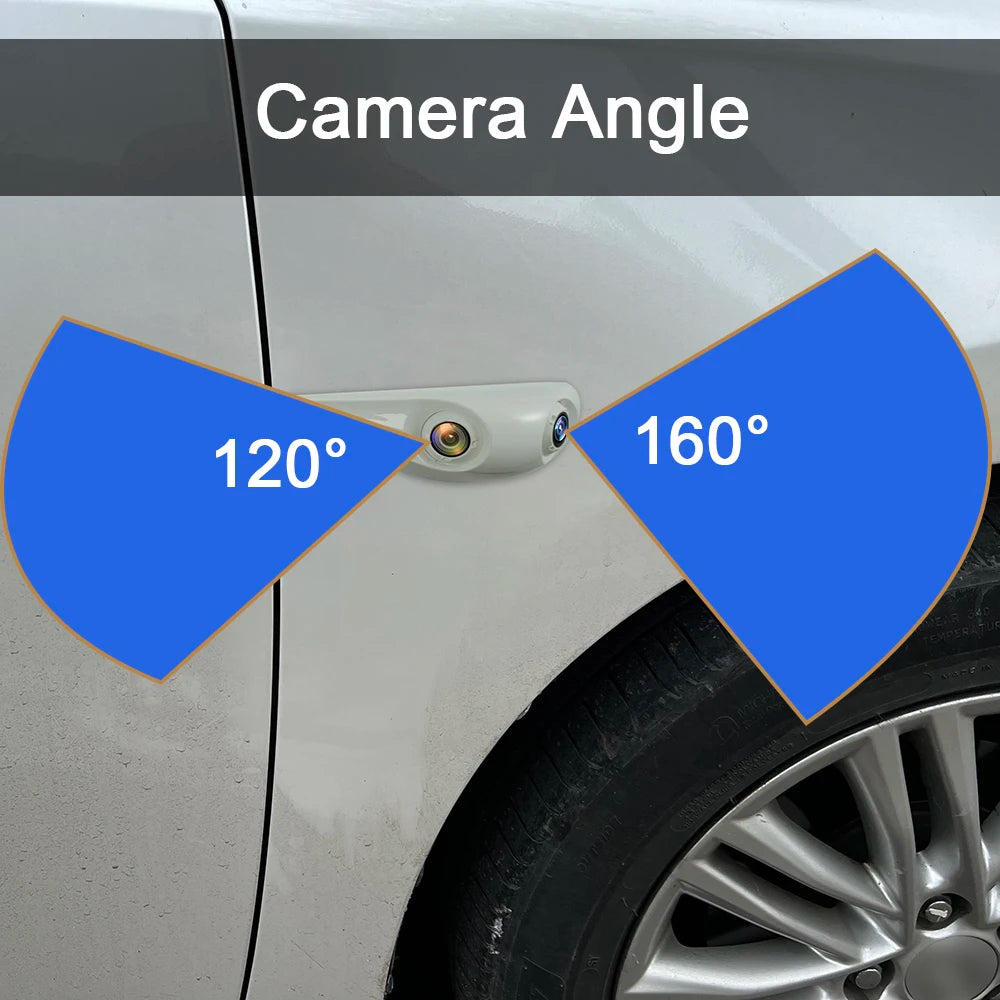

2.Angle of side camera

This dual lens camera has a front view angle of 160 degrees and a rear view angle of 120 degrees, and the lens can rotate

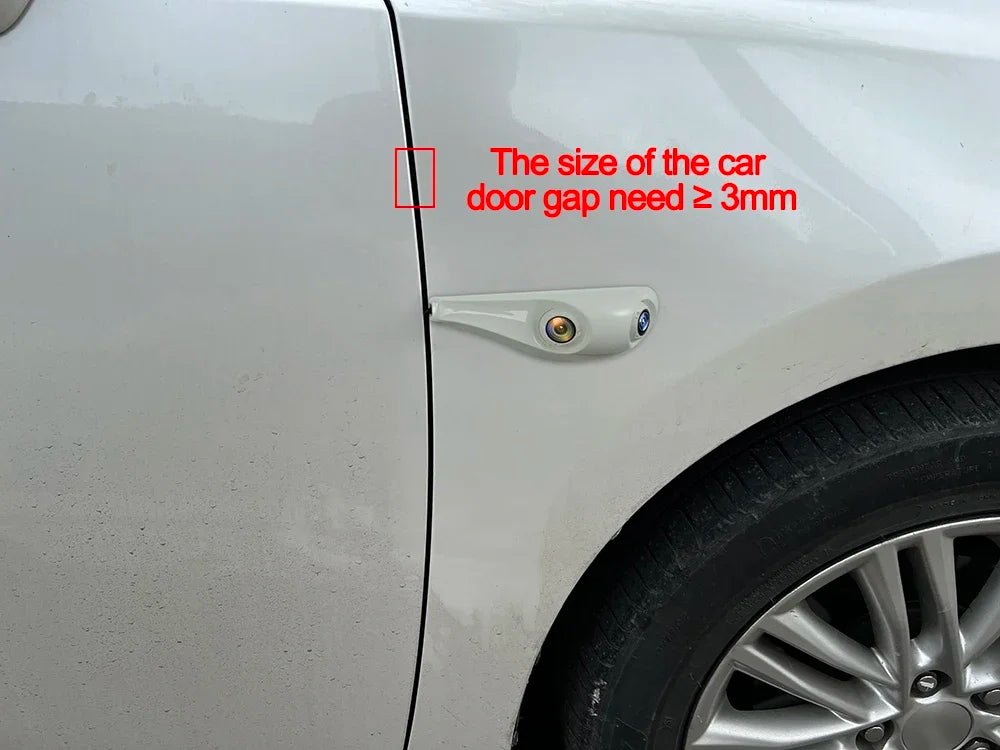

Due to the thickness of the flat wire being 2.53mm, we recommend that the gap size of the car door be greater than 3mm, so that the wire will not be caught when opening or closing the door

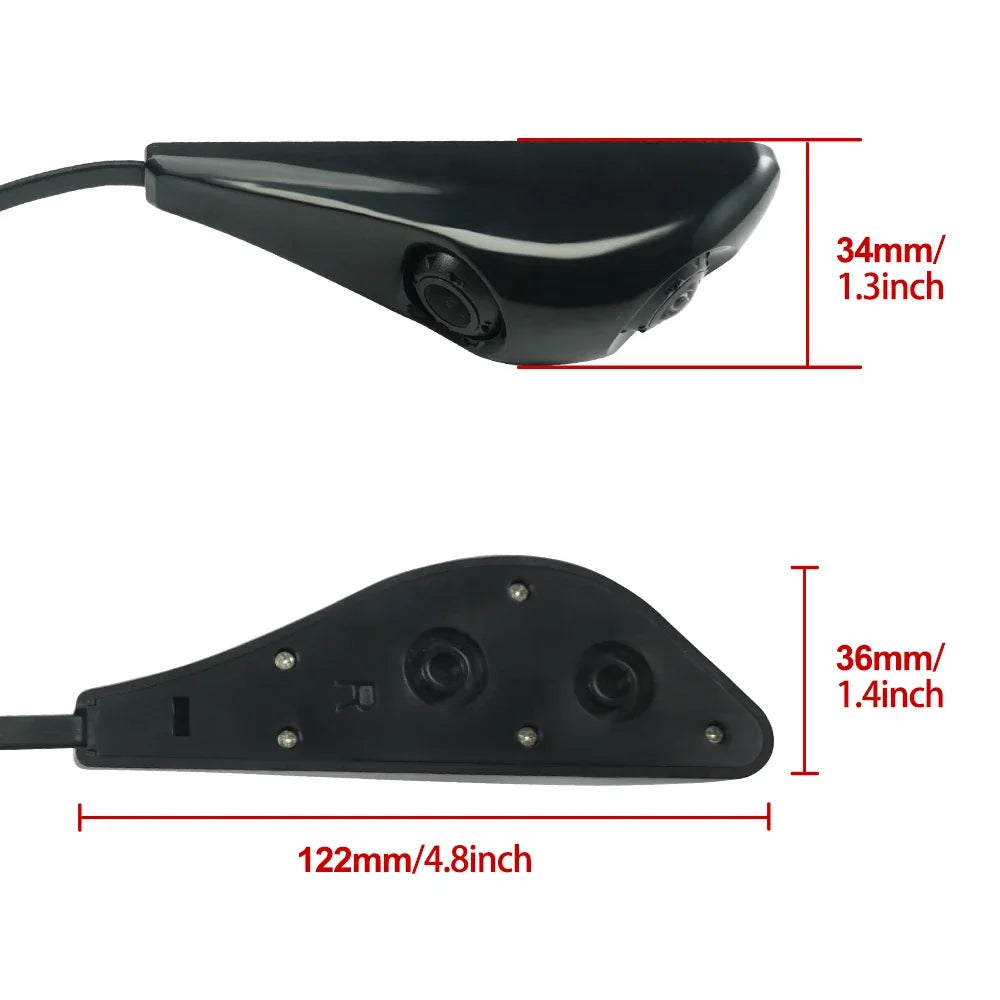

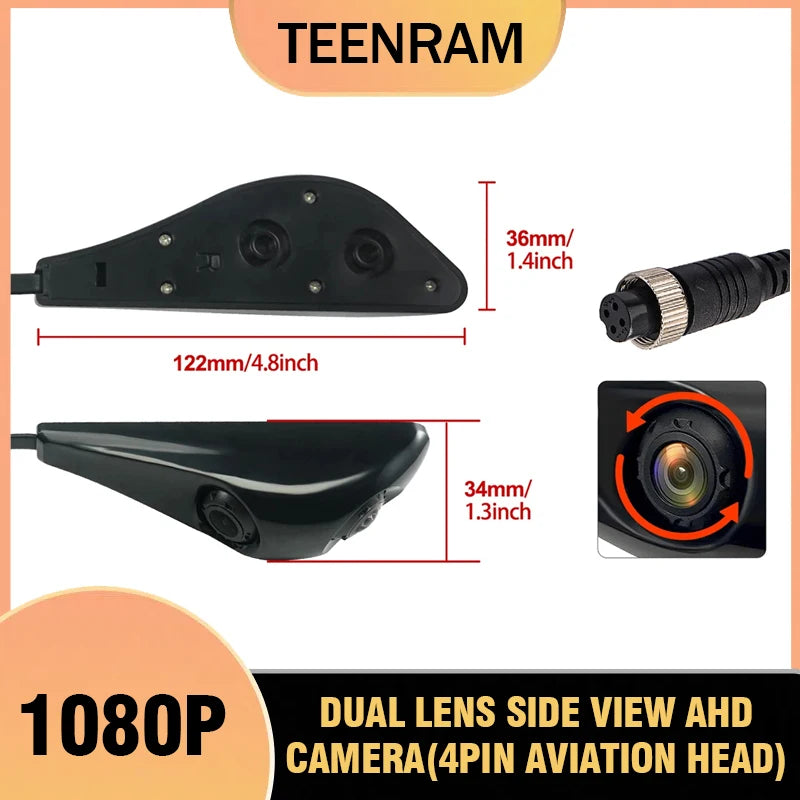

3.Body size

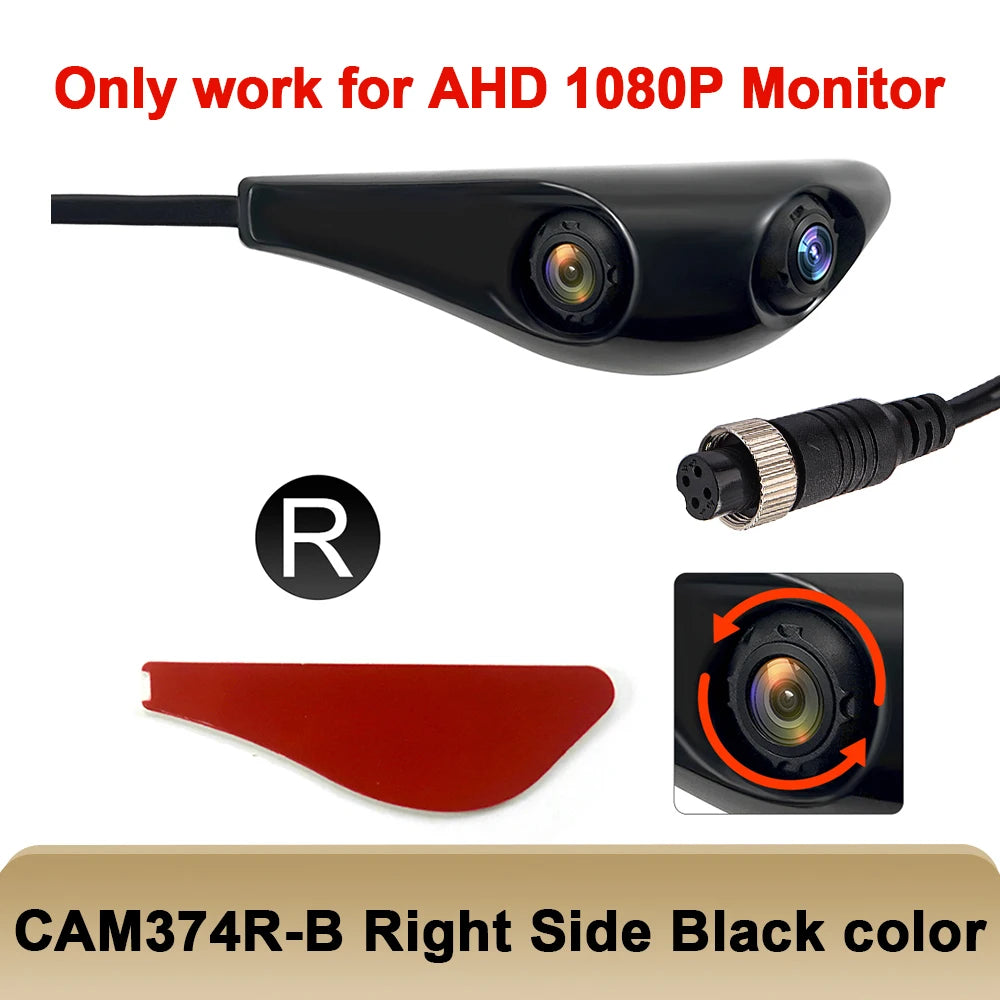

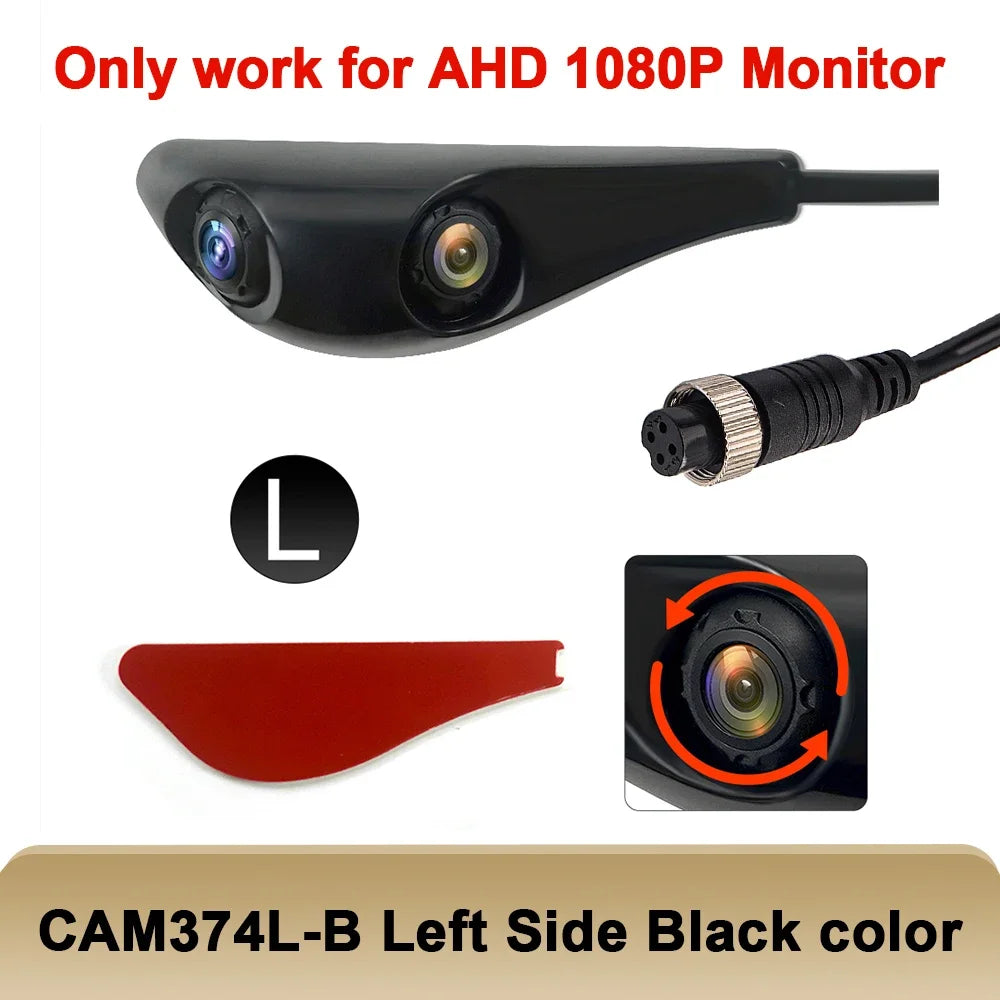

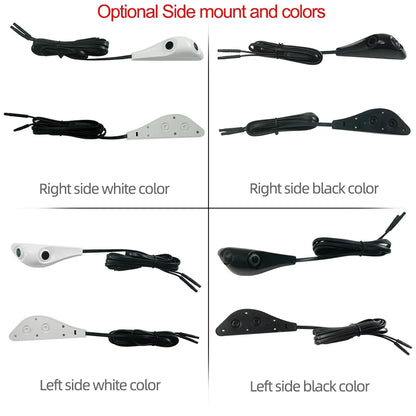

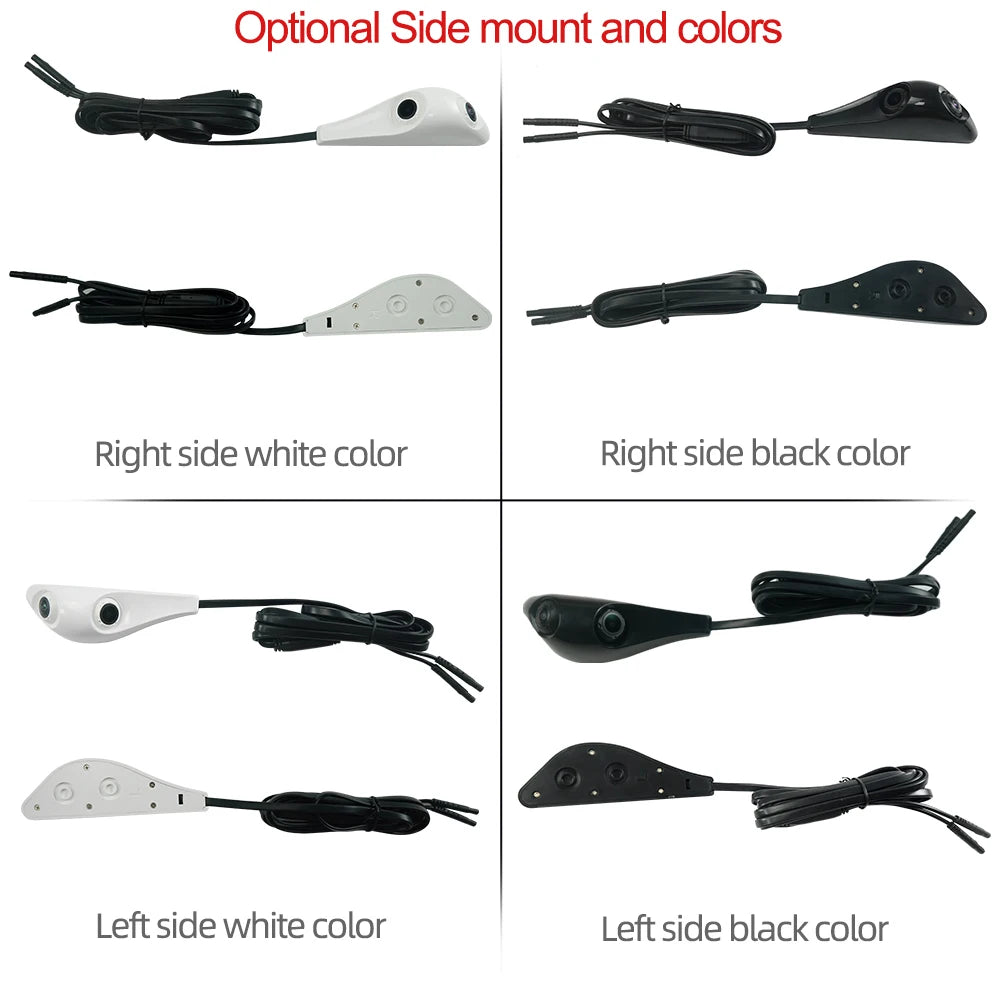

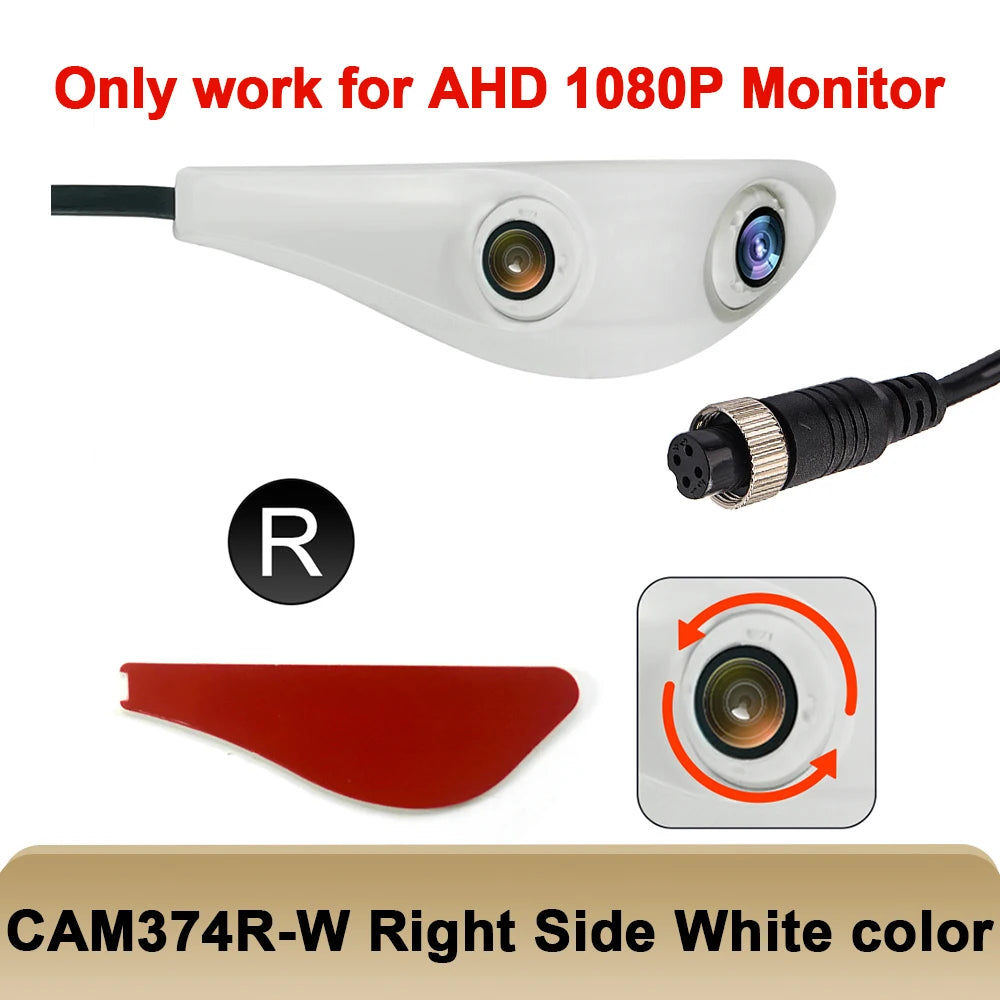

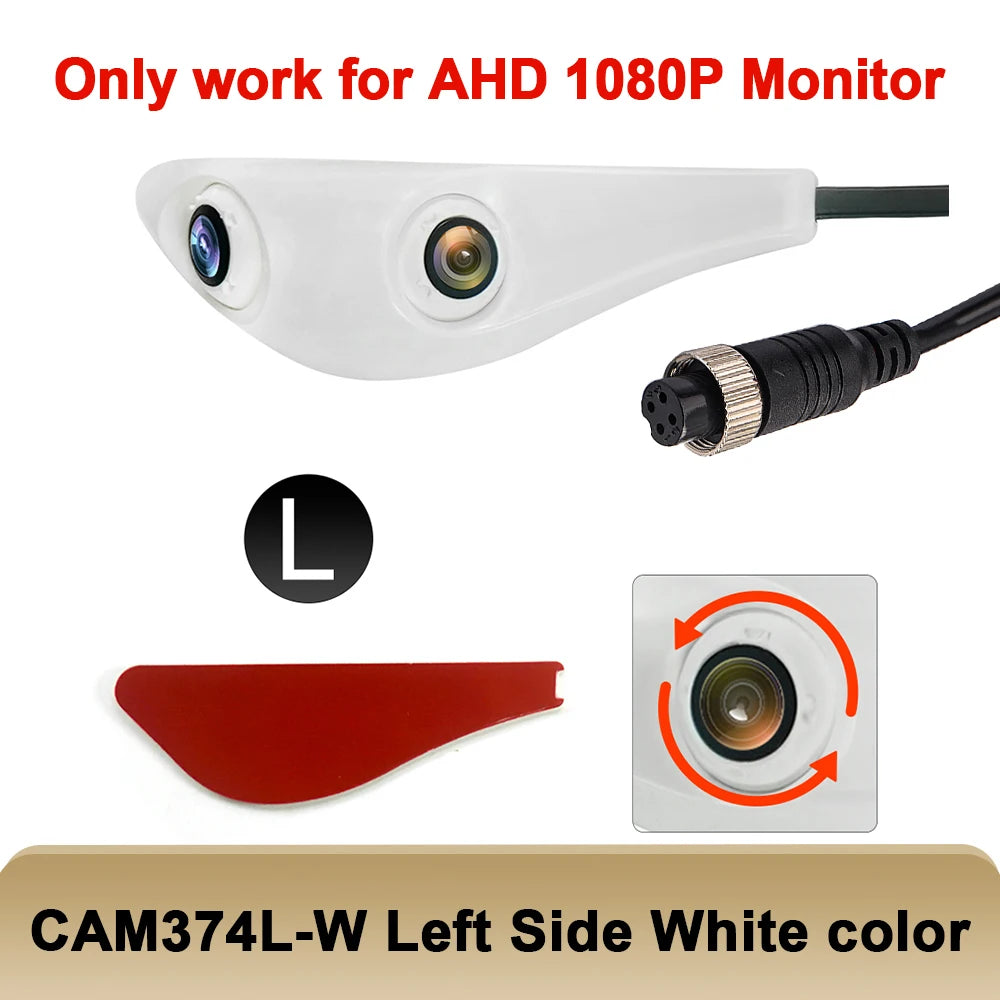

4.Optional mounting side and colors

We offer white and black piano lacquer appearances, as well as left and right installation positions to choose from. Please purchase the corresponding products according to your needs. If you need customization (such as pixels, interfaces, cables, etc.), please contact us.

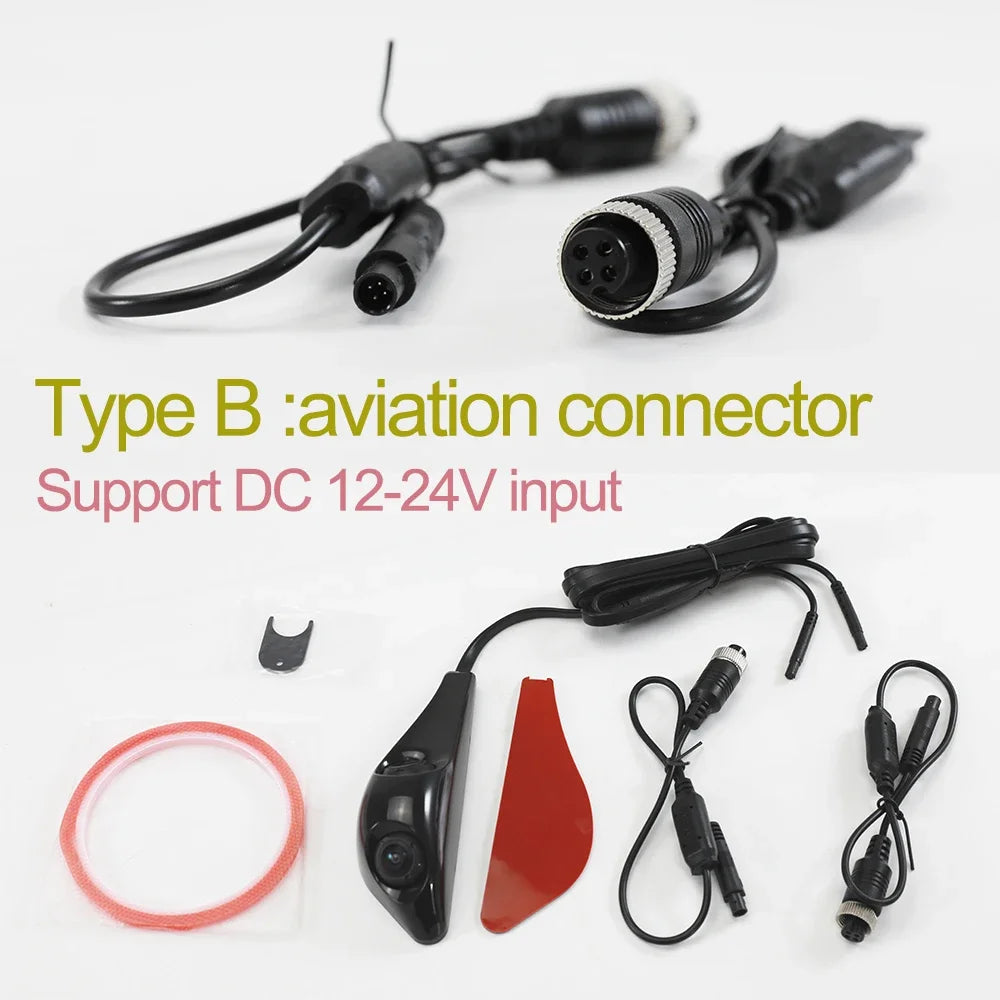

5.Full set photo

We have 2 types of video output connectors for customers to choose from. Please check your monitor connector before purchasing. If the video input connector of your monitor is an 4PIN aviation connector, please purchase it through this link. If the video input connector of your monitor is an RCA connector, please purchase another link
