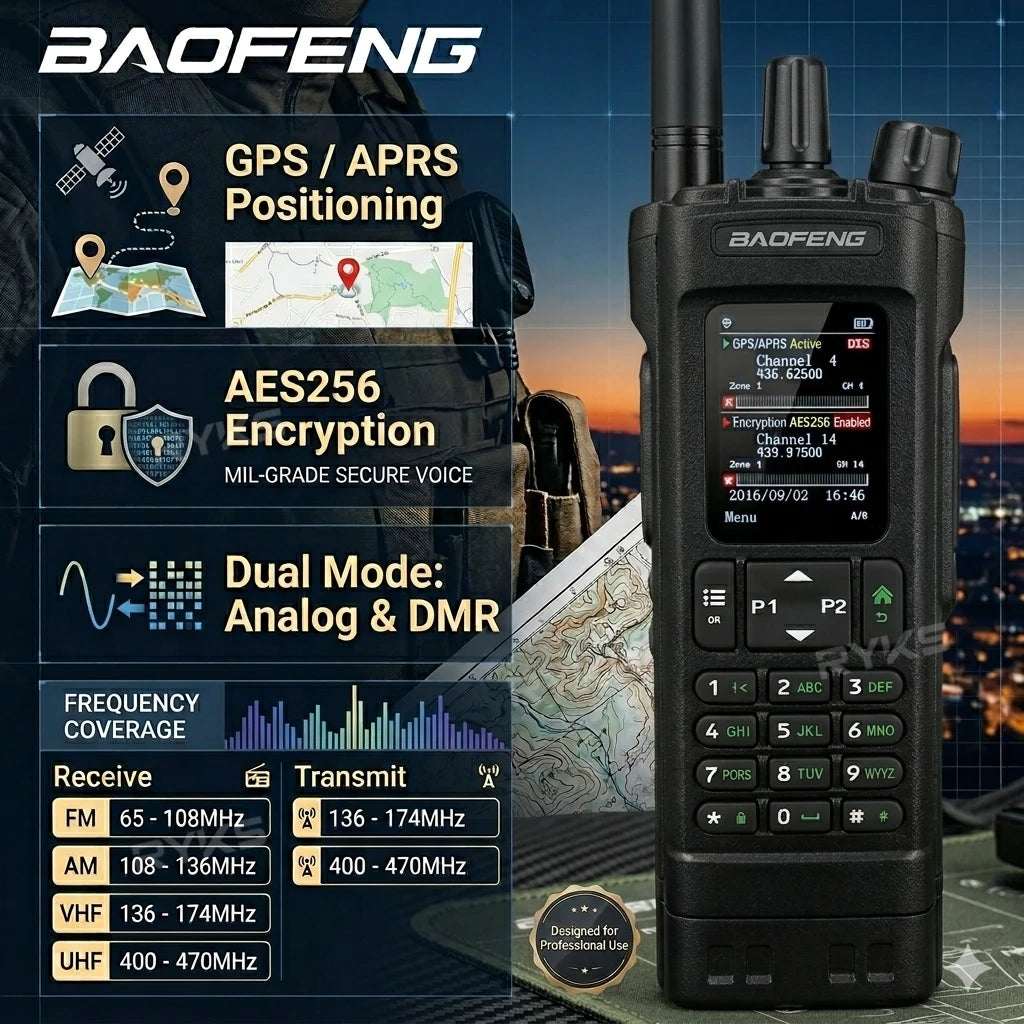

★【Dual Mode: Analog & DMR】
● Compatible with both analog and digital communication modes, perfectly adapting to various outdoor and commercial walkie - talkie scenarios.

★【AES256 Encryption】
● Utilizes the advanced AES256 encryption algorithm to effectively prevent eavesdropping and safeguard your communication privacy.

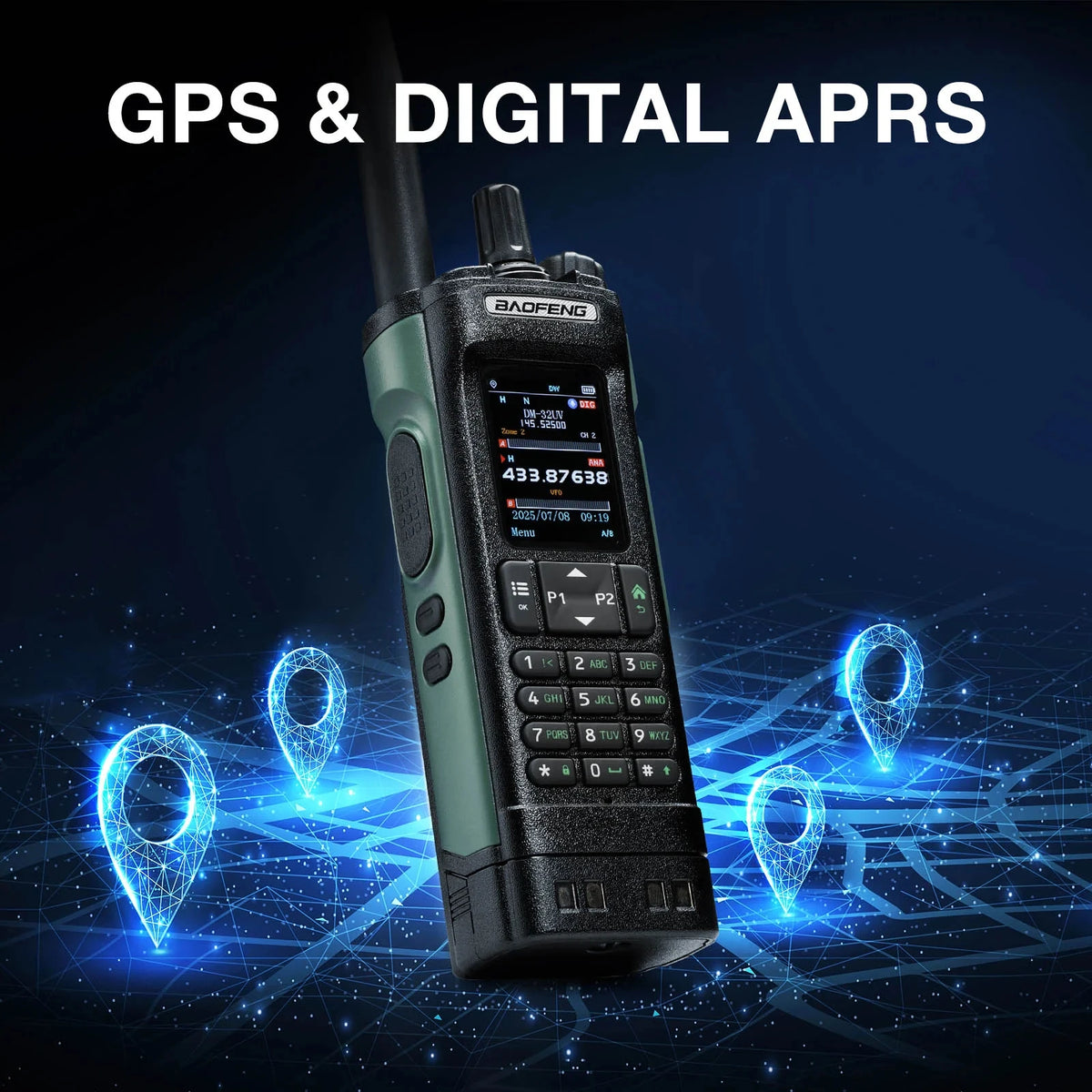

★【GPS / APRS Positioning】
● Built - in GPS and APRS positioning functions allow for precise, real - time location tracking and device monitoring.

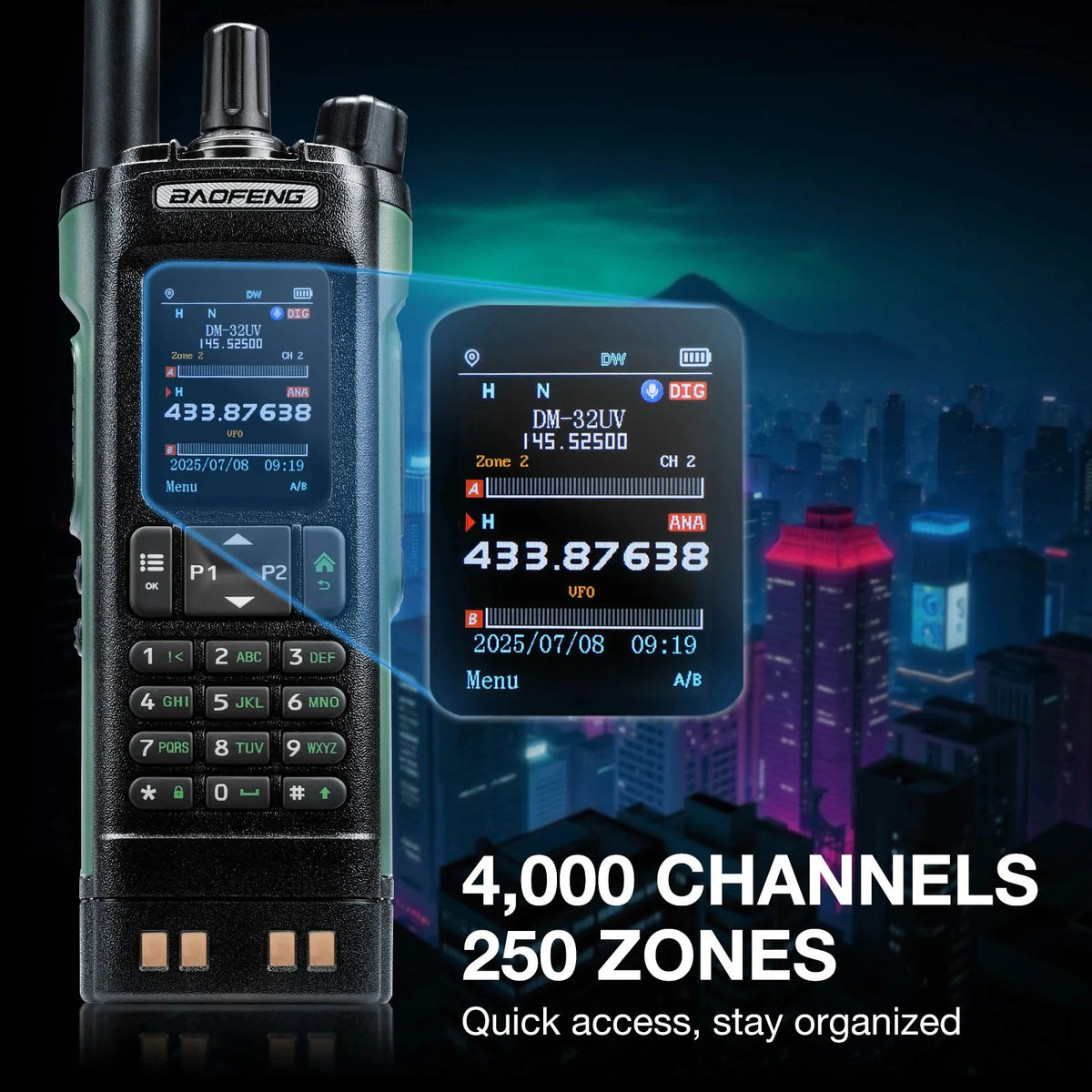

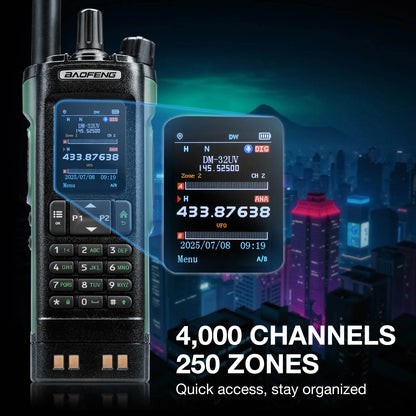

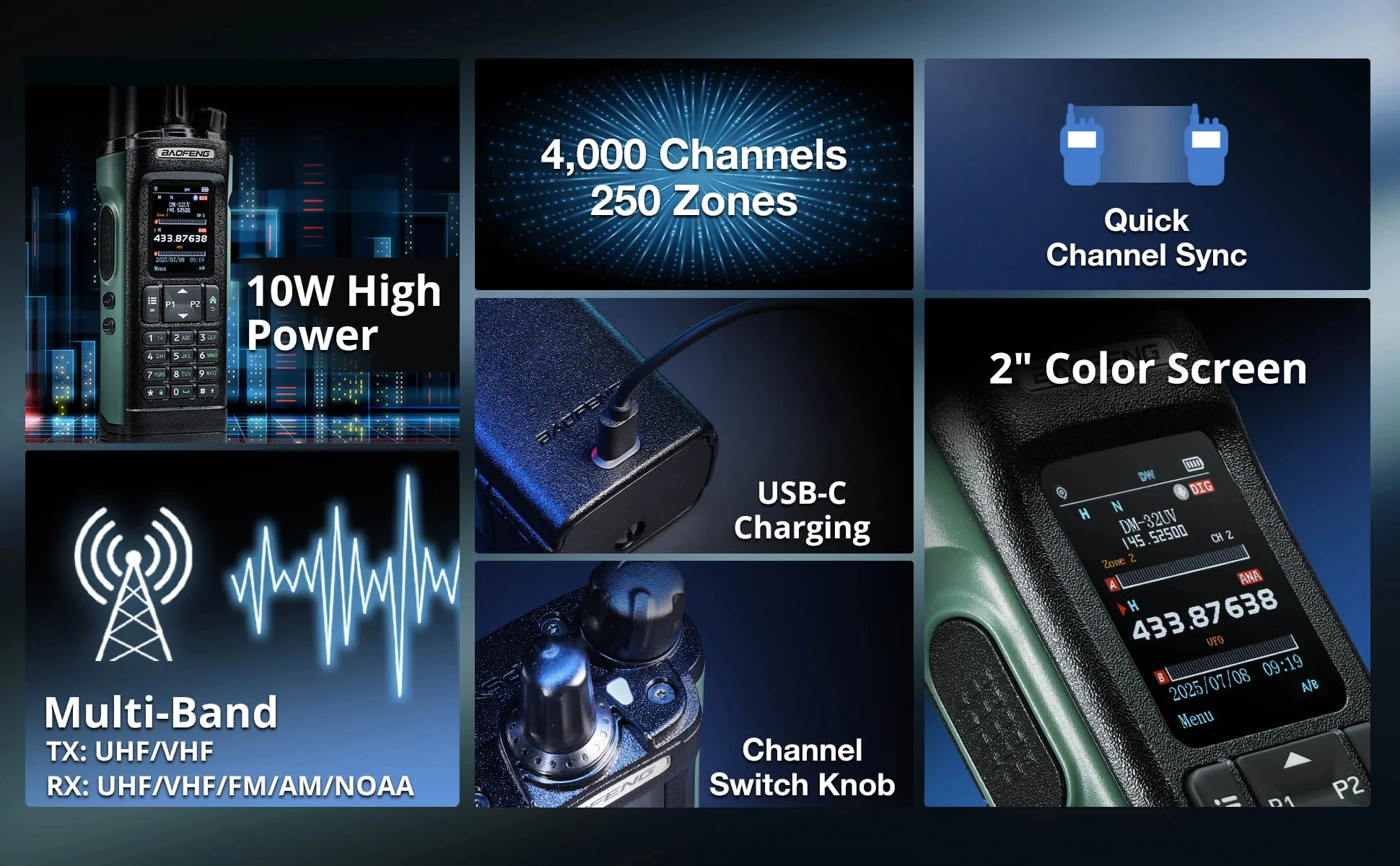

★【4000 Channel Capacity】
● Equipped with a massive capacity of 4,000 channels, ensuring ample frequency storage for multi - group dispatching.

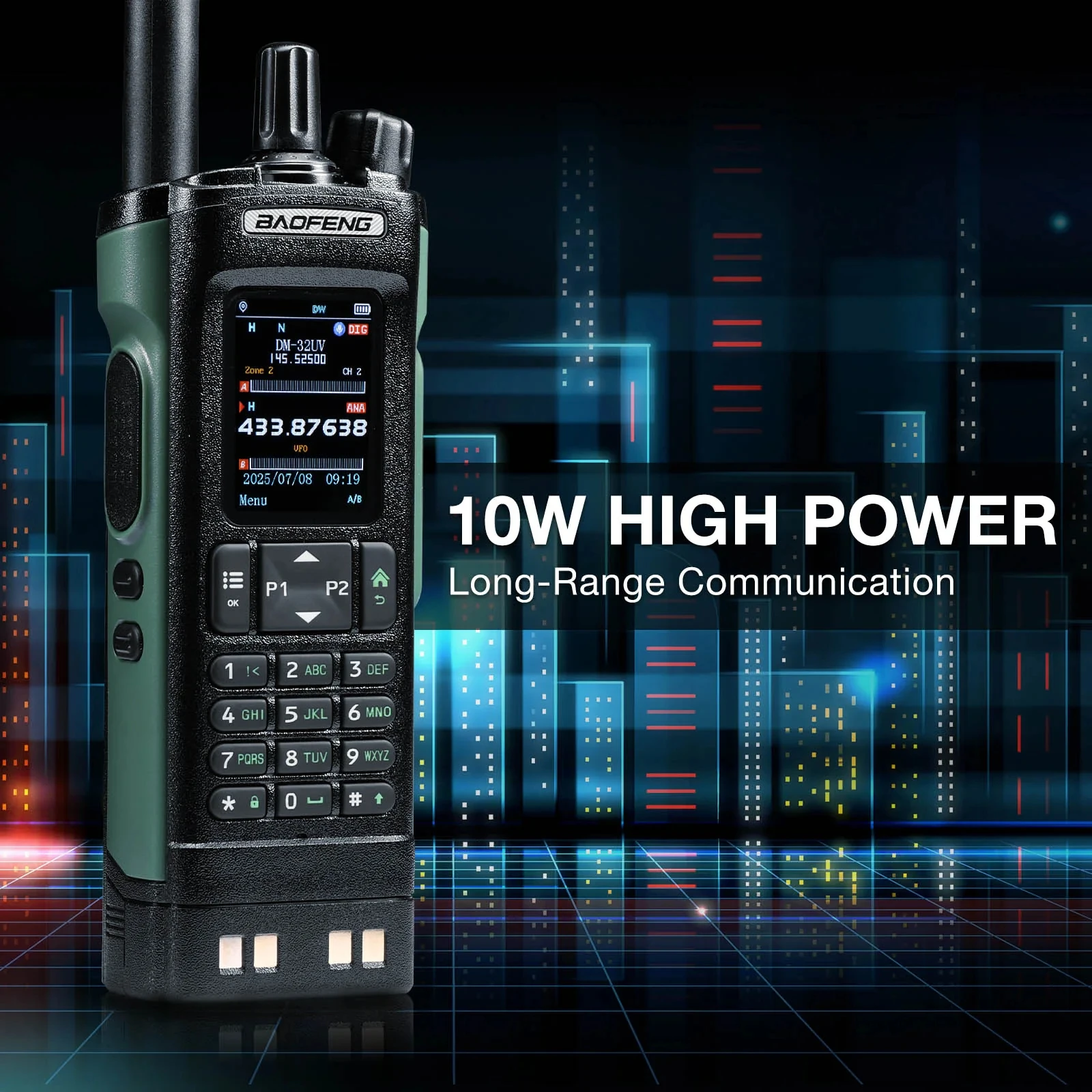

★【10W High Power Output】
● Features a 10W high - power transmission design for extended range, ensuring clear and stable long - distance communication.

★【2500mAh Battery】
● Packed with a 2500mAh high - capacity lithium battery, offering strong battery life to meet long - term standby and operational needs.

★【VOX Hands - Free Voice Control】
● Supports VOX voice - activated hands - free communication—talk instantly without pressing the PTT button to keep your hands free.

★【NOAA Weather Alerts】
● Comes with professional NOAA weather alerts to receive real - time weather broadcasts and emergency disaster warnings.
----------------
★【Features and Functions】

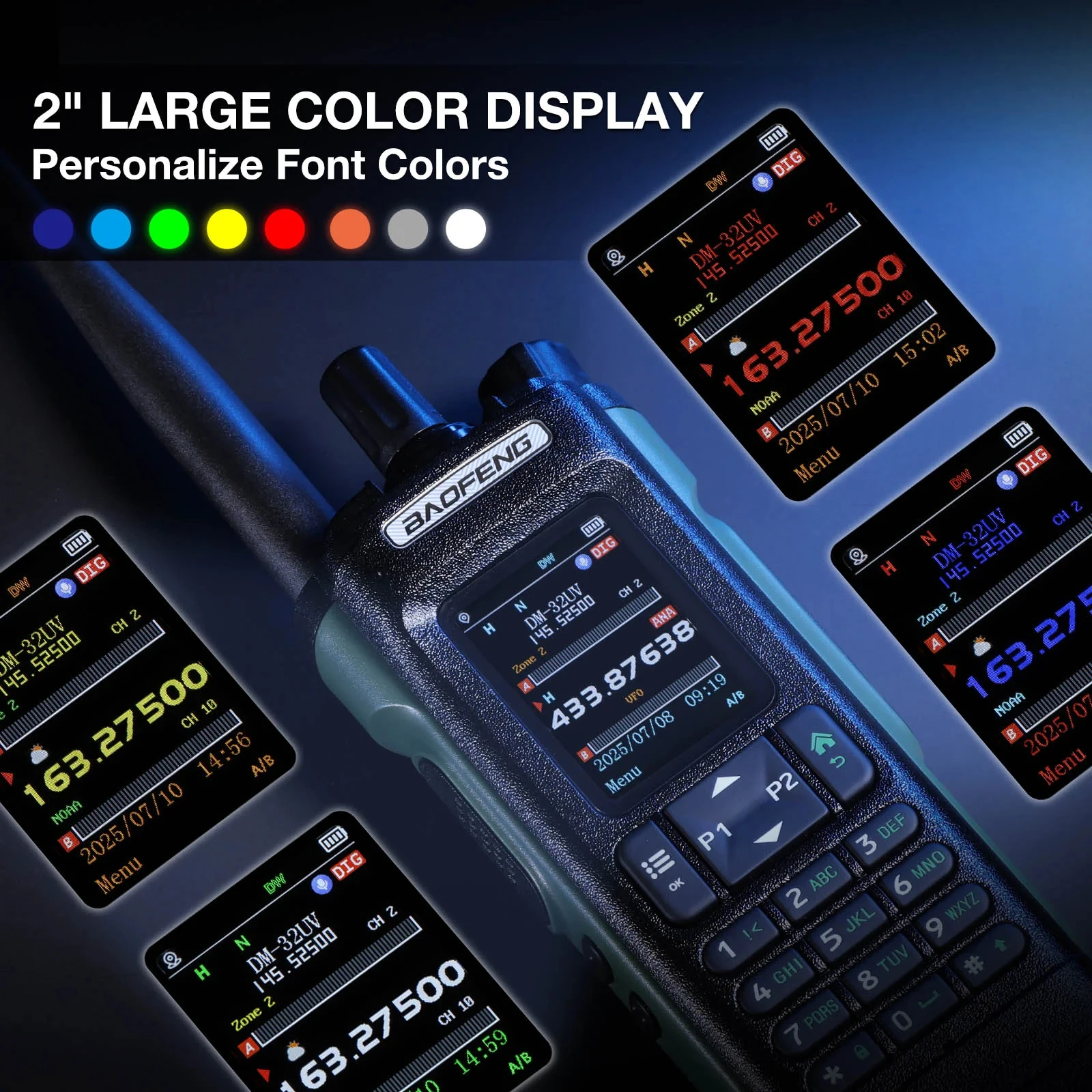

● 2.0" TFT large screen, full keyboard, fully open menu operation
● GPS positioning function
● 10 zones storage, Up to 1000 named memory channels.
● High/Middle/Low power selectable.
● Scanner function: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, scan channel addition and removal
● Built - in input method, allows this device to edit channel name
● NOAA Weather Radio Channel Reception in the United States and Canada (*North American countries and territories only)
● Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K

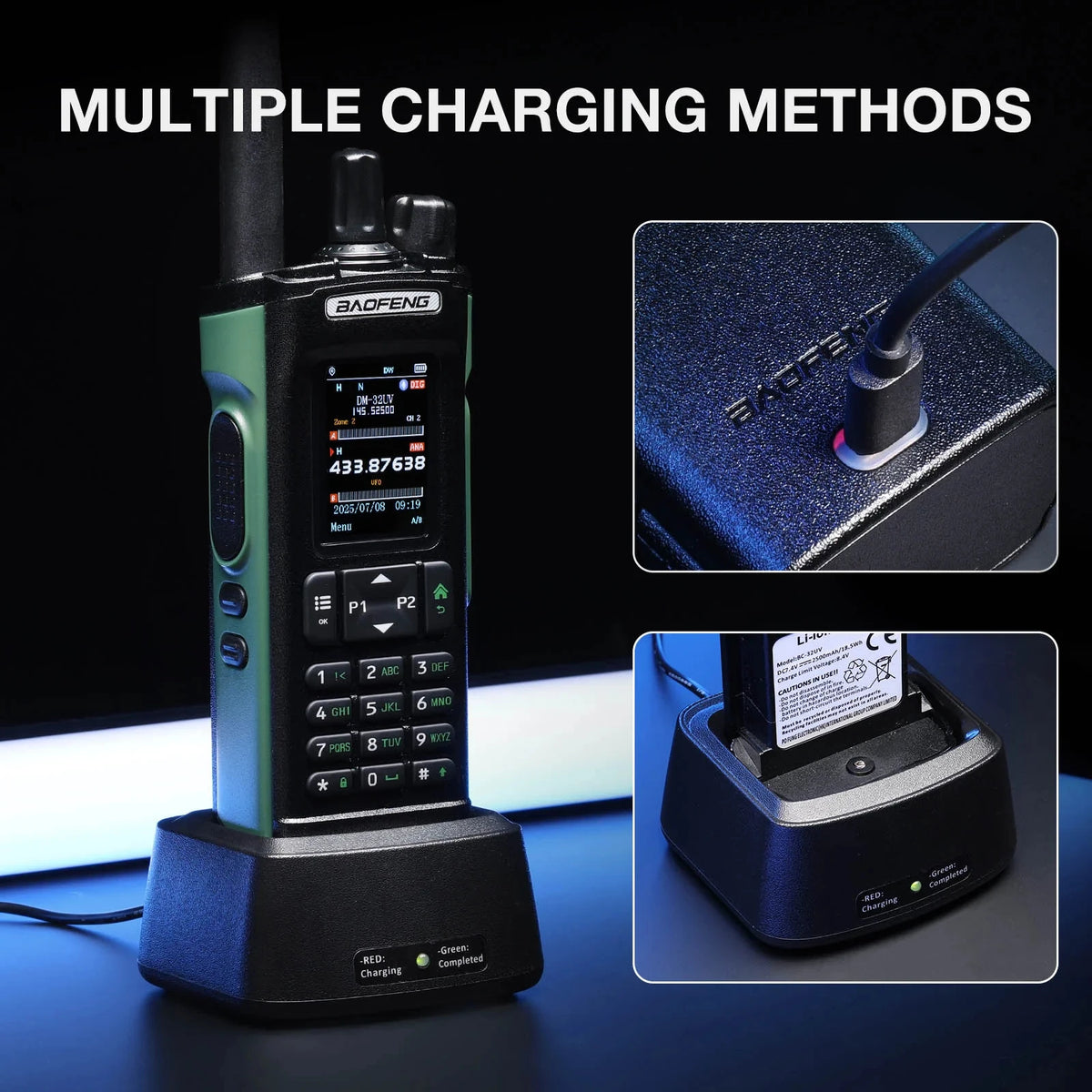

● Type - C direct charging and charging stand, more convenient battery life
● Dual - band handheld transceiver.
● VOX (voice activated transmit).
● High Capacity Lithium - Ion battery.
● Broadcast FM radio receiver 78 - 108 MHz
● Alarm function.
● Display illumination programmable via keypad
● Function beep on the keyboard.
● Dual watch / Dual reception.
● One touch search frequency
● Two (2) pins for Kenwood accessory port
----------------
### ★【General】
● Product Model DM - 32UV
● Channel Capacity 4000

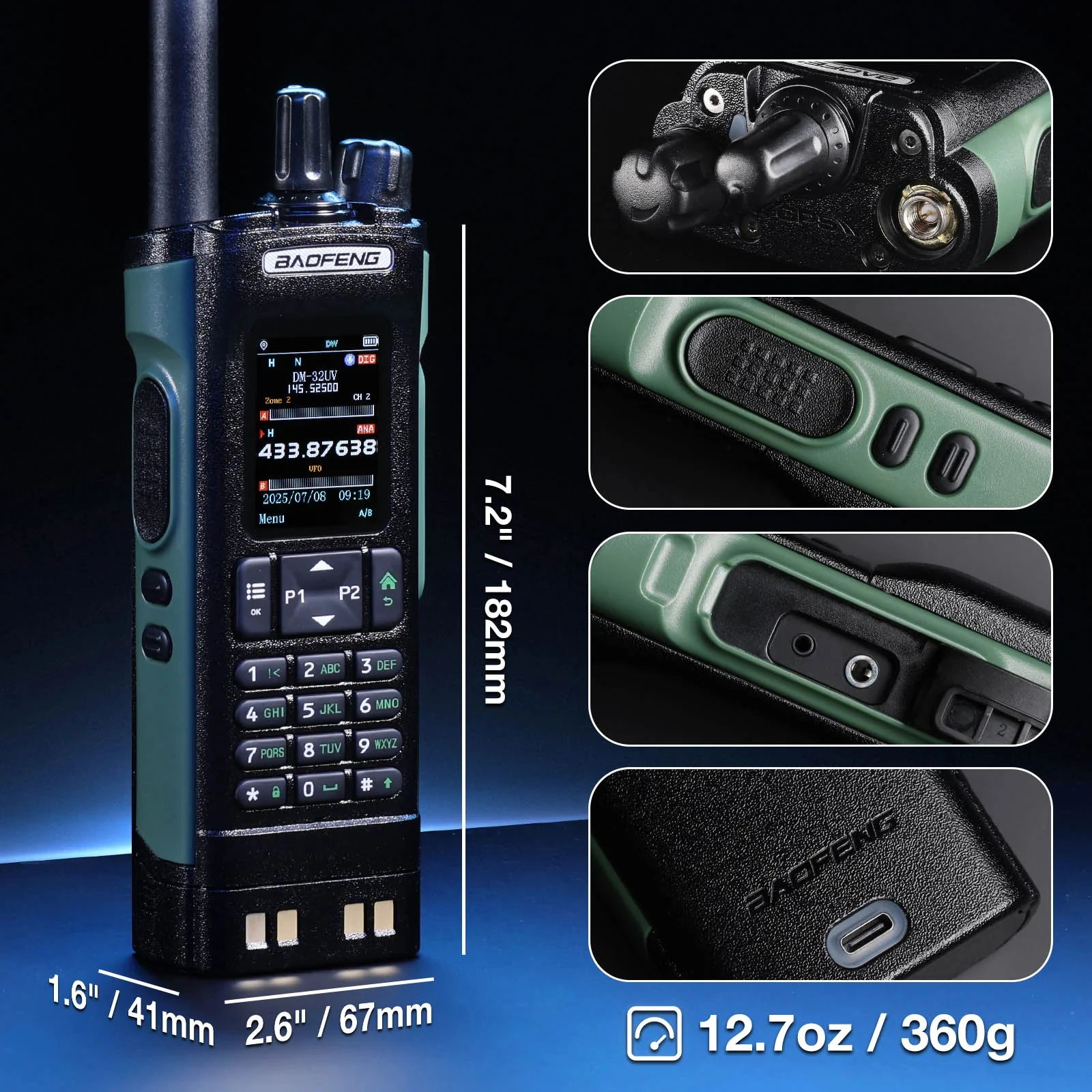

● Dimensions (H*W*L) 182*67*41mm (with battery pack)
● Weight (with antenna & battery) 350g
● Storage Temperature - 10°C ~ +80°C
● Operating Temperature - 10°C ~ +60°C
● Receive Frequency Range & Transmit Frequency Range

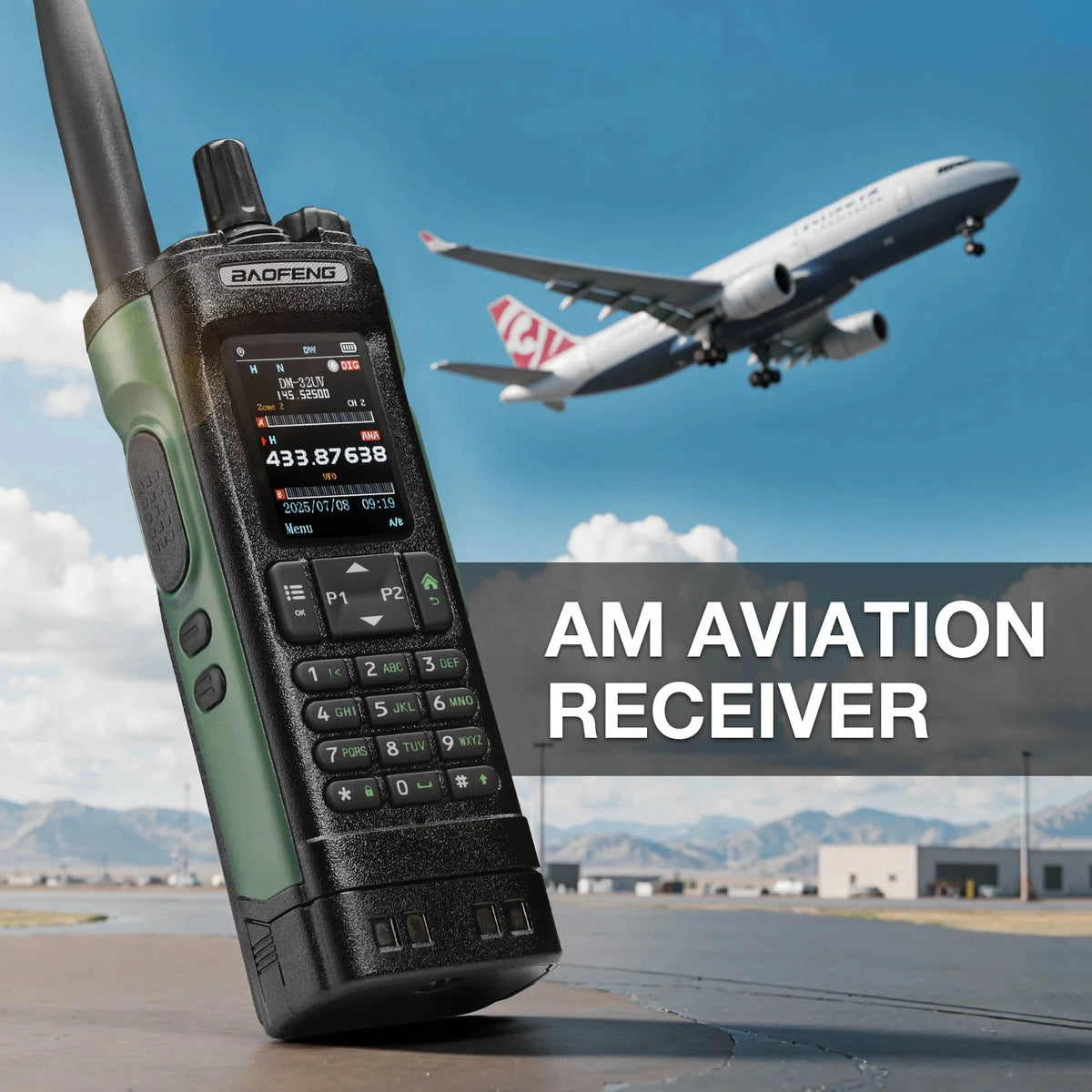

- Receive: FM65 - 108MHz/AM108 - 136MHz/VHF136 - 174MHz/UHF400 - 470MHz
- Transmit: 136 - 174MHz/400 - 470MHz
● Zone Capacity 250
● Operating Voltage 7.4V
● Battery Capacity 2500mAh (Li - Ion)
● DMR Contacts 800/50000 (.CVS)
● Frequency Stability ±2.5ppm
● Channel Spacing 25KHz/12.5KHz
● Battery Life (5 - 5 - 90 Duty Cycle) 20H (Middle Power)
----------------
### ★【Transmitter】
● Adjacent Channel Power 60dB&12.5KHz, 70dB&25KHz
● Low RF Power Output ≤ 2W
● FM Modulation 11K0F3E&12.5KHz, 6K0F3E&25KHz
● Digital Vocoder Type AMBE+2 ™
● FM Hum & Noise 40dB&12.5KHz, 45dB&25KHz
● High RF Power Output 8W
● Modulation Limiting ±2.5KHz&12.5KHz, ±0.5KHz&25KHz
● Audio Response +1 ~ - 3dB
● Digital Protocol ETSI - TS102 361 - 1,-2,-3
● Audio Distortion ≤ 3%
● 4FSK Digital Modulation:
- 12.5KHz Data Only: 7K60FXD
- 12.5KHz Data & Voice: 7K60FXW
● Conducted/Radiated Emission - 20dBm < 1GHz, - 20dBm > 1GHz
----------------
### ★【Receiver】
● Analog Receiver Sensitivity 0.22μV (Typical) (12dB SIN AD)
● Hum & Noise 45dB & 12.5KHz, 40dB & 25KHz
● Digital Sensitivity 0.22μV / BER 5%
● First fix time, cold start < 1 minute
● Rated Audio Distortion < 5%
● Conducted Spurious Emission - 57dBm < 1GHz, - 47dBm > 1GHz
● Audio Response +1 ~ - 3dB
● First fix time, hot start < 10 seconds
● Spurious Response Rejection 70dB
● Satellite system support GPS, Beidou, GPS + Beidou
● Inter - Modulation 65dB & 12.5KHz / 25KHz
● Horizontal accuracy < 10 meters
● Adjacent Channel Selectivity 70dB / 60dB
● Rated Audio Power Output 1.5W & 16Ω
----------------

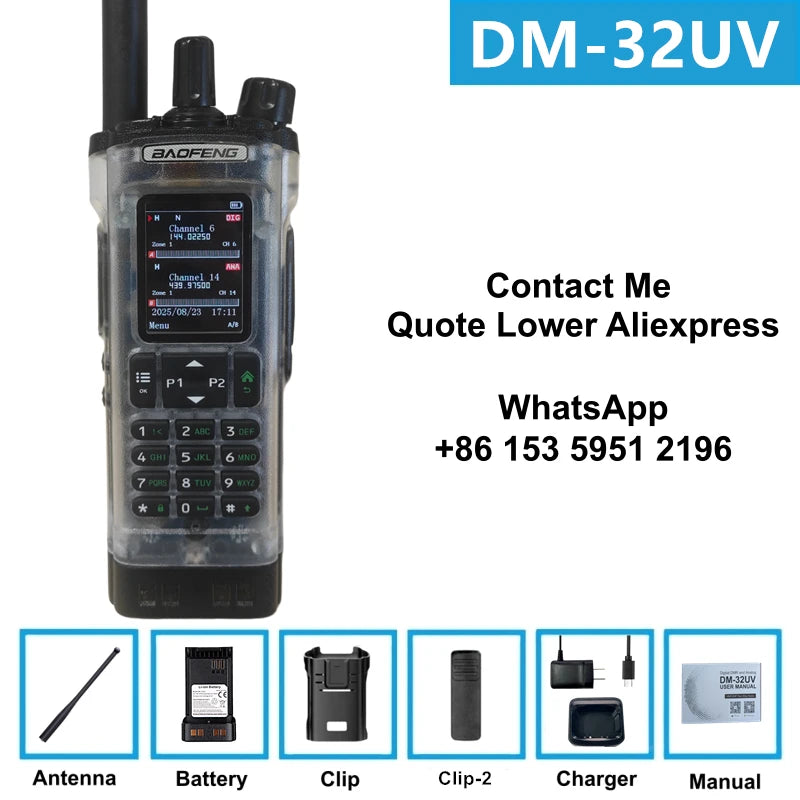

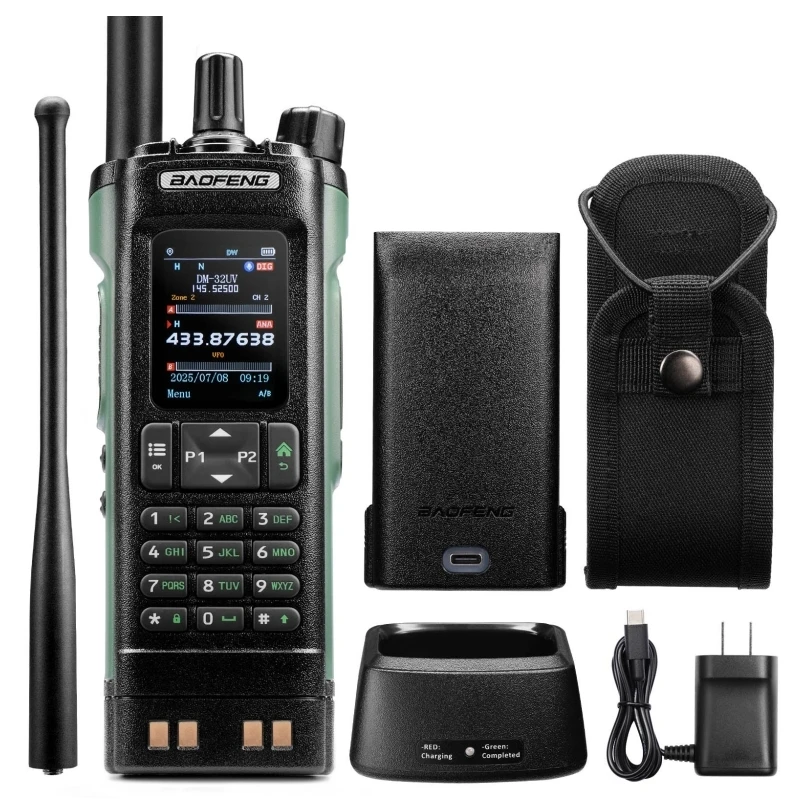

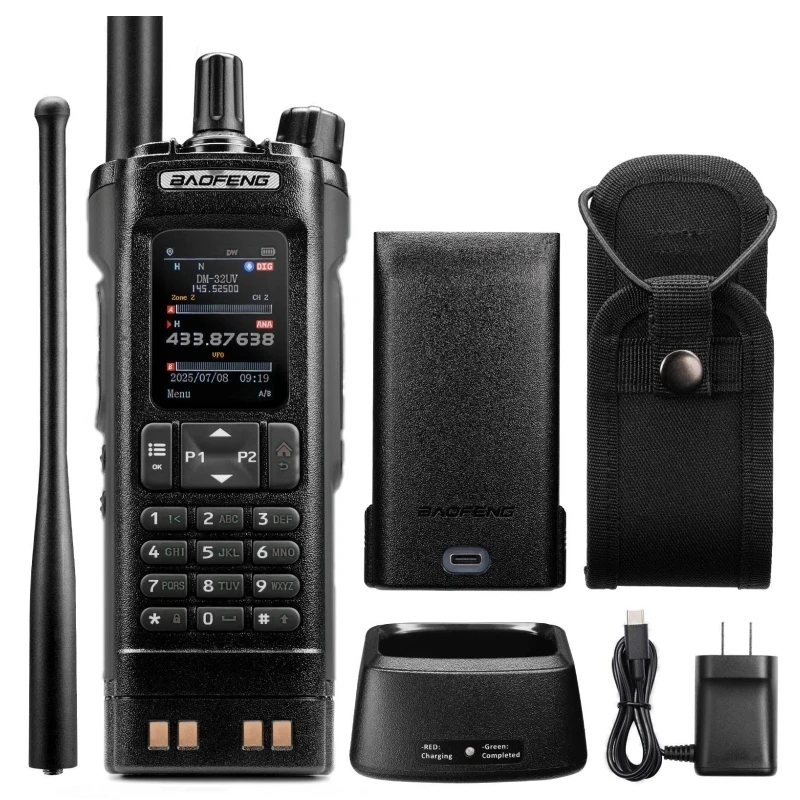

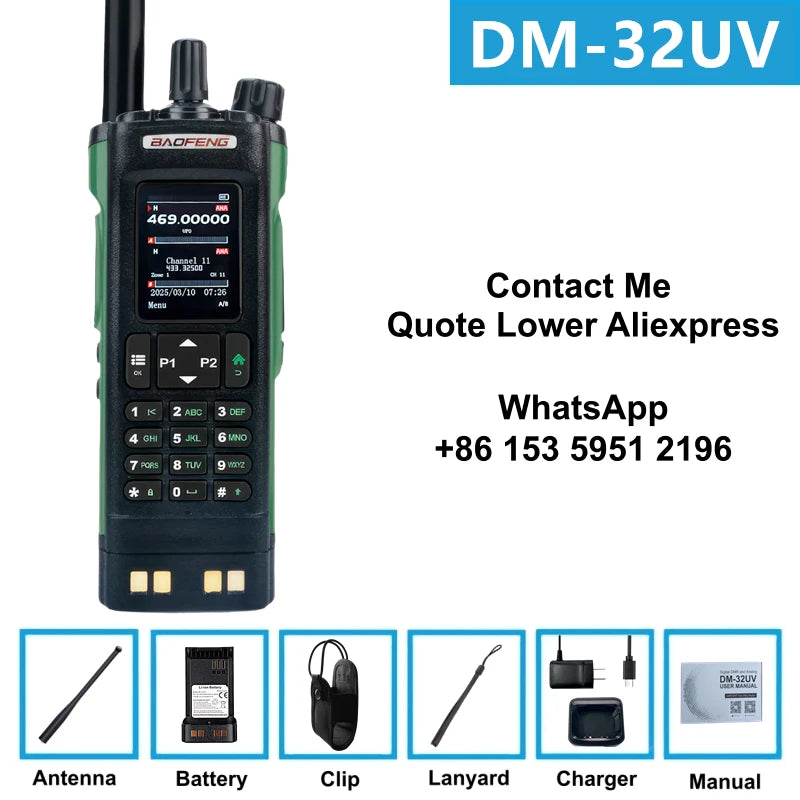

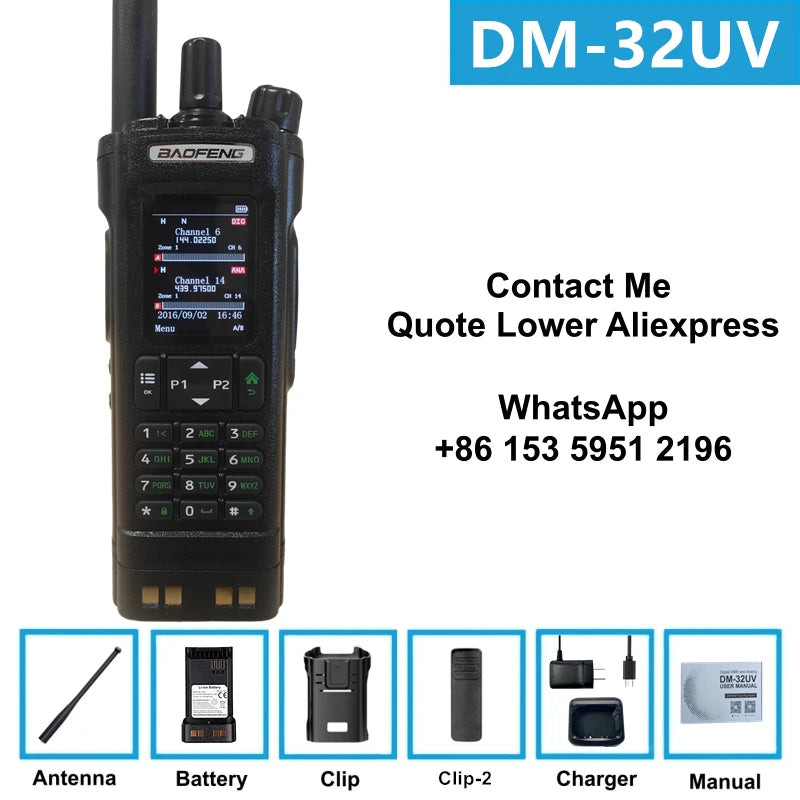

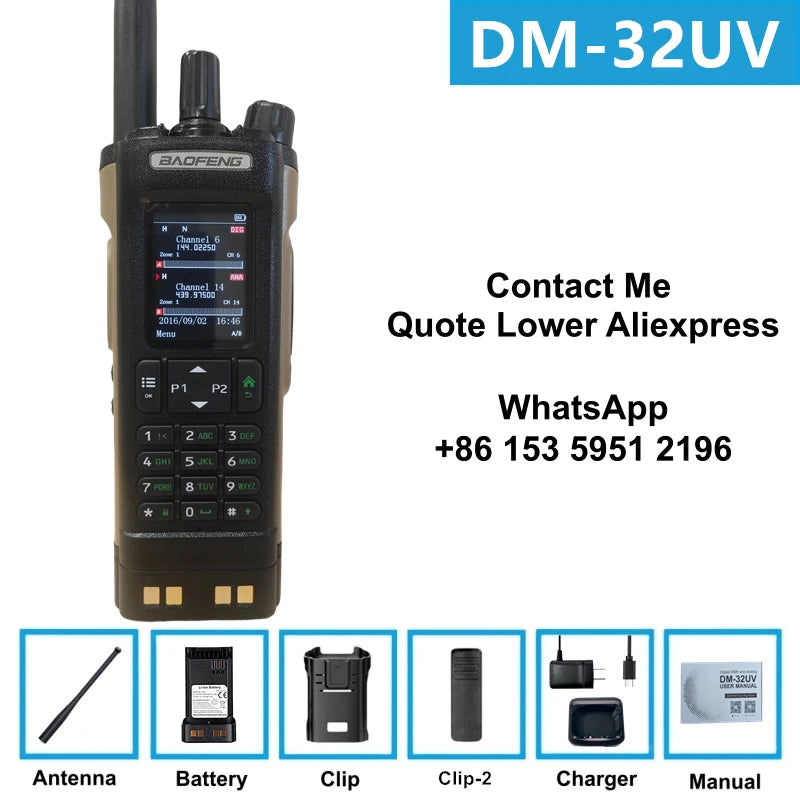

### ★【Package Include】
● 1X Portable radio
● 1X Antenna
● 1X Li - ion battery pack
● 1X Carry Bag
● 1X The sling
● 1X Type - C cable
● 1X User's manual
(And other accessory depend on your choice in the link)
