SPECIFICATIONS

Brand Name: NONE

Certificate: CE/FCC/CSA/RoHS/ETL

Charging Mode: Single phase/Three phase

Condition: New

High-concerned chemical: none

IP Rating: IP67(Waterproof and Dustproof)

Input Voltage: 110V-400V

Interface Standard: SAE J1772/IEC 62196-2/GB/T

OEM Service: Color,Logo,Package

Operating Temperature: -30℃ ~+70℃

Optional: APP/RFID/OCPP/DLB

Origin: Mainland China

Output Current: AC-32A

Output Power: 22 kW

Package Dimension: 680*250*140mm

Place of Origin: China

Purpose: Home Use/Commercial Use

RCD type: TypeA AC 30mA + DC 6mA

Shipping Time: 7-45 days

Touchscreen: Yes

Wireless Support: Bluetooth

Dear friends, welcome to my store. If you need other models of this product, please contact me and I will send the product link for you to buy! Please forgive me if the reply is not timely due to time difference! Welcome to add my Whatsapp: +86 19376877470. Our store operates in good faith, please feel free to place an order！



PRODUCT HIGHLIGHTS

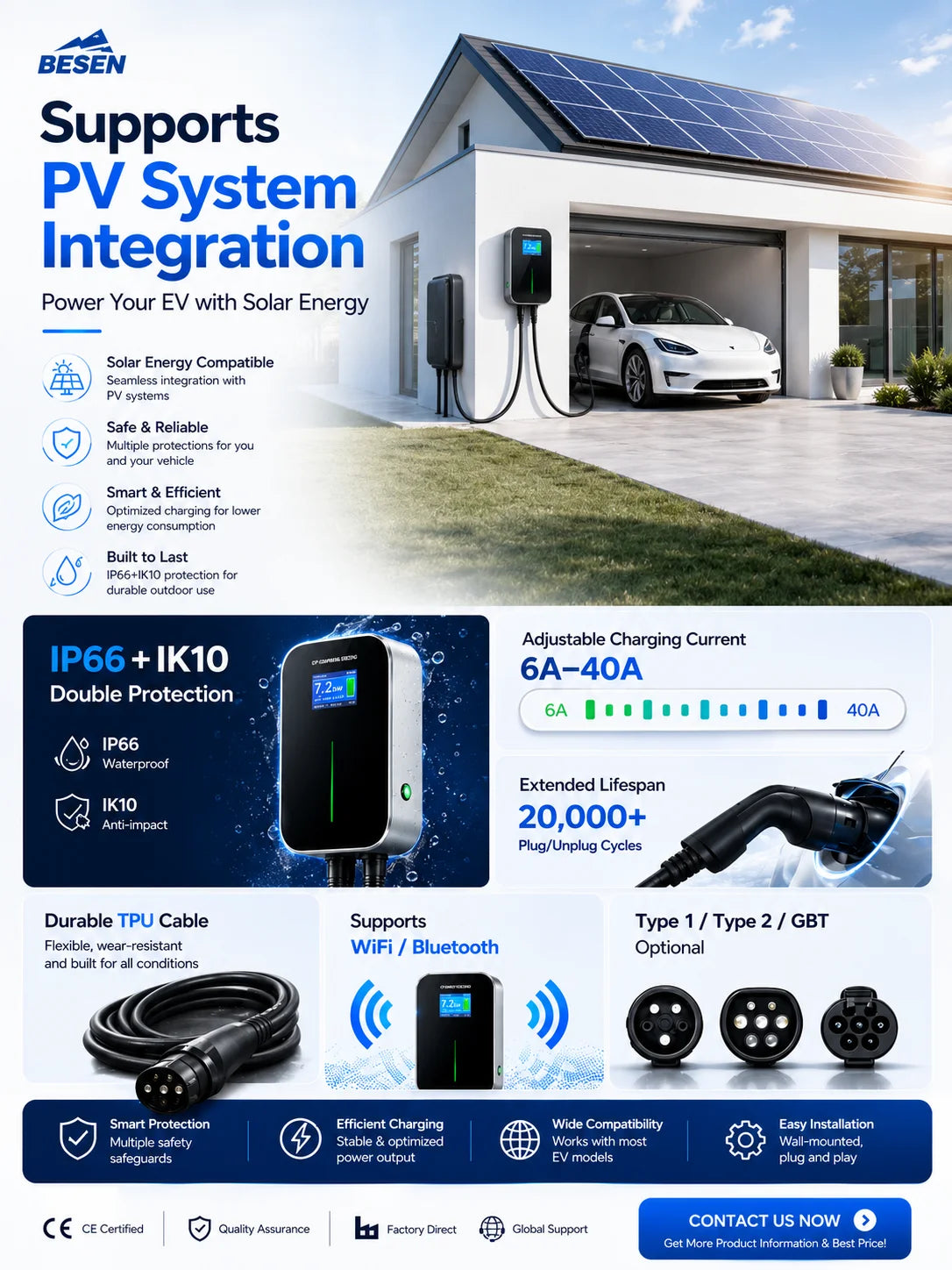

• BS20 BA supports adjustable power from 3.6kW to 22kW for stable and efficient charging.
• With interchangeable cables for Type 1, Type 2, and GBT, it ensures wide compatibility for different EV models worldwide.
• Certified by CE, FCC, CSA, RoHS, and ETL for full international safety and compliance.
• Get a Quote Now → Experience Safe & Efficient Charging!

PRODUCT DETAILS

Model	BS20-Mode A	BS20-Mode C
Optional Series	Basic,APP,RFID,OCPP,Load Balance
AC Power Output Rating	Max 22kW
AC Power Input Rating	AC 110V~400V
Current Output	Max 40A Single Phase/32A Three Phase
Required Service Panel Breaker	Dedicated Dual Pole rated for 125% of maximum load (ex: 40A breaker for 32A output)
Power Wiring	3 Wires–L1, PE, N / 5 Wires–L1, L2, L3, PE, N
Connector Type	TYPE 2(IEC 62196-2) GB/T	TYPE 1(SAE J1772) TYPE 2(IEC 62196-2) GB/T
Charging Cable	TPU	TPU 6.1m(20ft)
EMC Compliance	EN IEC 61851-21-2: 2021
Ground Fault Detection	20 mA CCID with auto retry
Ingress Protection	IP66,IK10

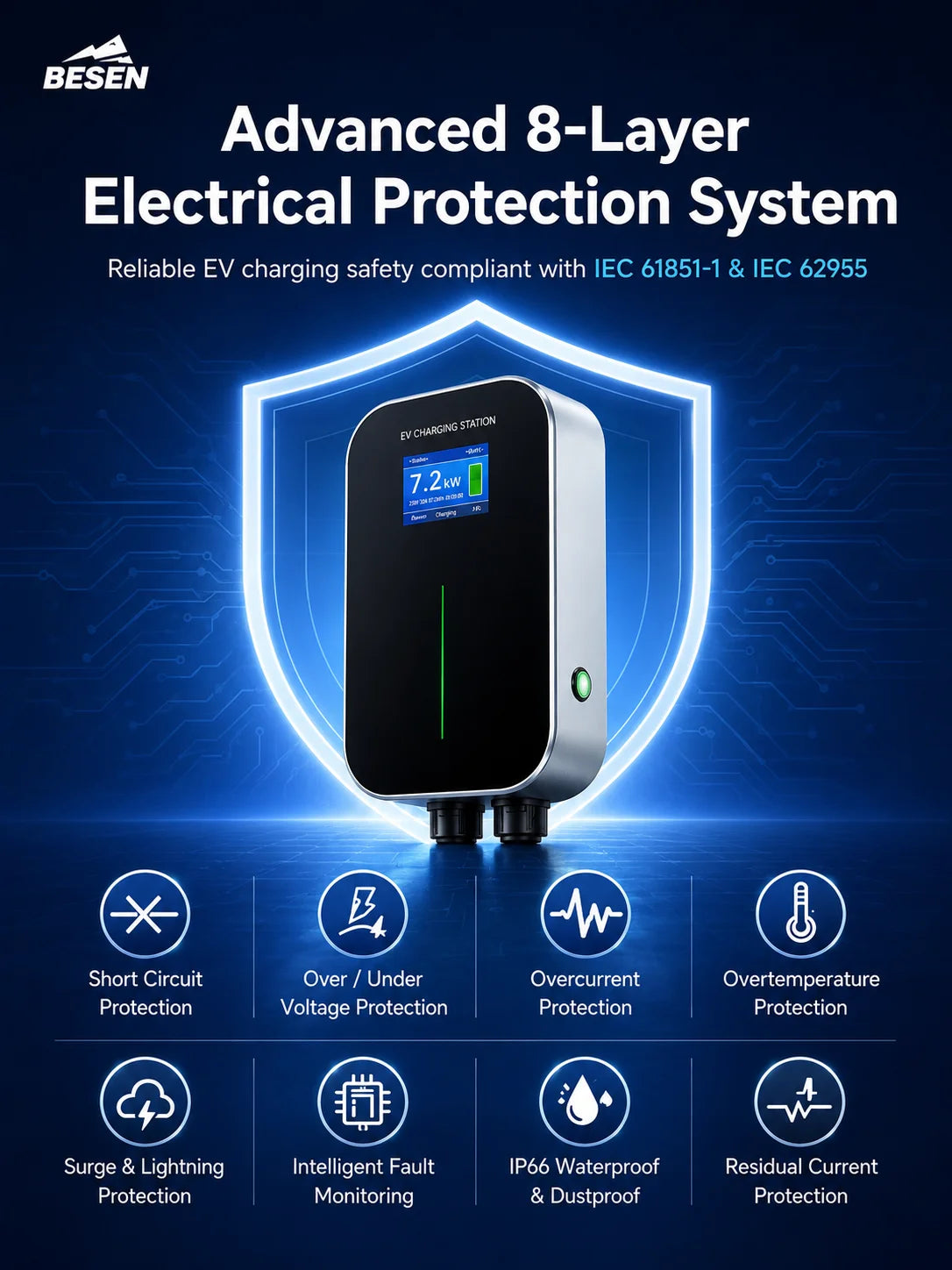

Electrical Protection	Over current protection Short circuit protection Under voltage protection Leakage protection Over temperature protection Lightning protection
RCD type	TypeA AC 30mA + DC 6mA
Operating Temperature	-25℃ ~+55℃
Operating Humidity	0-95% non-condensing
Certifications	CE/FCC/CSA/RoHS/ETL

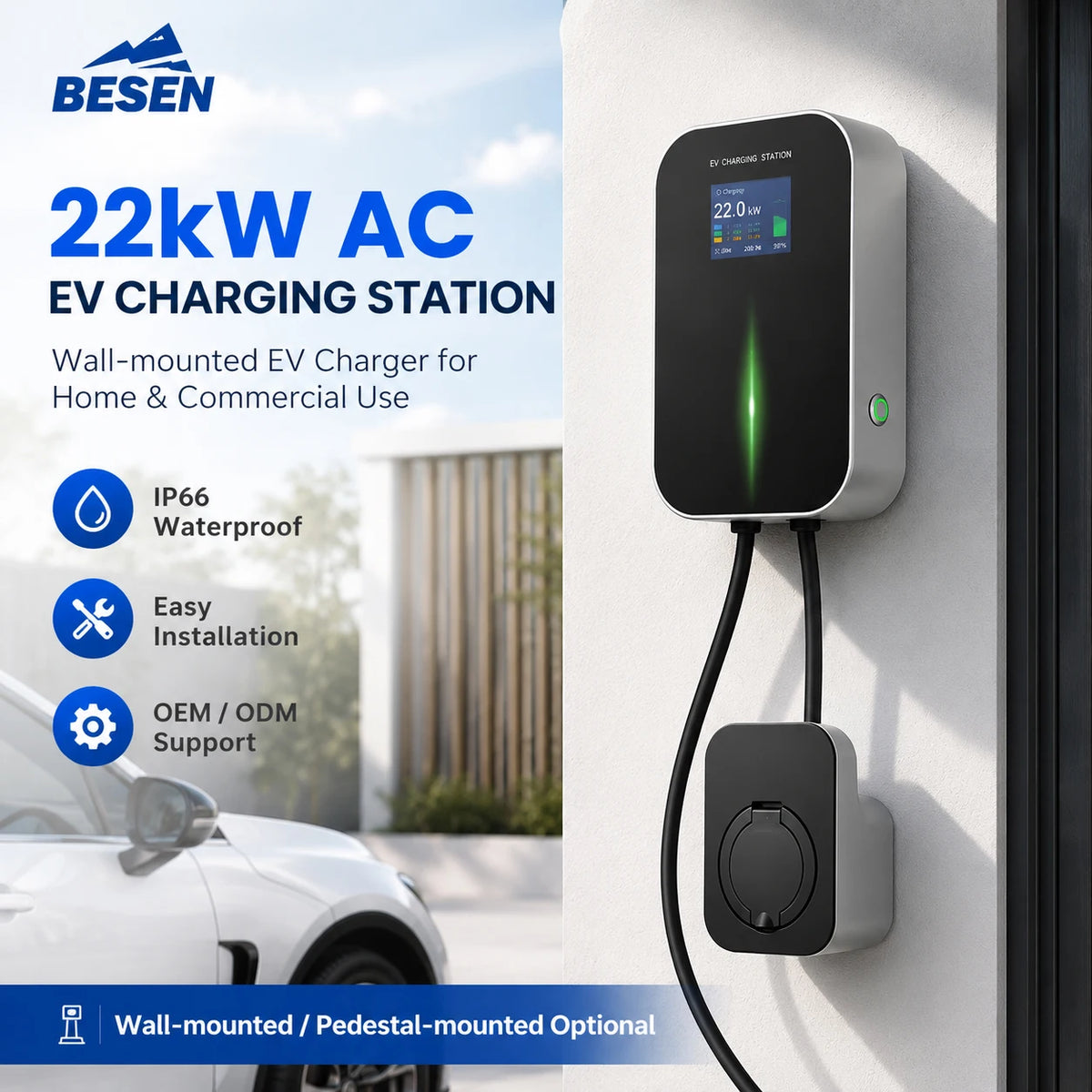

Mounting Method	Wall-Mounted/Floor-Mounted
Optional Series	Ethernet/WIFI/4G/Bluetooth
Timing and Delay	12H(Real-time display of charging status)
LCD Display	3.5-inch Color Display
LED Indicator Light	Yes
Button On/OFF	Yes
External Package	Customizable/Eco-Friendly Cartons
Package Dimension	680*250*140mm
Gross Weight	5KG~8.5KG

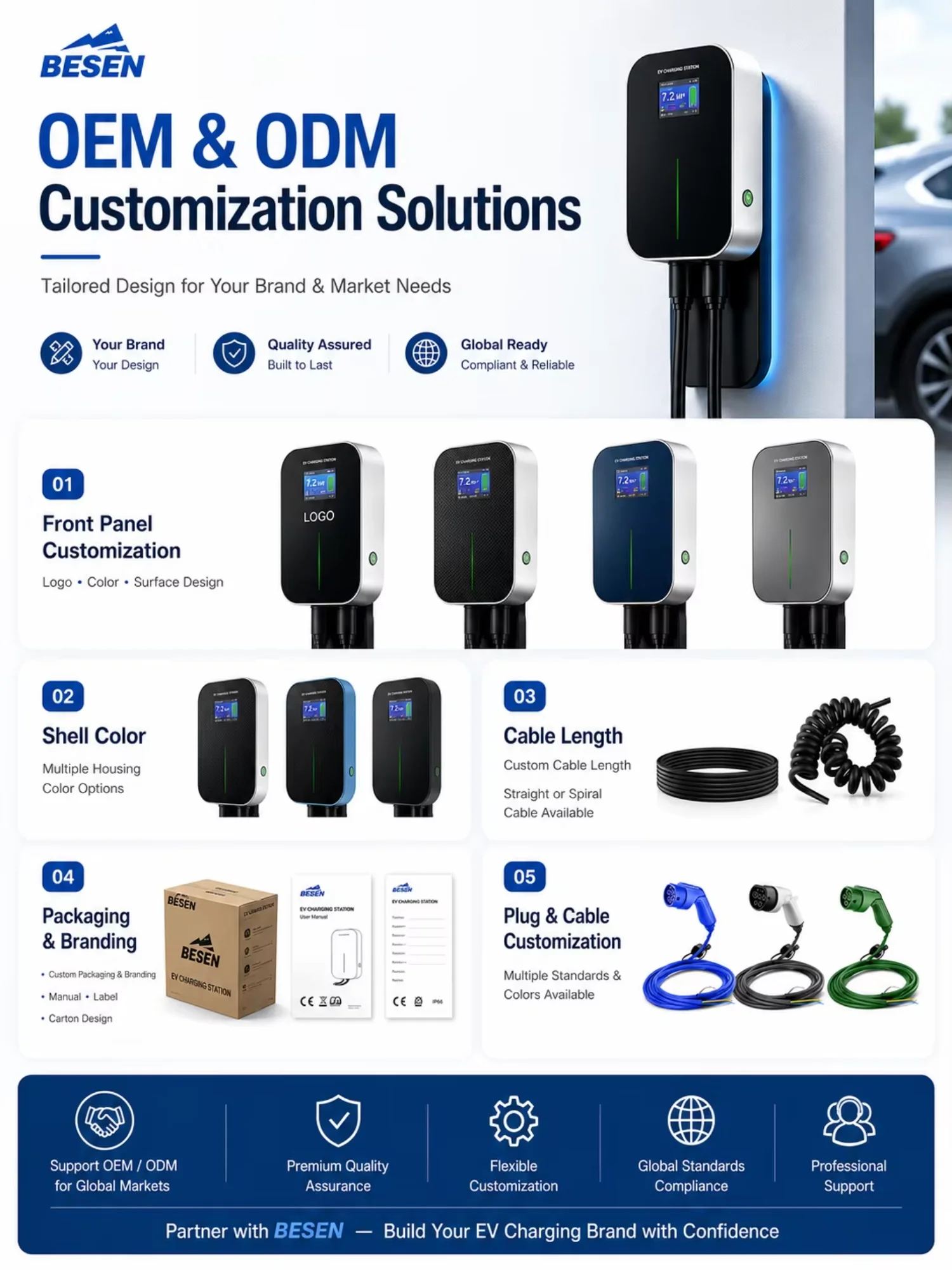

PACKAING AND CUSTOMIZATION

ABOUT THE SUPPLIER

ABOUT THE SUPPLIER We Have 14 Years of Professional Experience, Focusing on Providing Smart Charging Solutions for Homes. BESEN is a professional electric vehicle charging product manufacturer committed to providing the safest, most efficient, and most reliable electric vehicle charging solutions for families and businesses. We are committed to providing our customers with innovative products that represent the latest technology in electric vehicle charging and offering excellent customer service. ODM and OEM services are available. Through implementing a comprehensive dealer support plan, we are committed to helping customers achieve sales growth. In line with our dedication to making EV charging more accessible and convenient.

STANBARDIZED PRODUCTION PROCESS

TRADE SHOW PARTICIPATION

FAQs

Can I install this charger myself?

We strongly recommend hiring a licensed electrician to ensure safety and compliance with local electrical codes

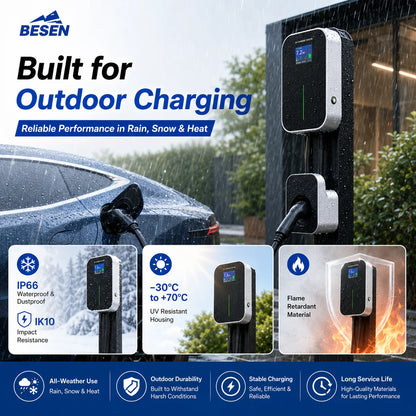

Is it safe to charge in the rain?

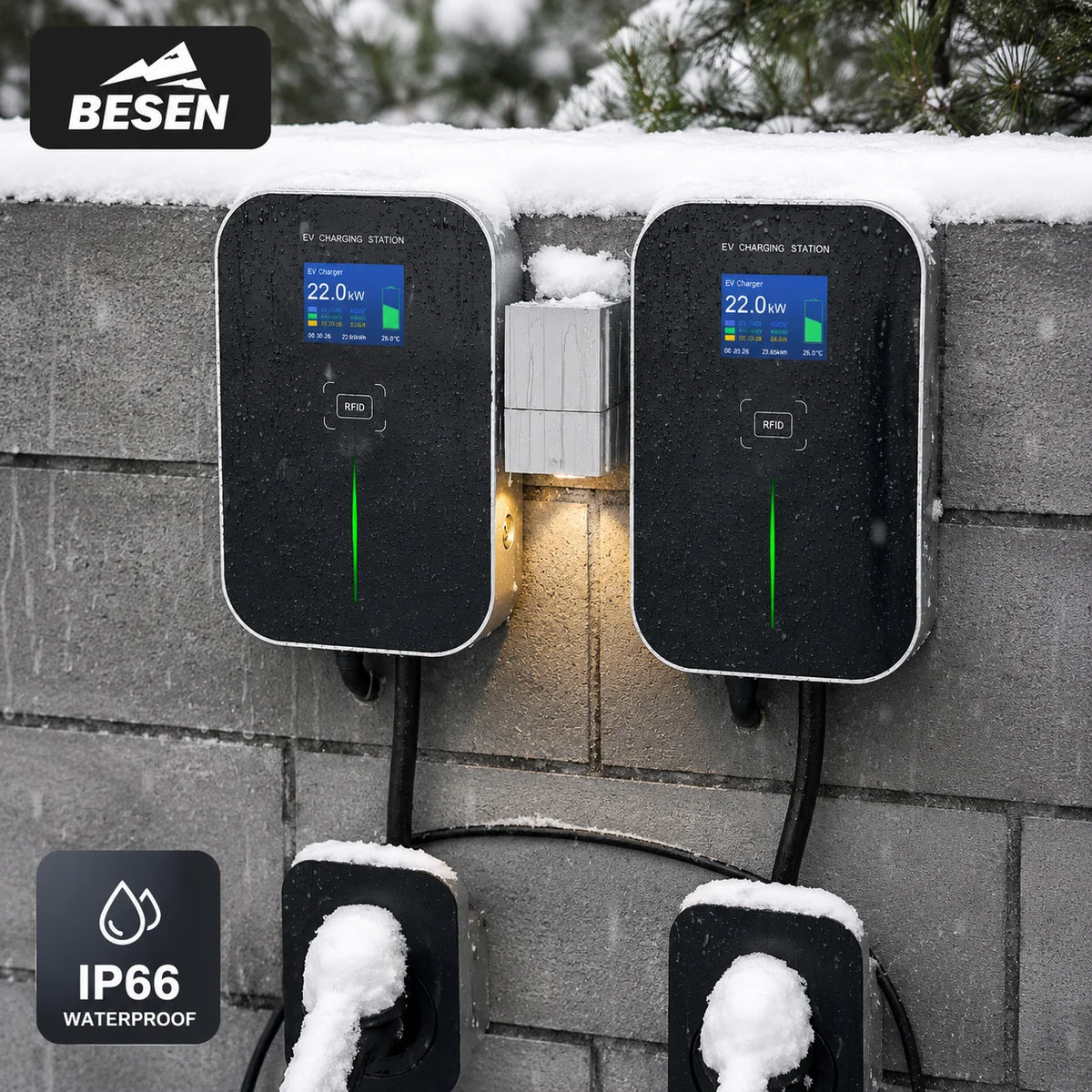

Yes. The unit is rated IP66 waterproof, meaning it is designed to withstand rain, snow, and dust.

Is it compatible with Tesla?

Yes, but Tesla owners in Europe usually have Type 2 ports. If you are in the US (NACS), you will need a Type 1 to Tesla adapter
