SPECIFICATIONS

Brand Name: NONE,BESEN

Car Fitment: Adapted all Models

Certificate: CE,RoHS

Condition: New

Customization: Support multiple commands, customize different functions.

High compatibility: Choose different OCPP platform operators.

High-concerned chemical: none

IP rating: IP 66

Input Voltage: 380V-400V

Intelligent Chip: Automatically fix the non-hardware faults during charging

Interface Standard: TYPE 2/GBT

Model Number: BA-22KW-OCPP-Ethernet

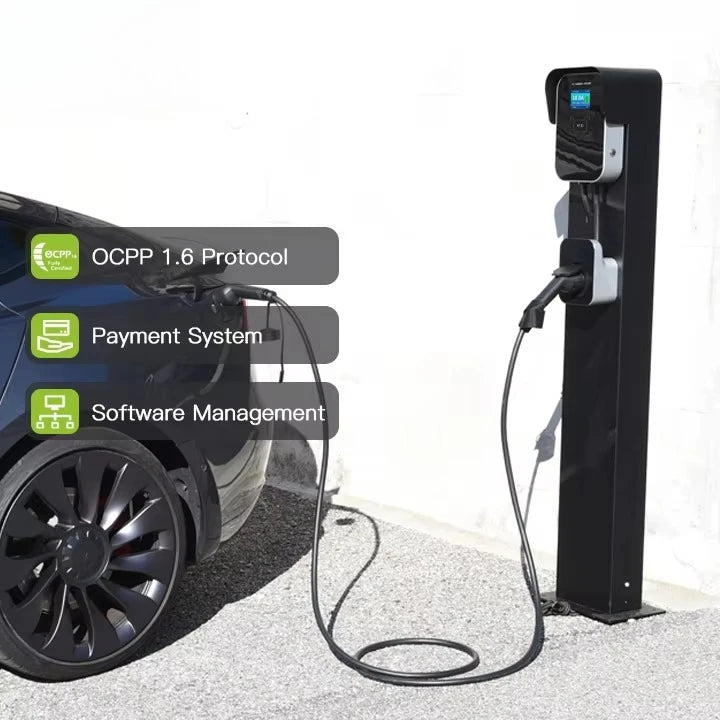

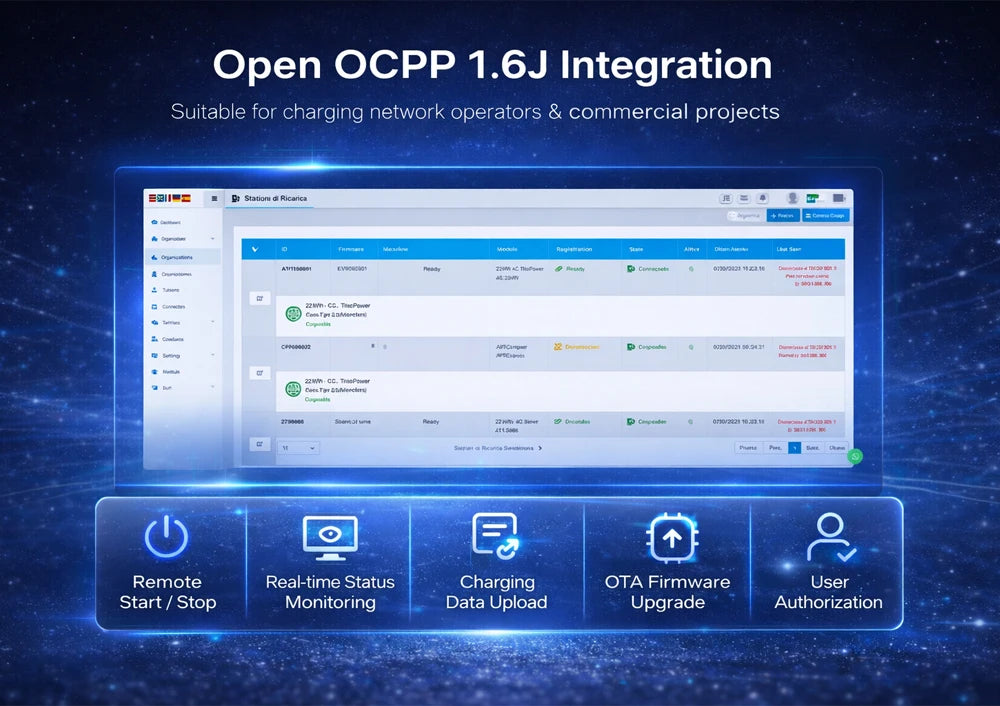

OCPP Control: OCPP 1.6 Protocol

Origin: Mainland China

Output Current: AC

Output Power: 22 kW

Place of Origin: Jiangsu, China

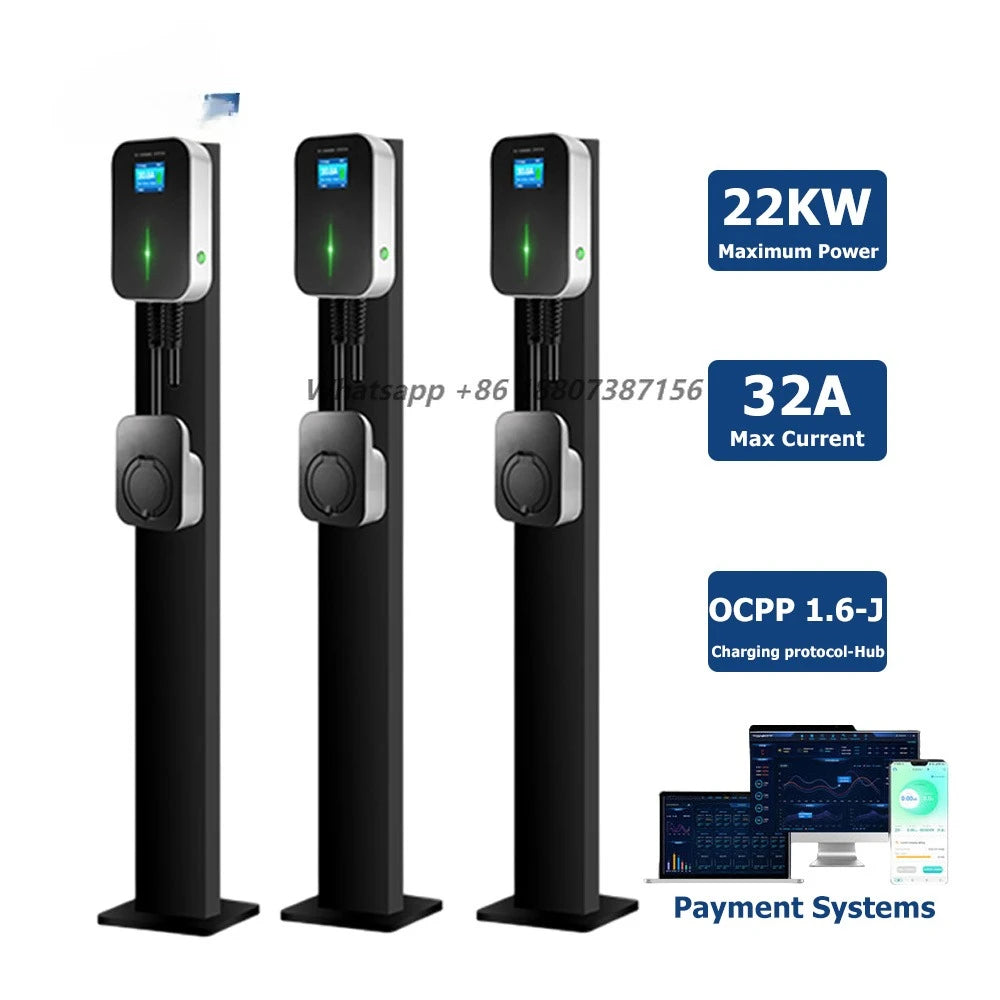

Product Name: AC EV Charging Station

Purpose: for retrofit/upgrade

Software management: Manage all EV charging hardware in one place

Touchscreen: No

Warranty: 24 months

Wireless Support: No

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 18807387156 or maoyishunda@gmail.com

Home/Business Use – Easy, Safe & Quick Installation

Sample Ready – Test Quality Before Bulk Order

Custom EV Charger Solutions – Tailored to Your Market Needs

Need Samples or Custom Options?

Send Inquiry Today & Get Instant Quote!

Products Description

Model	BS20-Mode A	BS20-Mode C
Optional Series	Basic,APP,RFID,OCPP,Load Balance
AC Power Output Rating	Max 22kW
AC Power Input Rating	AC 110V~400V
Current Output	Max 40A Single Phase/32A Three Phase
Required Service Panel Breaker	Dedicated Dual Pole rated for 125% of maximum load (ex: 40A breaker for 32A output)
Power Wiring	3 Wires–L1, PE, N / 5 Wires–L1, L2, L3, PE, N
Connector Type	TYPE 2(IEC 62196-2) GB/T	TYPE 1(SAE J1772)  TYPE 2(IEC 62196-2)  GB/T
Charging Cable	TPU	TPU 6.1m(20ft)
EMC Compliance	EN IEC 61851-21-2: 2021
Ground Fault Detection	20 mA CCID with auto retry
Ingress Protection	IP66,IK10

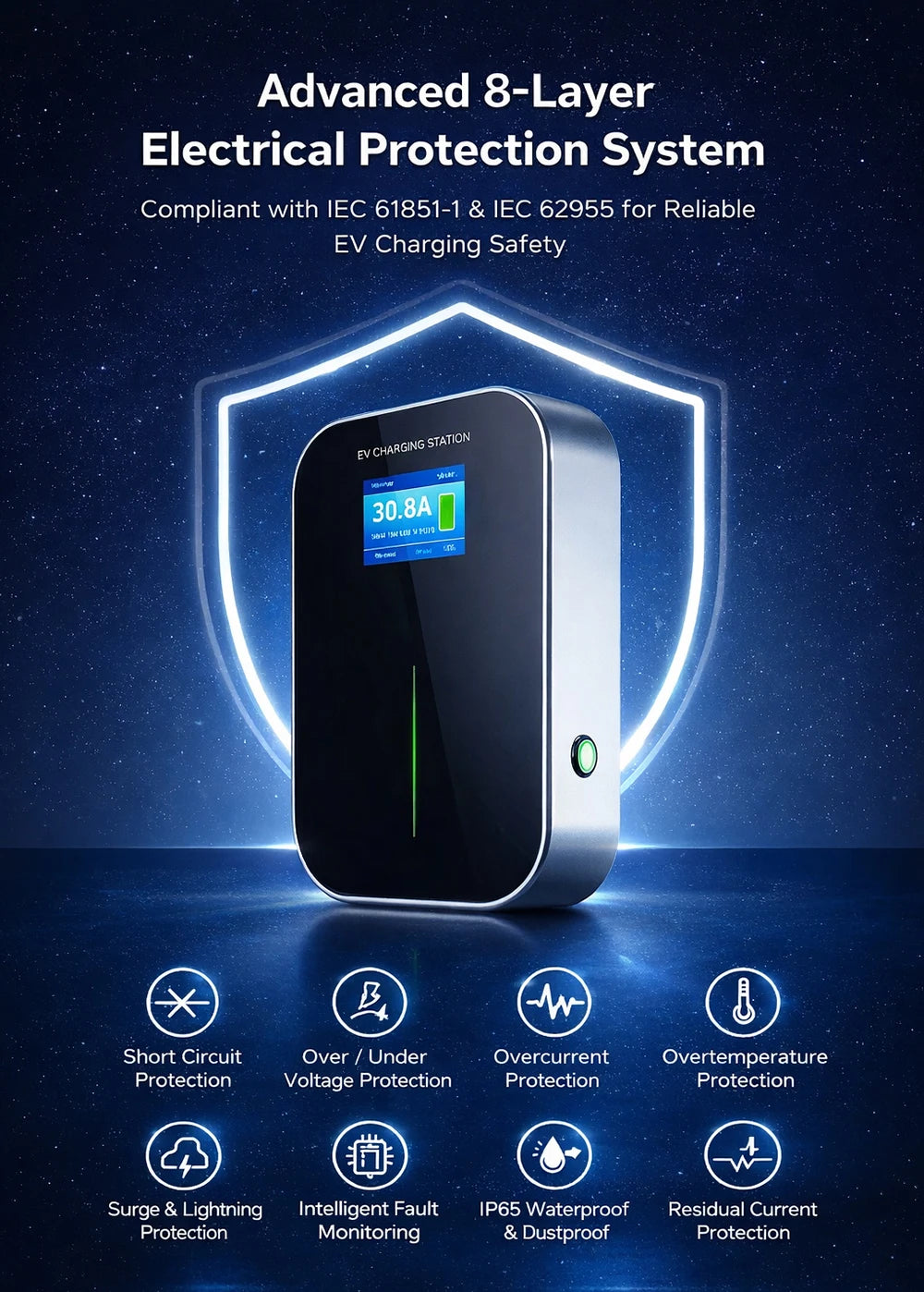

Electrical Protection	Over current protection Short circuit protection Under voltage protection Leakage protection Over temperature protection Lightning protection

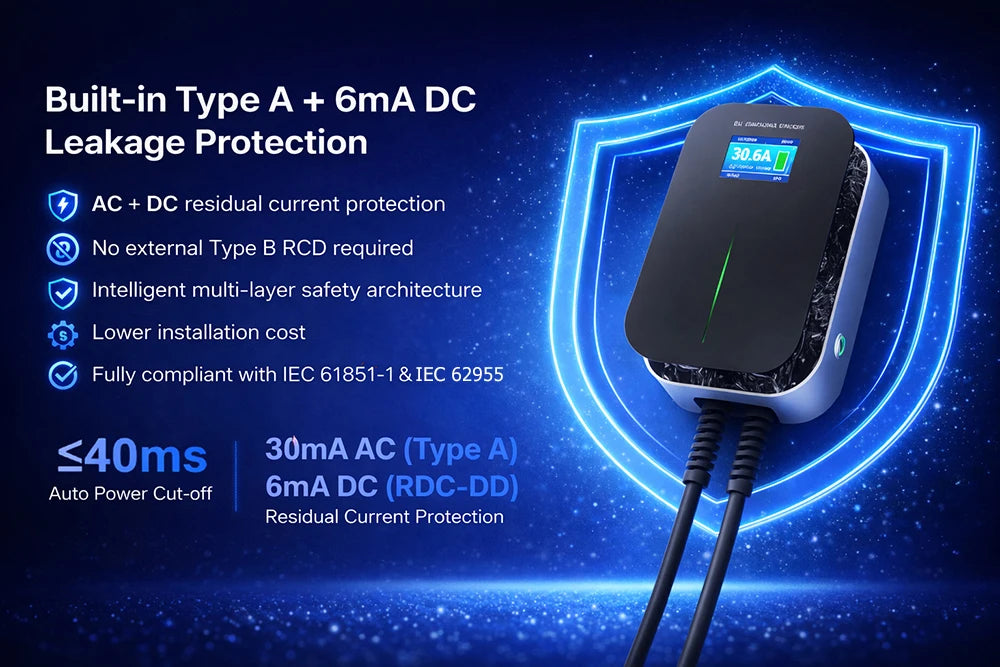

RCD type	TypeA AC 30mA + DC 6mA
Operating Temperature	-25℃ ~+55℃
Operating Humidity	0-95% non-condensing
Certifications	CE/FCC/CSA/RoHS/ETL

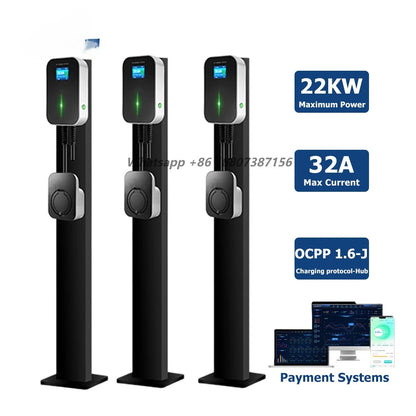

Mounting Method	Wall-Mounted/Floor-Mounted
Optional Series	Ethernet/WIFI/4G/Bluetooth
Timing and Delay	12H(Real-time display of charging status)

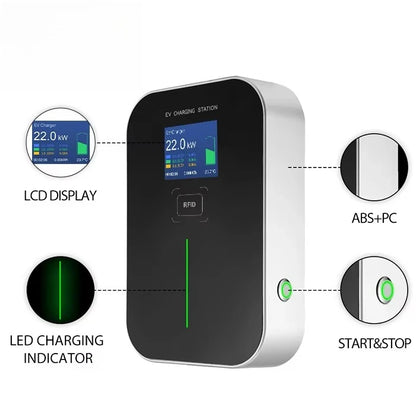

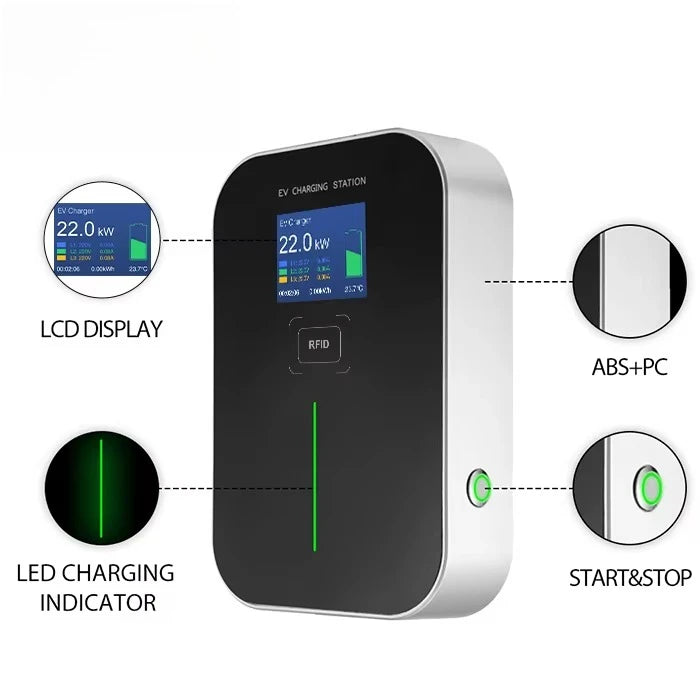

LCD Display	3.5-inch Color Display
LED Indicator Light	Yes
Button On/OFF	Yes
External Package	Customizable/Eco-Friendly Cartons

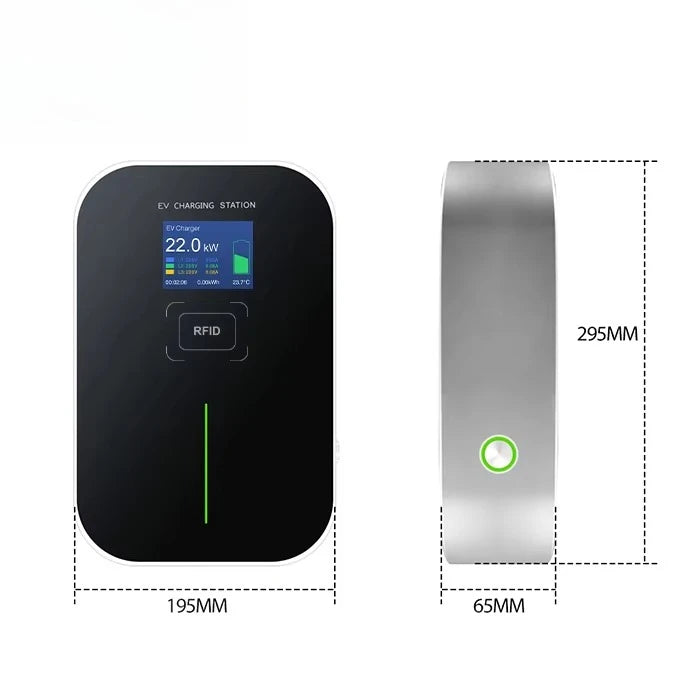

Package Dimension	680*250*140mm
Gross Weight	5KG~8.5KG

Product Packaging



Customizable Eco-Friendly Packaging

The packaging is sturdy and compact, making it convenient for customers to transport and store, and effectively protecting the product during transportation. The packaging box design can be customized.

Support Various Customization

1. Plug (Logo, Color) 2. Cable Length (for C Series) 3. Cable Color (for C Series) 4. Front Panel (Logo, Patterns, Panel Color, etc.) 5. Shell Color 6. Packaging/Manual/Sticker, etc.

7.Mounting Options(Wall-Mounted or Free-Standing
