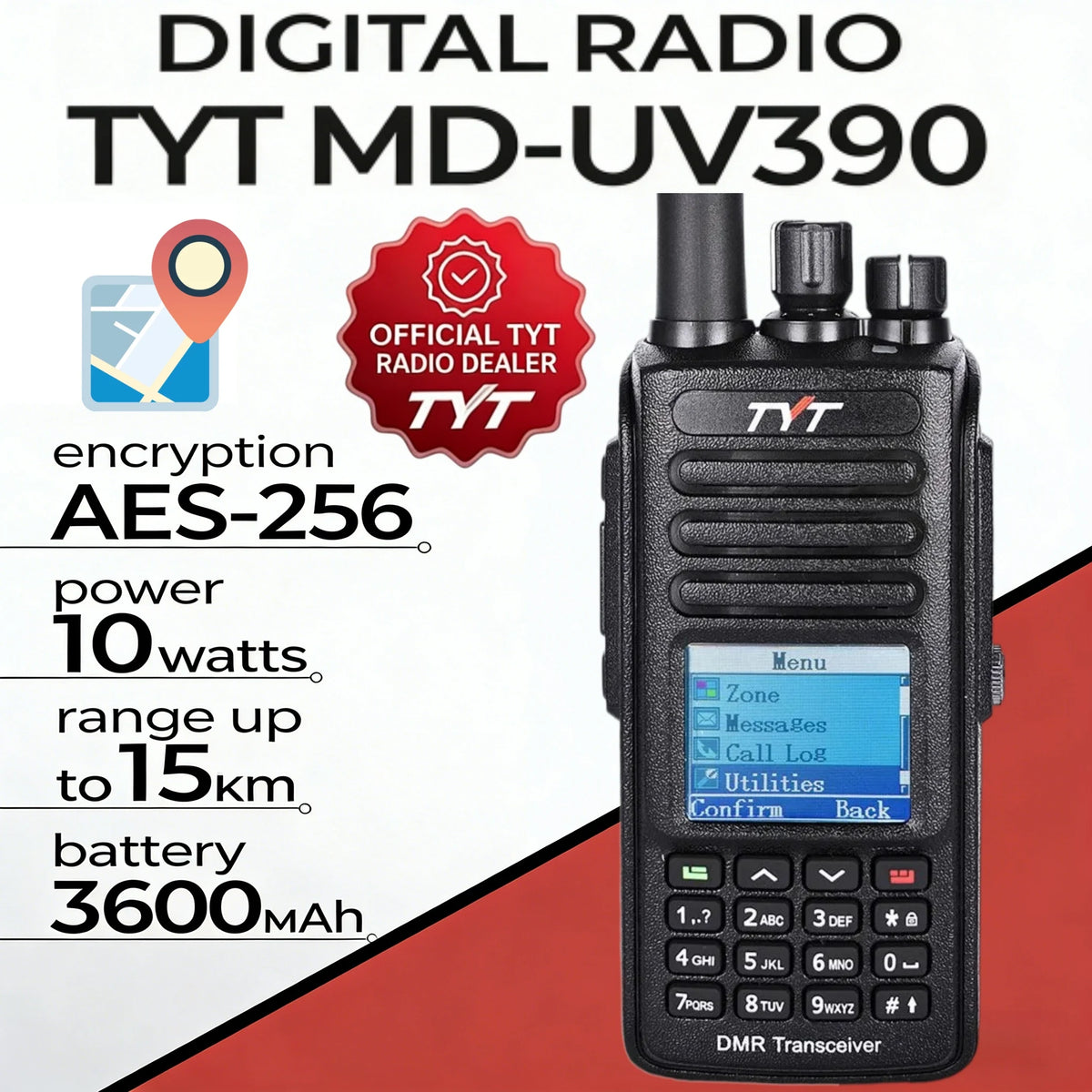

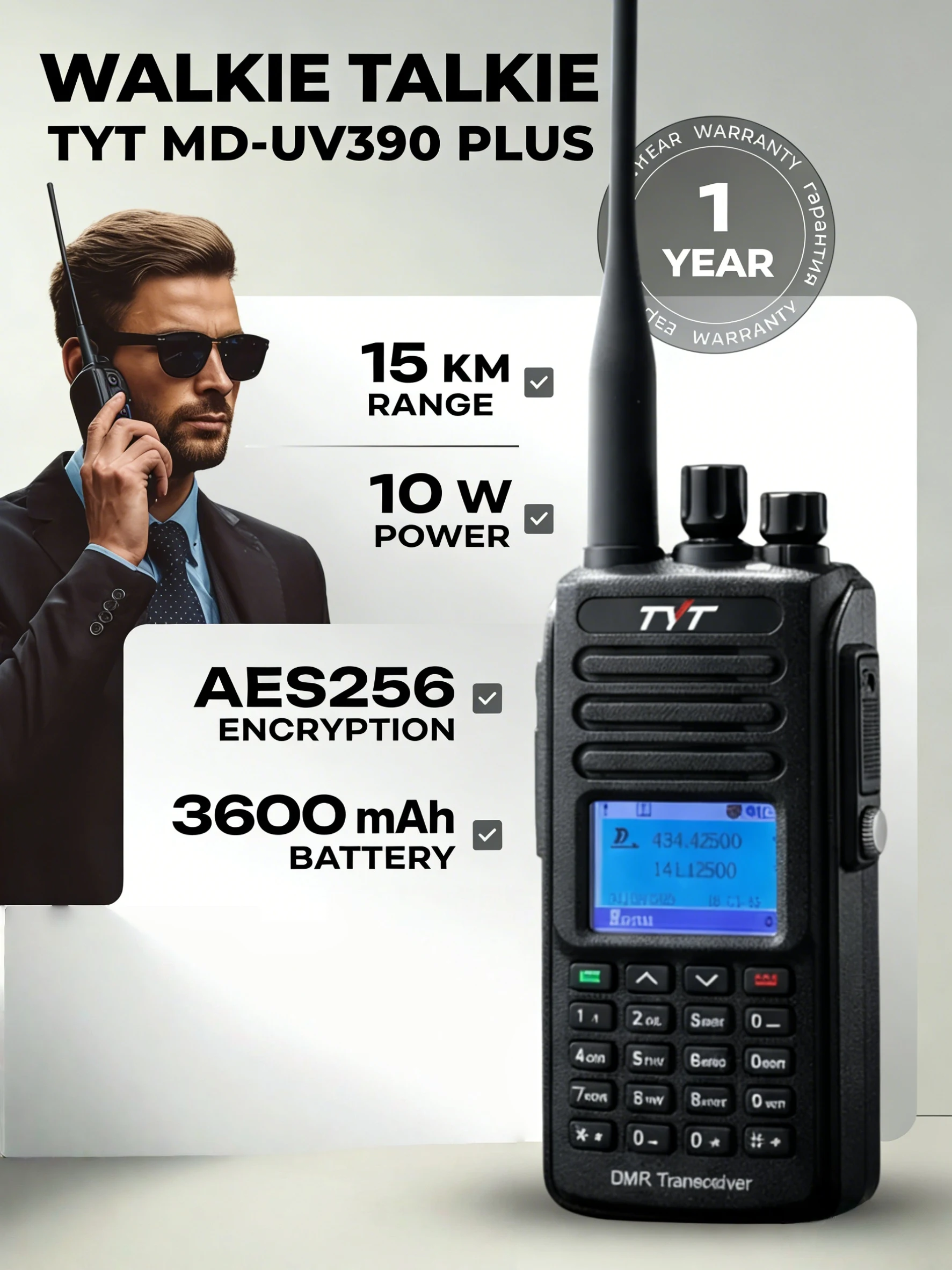

Tyt Dmr Md-Uv390Plus Digital Walkie Talkie Long Range 10W Vhf Uhf Sms Dual Band Waterproof Ham Radio Gps Aprs Aes256
Tyt Dmr Md-Uv390Plus Digital Walkie Talkie Long Range 10W Vhf Uhf Sms Dual Band Waterproof Ham Radio Gps Aprs Aes256
SPECIFICATIONS
Battery Capacity(mAh): 2200
Battery Included: Yes
Brand Name: RYKS
Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee,NONE
Dimensions: /
Feature 1: Color LCD Display
Feature 2: Record
Frequency Range: 144-148MHz,156-163MHz,430 - 440 MHz,446MHz,462-467MHz,400-470mhz,136 - 174 MHz
High-concerned chemical: none
Is_Display: Yes
Material: Plastic
Maximum Range: 5km-10km
Model Number: TYT MD UV-390PLUS
Origin: Mainland China
Output Power(w): 5w-10w
Rechargeablebatteryincluded: Yes
Storage Channel: 3000
Use: Camping
Version 1: AES256 Encryption
Version 2: Version 2 or NO AES256 Encryption Optional
Version 3: GPS
Version 4: or No GPS Optional
Walkie Talkie Type: Portable
Waterproof / Water-Resistant: IP67

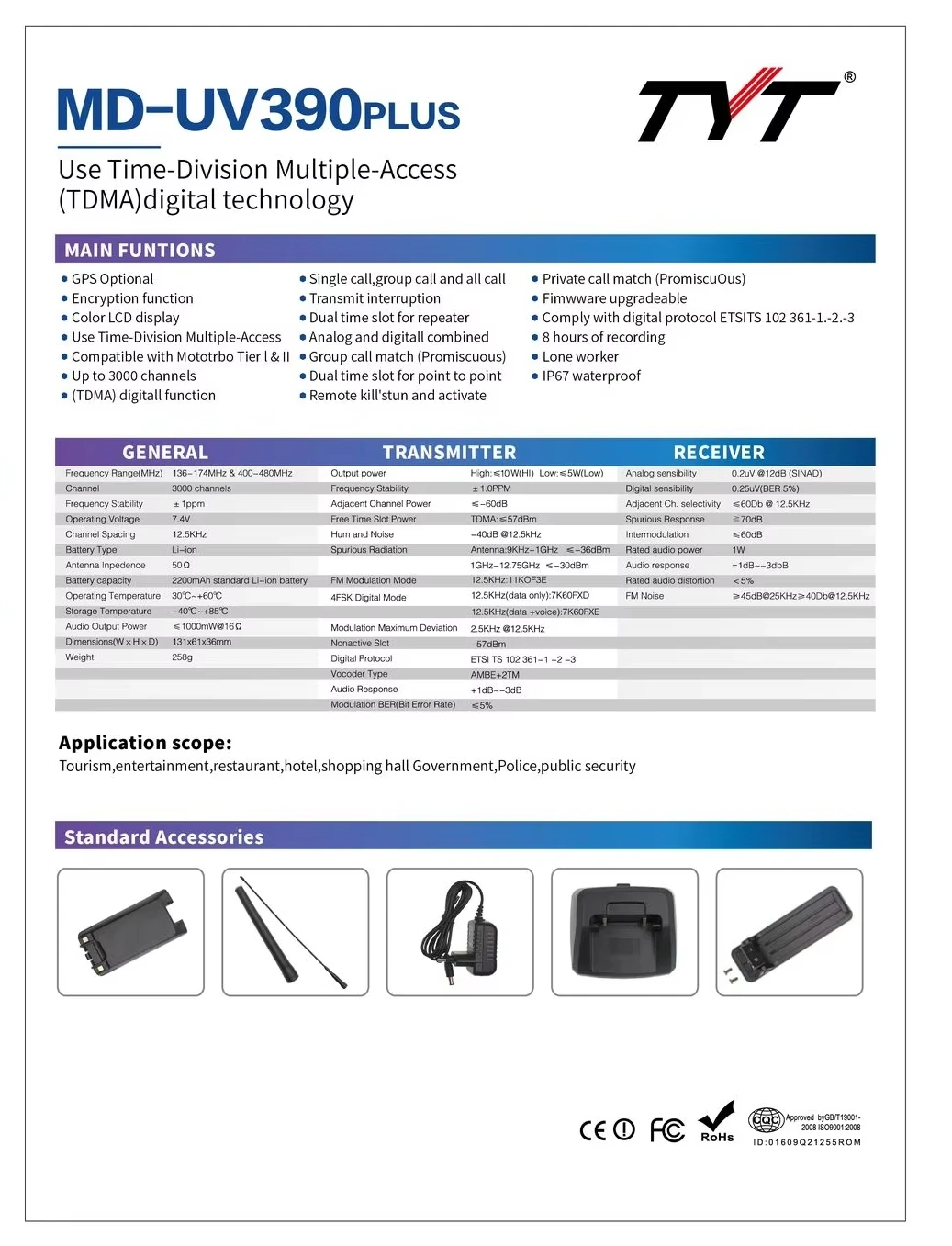

# MD-UV390PLUS

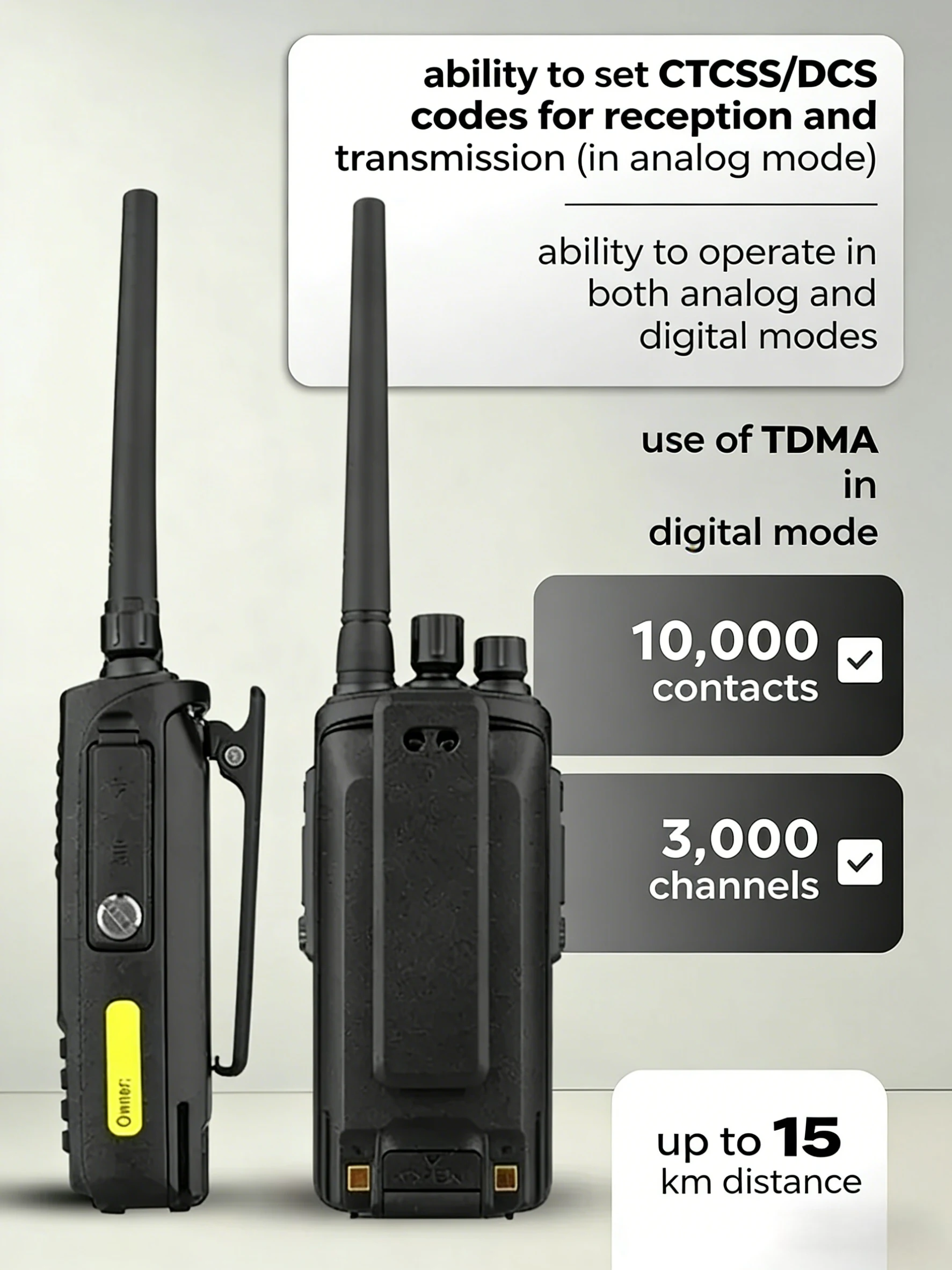

Use Time-Division Multiple-Access (TDMA) digital technology
---

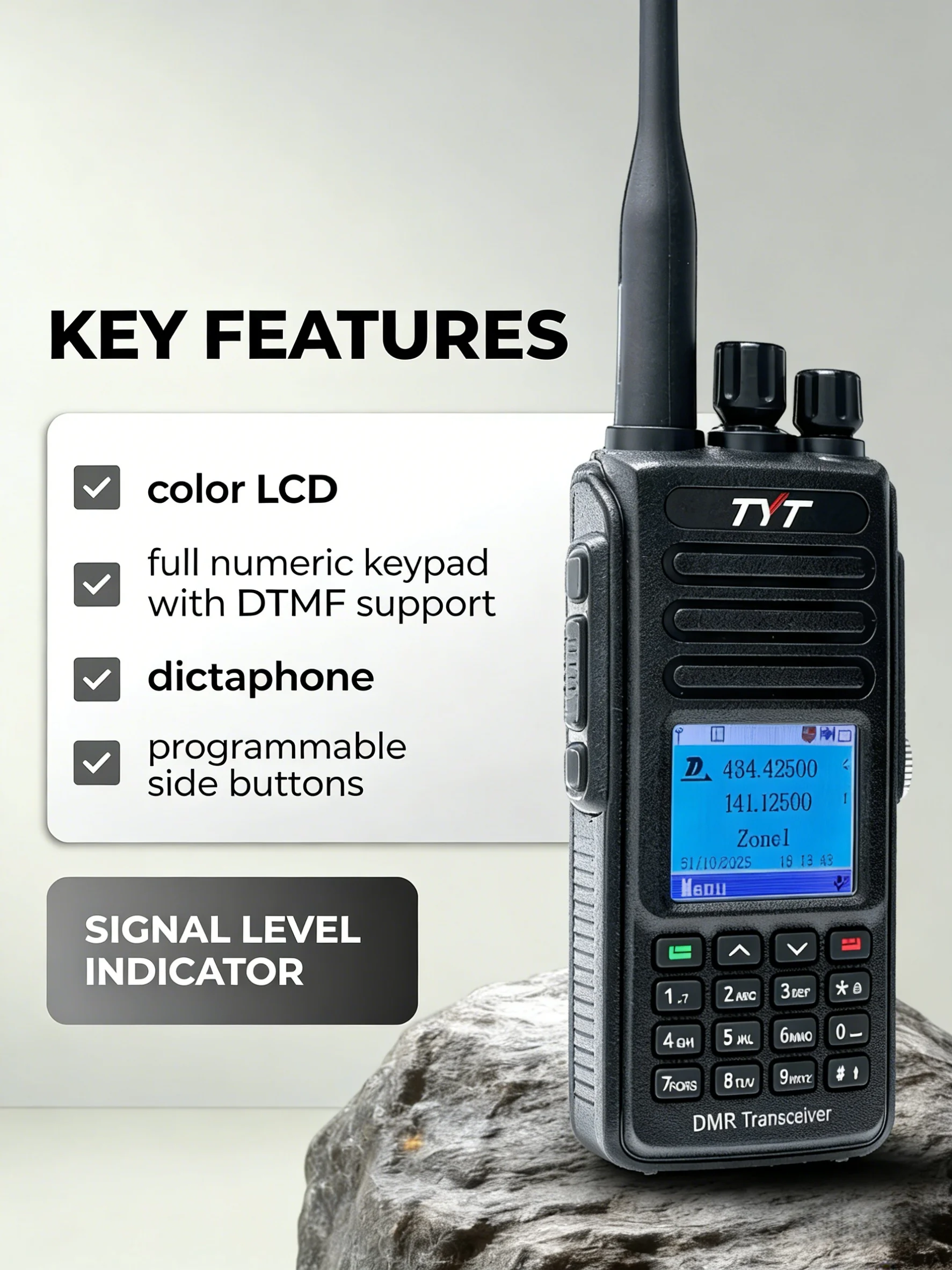

## ★ MAIN FUNCTIONS
● GPS Optional
● Encryption function
● Color LCD display
● Use Time-Division Multiple-Access
● Compatible with Mototrbo Tier I & II
● Up to 3000 channels
● (TDMA) digital function
● Single call, group call and all call
● Transmit interruption
● Dual time slot for repeater
● Analog and digital combined
● Group call match (Promiscuous)
● Dual time slot for point to point
● Remote kill/stun and activate
● Private call match (Promiscuous)
● Firmware upgradeable
● Comply with digital protocol ETSITS 102 361-1.-2.-3
● 8 hours of recording
● Lone worker
● IP67 waterproof
---
## ★ GENERAL
● Frequency Range(MHz): 136--174MHz & 400--480MHz
● Channel: 3000 channels
● Frequency Stability: ± 1ppm
● Operating Voltage: 7.4V
● Channel Spacing: 12.5KHz

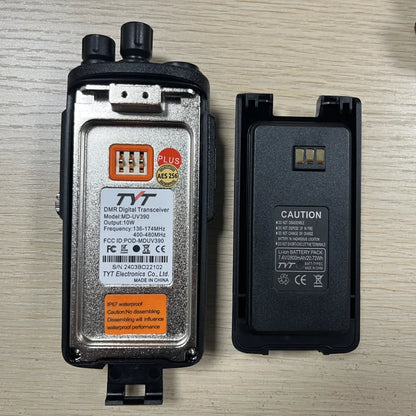

● Battery Type: Li-ion
● Antenna Impedence: 50Ω
● Battery capacity: 2200mAh standard Li-ion battery
● Operating Temperature: -30℃~+60℃
● Storage Temperature: -40℃~+85℃
● Audio Output Power: ≤1000mW@16Ω
● Dimensions(W×H×D): 131×61×36mm
● Weight: 258g
---
## ★ TRANSMITTER
● Output power: High: ≤10W(High) Low: ≤5W(Low)
● Frequency Stability: ± 1.0PPM
● Adjacent Channel Power: ≤-60dB
● Free Time Slot Power: TDMA: ≤57dBm
● Hum and Noise: -40dB @12.5KHz
● Spurious Radiation: Antenna:3KHz~1GHz: ≤-36dBm; 1GHz~12.75GHz: ≤-30dBm
● FM Modulation Mode: 12.5KHz:11KOF3E
● 4FSK Digital Mode: 12.5KHz(data only):7K60FXD; 12.5KHz(data + voice):7K60FXE
● Modulation Maximum Deviation: 2.5KHz @12.5KHz
● Nonactive Slot: -57dBm
● Digital Protocol: ETSI TS 102 361-1 →2 →3
● Vocoder Type: AMBE+2TM
● Audio Response: +1dB~-3dB
● Modulation BER(Bit Error Rate): ≤5%
---
## ★ RECEIVER
● Analog sensibility: 0.2uV @12dB (SINAD)
● Digital sensibility: 0.25uV(BER 5%)
● Adjacent Ch. selectivity: ≤60Db @ 12.5KHz
● Spurious Response: ≤70dB
● Intermodulation: ≤60dB
● Rated audio power: 1W
● Audio response: 1dB~-3dB
● Rated audio distortion: <5%
● FM Noise: -45dB@25KHz=40dB@12.5KHz
---
## ★ Application scope:
Tourism, entertainment, restaurant, hotel, shopping hall Government, Police, public security
## ★ Certifications
CE, FC, RoHS, CCC (Approved by GB/T19001-2008 ISO9001:2008)
ID: 01609Q21255ROM
