SPECIFICATIONS

Battery Capacity(mAh): 1600

Battery Included: Yes

Brand Name: quansheng

Certification: CE,FCC,RoHS

Choice: yes

Dimensions: 115*60*37mm

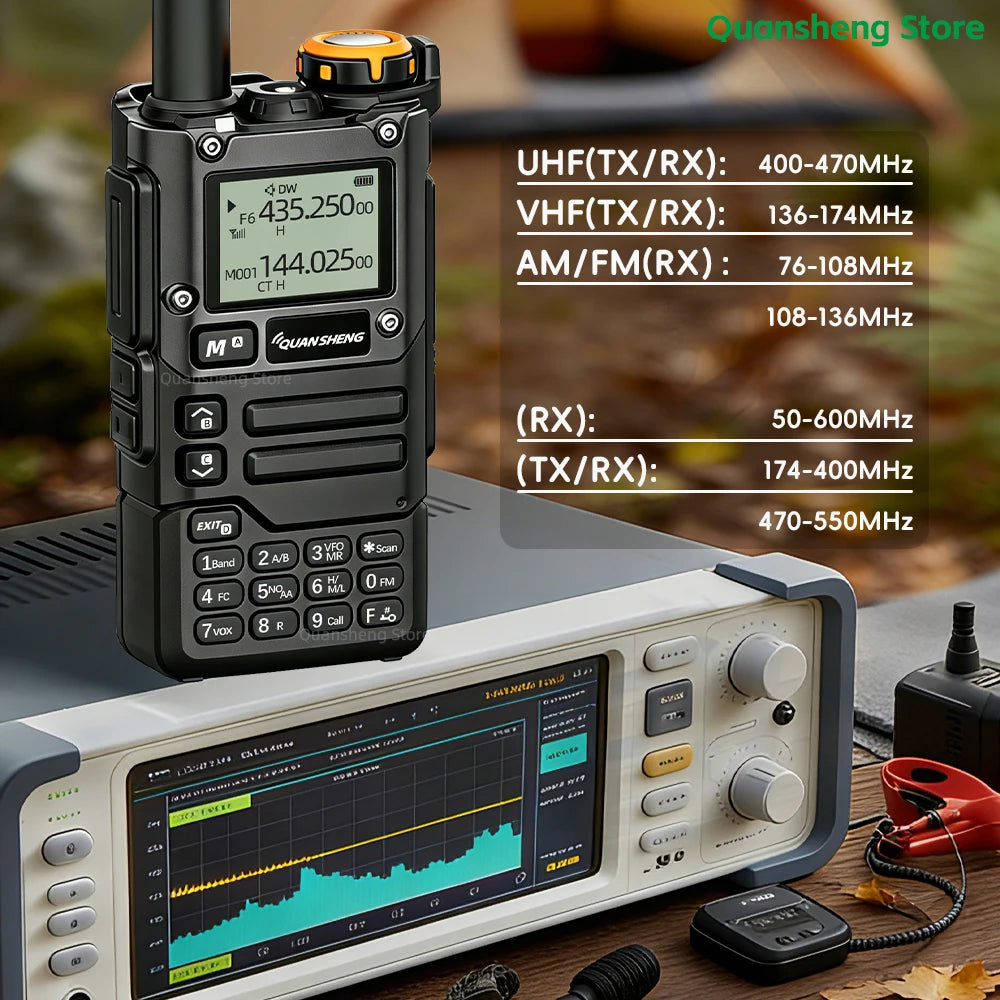

Frequency Range: UHF:400-470MHz/VHF:136-174MHz

High-concerned chemical: none

Is_Display: Yes

Material: Plastic

Maximum Range: 3km-5km

Model Number: UV-K5(8)

Origin: Mainland China

Output Power(w): 3w-5w

Storage Channel: 200

Use: others

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: No

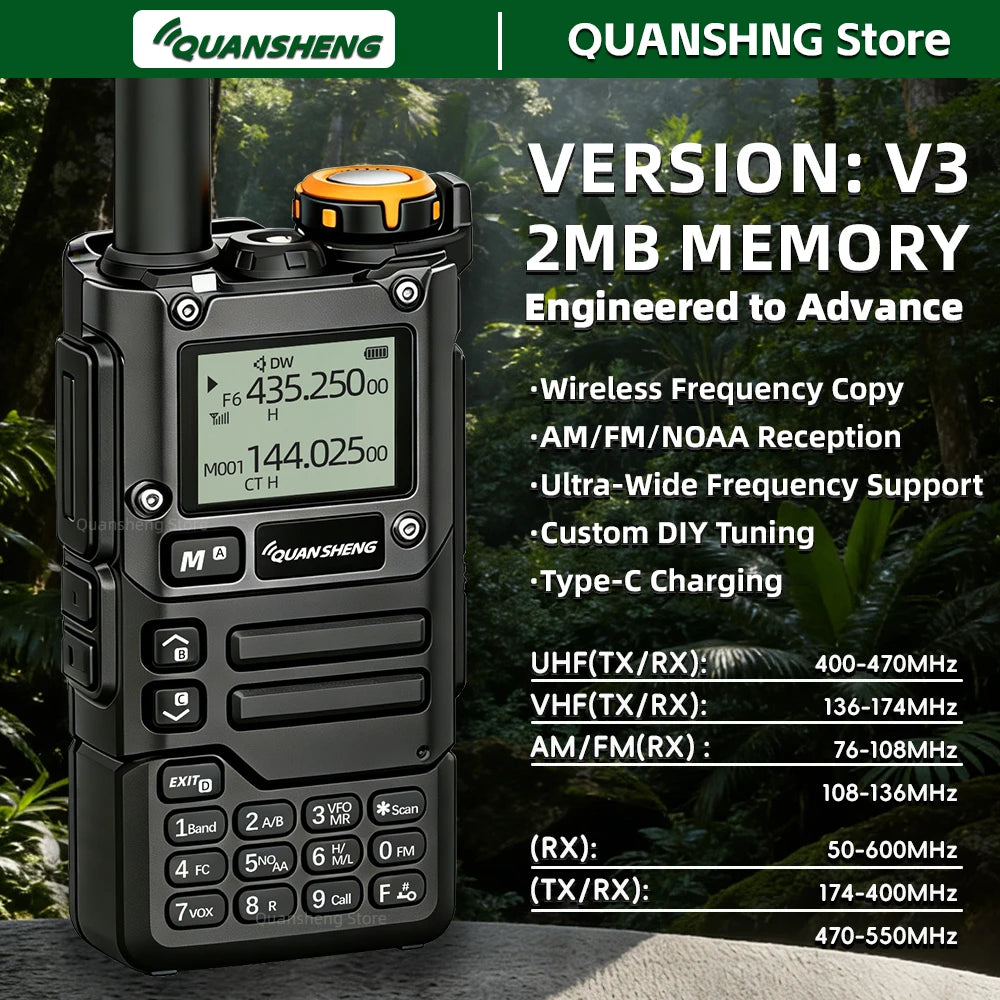

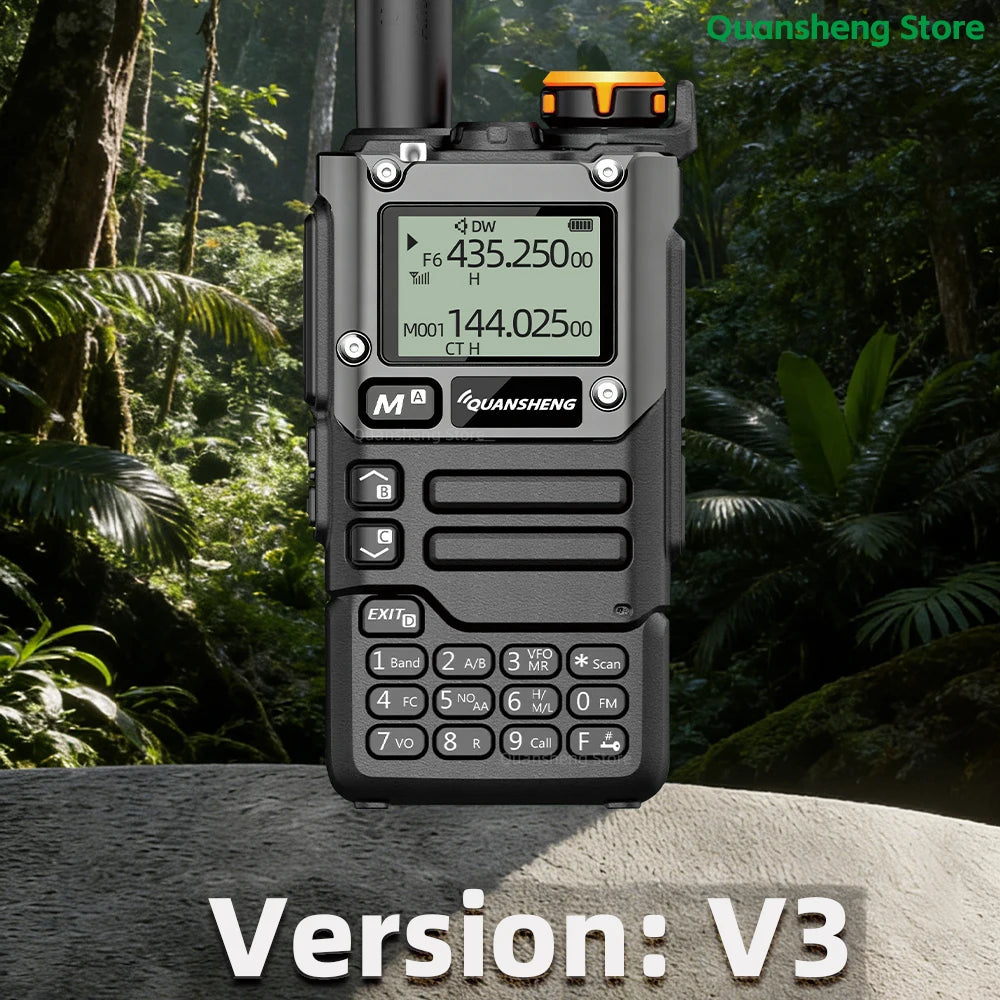

Timeless Classic. Quansheng StoreQUANSHENG UV-K5(8) Version:V3.0 Classic Upgraded – 2MB/16Mbit Enhanced Memory.

Important Note: This V3 hardware version is strictly compatible with F4HWN Open Source Firmware ONLY,(MCU:PY32F071).

⚠️ WARNING: This V3.0 model is NOT compatible with EGZUMER/IJV/Standard K5 Firmware. Flashing incorrect firmware will brick the radio. Thank you for your understanding.

·Wireless Copy Frequency.

·Fast Copy One Channel.

·Instant Frequency Copy: Scan and copy frequencies from walkie talkies with a single click.

·Multi-functional Frequency Meter: For frequency testing of other walkie talkies.

·Smart Programming: Eliminate the hassle of traditional programming cables.

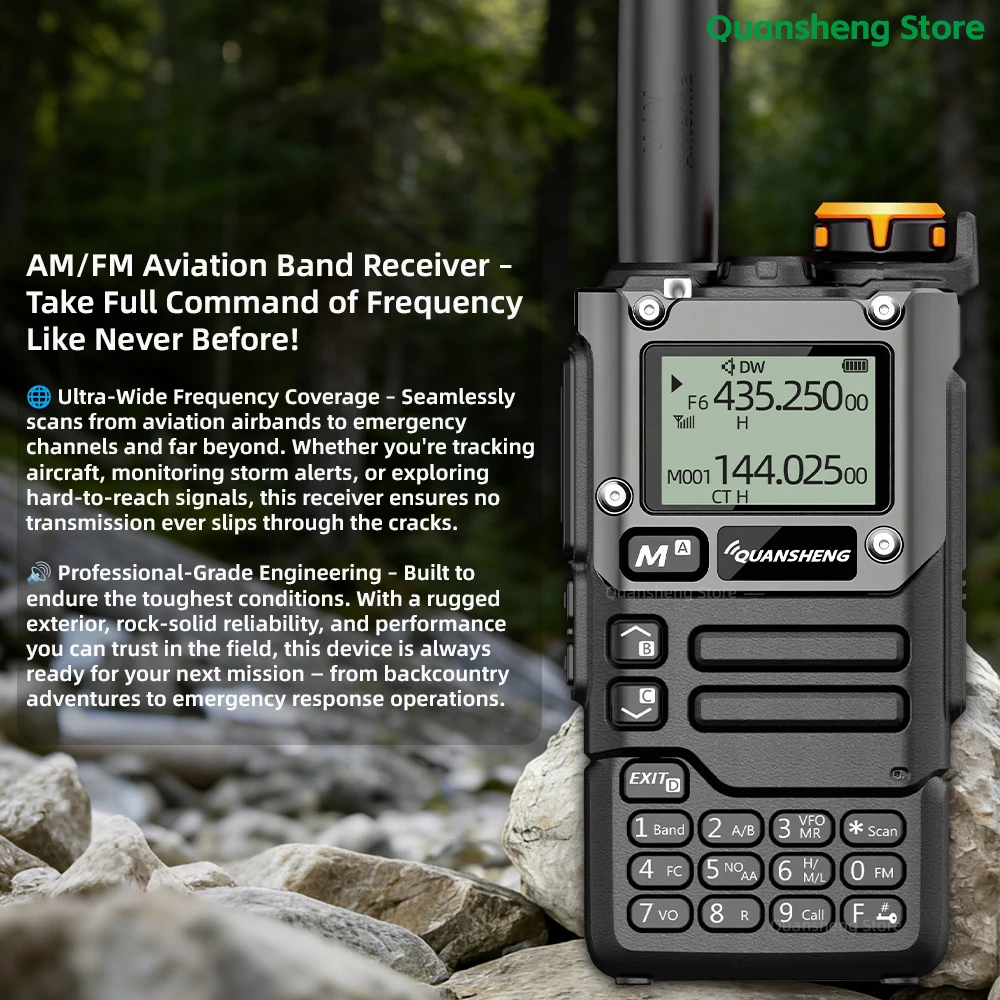

·Quick Operation: Press F+4 to activate frequency copying instantly.AM/FM Aviation Band Receiver – Take Full Command of Frequency Like Never Before!

🌐 Ultra-Wide Frequency Coverage – Seamlessly scans from aviation airbands to emergency

channels and far beyond. Whether you're tracking aircraft, monitoring storm alerts, or exploring hard-to-reach signals, this receiver ensures no transmission ever slips through the cracks.

🔊 Professional-Grade Engineering – Built to endure the toughest conditions. With a rugged exterior, rock-solid reliability, and performance you can trust in the field, this device is always ready for your next mission — from backcountry adventures to emergency response operations.🌐 Extremely Wide Frequency Range – Covers everything from air bands to emergency channels and beyond! No signal escapes you.

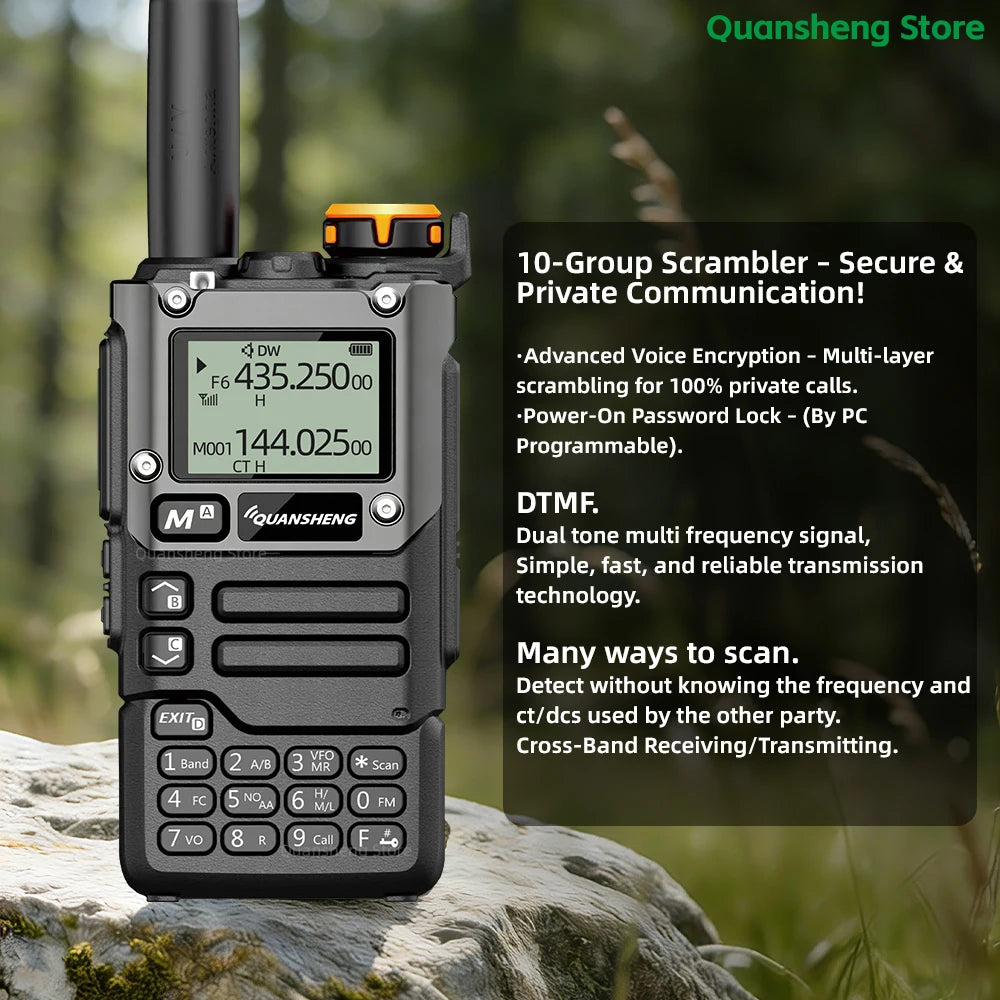

🔊 Professional-Grade Performance – Rugged, reliable, and ready for any mission.10-Group Scrambler .

Encrypted Communication .

Multiple security encryption , Protect your call privacy and communication security .

Power-on Password Protection （By PC Programmable）.

DTMF.

Dual tone multi frequency signal , Simplefast and reliable transmission technology .

Many ways to scan .

Detect without knowing the frequency and ct/dcs used by the other party .

Cross-Band Receiving/Transmitting .Upgrade Your Outdoor Adventures with the NOOA Weather Receiver!

Stay ahead of the elements with 10 Emergency Weather Channels—ensuring real-time alerts and forecasts wherever you go. Perfect for hiking, camping, and emergencies!

✅ Reliable & Compact – Never be caught off guard by sudden storms!

✅ Crisp Reception – Clear signals even in remote areas.

✅ Essential for Safety – A must-have for outdoor enthusiasts!

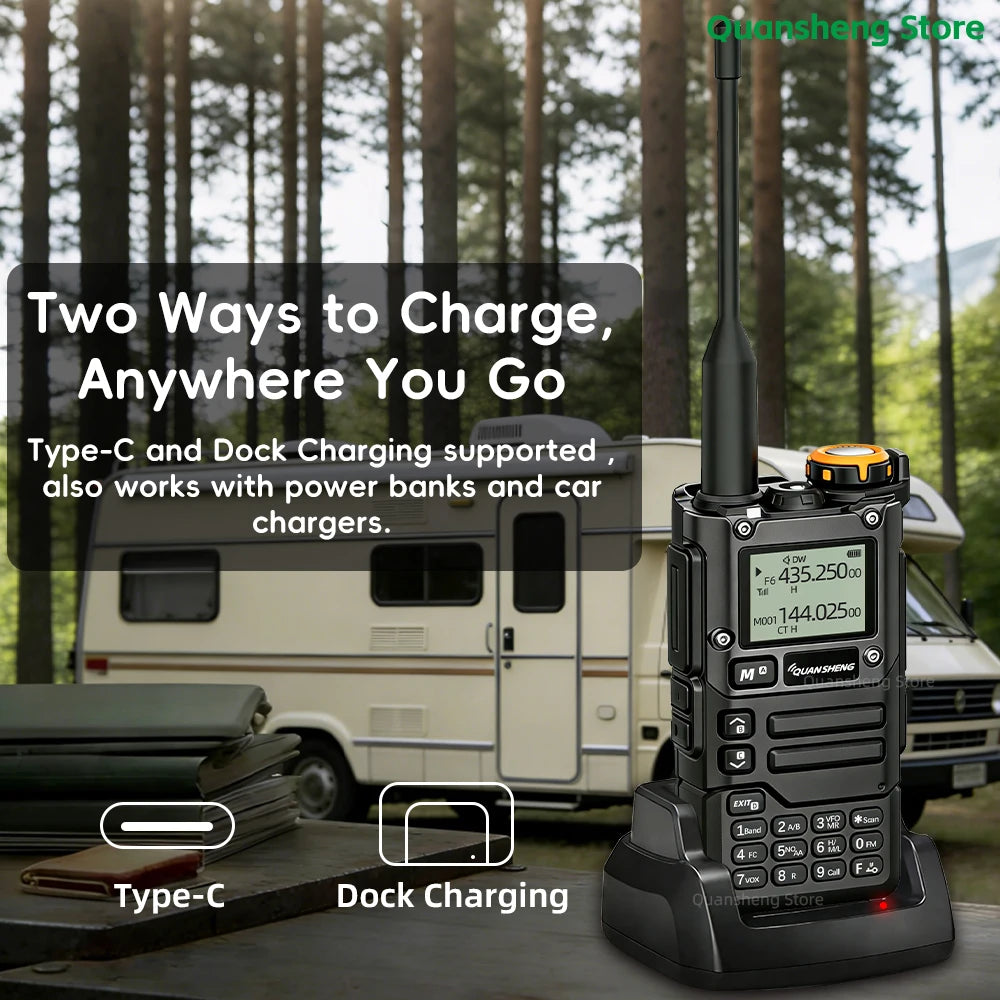

Travel Smarter, Stay Safer! 🌦️⛺Two Ways to Charge, Anywhere You Go.

Type-C and Dock Charging supported ,also works with power banks and car chargers.Frog sound ending tone .

Frog Sound Tail Tone .

After the walkie talkie transmission is completed, the receiving console emits a "Frog sound " tail tone signal to indicate the end of the call .

[ 200 Channel ] - [ Cross-Band Intercom ]

[ 1750HZ Call Tone ] - [ Program On Site ]

[ Emergency Alert ] - [ Reverse Frequency Function ]

[ 10-Group Scrambler ] - [ Multi-Scan ]

[ CTCSS/DCS ] - [ 10 Emergency Weather Channels ]

[ PC Programmable ] - [ Busy Channel Lock ]

[ VOX ] -[ Frequency And Channel Mode Shift ]

[ Time-Out-Timer ] - [ Wireless Radio Replication ]

[ Large LCD Display ] - [ Voice Prompt ]

[ Reminding Switch ] - [ Remote Kill/Revive ]

[ AM/FM Aviation Band Receiving ] - [ FM Radio ]

[ Offset Frequency Direction Set ] - [ Reset ]

[ Squelch Level Adjustable ] - [ Dual-watch opertion ]

[ Offset Frequency Setting ] - [ Channel Scan And Add ]

[ Automatic Signaling Search ] - [ Multi Step Frequency ]

[ One Key Call Channel ] - [ Keypad Lock ]

[ Backlight Auto Off Time Selective ]- [ Jacklight]

[ DTMF Calling ] - [ DTMF ANI ]

[ Wide/Narrow Bandwidth ]

[ Power-on Password Protection(By PC Programmable)]

[ Type-C And Charger-Base Charging ]

[ DTMF Select Call (single call, group call, all call) ]

[ Repeater Forwarding Confirmation Function ]

[ Multi Display Of Channel No./Channel Frequency/Channel Name ]

[ H (High)，M (Medium)，L (Low) Output Power Selective ]

[ Multi-Band Transmitting & 50∽600MHz Receiving ]

[ Receive/Transmit Code Setting Separately ]

[ High Capacity Battery\Long Standby Time ]

[ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]

General Specifications:

Channel：200；

Stored FM Radio Channel Quantity：20；

NOAA Channel：10；

Frequency Stability：±1ppm；

Modulation Mode：FM:11KΦF3E(12.5KHz),16KΦF3E(25KHz)；

Dimension：115mmX60mmX37.5mm；

Weight：234g；

Operating Temperature：-20℃+60℃；

Antenna Impedance：50Ω；

RECEIVING:

Sensitivity：FM(12dB SINAD)；

F1(50∽76)：-121dBm

F2(108∽135.9975)：-121dBm

F3(136∽173.9975)：-123dBm

F4(174∽349.9975)：-123dBm

F5(350∽399.9975)：-123dBm

F6(400∽469.9975)：-123dBm

F7(470∽599.9975)：-121dBm

WFM(20dB SINAD)：WFM(76∽108)-110dBm

AM(10dB S/N)：F2(108∽135.9975)

Audio Frequency：≥0.5W

Audio Distortion：≤10%

TRANSMITTING:

Output Power：≤5W；

Emission Current：≤1.5A；

Max Frequency Deviation：≤5KHz(25KHz),≤2.5KHz(12.5KHz)；

Modulation Distortion：≤5%；

Stray Power：≤7.5uW；

Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；

Residual Modulation：40dB；
