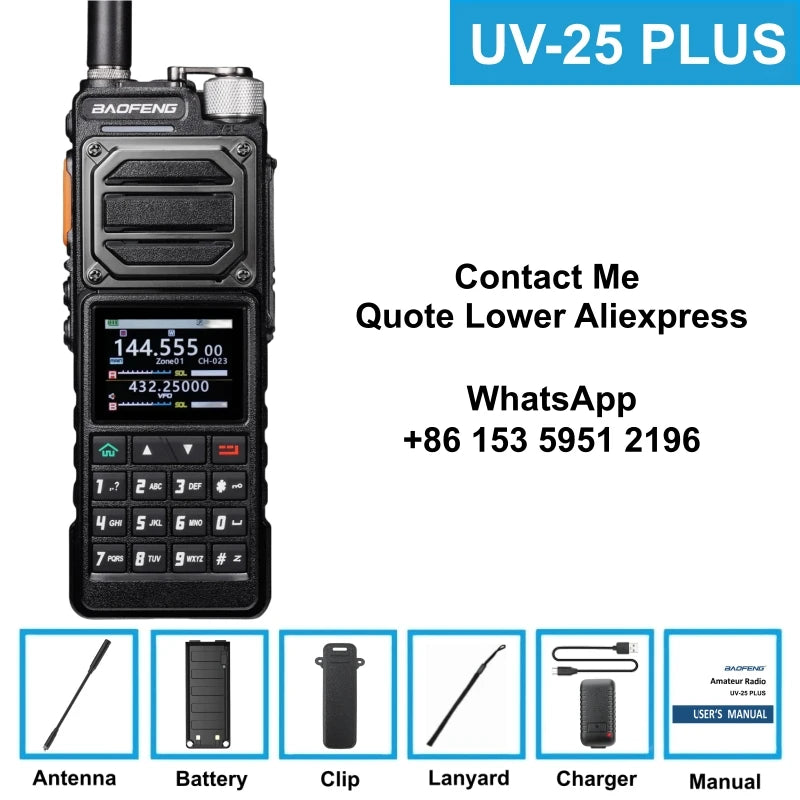

Contact Me Quote Lower Aliexpress

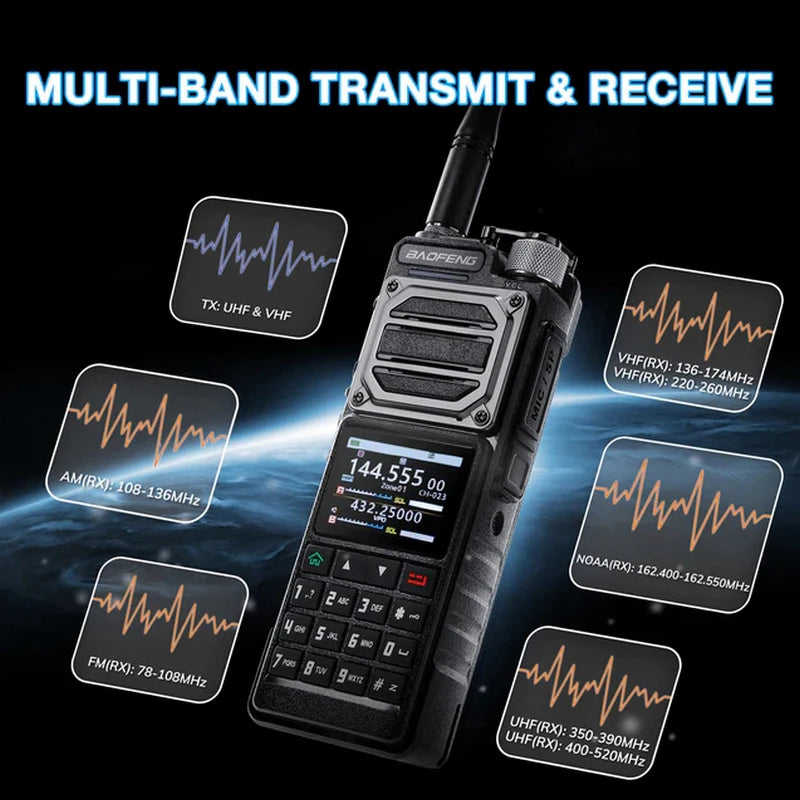

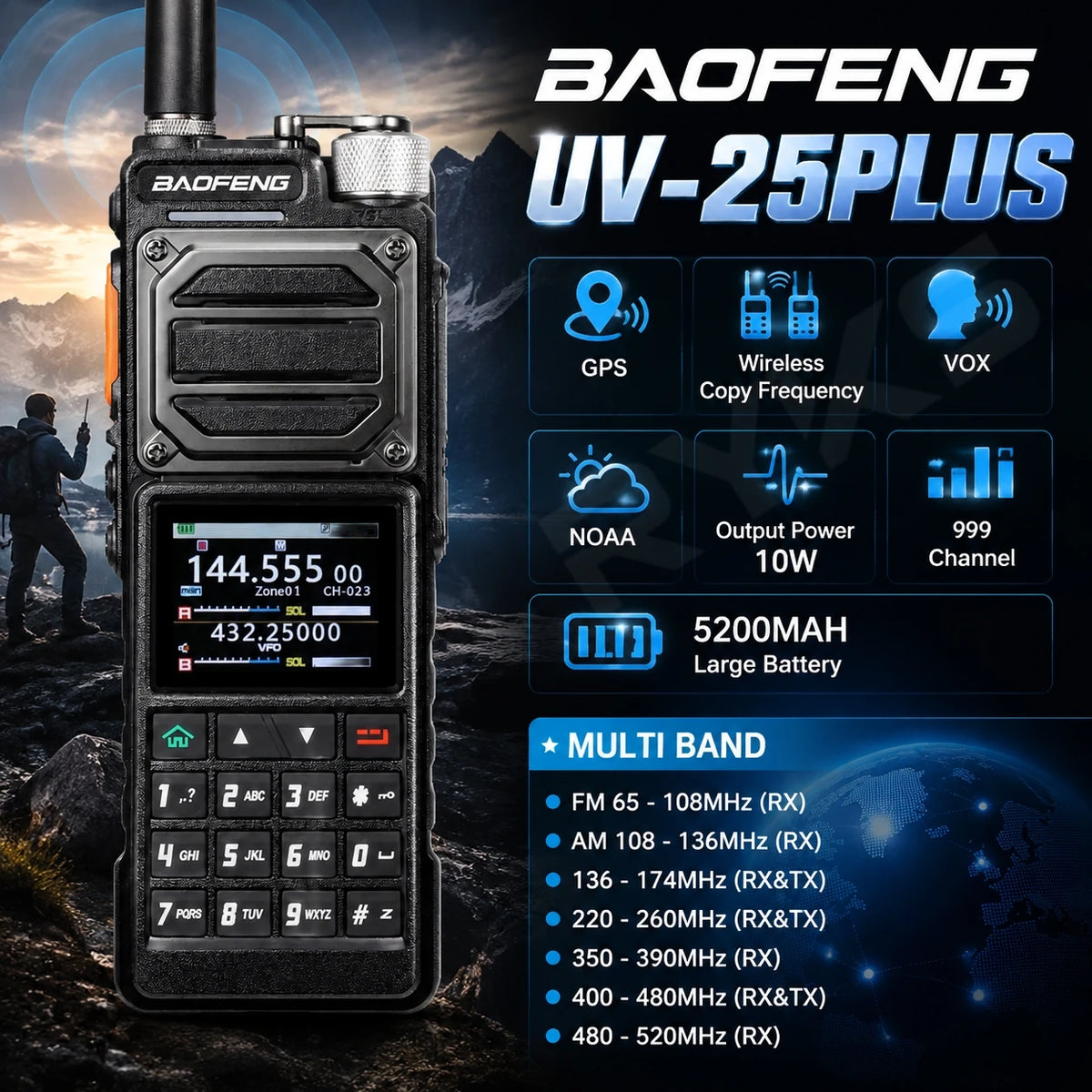

★【Multi Band】

● FM 65 - 108MHz(RX)

● AM 108 - 136MHz(RX)

● 136 - 174MHz(RX&TX)

● 220 - 260MHz(RX&TX)

● 350 - 390MHz(RX)

● 400 - 480MHz(RX&TX)

● 480 - 520MHz(RX)

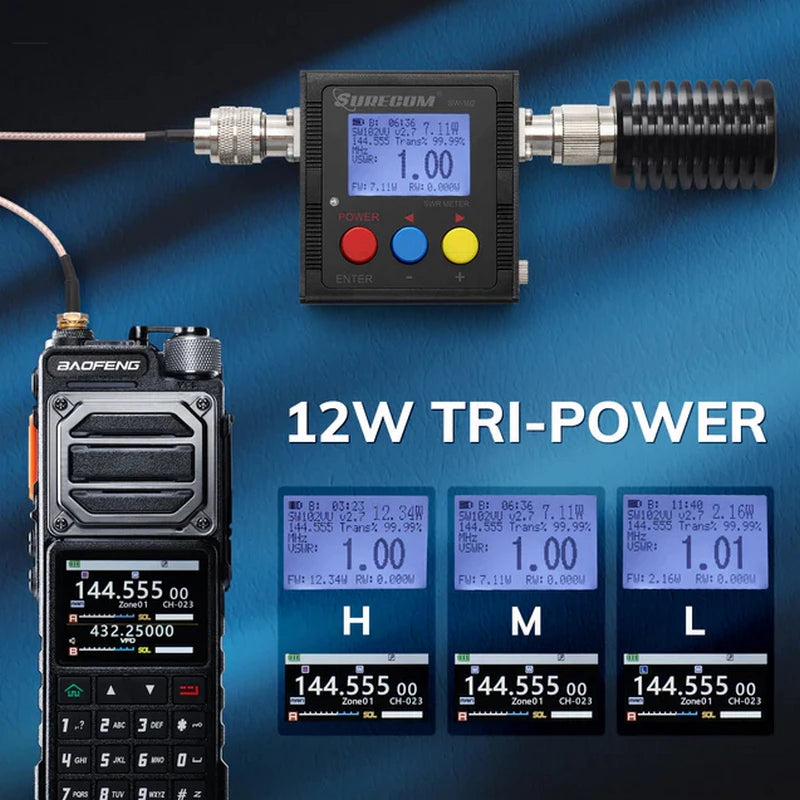

★【12W Power】

● Adopts 12 - watt high - power output. With strong signal penetration, it ensures steady and clear calls in long - range and complex - terrain environments.

★【GPS Function】

● Equipped with a precise built - in GPS module, it can locate the real - time position and record travel tracks, effectively safeguarding safety during outdoor work and travel.

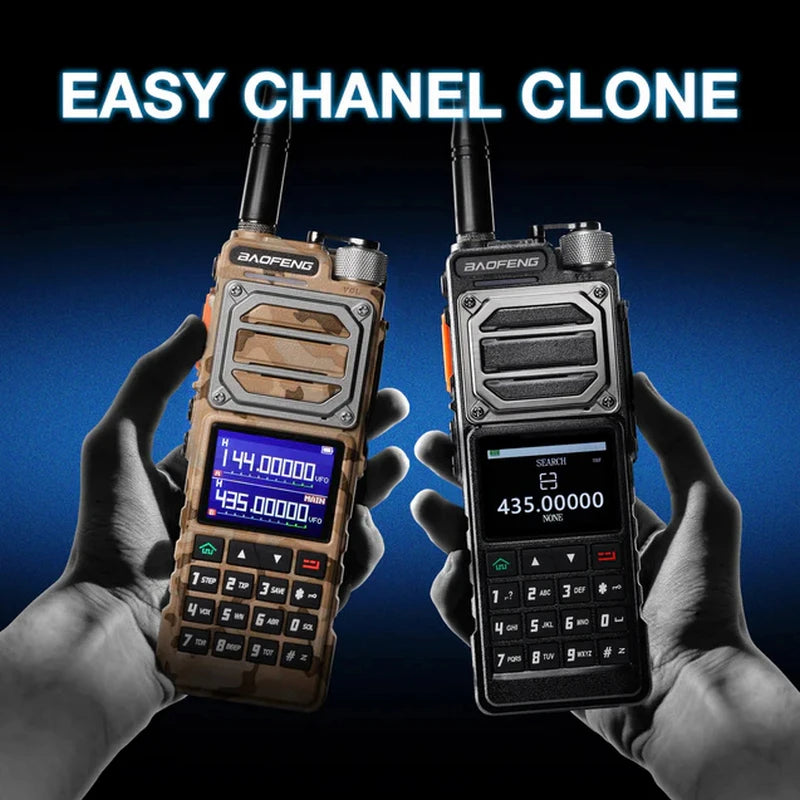

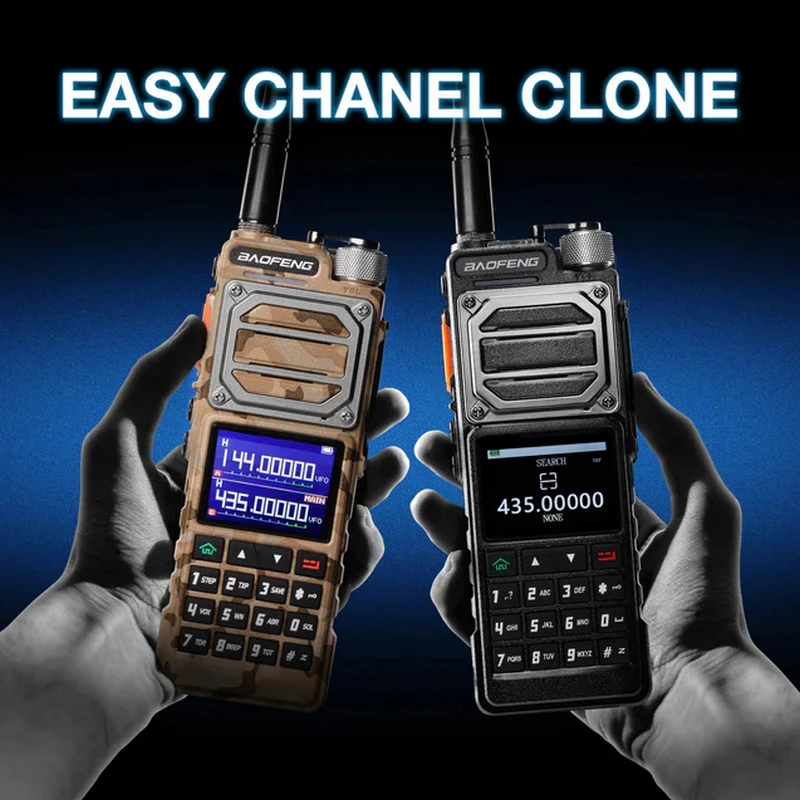

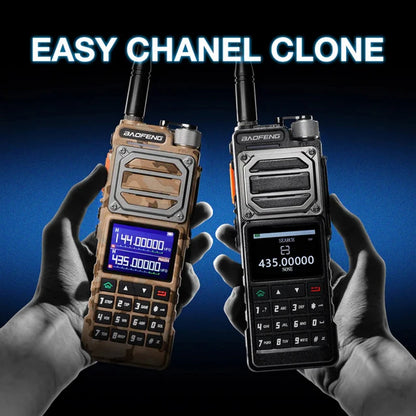

★【Wireless Copy Frequency】

● No need for a wired connection. It can wirelessly copy channel data with one click, quickly matching communication channels and simplifying device network setup.

★【VOX】

● In voice - activated call mode, it automatically triggers transmission when speaking. Hands - free talking is possible without pressing keys during busy work.

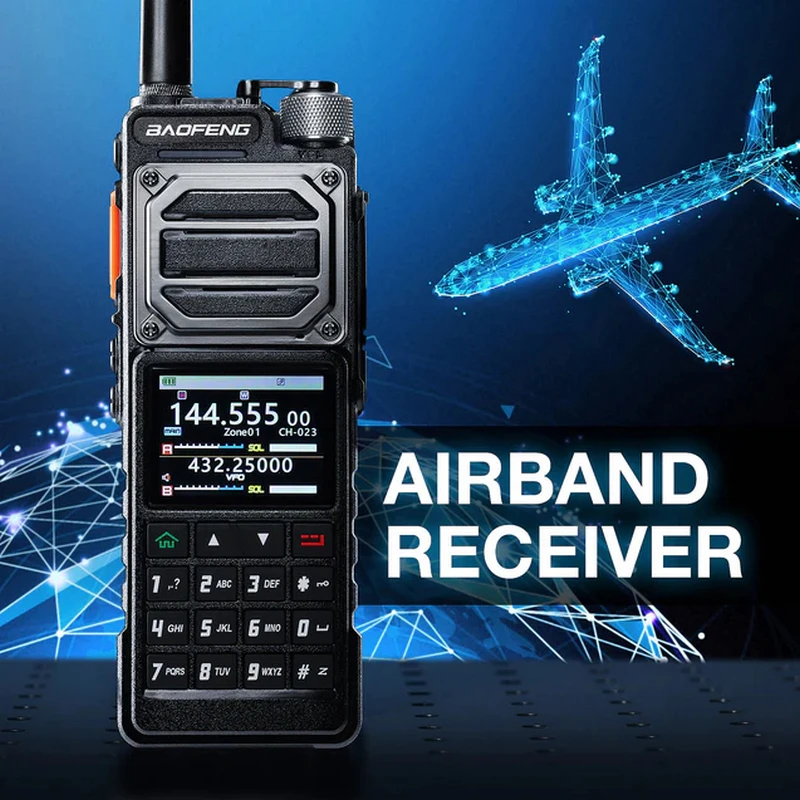

★【Air Band】

● Supports receiving aviation band signals. Users can tune in to airport flight dispatching broadcasts to meet daily aviation frequency monitoring needs.

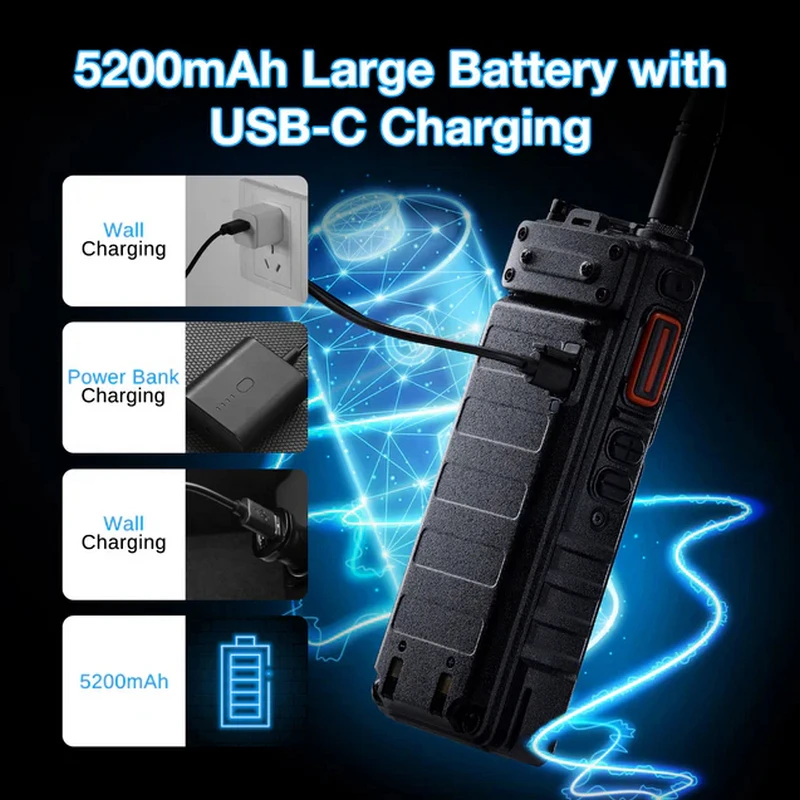

★【Battery capacity 5200mAh】

● Powered by a 5200mAh large - capacity lithium battery, it offers long - lasting standby performance and reduces the need for repeated charging in daily frequent use.

★【CHIRP PC & Manual Programmable】

● Features dual programming modes, either via computer software or manual operation. Users can flexibly adjust channel parameters for various usage scenarios.

------------------

★【Features and Functions】

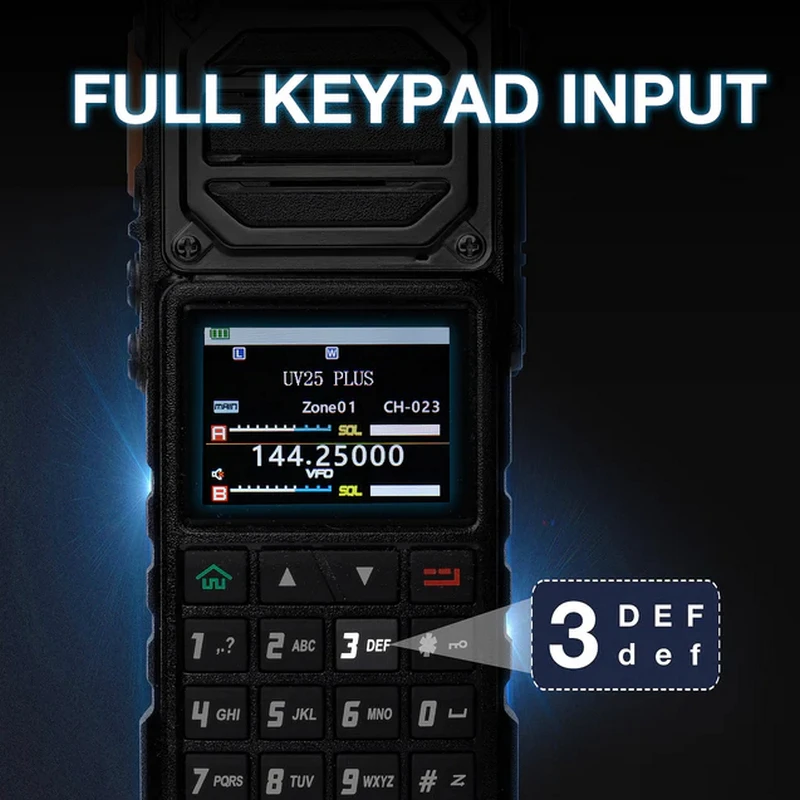

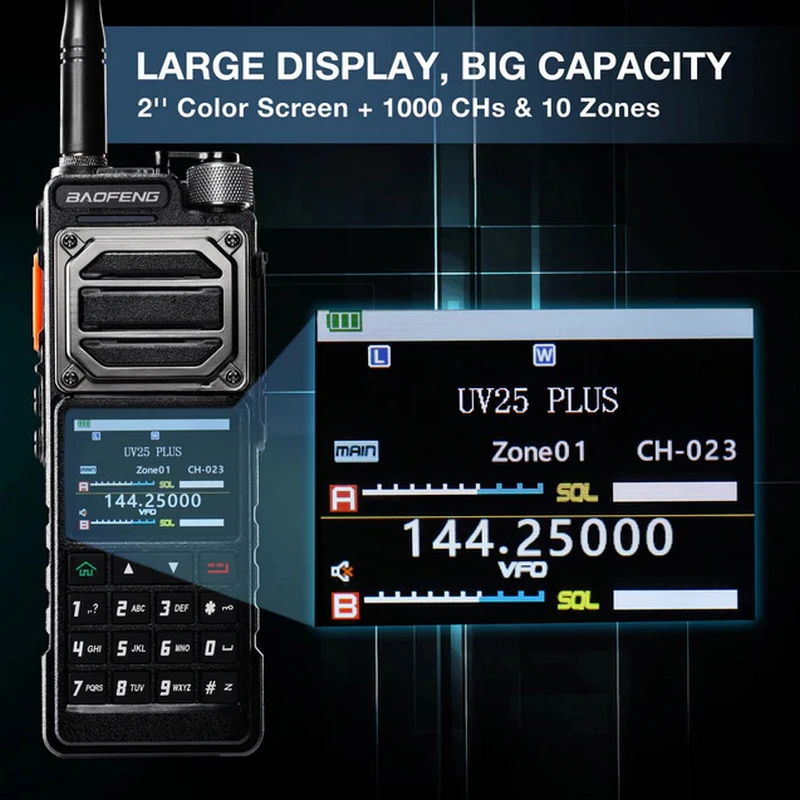

● 2.0" TFT large screen, full keyboard, fully open menu operation

● Scanner function: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, scan channel addition and removal

● 108 - 136,136 - 174,220 - 260,350 - 390,400 - 520MHz Multiband scanning receiver (*Suitable for North American users)

● Transmission Frequency

- 144 - 148 & 420 - 450MHz （America version)

- 144 - 148 & 430 - 450MHz （Canadian version)

- *144 - 146MHz, 430 - 440MHz (Applicable to users in EU countries and regions)

● Built - in input method, allows this device to edit channel name

● NOAA Weather Radio Channel Reception in the United States and Canada

● Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K

● Type - C direct charging and charging stand, more convenient battery life

● Dual - band handheld transceiver.

● DTMF encoder and DTMF manual dial

● High Capacity Lithium - Ion battery.

● Broadcast FM radio receiver 78 - 108 MHz

● 50 CTCSS tones and 105 DCS codes.

● VOX (voice activated transmit).

● 10 zones storage, Up to 1000 named memory channels.

● Alarm function.

● High or low power selectable.

● Display illumination programmable via keypad.

● Function beep on the keyboard.

● Dual watch / Dual reception.

● Programmable repeater offset.

● Battery saving function.

● Transmission time - out timer.

● Scan mode.

● Busy channel lock out.

● Built in CTCSS/DCS tones.

● Ten (10) levels of Squelch adjustment.

● End of transmission tone, aka “Roger Beep”.

● One touch search frequency

● GPS positioning function, location sharing and requesting location information from others

------------------

★【GENERAL】

● Channel capacity 1000

● Inter - channel spacing 25.0 KHz/12.5 KHz

● Input voltage 7.4 VDC

● Battery life: 5% TX, 5% RX, 90% standby Li - on: 15 hours at 5 watts

● Operating temperature - 10˚C to 60˚C

● Antenna impedance 50Ω

● Radio dimensions 69(W)*181(H)*44(D)mm (without antenna)

------------------

★【TRANSMITTER】

● Frequency range (TX)

- 144 to 148 MHz, 420 to 450 MHz (American version)

- 144 to 148 MHz, 430 to 450 MHz (Canadian version)

- *144 to 146 MHz, 430 to 440 MHz (EU CE version)

● Modulation 16K0F3E/11K0F3E

● Interfering emission - 16 dBm<1GHz, - 16 dBm>1GHz

● Frequency stability ±2.5 ppm

● Audio distortion ≤5%

● FM hum & noise 40 dB

------------------

★【RECEIVER】

● Frequency range

- 108 - 136, 136 - 174, 220 - 260, 350 - 390, 400 to 520 MHz (scan receiver)

- *144 to 146 MHz, 430 to 440 MHz (EU CE version)

● Sensitivity: 12 dB SINAD - 120 dBm

● Adjacent channel selectivity - 60 dBm

● Intermodulation and suppression - 70 dBm

● Audio nominal output power 1.0 Watt @ 16 Ω

● Audio nominal distortion ≤5%
