SPECIFICATIONS

Battery Capacity(mAh): 0

Battery Included: no

Brand Name: G-NiceRF

Certification: NONE

Dimensions: 41.4*28.2*6.2mm

EEPROM: embedded

Frequency Range: 134 - 174MHz; 400 - 480MHz

G-Nicerf Model: SA828

High-concerned chemical: none

Is_Display: No

Material: PCB

Maximum Range: 3km-5km

Model Number: Walkie talkie module SA828

Origin: Mainland China

Output Power(w): 0.5w-3w

Range: 3~5Km

Rechargeablebatteryincluded: No

SQ: 8

Sensitivity: -124dBm

Storage Channel: 38 CTCSS ,166 CDCSS

TCXO: 1ppm

Use: others

Walkie Talkie Type: MINI Walkie Talkie

Waterproof / Water-Resistant: No

bandwidth: 12.5/25KHz

customize: Yes

frequency band: UHF / VHF for option

modulation: FM

output power: 500mW-1W

We are an  original manufacturer  with more than 10 years experience of researching, developing, producing and selling IOT(internet of things) products such as RF modules, walkie talkie modules and integrated digital sensor modules.Meanwhile, ODM  and  OEM  projects are welcomed.

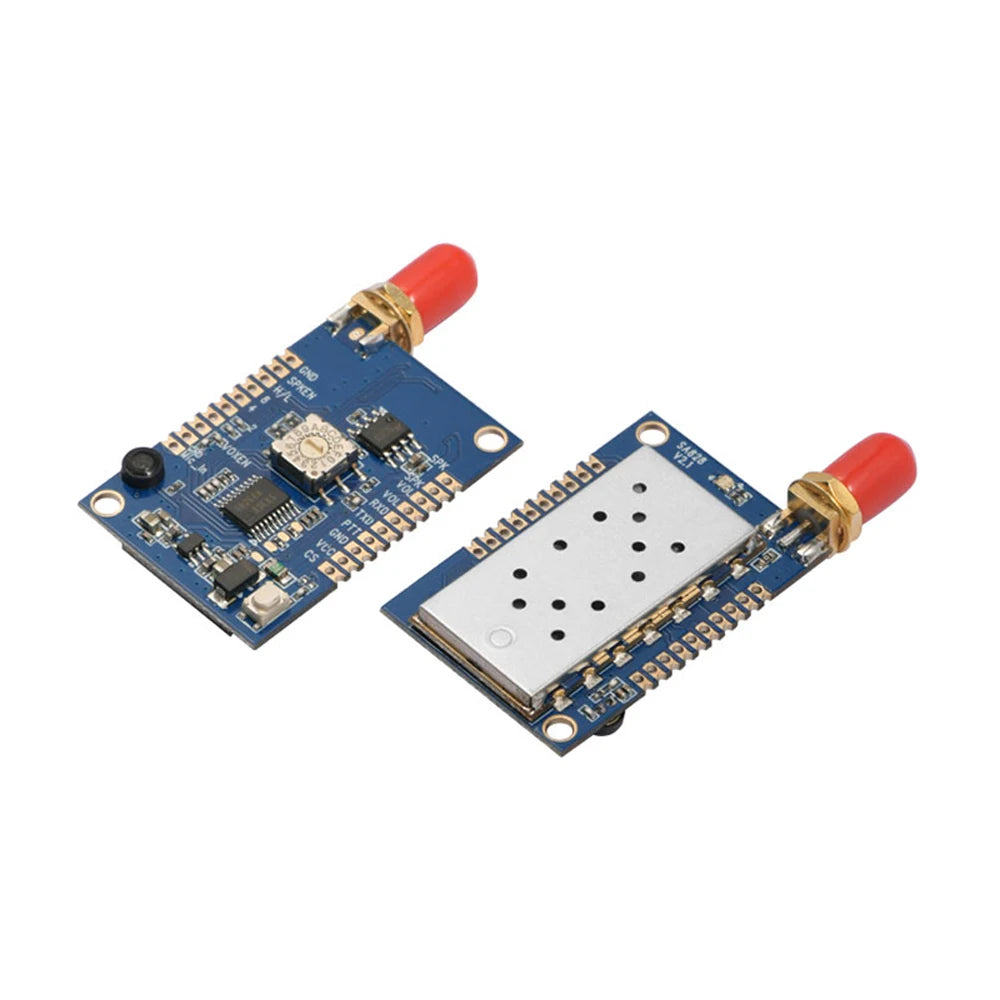

SA828 - 2pcs 3km Easy-to-use High-integrated VHF / UHF Frequency band Embedded WALKIE TALKIE modules+antennas

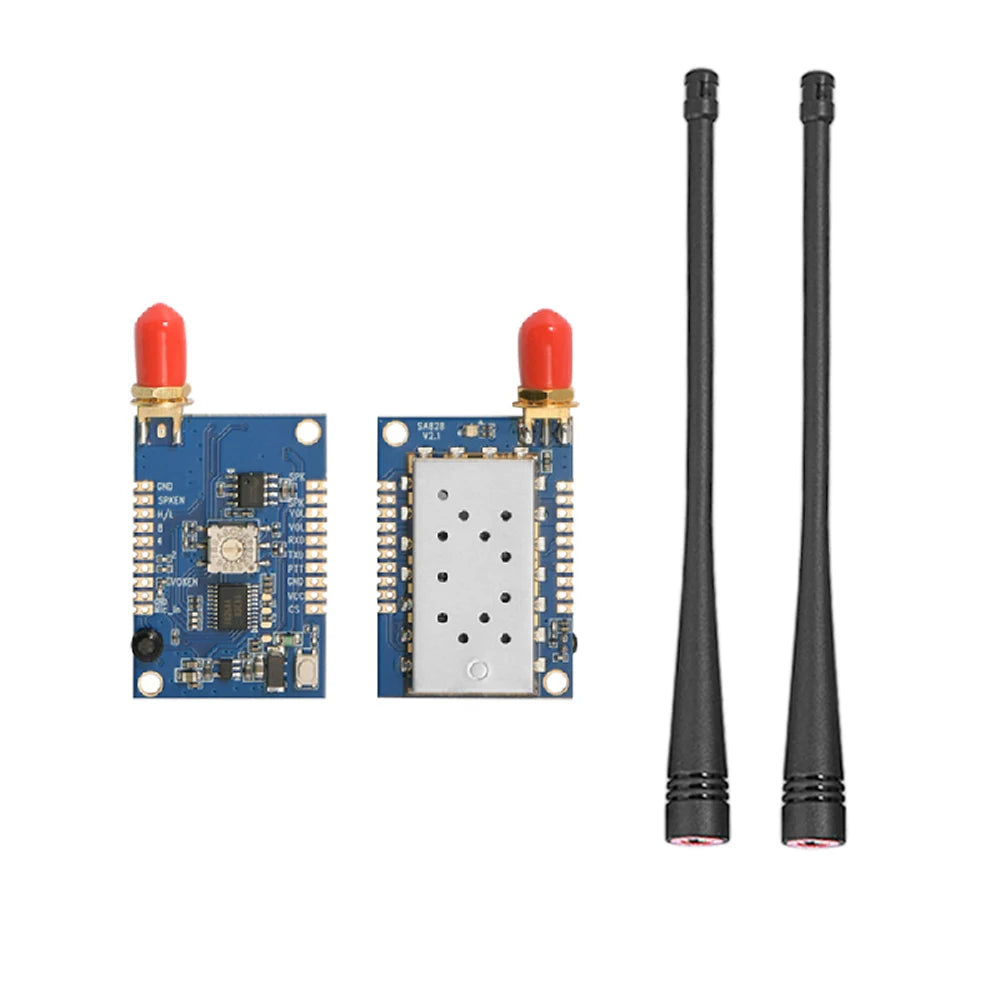

• 2pcs VHF(134 - 174MHz) all-in-one walkie talkie module SA828

• 2pcs 150MHz antennas

 If you need UHF(400~480MHz)frequency band, just leave message please.



SA828 is anall-in-one professional walkie-talkie modulein small size. It is very easy to use with powerful function. This module hasfull function of a professional walkie-talkie and can talk with any analog walkie-talkie in the market. With the small size, it can be easily embedded into instrument, portable and handheld device. SA828 works well in the hot/cold environment with the KDS 1PPM TCXO. The features of excellent antenna match network, good RF amplifier, high RF sensitivity allow its communication easily to achieve over 3Kmin open area.

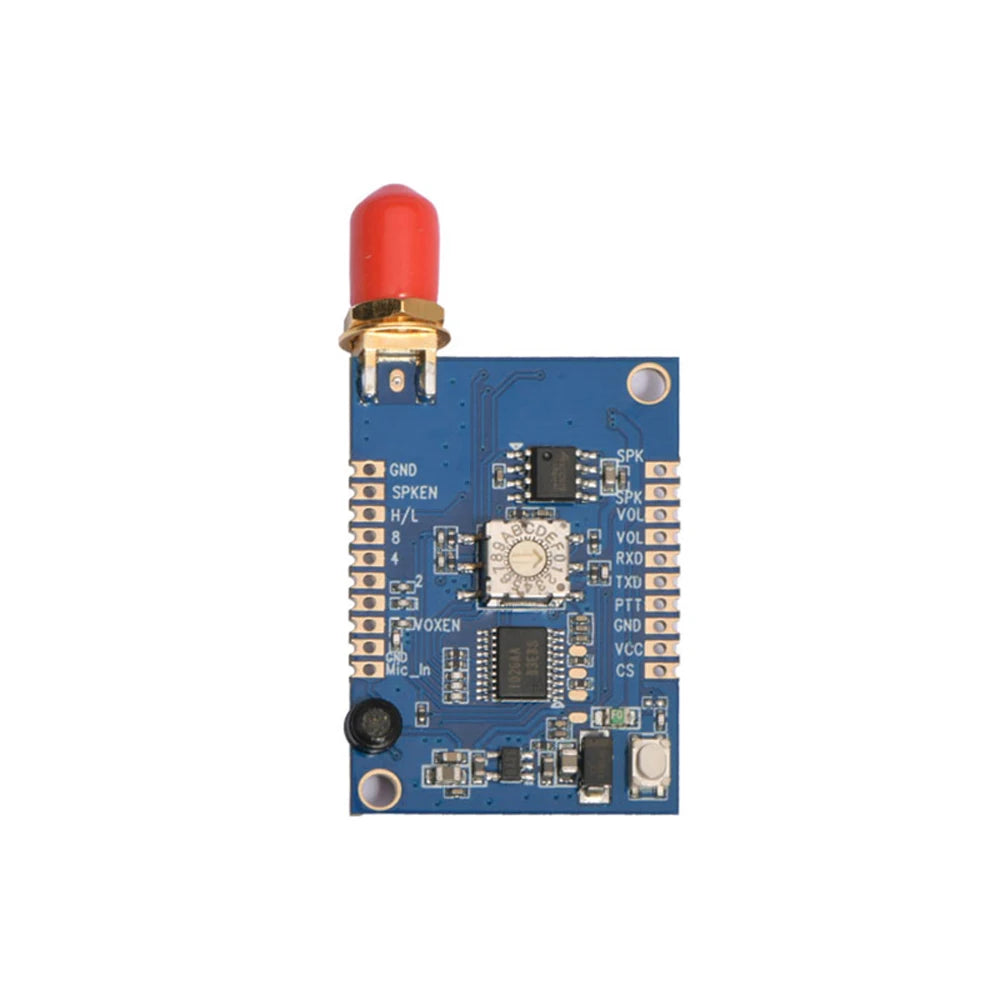

Rotary switch for channel selection,EEPROM,Audio Amplifier, RF Amplifier, PTT key, Antenna socket are all includedin such a small size module. Besides, all parameters (CTCSS, CDCSS, SQ, Predefined channels etc) can be easily modified either by PC software or command using UART interface. With the embedded audio volume turning circuit, user can only solder a variable resistor on Pin16, Pin17 to adjust the volume steplessly.



There are two frequency bands of SA828:

SA828-U and SA828-V. The only difference is the frequency range. The others are same, including module size, interface, software protocol, etc. The two modules' frequency ranges are:

SA828-U: U band, 400 -- 480MHz

SA828-V: V band, 134 -- 174MHz

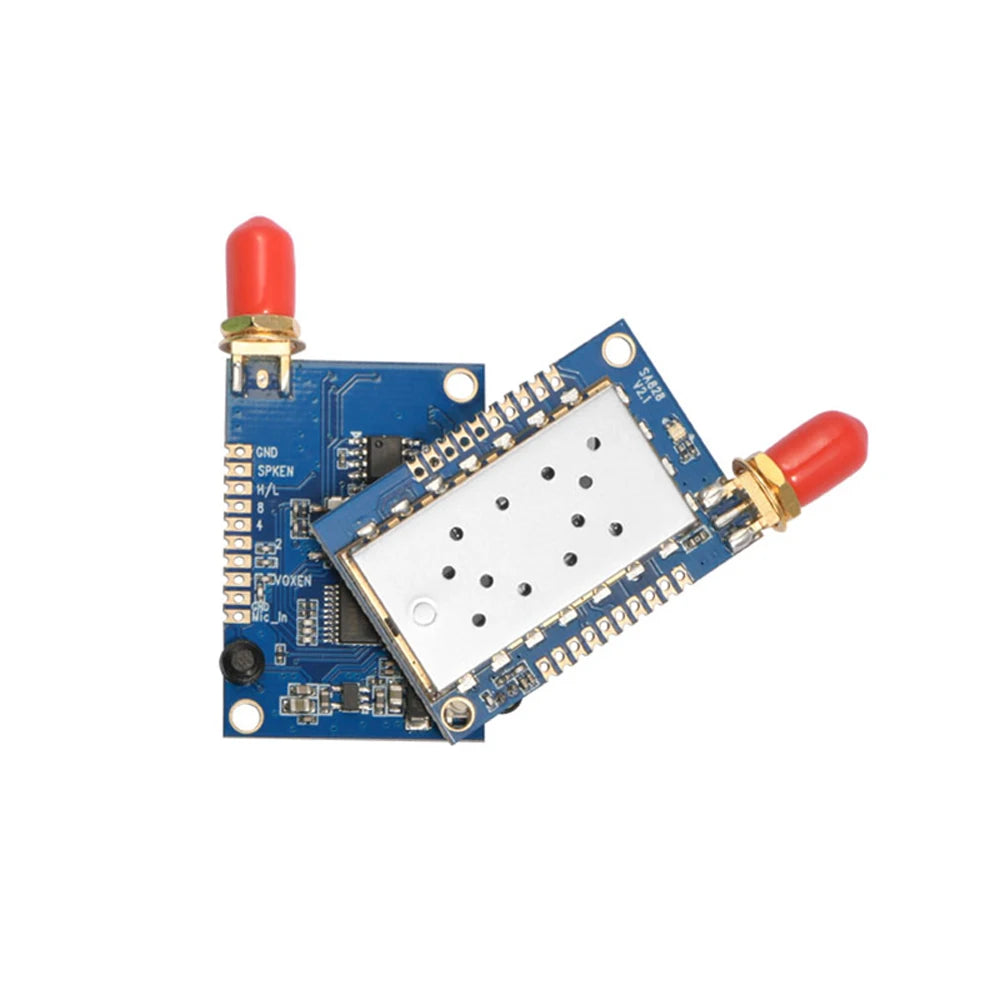

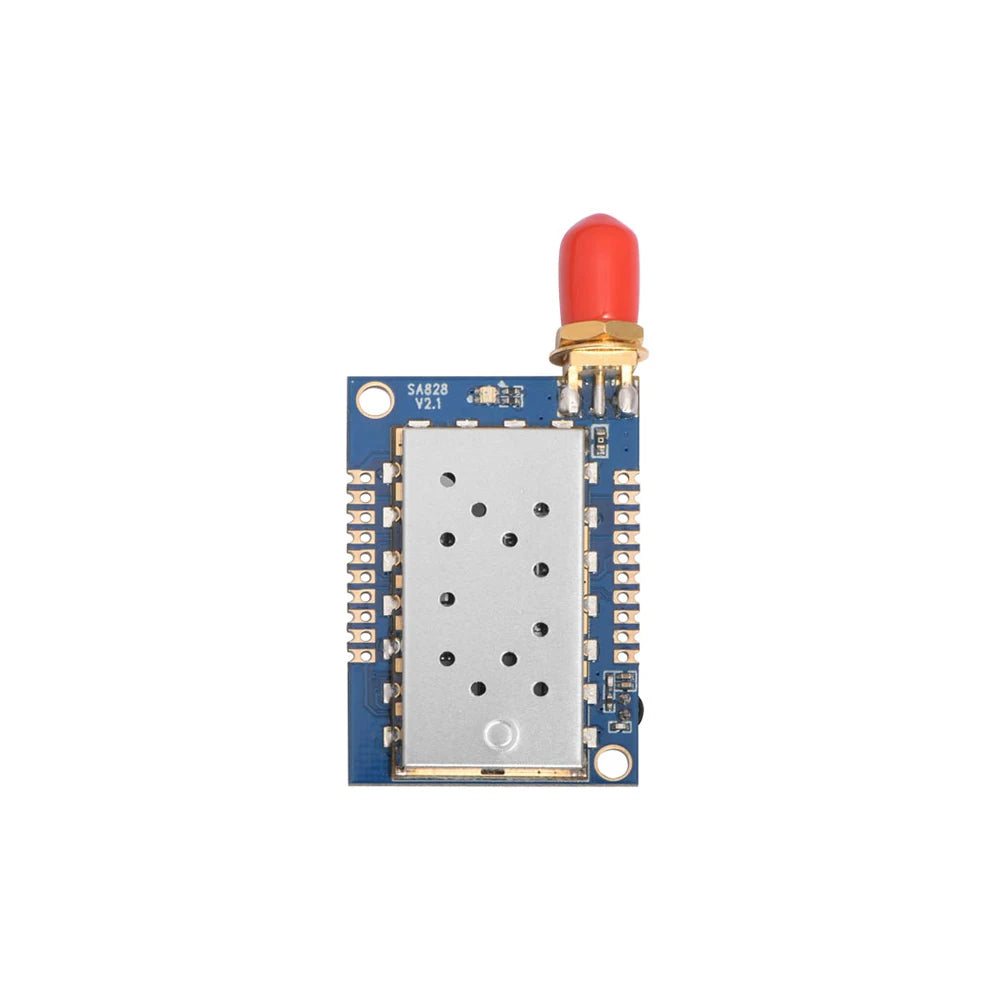

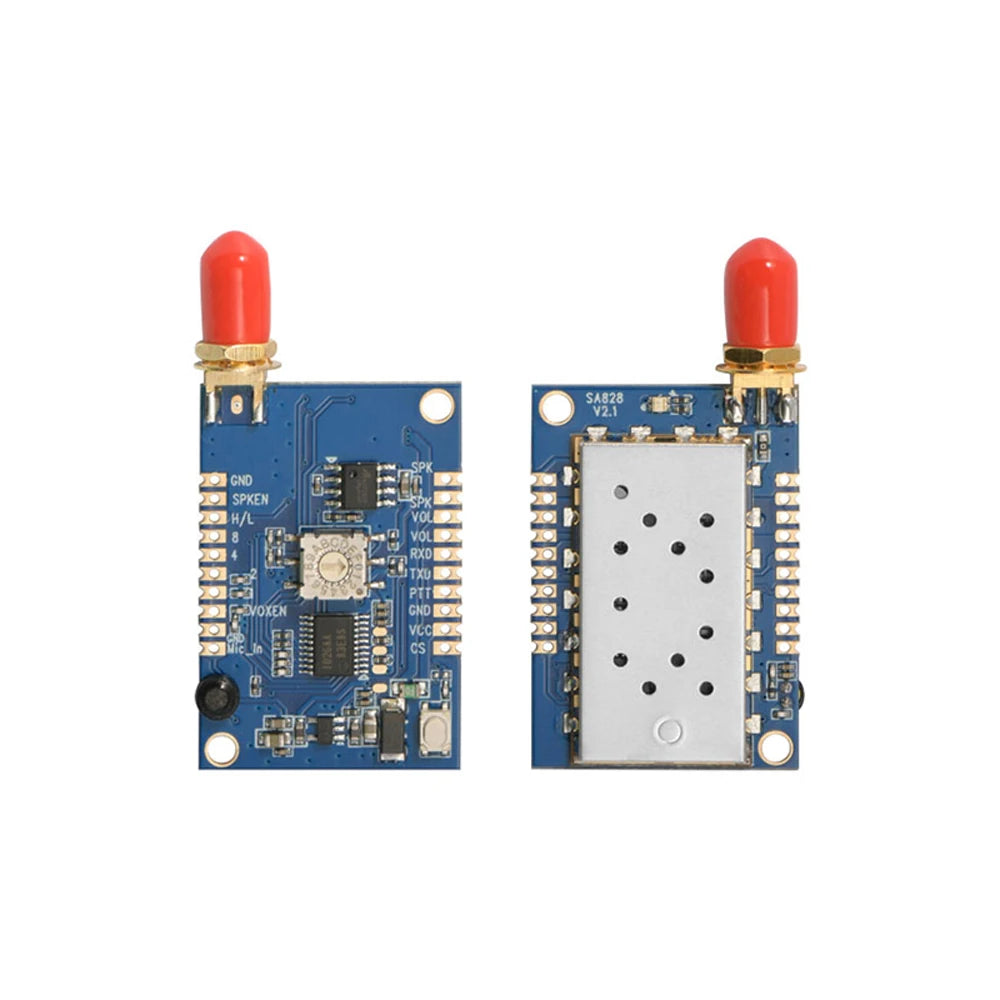

Product Picture:







Features:

• Frequency range: 400~480MHz/134~174MHz

• Solely TX and RX frequency

• 12.5/25KHz bandwidth selection

• 1W Output Power

• 3~5Km distance in open aera

• High Sensitivity: -124dBm

• High Integrated with ultra small size

• 166 CDCSS, 38 CTCSS

• 8 SQ

• High / low output power selection (500mW-1W)

• Embedded EEPROM, data saved

• even power off 1ppm TCXO



Application:

• Small size walkie-talkie

• Pocket / handheld device

• Security system

• Instrument

• Outdoor sport product

• Audio tracking and control system

Specification:

Internal diagram:







Typical application schematic:











Pin out definition:







Parameter setup:







Mechanical dimension:





Communication protocol:

The parameters of SA828 can be modified with standard UART interface. The interface voltage is TTL 3.3V. User can contact your sales engineer for detailed communication protocol.
